Aten UCE33100 4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m)

Description

As the scope of meeting rooms continually evolves, it’s critical that we keep pace and
maintain fast data transmission that extends to a longer distance should the occasion arise.
In such cases, the UCE33100 becomes your perfect partner as it extends your USB
connectivity across a distance of up to 100 m over a Cat 6A cable to assure a
smooth meeting experience and contribute toward your overall operational efficiency at the office.

5 Gbps High-Speed Data Transmission over 100 m

Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to
100 m with a Cat 6A cable*. (Product recommendation: 2L-29330)

4 × USB Type-A Ports for Plug-and-Play Peripheral Connections

Enhance the resourcefulness of the extender by tapping into its
4 USB Type-A ports and have a wide range of peripherals at your disposal.

PoC Power Supply for Ultimate Usability Convenience

Either the local or remote unit can be plugged into a power source and powered through
a single Cat 6A connection cable.

Easily Mountable for Versatile Deployment

For added ease of installation and expansion, a mounting kit is provided as a
resourceful accessory to facilitate easy and convenient installation.

Features

The UCE33100 is a two-piece extension kit that transmits uncompressed USB 3.2 data at up to 5Gbps over a 100 m Cat 6A cable. With four USB Type-A ports built on the remote unit, the connection to multiple USB peripherals, from flash drives, keyboards, mice, and webcams to interactive whiteboards, is made easy. The support for bi-directional RS-232 pass-through facilitates integration into control systems, and apart from that, the Frame Synchronization (FSYNC) GPIO pass-through ports allow bi-directional commands to be sent when it comes to industrial camera implementations. The bi-directional 24V power over cable function eliminates the need for an additional power adapter when either of the local or remote unit receives power.

The UCE33100 supports plug-and-play operation to work flawlessly with all operating systems, assuring hassle-free installation with no extra driver or software required. Flexibility is further enhanced due to the extender’s compact, wall-mountable enclosure, which also helps save space.

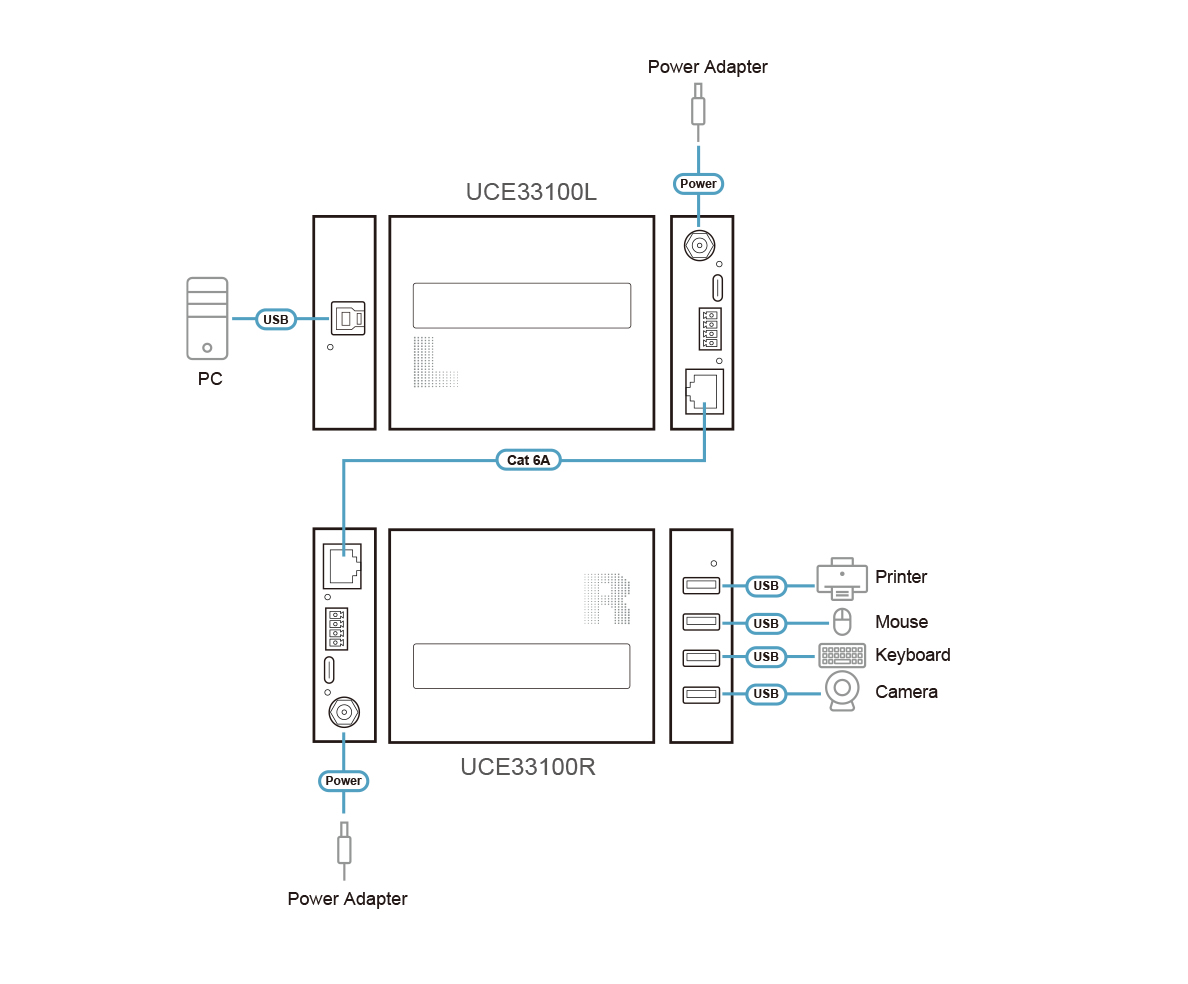

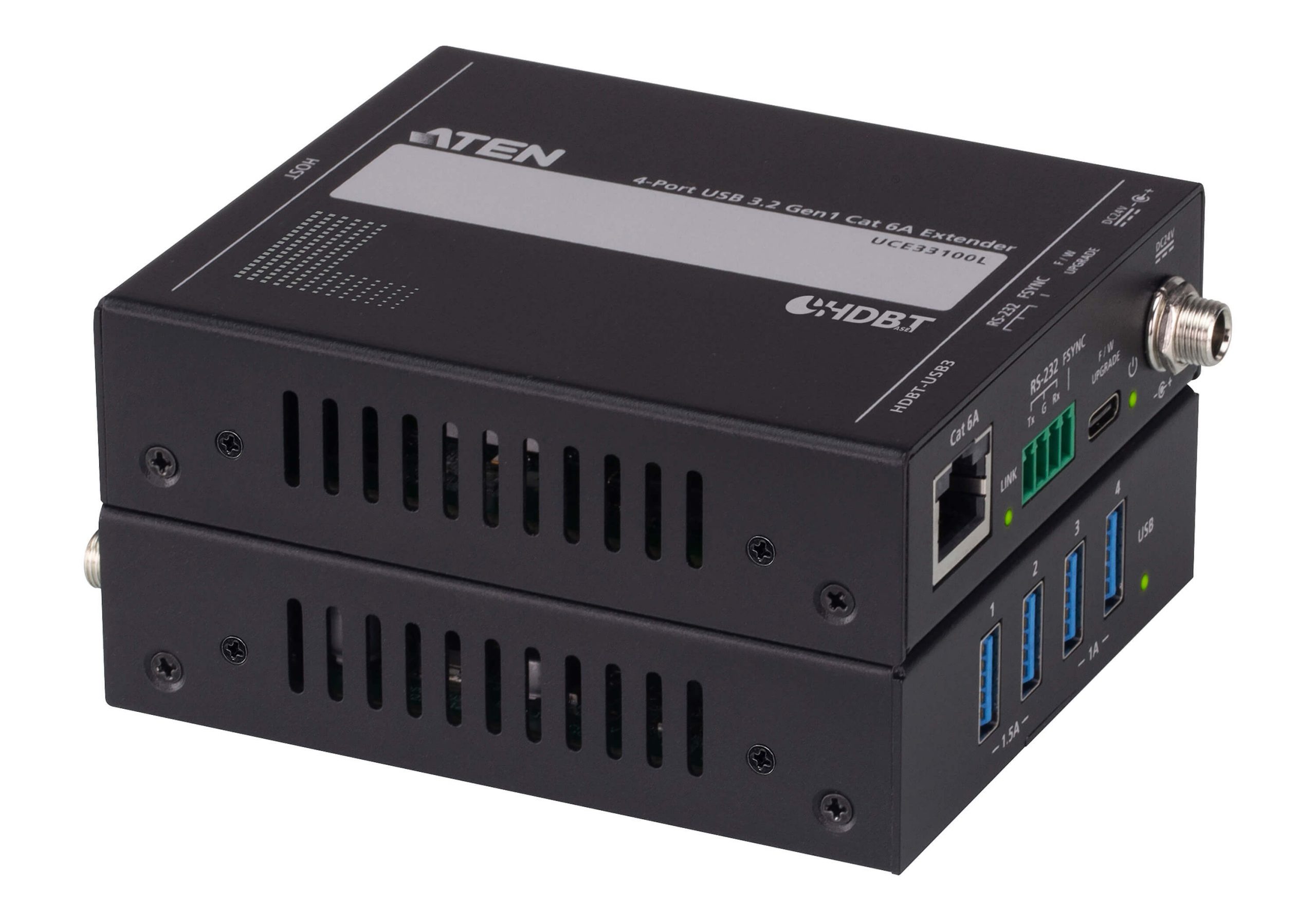

• Two-piece USB extension kit that transmits USB signals over a Cat 6A cable
• Long-distance USB 3.2 data transmission at up to 5 Gbps across 100 m
• Backward compatible with USB 2.0 and USB 1.1 specifications

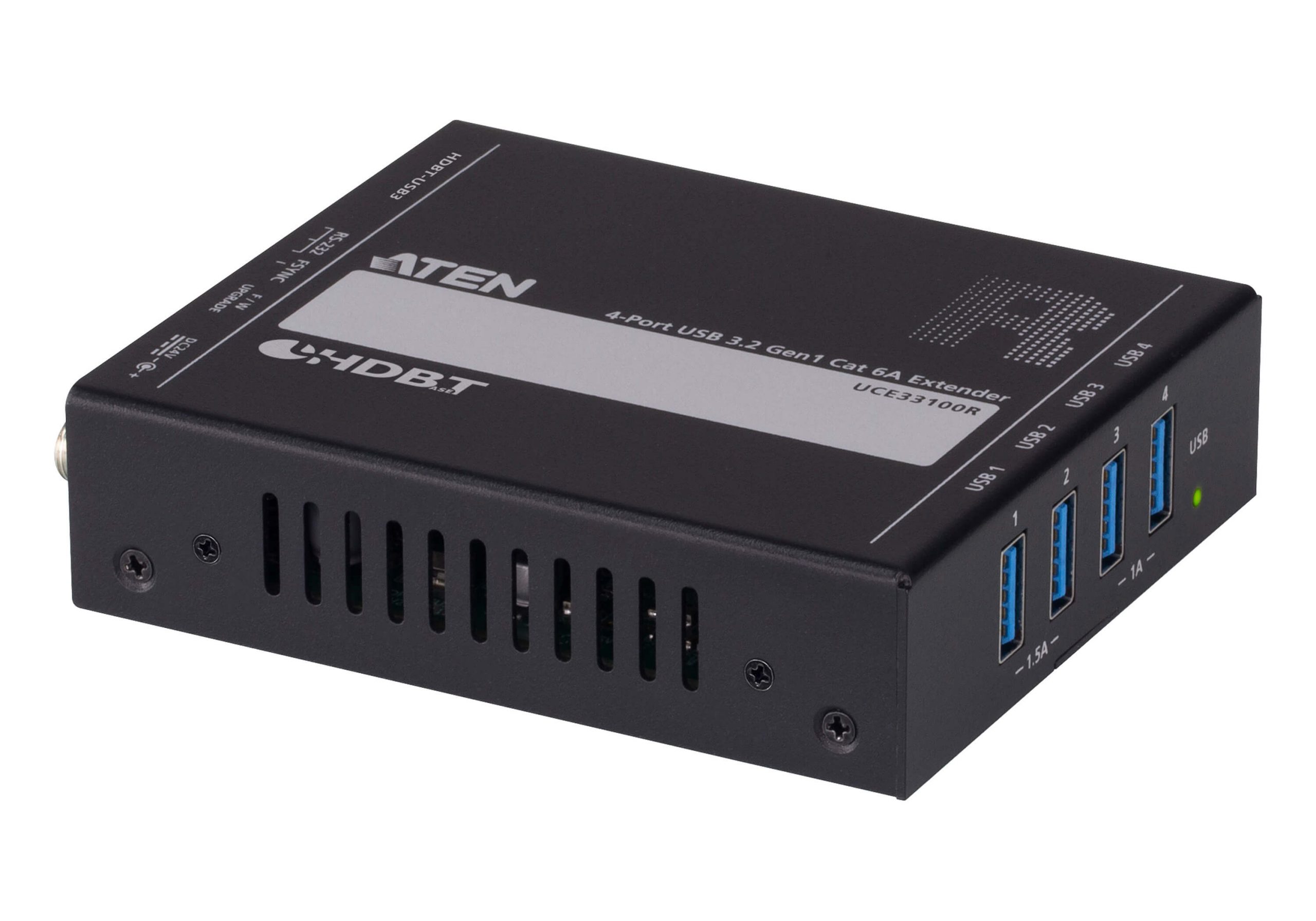

• Four USB Type-A ports on the remote unit for connecting multiple USB peripherals such as flash drives, keyboards, mice, webcams, and interactive whiteboards

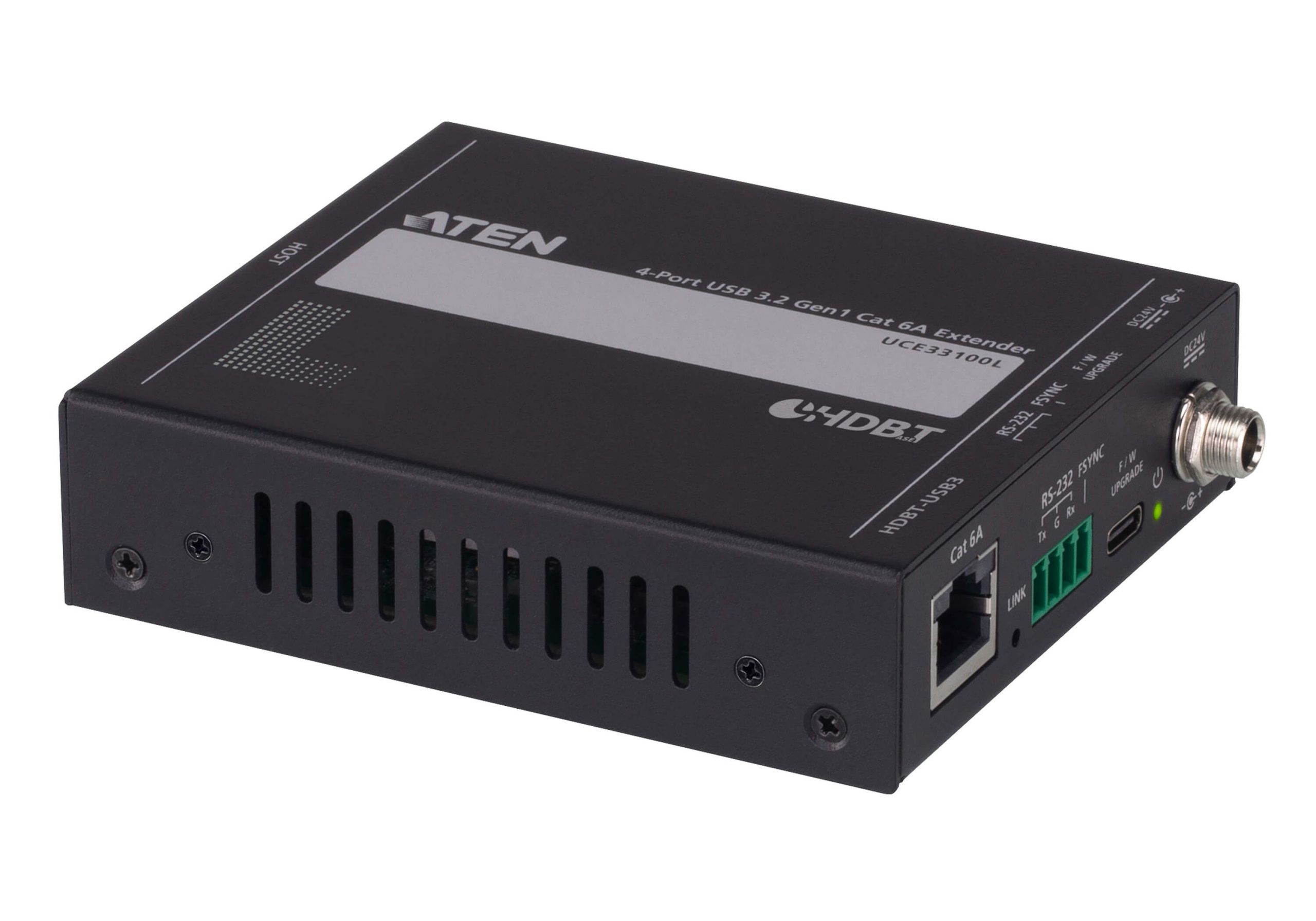

• Supports bi-directional RS-232 pass-through for seamless integration into control systems
• Supports bi-directional Frame Synchronization (FSYNC) GPIO pass-through for industrial camera applications
• Bi-directional 24 V power over cable eliminates the need for an additional power adapter when either the local or remote unit is powered
• Plug-and-play operation with no driver or software required, compatible with all major operating systems
• Compact, wall-mountable enclosure for flexible installation and space-saving deployment
