Aten SN1148CO 48-Port Serial Console Server with Dual Power / SFP

Description

ATEN SN11xxCO Series (SN1116CO / SN1132CO / SN1148CO) serial console server provides IT and network administrators secure, out-of-band access to serial devices located at data centers or remote sites (such as network switches allowing console operation using RS-232 and USB console1). With dual power/SFP2 in the SN11xxCO models, all of them integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.SN11xxCO series also supports USB 4G dongle3, for additional out-of-band network access.

All series of serial console server features Cisco pin-outs and auto-sensing DTE / DCE function, providing a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more time-saving IT infrastructure deployment. In addition, it support online detection of connected serial devices (including terminal blocks) for device status monitoring. An e-mail notification will be sent to the administrator when connected devices are offline. With dual Ethernet ports and power supplies (AC), the SN11xxCO supports power redundancy as well as failover, or dual IP addresses access, ensuring 24 / 7 availability of access to serial devices. A DC power option is also available for each of the SN11xxCO/SN01xxCO model for more flexible implementation4.

The SN11xxCO Series supports environmental monitoring through its sensor ports, remaining vigilant around the clock to detect any abnormal conditions. It offers audited and controlled door access using a cabinet lock through its relay port, enhancing security measures. All of the serial console servers can be utilized through ATEN’s CC2000 software to provide centralized serial device access and integrated power management.

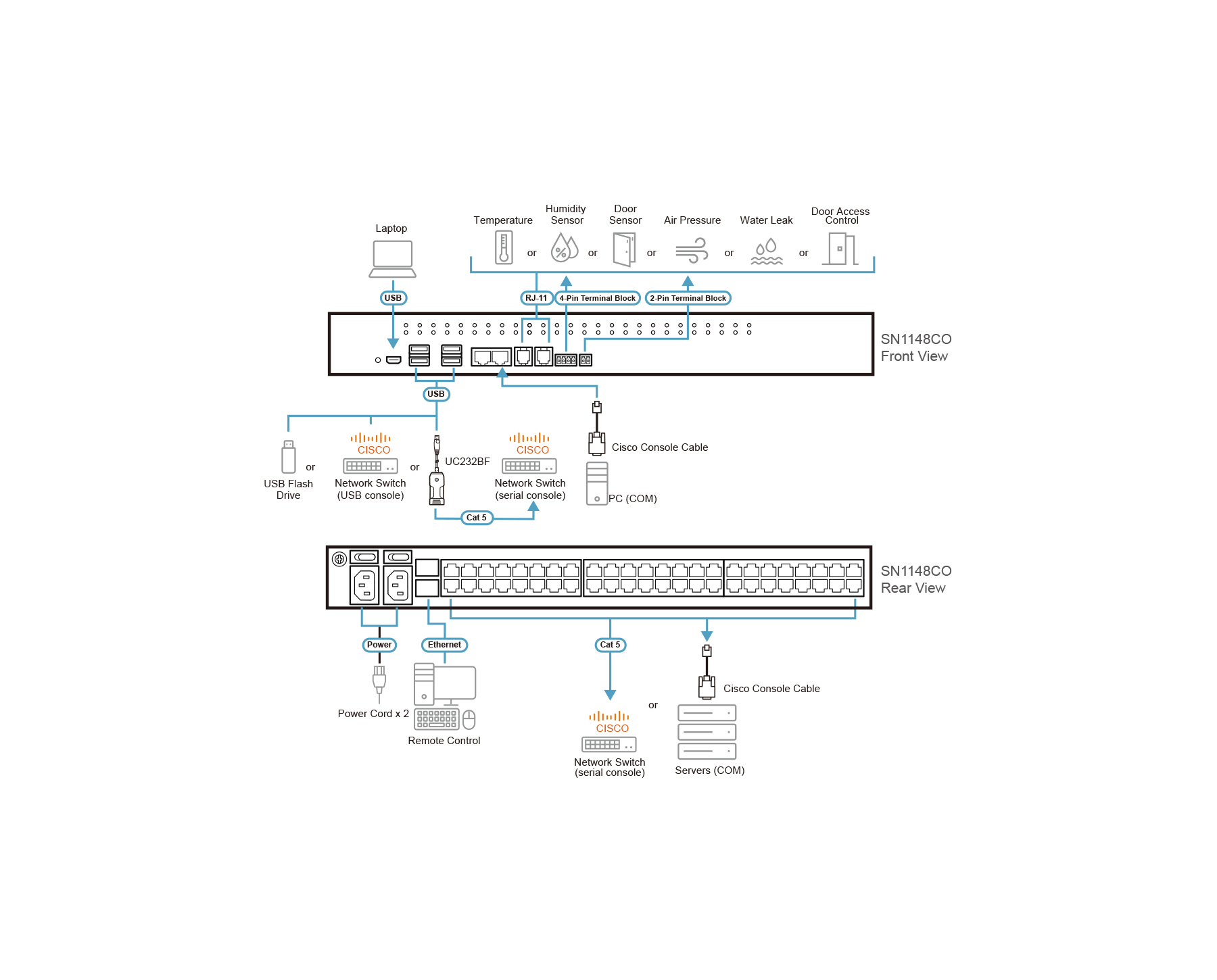

Available in 16-, 32- and 48-port models, the SN11xxCO serial console servers offer both in-band and out-of-band (OOB) remote serial console and USB console access to servers and network devices via a direct Telnet / SSH client, Java viewer and WebClient. The OOB management enables IT administrators to manage network devices (e.g. router, switch, UPS) in server rooms using management networks that are separated from the main / production networks. Where access difficulty occurs in the production network, the administrators can still access them via the console server. The serial console servers offer out-of-band access methods such as direct console connection from a local computer, USB console connection from a laptop, or hybrid network connection via the dual SFP (one connected to the production network and the other connected to the management network).

Implemented with various security technologies such as TLS 1.2 data encryption, RSA 2048-bit certificates,configurable user permissions for port access and control, local / remote / third-party authentication and authorization, IP / MAC address filter, and FIPS 140-2 certified cryptography, the SN11xxCO serial console servers assure administrators the security for easy and high-level access. For instance, access rights and privileges can be applied to 16 / 32 / 48 serial ports individually. Data encryption is provided to ensure that information and control are always protected. Logging and alerting of system events help to quickly resolve issues and mitigate risks.While secured by the above examples, the consolidated password authentication simplifies management.

The serial console servers are used to connect serial devices to an Ethernet network to allow access and control of demanding applications that manage industrial control, data acquisition, environment monitoring, remote facility operations and equipment management. Multiple operational modes are available to administrators including Console Management, Console Management Direct, Real COM Port, TCP Server / Client, UDP Server / Client, and Virtual Modem.

With their comprehensive features, the SN11xxCO Series help to maximize IT productivity, increase scalability, as well as reduce installation and operational costs with easy and secure remote management of serial devices. The serial console servers save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, and ensuring the highest availability for data center services.

Features

System Accessibility and Availability

• Secure in-band and out-of-band remote serial console and USB console access
• Browser access with an intuitive GUI
• Terminal-based access with a menu-driven UI or command-line interface
• Modem dial-in / dial-back / dial-out access

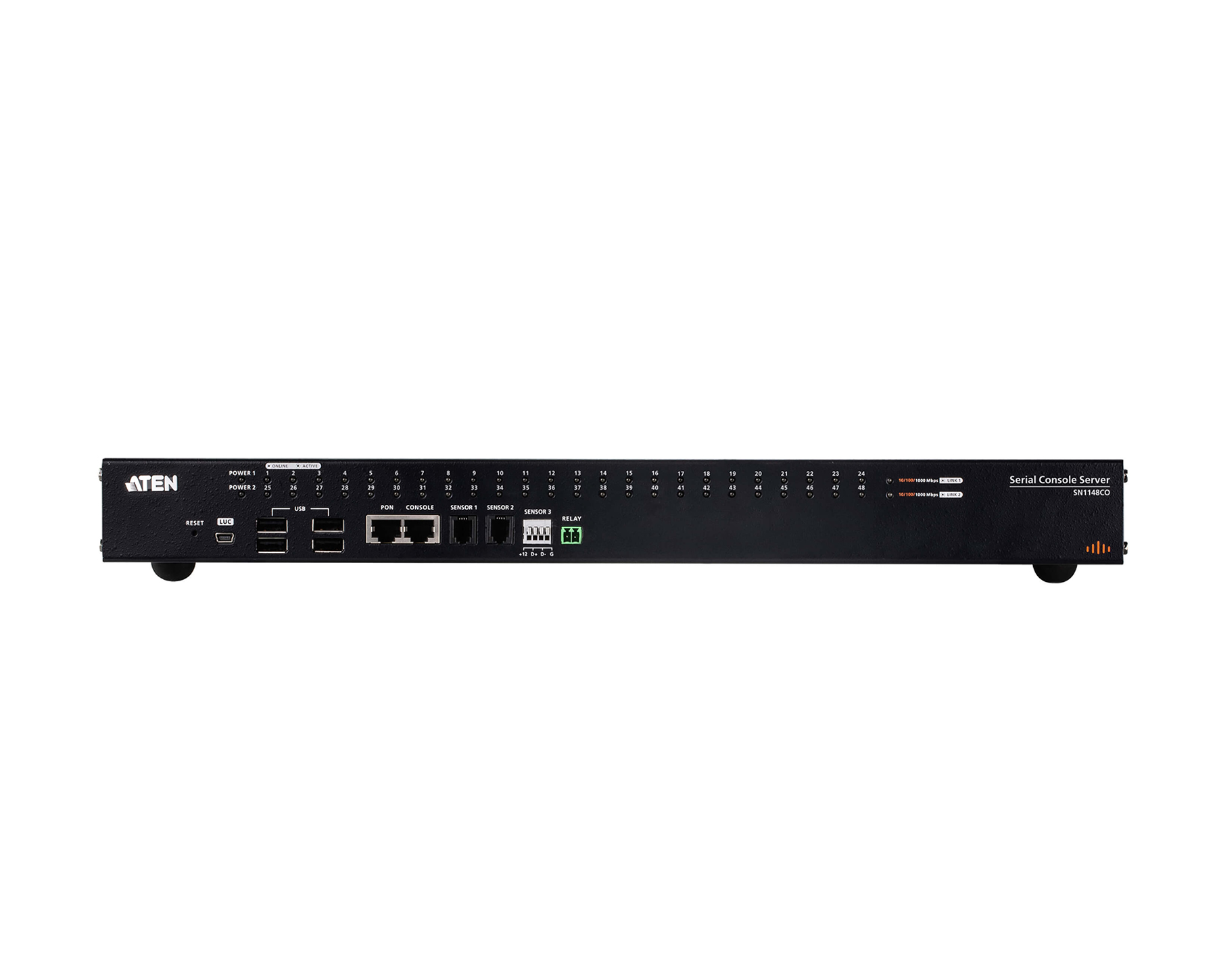

• Front USB ports for storage, USB console¹, and UC232B/UC232BF connection
• Laptop USB Console (LUC) port for local console access via laptop

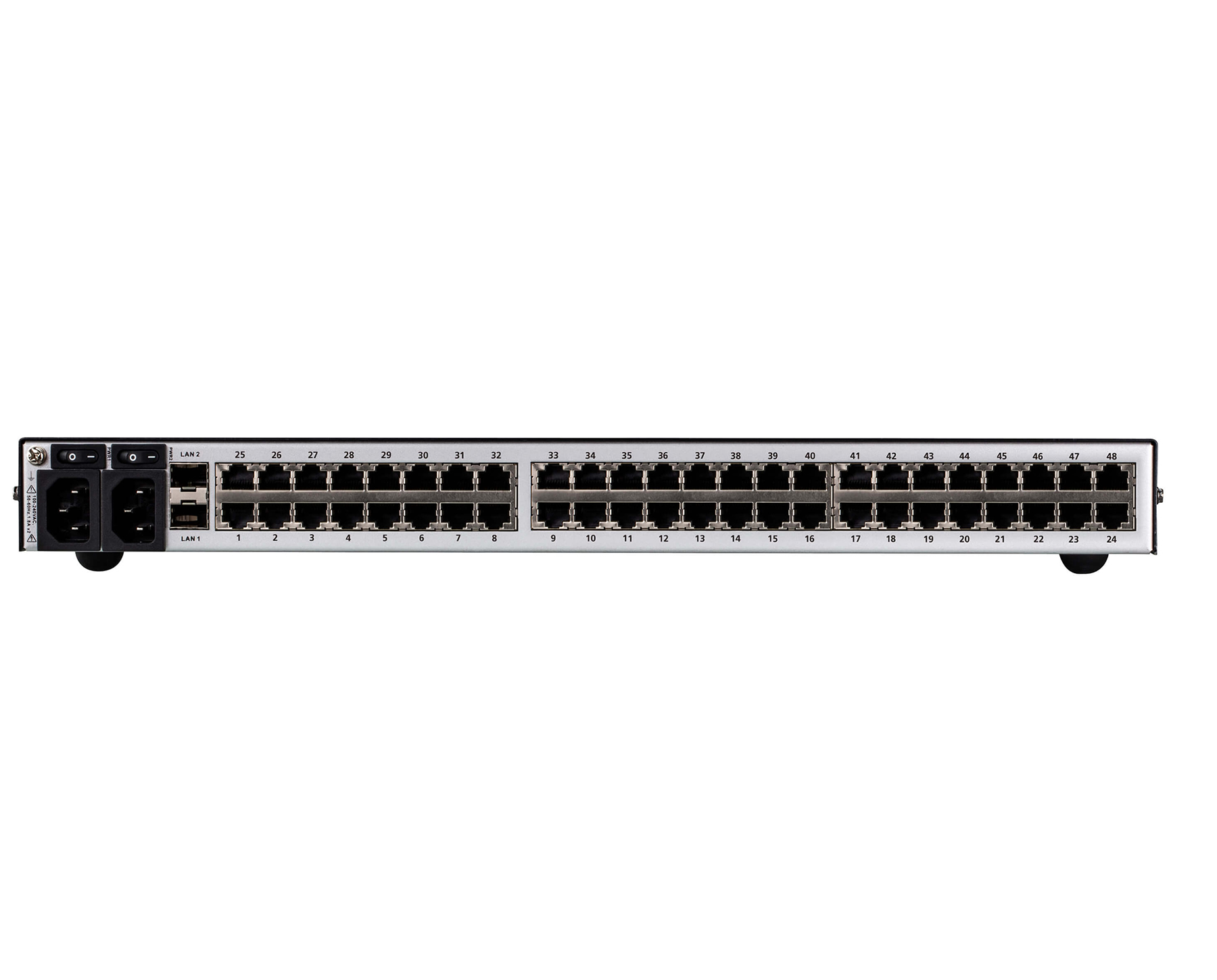

• Dual Ethernet ports for failover control or dual IP address access
• Dual power supply
• USB 4G dongle support – enables cellular out-of-band redundancy²

Serial Console Management

• Support sensor ports for environmental monitoring³
• Relay port supports cabinet door access control
• Auto-sensing DTE / DCE supports direct connection to Cisco network switches without rollover cables
• Online / Offline detection of connected serial devices with automatic event notifications
• Response Check monitors connected serial devices and sends notifications on failure
• Access via Telnet / SSH and third-party clients (e.g., PuTTY)
• Port access via ActiveX, Java serial viewer, or WebClient
• Viewer functions: copy/paste, logging, data import, macros, broadcasting, and message board
• Sun Solaris ready – Sun “break-safe”
• Alert Strings – SNMP Trap and/or email notifications for pre-defined strings
• Command filter to restrict users to predefined commands
• Multiple users can simultaneously access the same port (up to 16 connections per port)
• Simultaneous access modes: Exclusive / Occupy / Share

Security

• TLS 1.2 encrypted browser login with RSA 2048-bit certificates
• Configurable user permissions for port access and control
• Local and remote authentication
• Third-party authentication via RADIUS, TACACS+, LDAP/AD, and Kerberos
• IP and MAC address filtering for enhanced security
• FIPS 140-2 Level 1 security compliance using an embedded FIPS 140-2 certified OpenSSL module (Cert 1747, 2398, 2473)
• Supports security level configuration: High, Medium-high, Medium, or Custom
• IEEE 802.1X compliant
• Supports SSH password-less login for simplified access

System Management

• System configuration via web browser, Telnet / SSH, and local console
• System log and event logging
• Event destination: Log server, Syslog server, and USB drive
• SNMP agent v1/v2c/v3
• Event notification via SMTP email and SNMP Trap
• Backup / Restore system configuration; firmware upgradeable
• Multi-browser support: Internet Explorer, Chrome, Firefox
• NTP support for time synchronization
• IPv4 / IPv6 support
• LLDP support
• CLI (Command-Line Interface) support
• Integration with CC2000 software for centralized data center management
• Integration with CCVSR software for user session recording

Serial Device Management

• Serial operation modes: Console Management, Console Management Direct, Real COM Port, TCP Server / Client, UDP Server / Client, Virtual Modem
• Real COM driver for Windows 2000 or higher, Windows Server 2003 / 2008
• Real TTY driver for Linux
• Fixed TTY driver for UNIX⁴
• Supports baud rates: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps

Language

• Multi-language web-based GUI: English, German, Japanese, Korean, Russian, Simplified Chinese, Traditional Chinese

Note:
1. Compatible models: Cisco Catalyst 2960-C series.
2. Supports ZTE MF79U only.
3. Achieved using ATEN sensors.
4. Fixed TTY driver supports OpenServer (SCO Unix), UnixWare 7, SVR 5, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, FreeBSD, Solaris 10, AIX 5.x, HP-UX 11i.
