Description
Sustainability is pivotal in modern business, with IT/OT convergence at the forefront of innovation.
This union not only heightens competitiveness but also enhances responsiveness to market demands,
particularly concerning data security and network uptime. With the rise of digitalization in
industry, cybersecurity’s role in bolstering IT-OT synergy is crucial.
The DigiKVM™ – KG0016 / KG0032 exemplifies this digital shift. This all-digital
KVM over IP OmniBus Gateway champions digital transformation in spaces such as server rooms and
data centers. Through a secure portal, it offers centralized management and real-time remote
server access.
Regardless of the data signal type from the linked KVM DigiProcessor, all transmissions are
digitized and protected—ensuring fast, clear video monitoring with remarkable visual accuracy.
The all-digital KVM over IP solution stands out for its robust security, versatile OS compatibility,
and reliable out-of-band (OOBM) management, enabling rapid service restoration and minimized
business downtime for geographically distributed enterprises.
ISO/IEC 27002:2022 Compliance. BIOS-Level Remote Security
The KVM over IP OmniBus Gateway delivers a secure, hardware-based KVM over IP solution with direct,
hack-proof BIOS-level control. Unlike software tools such as VNC or RDP, it eliminates OS-level
vulnerabilities while ensuring compliance with ISO/IEC 27002:2022 Control 6.7 on Remote Working.
This safeguards the confidentiality, integrity, and availability of sensitive data, processes,
and systems in mission-critical environments.

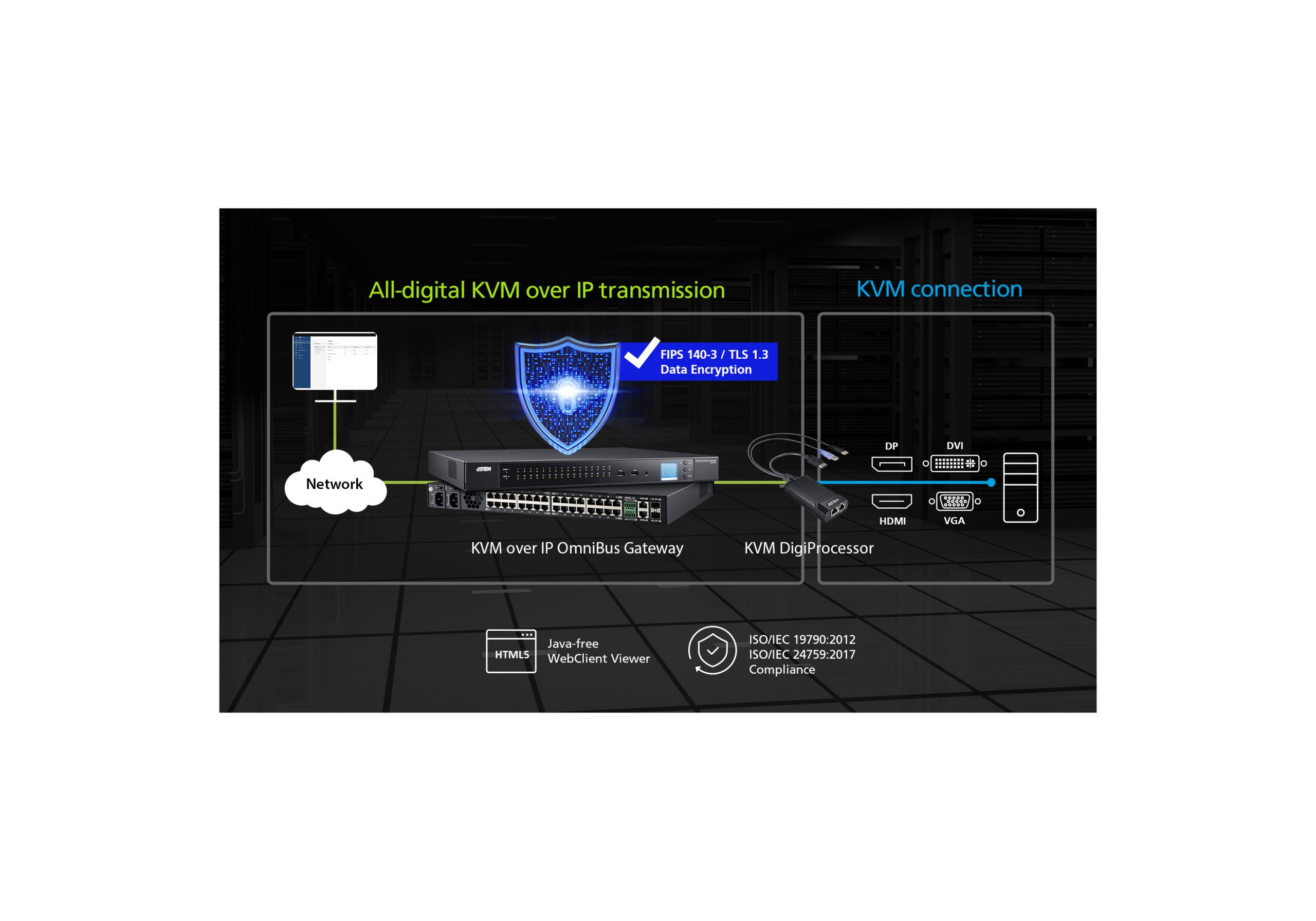

Industry-First FIPS 140-3 Secured All-Digital KVM over IP Transmission
Operating within a closed system, the KVM over IP OmniBus Gateway provides a single secure portal
to centralize BIOS-level connections to PCs and servers—without requiring additional software
installation or configuration.
As the industry’s first all-digital KVM over IP solution to implement
FIPS 140-3 and TLS 1.3 encryption, it safeguards data transmission
and enables secure access via a Java-free HTML5 WebClient Viewer or WinClient Viewer.
Real-time and Concurrent Remote Access, Anywhere and Anytime

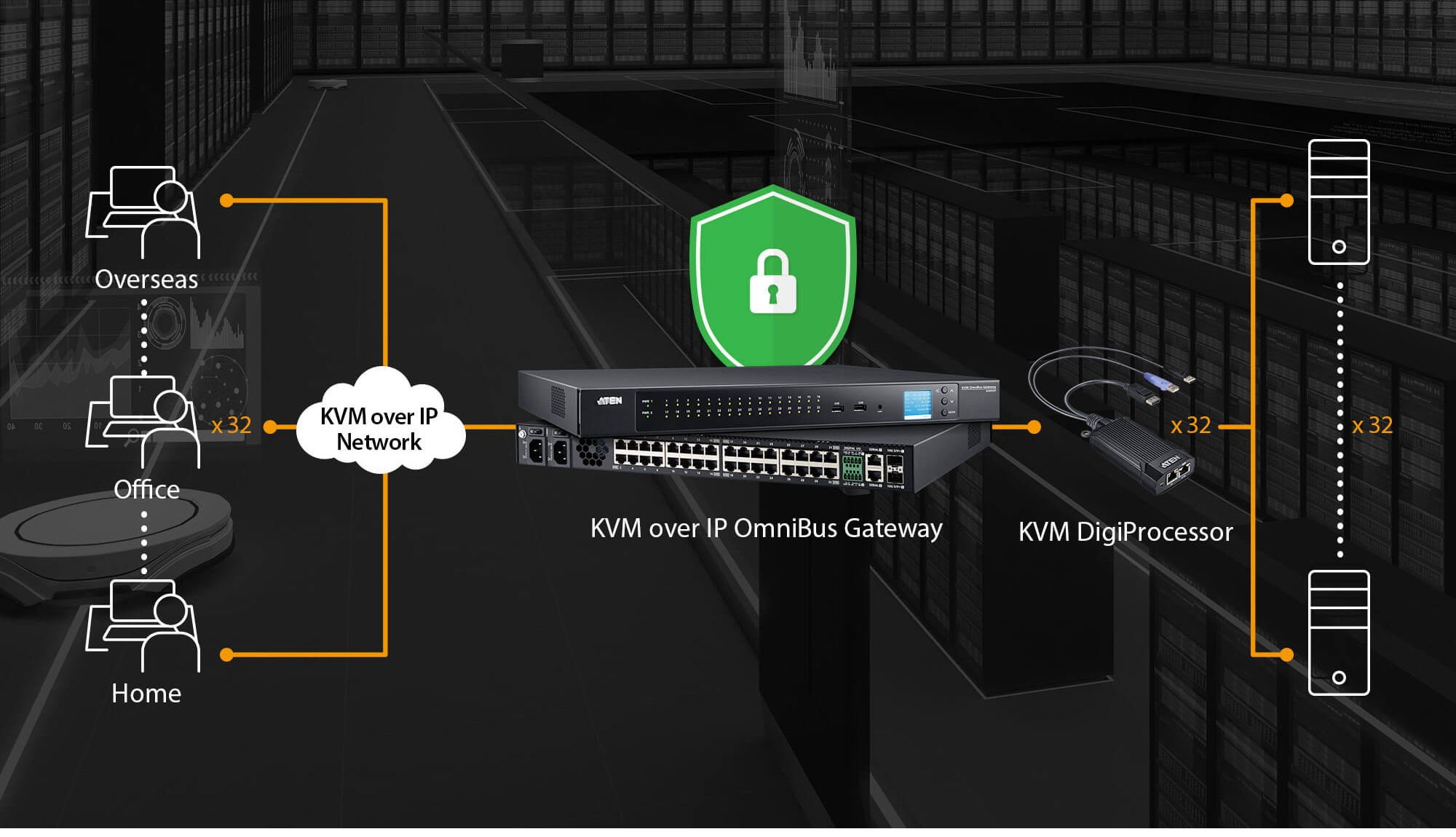

The all-digital KVM over IP OmniBus Gateway allows real-time access for up to
32 concurrent remote users to any connected server, regardless of location.

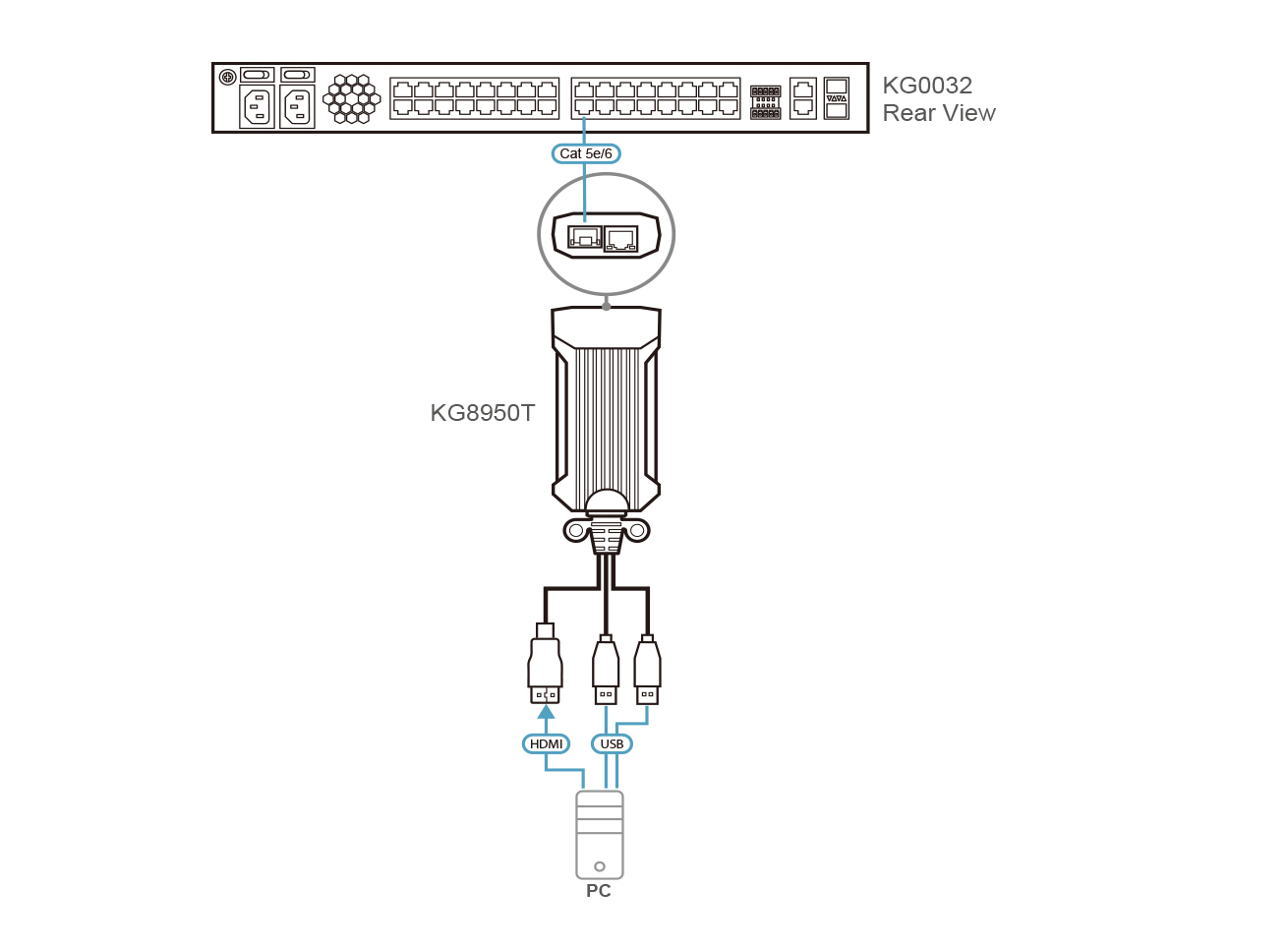

Server connections can be extended up to 100 meters, delivering exceptional
4K visual clarity and smooth keyboard-video-mouse synchronization.
Accelerating Digitalization via Digital Twin Model
With the deployment of the KVM over IP OmniBus Gateway and KVM DigiProcessor, equipment data from
production lines can be monitored and processed in real time via a remote console.
This eliminates the need for frequent physical access to production lines or clean rooms,
facilitating manufacturing digitalization through a digital twin model to optimize processes.
Out-of-Band Management for Any Contingency
By separating the management and production networks, the KVM over IP OmniBus Gateway enables IT
operators to perform BIOS-level troubleshooting, system maintenance, and recovery during
production network downtime.
This serves as an effective emergency measure while maintaining end-to-end data and workflow
security.
Panel Array Mode™ Live+ for Multi-View Monitoring in Clarity
Panel Array Mode™ Live+ enables real-time monitoring by displaying a dedicated server in
24-bit true color at up to 3840 × 2160 @ 30Hz, alongside a
configurable multi-view grid.
The layout supports up to 4 × 4 views with KG0016 or
4 × 8 with KG0032, delivering smooth livestreamed video for optimal situational
awareness.
Virtual Media Support for Prompt Server Updates
Virtual media mapping enables remote servers to be updated as if media were locally connected,
reducing travel costs and minimizing MTTR.
With data transfer rates up to Read: 265 Mbps and
Write: 188 Mbps, firmware upgrades, diagnostics, file transfers, and software
installations can be completed quickly from a single remote console.
Superior Hardware Performance to Reinforce System Reliability
Built with four server-grade smart fan modules, the KVM over IP OmniBus Gateway ensures efficient
airflow and system reliability while operating quietly under 40 dBA during low workloads.
Front-panel pushbuttons support rapid troubleshooting, configuration, and system reboot, and can
be locked to prevent unauthorized access.

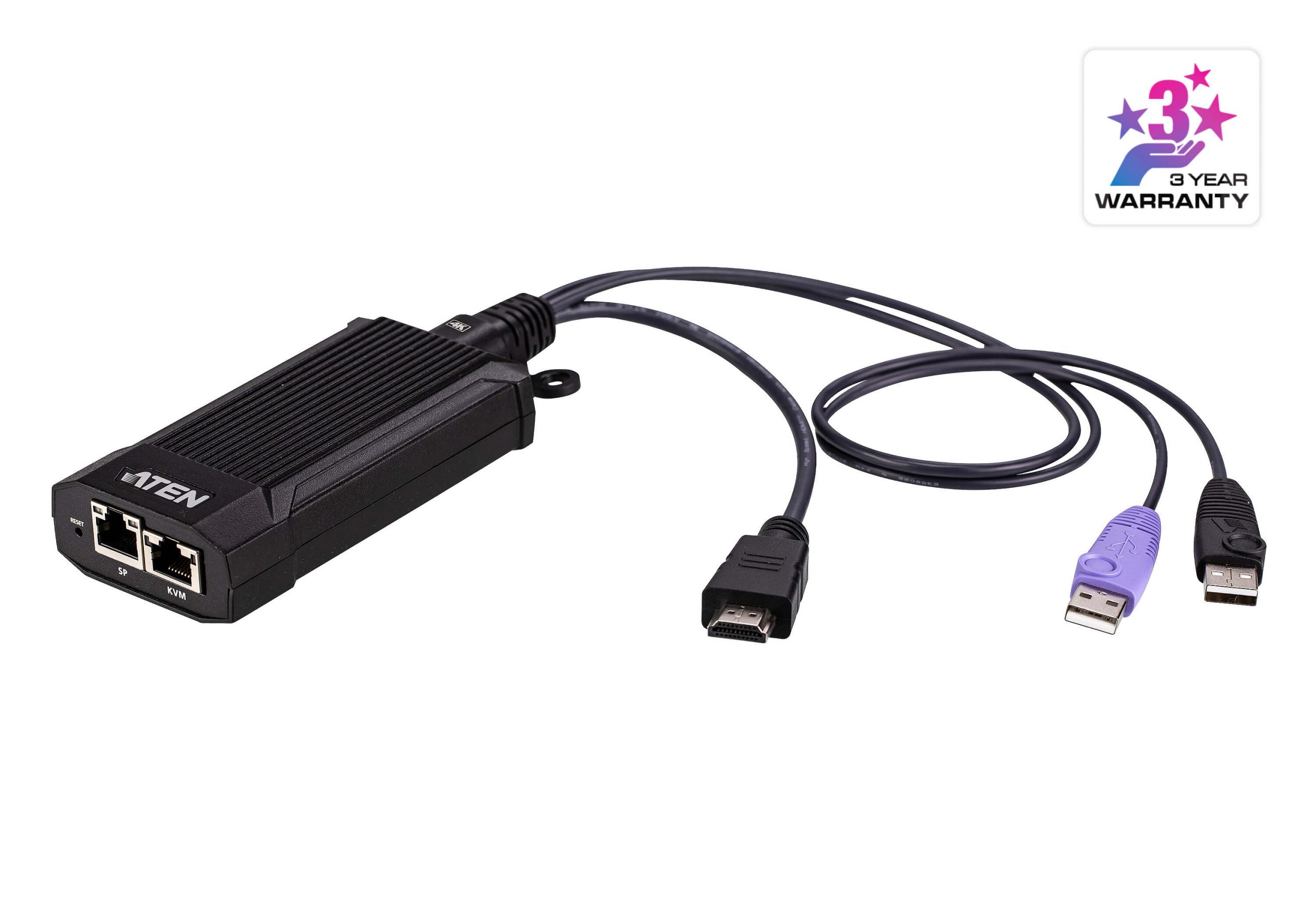

Industry’s Most Compact KVM DigiProcessor
Available in VGA, DVI, HDMI, and DisplayPort versions, the KVM DigiProcessor is 25% lighter and
one-quarter the size of comparable products—maximizing rack space efficiency.

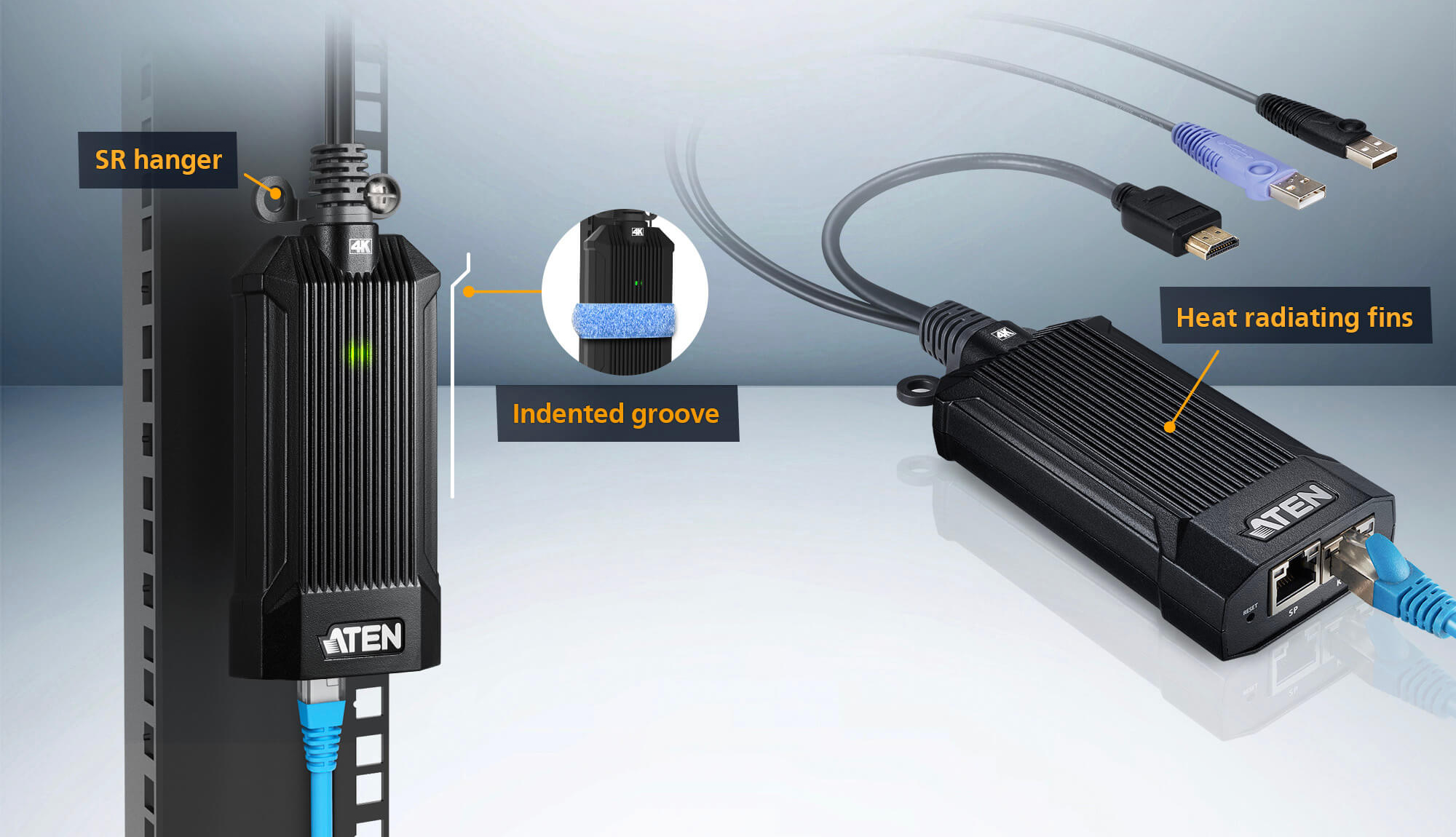

Its anti-bending SR hanger, side grooves, and heat-radiating fins ensure stable installation,
enhanced airflow, and long-term reliability.
Applications
The all-digital KVM over IP solution enables seamless IT/OT convergence with comprehensive server
management, making it ideal for industries accelerating toward digital transformation.
IT Infrastructure Management
- BIOS-level access
- High-speed virtual media read/write performance
- TLS 1.3 & FIPS 140-3 encryption
- Up to 32 concurrent remote users
- Real-time remote monitoring and control
- Panel Array Mode™ Live+ with livestreamed video
Production Automation
- Delay-free remote control
- Real-time equipment monitoring and access
- Panel Array Mode™ Live+ with livestreamed production visuals
- High-speed virtual media read/write performance
Remote Monitoring & Control
- Up to 32 concurrent remote users
- Panel Array Mode™ Live+ with livestreamed video feed
- Superior virtual media transfer performance
Features
-
Superior video quality – Supports resolutions up to
3840 × 2160 @ 30 Hz with 24-bit color depth -
Distortion-free dynamic video performance up to 100 m via
Cat 5e / Cat 6 cable -
Virtual Media supports high-speed transmission up to
Read: 265 Mbps / Write: 188 Mbps -
Space-saving design – 0U compact form factor with SR mounting hanger for
organized server rack installation -
Lightweight aluminum die-casting shroud with enhanced passive cooling and streamlined
heat-radiation design -
Bus-powered – No external power adapter required with ultra-low power
consumption - Firmware upgradable
- Supports Smart Card / CAC reader
- HDMI digital audio support
