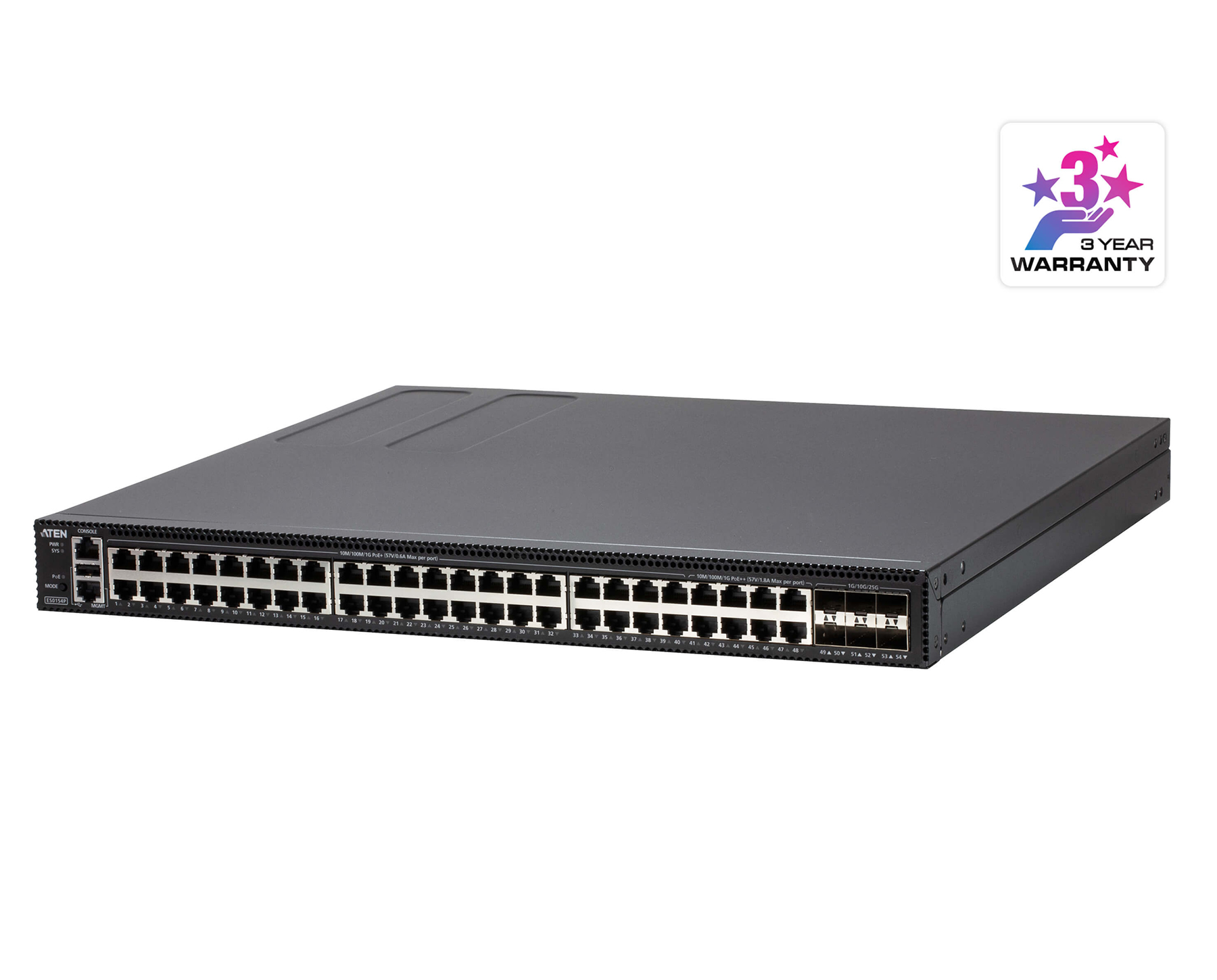

Aten ES0154P 54-Port Layer 2+ Gigabit Ethernet Managed Switch with PoE

Description

The ES0154P 54-Port Layer 2+ Gigabit Ethernet Managed Switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. It offers a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.

The ES0154P supports 6 (1G/10G/25G) SFP28, 48 (10M/100M/1G) RJ-45 with PoE+ (Support 802.3at/af) ports, and PoE++ (Support 802.3bt) ports (41-48 ports only). The ES0154P is equipped with Power over Ethernet (PoE) functionality, featuring a substantial 740 Watts power budget distributed across its 48 RJ-45 ports. This eliminates the necessity for external power adapters and leads to a substantial reduction in power configuration expenses.

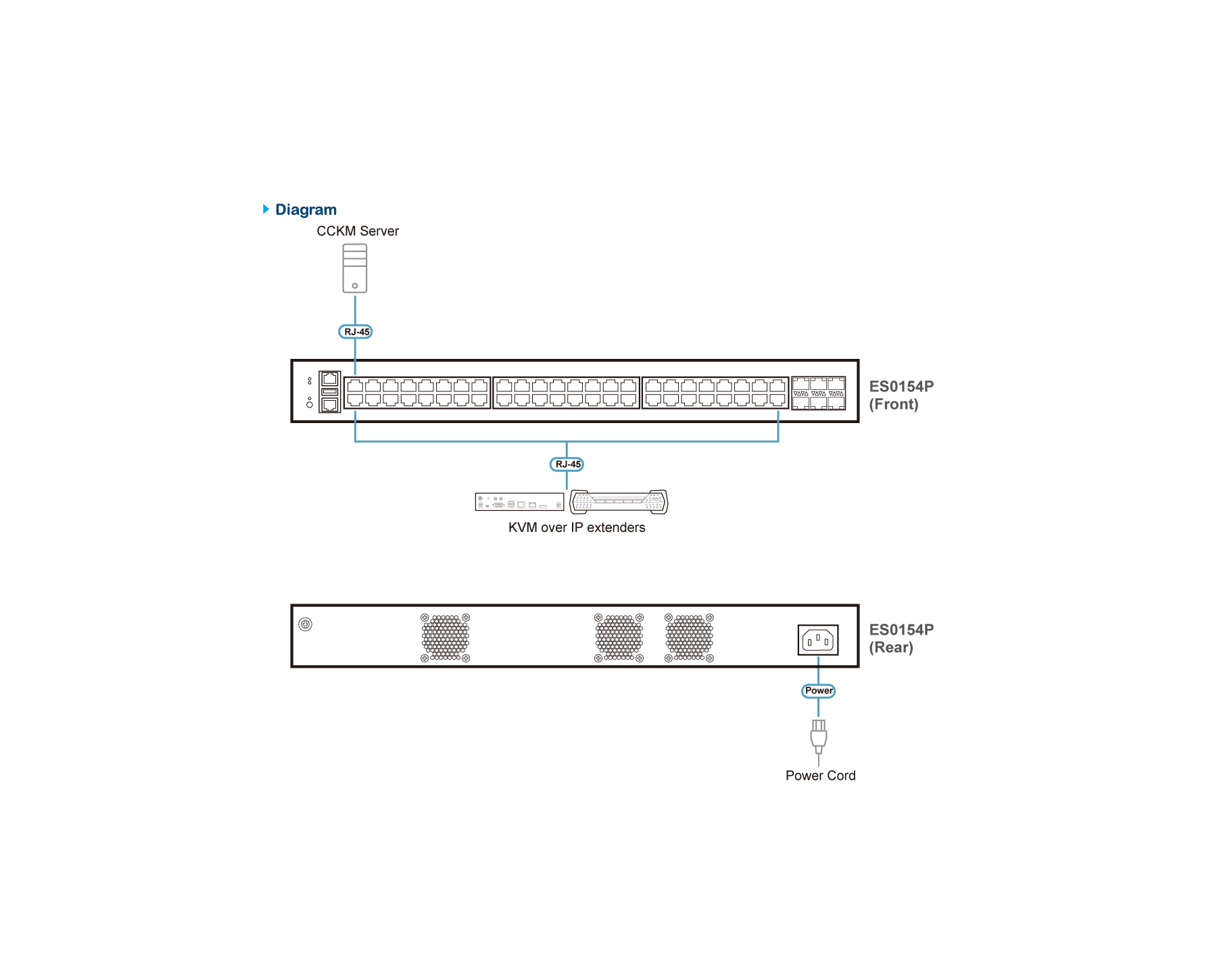

Deploying the ES0154P is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154P using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154P serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises.

Features

• Supports plug-and-play with KE and VE89 series devices
• Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)
• High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity,
  significantly improving application responsiveness and file transfer times
• Supports IEEE 802.3af PoE, 802.3at PoE+, and 802.3bt PoE++
  (PoE++ supported on ports 41–48 only) with port configuration and scheduling
• Supports IGMP v1, v2, and v3 Snooping, and IGMP v1/v2 Querier
• Supports IGMP Snooping Fast Leave
• Supports Flow Control
• Comprehensive QoS enabling traffic marking, classification, and scheduling
  for up to four traffic types across the network
• Enhanced security with Port Security to limit the number of devices per port
  and protect against MAC flooding attacks
• Supports IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for fast link recovery
  and improved network stability and reliability
• Supports IPv4 and IPv6
