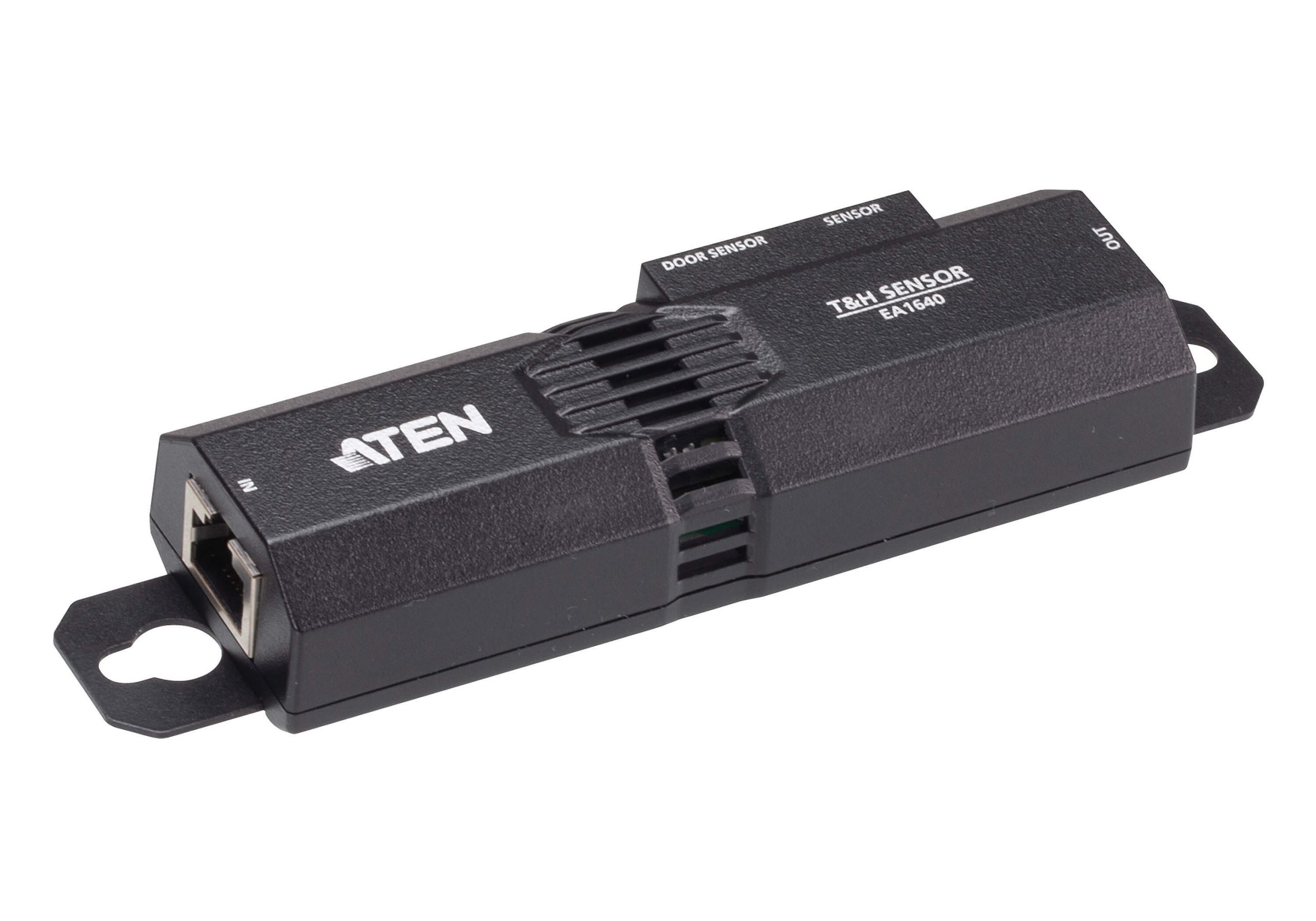

Aten EA1640 Temperature & Humidity Sensor

Description

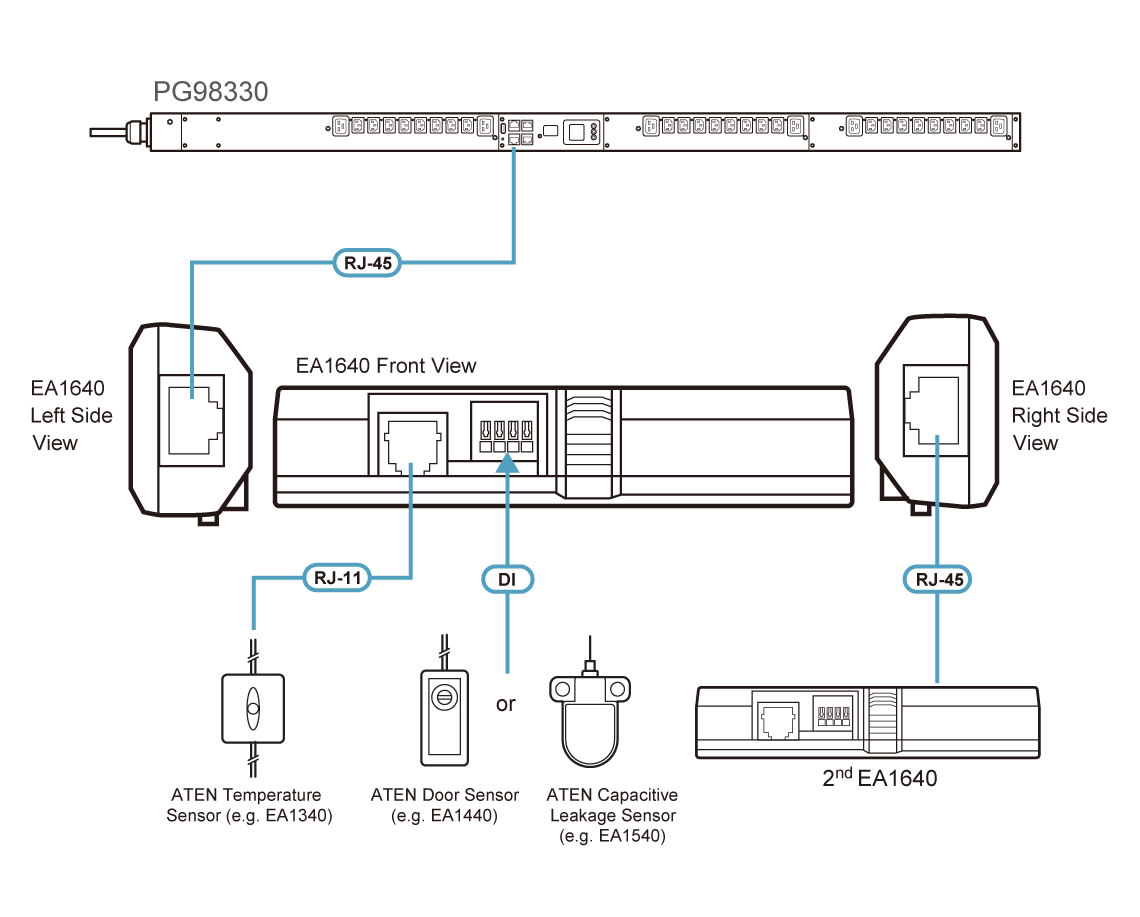

EA1640 serves as a compact, flexible humidity and temperature measuring solution for ATEN PG series PDU applications where precision is significant – from server rooms, data centers, hospitals, smart factories to green offices. The sensor contains 1 x RJ-45 input port, 1 x RJ-45 output port, and 1x RJ-11 input port for easy connection with PG PDU series and environmental sensors including EA1140, EA1240, and EA1340. One terminal block is built for combining EA1440 / EA1441 / EA1442 door sensor or EA1540 the capacitive leakage sensor. Up to 8 daisy-chained devices are supported to broaden applications.

Designed with the ultimate flexibility in mind, EA1640 can be placed at an ideal location as a result of the 1.5 m RJ-45 cable coming with it. In addition, it comes with a magnet for easy attachment to metallic surfaces. Rack mount kits are also included for quick installation inside racks.

Features

• A humidity and temperature measuring solution for ATEN PG PDU series
• Precise relative humidity accuracy:
  • ±7.5% RH, 30 – 70% RH
  • ±15% RH, 15 – 40% RH and 70 – 90% RH
• Highly accurate temperature measurement:
  • ±1°C (Max.), 10 – 40°C
  • ±1.5°C (Max.), –10 – 10°C and 40 – 75°C
• Supports up to 8 daisy-chained devices
• Multiple interfaces to broaden applications:
  • 1 x RJ-45 input port, 1 x RJ-45 output port, and 1 x RJ-11 input port for connection with PG PDU series and EA1140 / EA1240 / EA1340 environmental sensors
  • 1 x terminal block supports EA1440 / EA1441 / EA1442 door sensors and EA1540 capacitive leakage sensor
• Meets flexible installation requirements:
  • Includes a 1.5 m RJ-45 cable for ideal sensor placement
  • Integrated magnet for attachment to metallic surfaces
  • Includes rack-mount kits for quick installation inside racks
• Overload protection prevents overheating of connected equipment
• LED indicator visible through the enclosure
• Prevents device malfunctions through early detection of overheating or excessive humidity
• Suitable for applications requiring precise measurement, such as server rooms, data centers, hospitals, smart factories, and green offices
