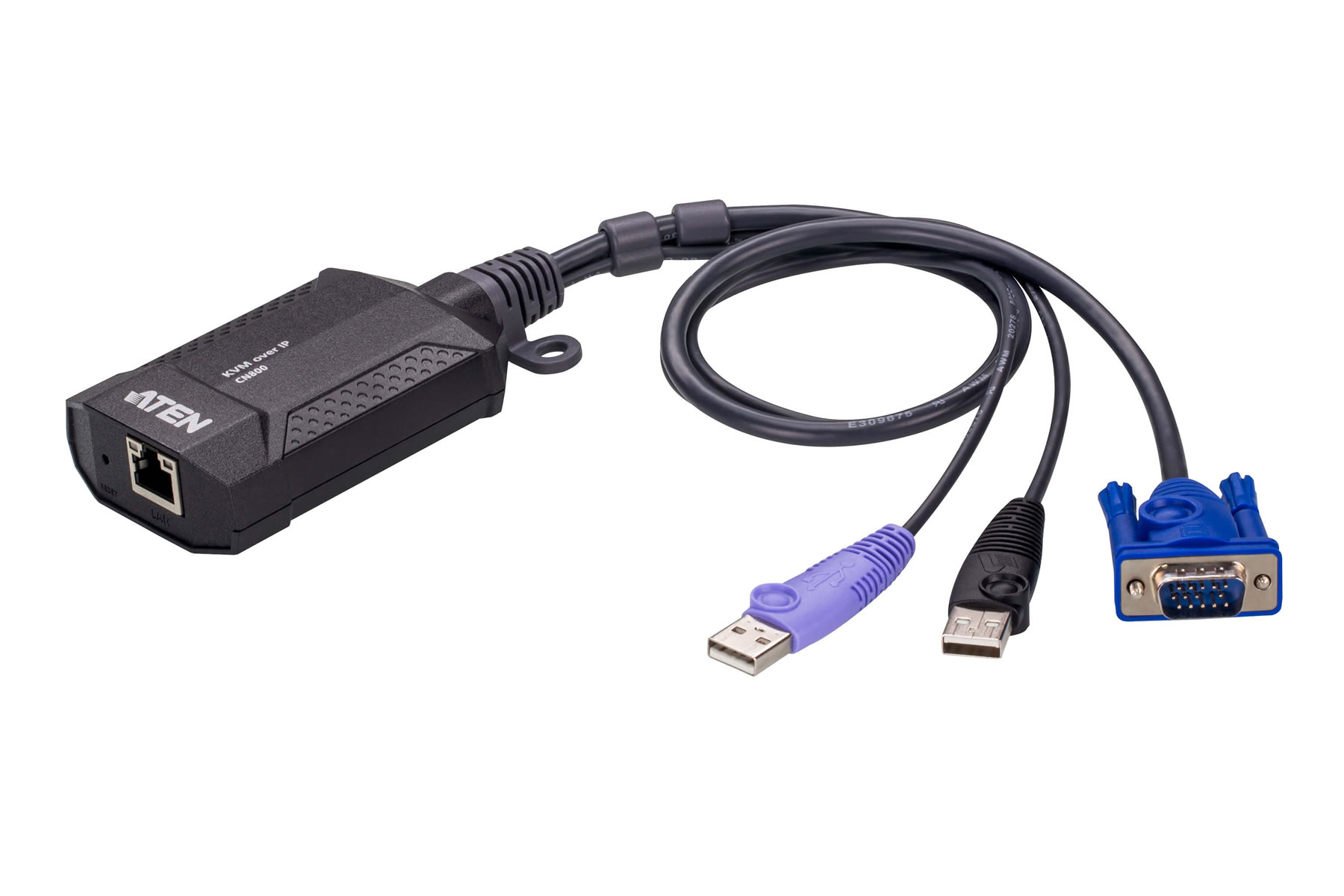

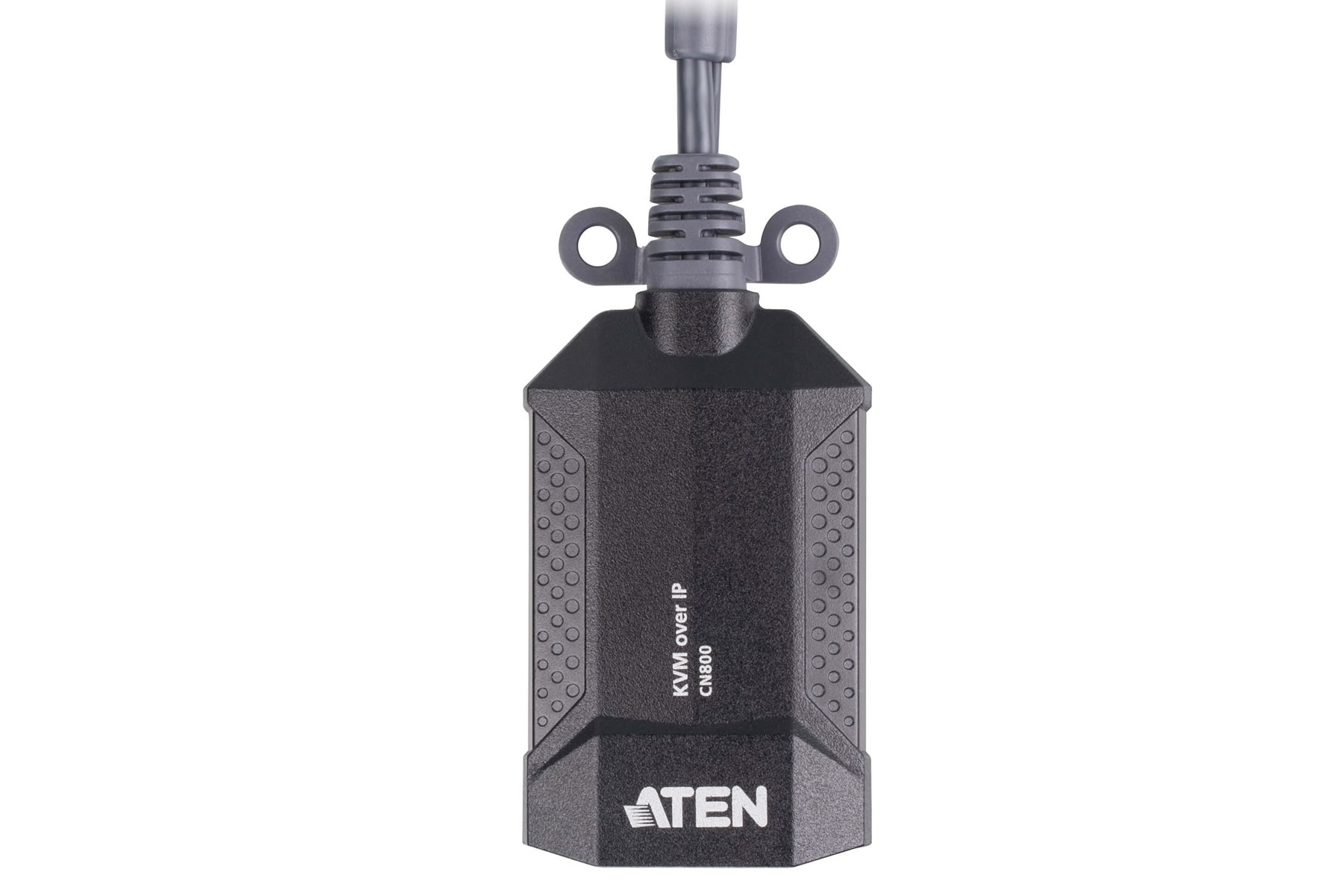

Aten CN800 USB VGA KVM over IP Mini

Description

As digital infrastructure expands across cloud, edge, and on-premise environments, resilience and agility have become operational priorities. Secure, out-of-band remote access is no longer just an IT convenience – it’s a strategic capability that reduces downtime, safeguards continuity, and enables teams to manage critical systems from anywhere.

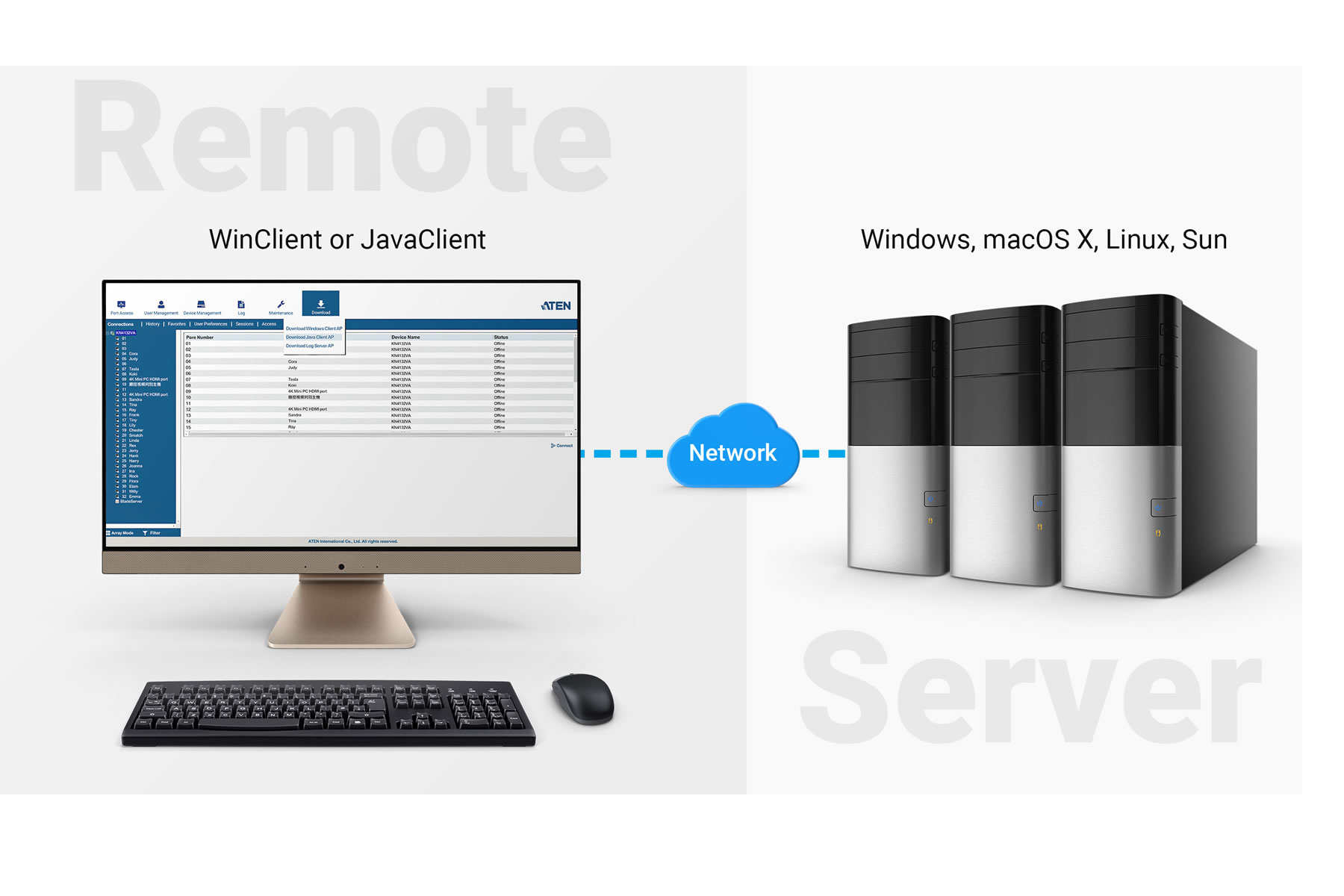

To address this need, the CN800, a compact 0U, hardware-based KVM over IP solution, delivers secure, always-available, BIOS-level remote access to a single server or computer – without the need for software installation. Using standard TCP/IP communication over a Cat 5e/6 connection, it provides full, secure control of the connected system via WinClient and JavaClient across an intranet or remotely from anywhere.

With native VGA support – still the most common display interface in server hardware – the CN800 ensures broad compatibility and reliable remote management, all without adding rack overhead or operational complexity.

Hardware

• Provides over-IP capability to KVM switches that do not have built-in over-IP functionality
• Supports multi-platform server environments: Windows, Mac, Sun, Linux, and VT100-based serial devices
• Virtual media support
• High video resolution up to 1920 x 1200 @ 60 Hz with 24-bit color depth for remote sessions
• Enhanced FPS (frames per second) throughput for crisp and responsive video display
• Bus-powered design – no external power adapter required

Management

• Supports up to 64 user accounts
• Supports up to 32 concurrent user logins
• End session feature allows administrators to terminate running sessions
• Event logging and Windows-based Log Server support
• Instant notification of critical system events via email, SNMP trap, and Syslog
• Remote firmware upgrade support
• Multi-user mode allows multiple users to access a server simultaneously
• Integration with ATEN CC2000 Centralized Management Software
• Integration with ATEN CCVSR Video Session Recording Software
• DDNS (Dynamic Domain Name System) support
• Enable or disable browser operation
• IPv6 capable

Easy-to-Use Interface

• Browser-based and AP GUIs provide a unified multi-language interface
• Multi-platform client support: Windows, Mac OS X, Linux, and Sun
• Supports multiple browsers: Chrome, Firefox, Safari, and Opera
• Pure web-based UI allows administration without requiring a pre-installed Java package
• Full-screen, sizable, and scalable virtual remote desktop

Advanced Security

• External authentication support: RADIUS, LDAP, LDAPS, and Microsoft Active Directory
• TLS 1.2 encryption protects passwords during user login
• Flexible encryption design allows selection of encryption algorithms (e.g., 256-bit AES) or system-generated random selection
• Independent encryption for keyboard, mouse, video, and virtual media data
• IP and MAC filtering support
• Password protection
• Private CA support

Virtual Media

• Virtual media enables file application, OS patching, software installation, and diagnostic testing
• Works with USB-enabled servers at both operating system and BIOS levels
• Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, and ISO images
• Convenient operation without requiring a virtual media cable

Virtual Remote Desktop

• Adjustable video quality and tolerance to optimize data transfer speed in low-bandwidth environments
• Monochrome color depth, threshold, and noise settings for bandwidth compression
• Full-screen or scalable video display
• Message board for communication among remote users
• On-screen keyboard with multi-language support
• Mouse Dynasync™ support
• Exit macros support
• BIOS-level access
