Aten CE801 USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m / FHD @ 100 m)

Description

The CE801L and CE801R are USB HDMI Cat 6 KVM extenders designed to bridge the gap between local and remote consoles with smooth, efficient KVM operations. With the source computer connected to the CE801L, you can benefit from instantly responsive KVM control at the CE801R remote console – featuring uncompromising True 4K video, crystal-clear digital audio, high-speed USB peripheral data, and uninterrupted serial control over distances up to 70 meters, all via a single Cat 6 connection. When it comes to simplified KVM extension and ergonomic remote access with hardware securely located away from the workspace, the CE801 speaks for itself.

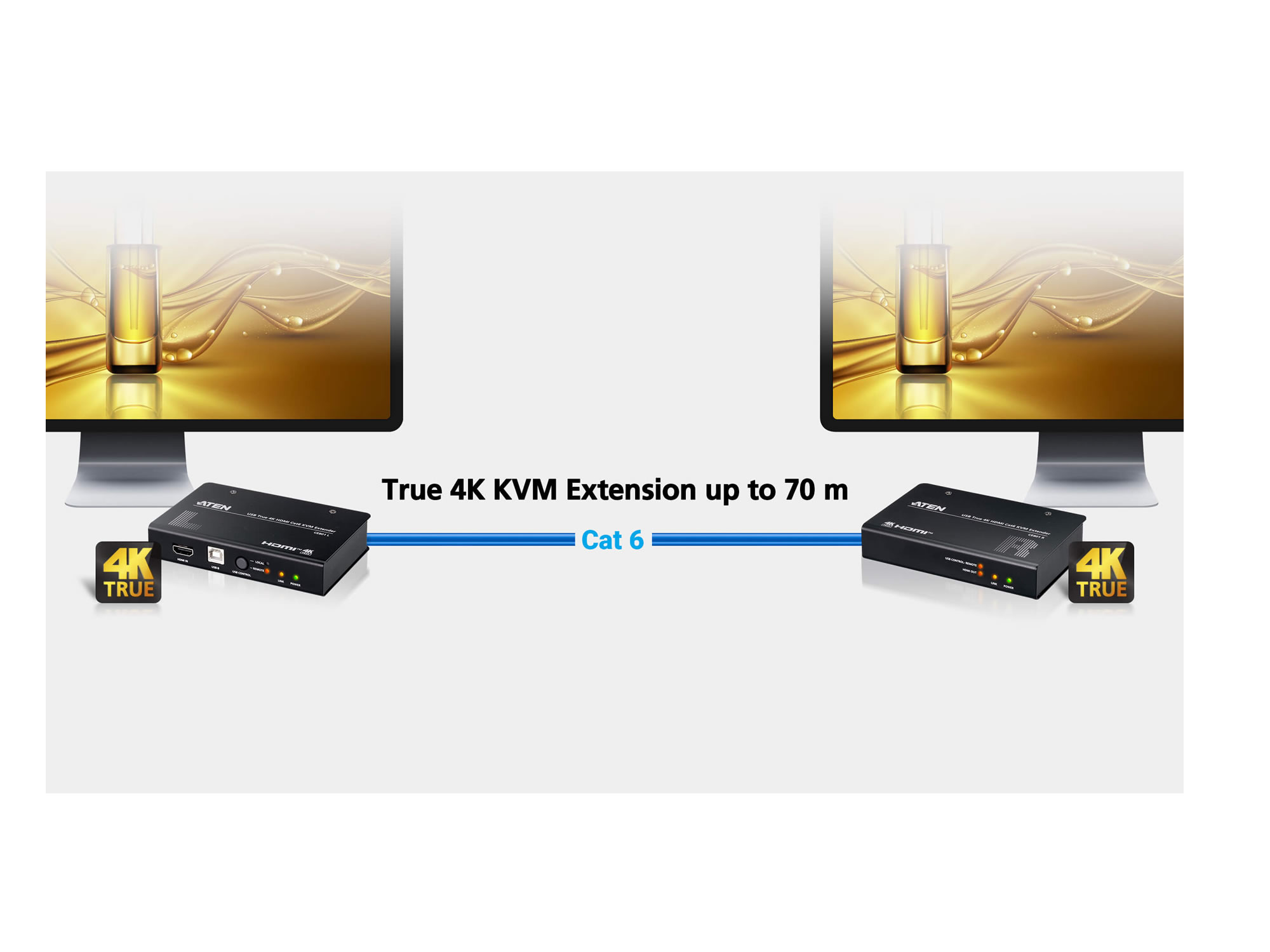

True 4K KVM Extension up to 70 m

• Extends KVM control up to 70 meters over a Cat 6 connection
• Transmits stunning True 4K video with HDR
• Supports USB data, digital audio, and serial control between local and remote consoles

FHD Long-Reach KVM Extension up to 100 m

• Enables KVM extension up to 100 meters over a Cat 6 connection with Long-Reach mode
• Delivers crisp 1080p video clarity

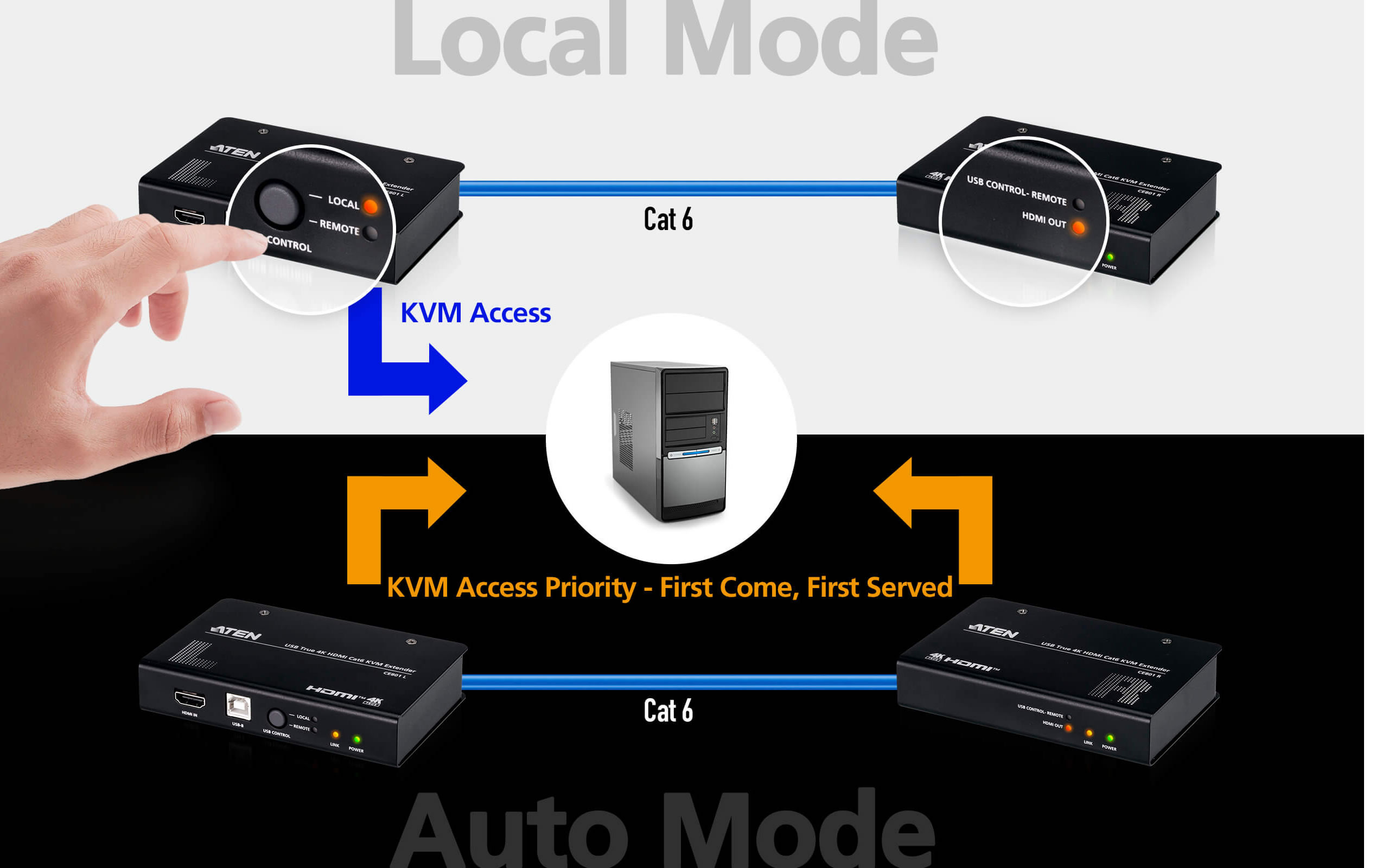

Dual Console Access with Privileged KVM Control

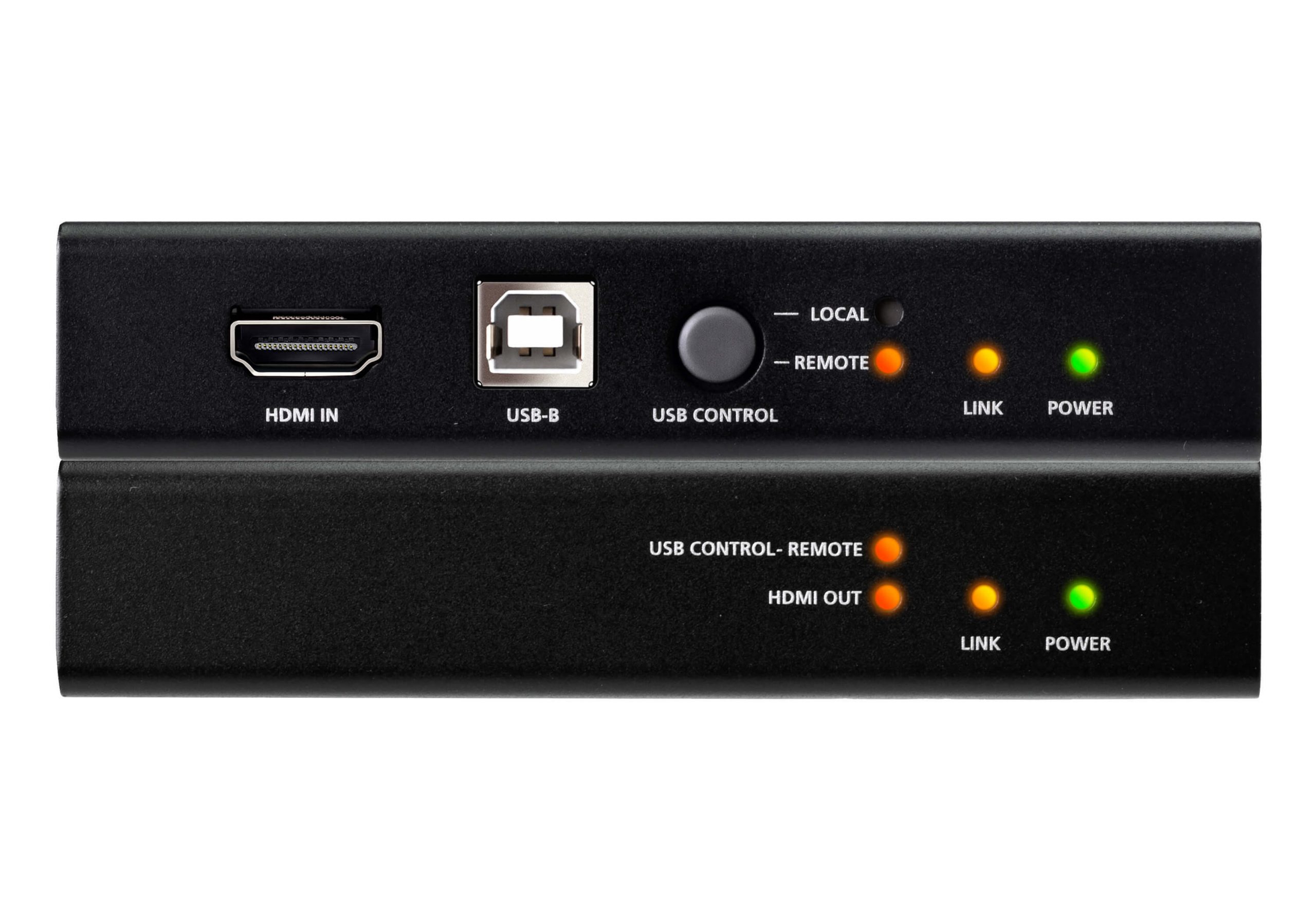

• Press the pushbutton on the CE801L to grant local console priority KVM access (Local Mode)
• Press the button again to release priority (Auto Mode), allowing control from either console

Optimal Video with EDID Switching

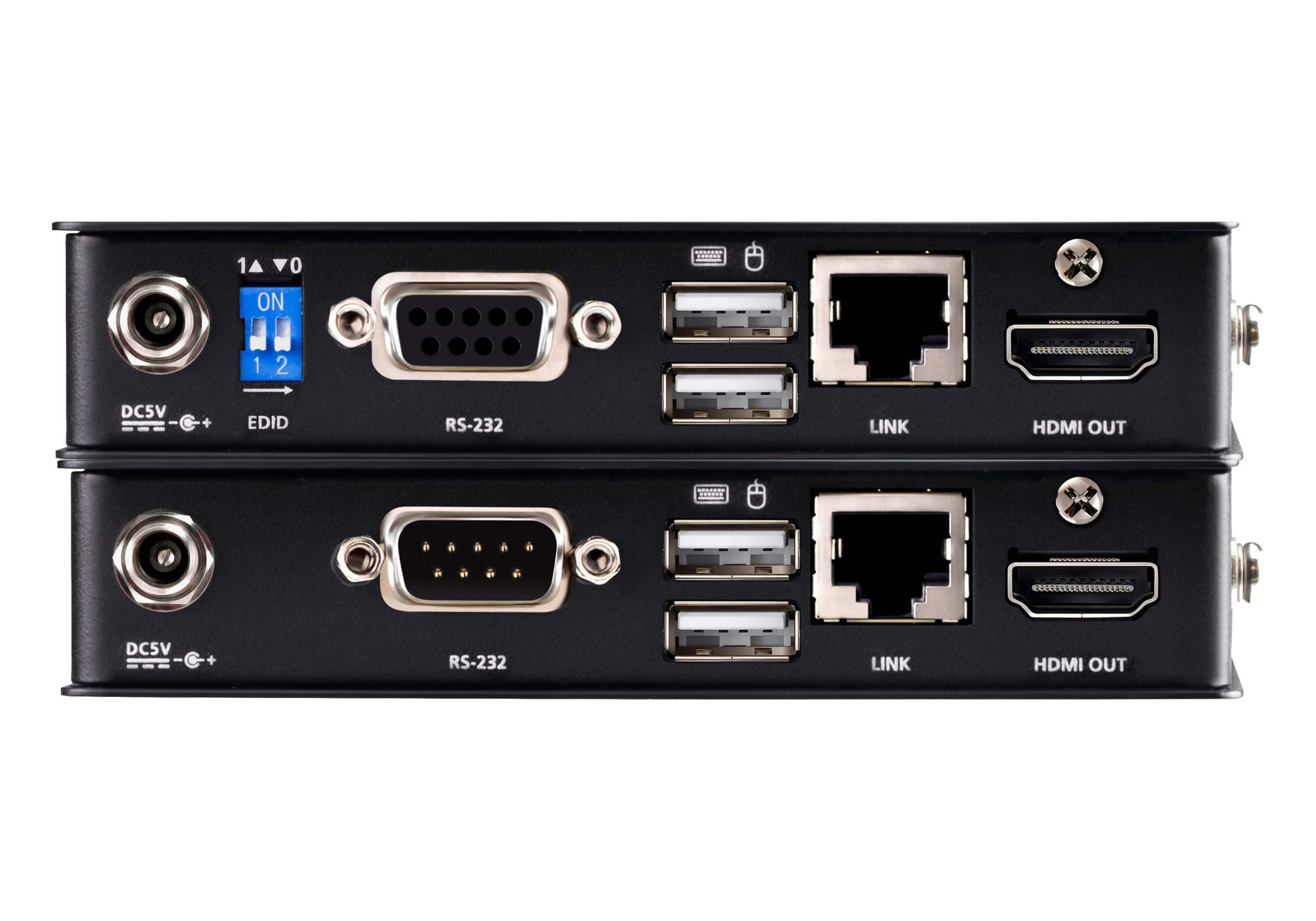

• EDID switches on the CE801L allow configuration for both HDMI outputs
• Ensures optimum output quality on local and remote consoles

RS-232 Serial Communication for Extended Control

• CE801R features a serial port for connecting devices such as touchscreens or barcode scanners
• Remote communication via RS-232 commands from a terminal or PC connected to CE801L
• Enables real-time device interaction and data transmission between local and remote consoles

Secure Installation for Reliable Power Supply

• DC jack is secured with a screw lock
• Ensures stable power supply and prevents accidental disconnections

Rack-Mountable Design

• Compact, space-efficient design
• Flexible for installation in server racks or constrained spaces

Features

CE801 is an extender kit that allows for sharp, life-like True 4K (3840 x 2160 @ 60 Hz 4:4:4) HDMI, RS-232, and USB transmission across 70 m over one single Cat 6 cable. Dual console USB Keyboard / Mouse operation is enabled by the USB control mode pushbutton switching USB console control privilege between the remote and local units. RS-232 extension capability facilitates uninterrupted communication between serialinterfaced devices and equipment, which are crucial in industrial control systems.

CE801 is ideal for medium to large scale applications where incredibly sharp and detailed visualization, multisignal extension, and privileged USB control via local / remote console are essential, including control centers, retail shops, factories, medical facilities, and home theaters.

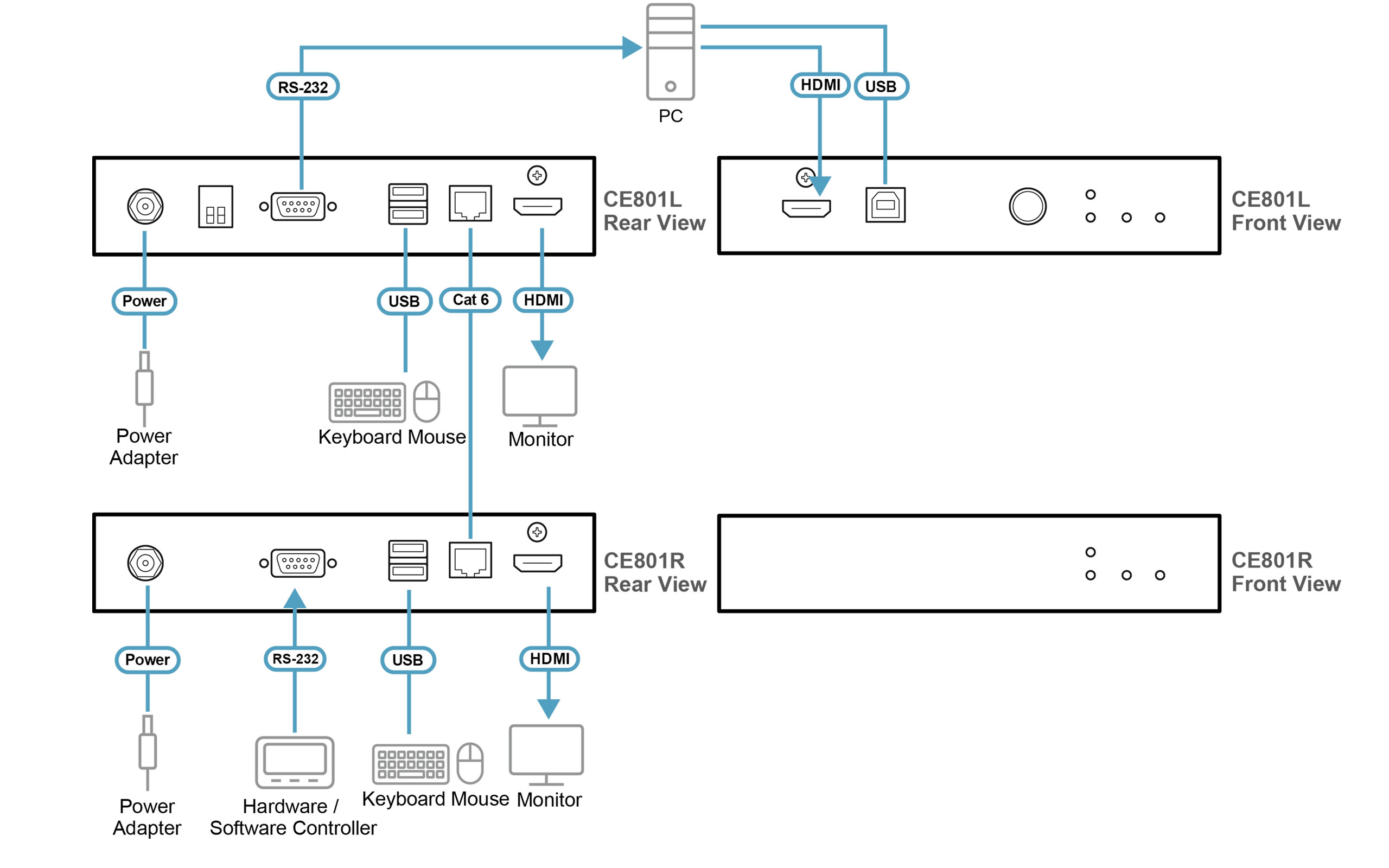

• Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals up to 70 m over a Cat 6 cable
• Long reach mode – 1080p extension up to 100 m
• Supports resolutions up to 3840 × 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance
• Dual console USB keyboard/mouse operation – control privilege between remote and local units switchable via USB control mode pushbutton
• Supports HDR10 for enhanced video quality
• Supports widescreen format
• Supports digital audio formats such as 7.1ch Dolby and DTS audio
• Plug-and-play with no software or driver required
• Built-in 8KV / 15KV ESD protection
• Rack-mountable
• DC Jack with screw-lock ensures stable and secure connection
