Aten VE883AK1 True 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM))

Description

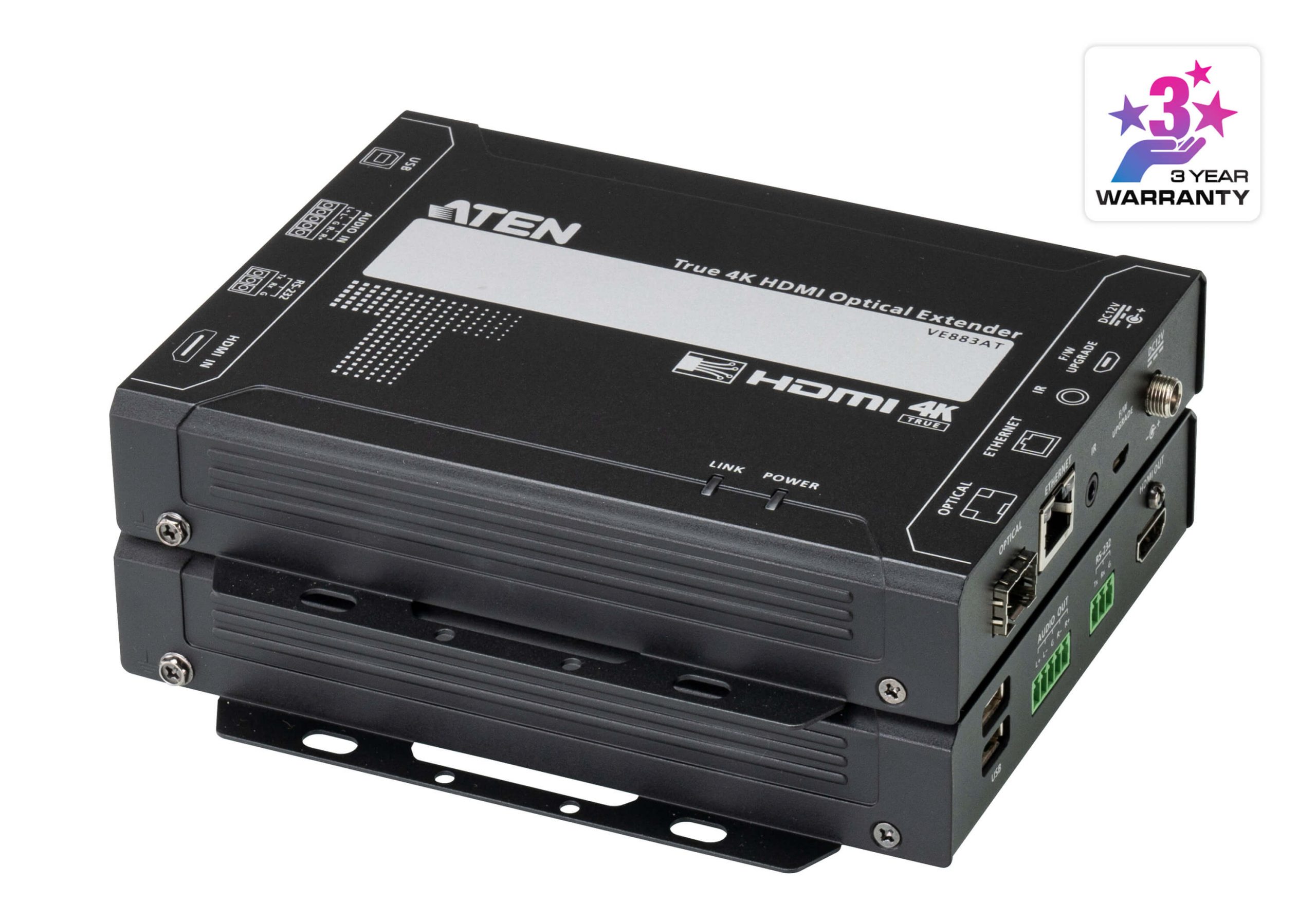

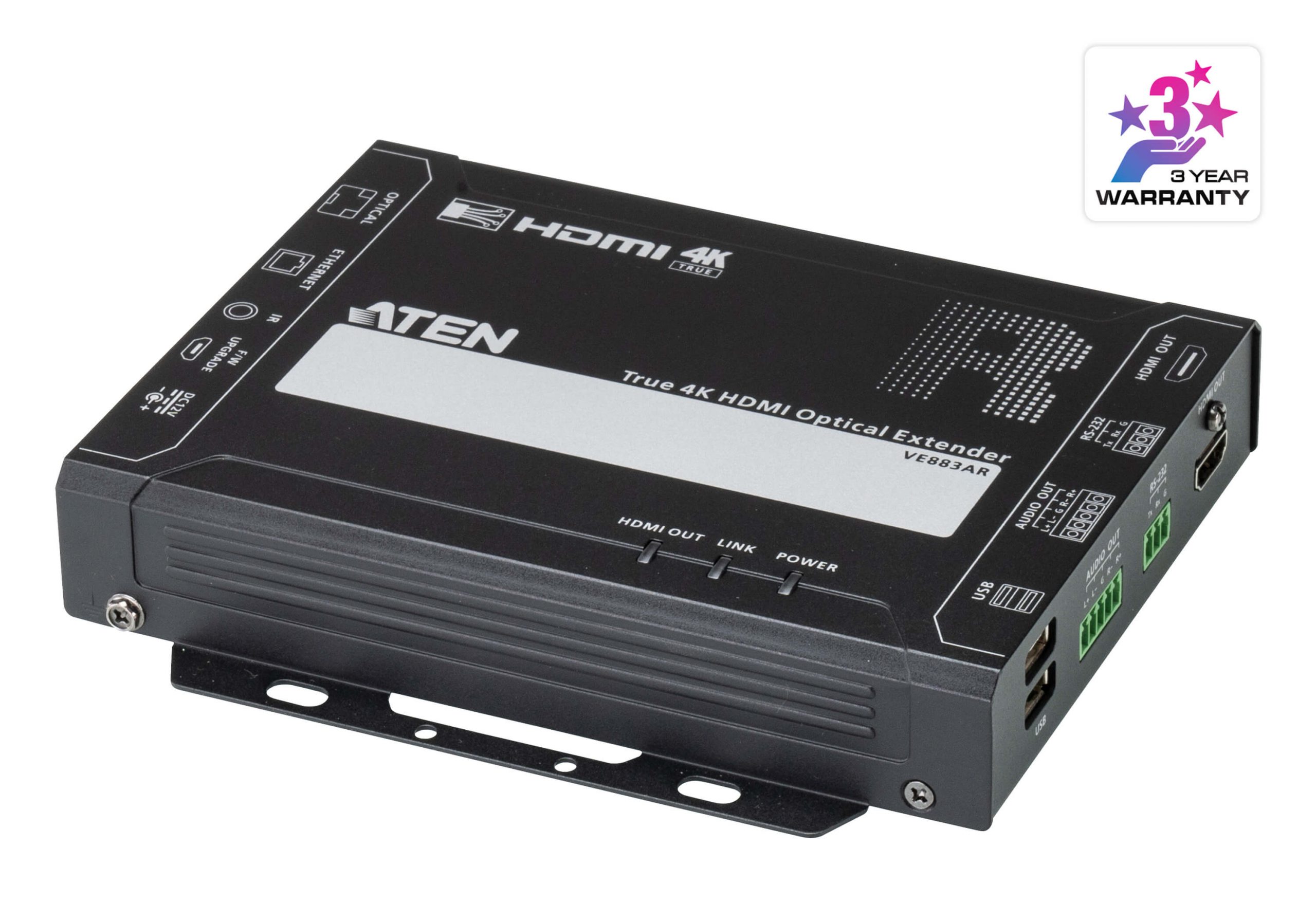

The VE883A is a True 4K HDMI Optical extender that consists of a transmitter VE883AT and a receiver VE883AR to transmit up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232, and Gigabit Ethernet signals across 300 m (VE883AK1) or 10 km (VE883AK2) over a single duplex fiber optic cable losslessly. While helping avoid bulky cable setup, fiber optic cables are electrically isolated, thus they are immune to RFI and EMI. With ATEN’s exclusive FarSmooth technology, the VE883A prevents lagging and freezing by matching the output rates to the input rates and ensures that the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.

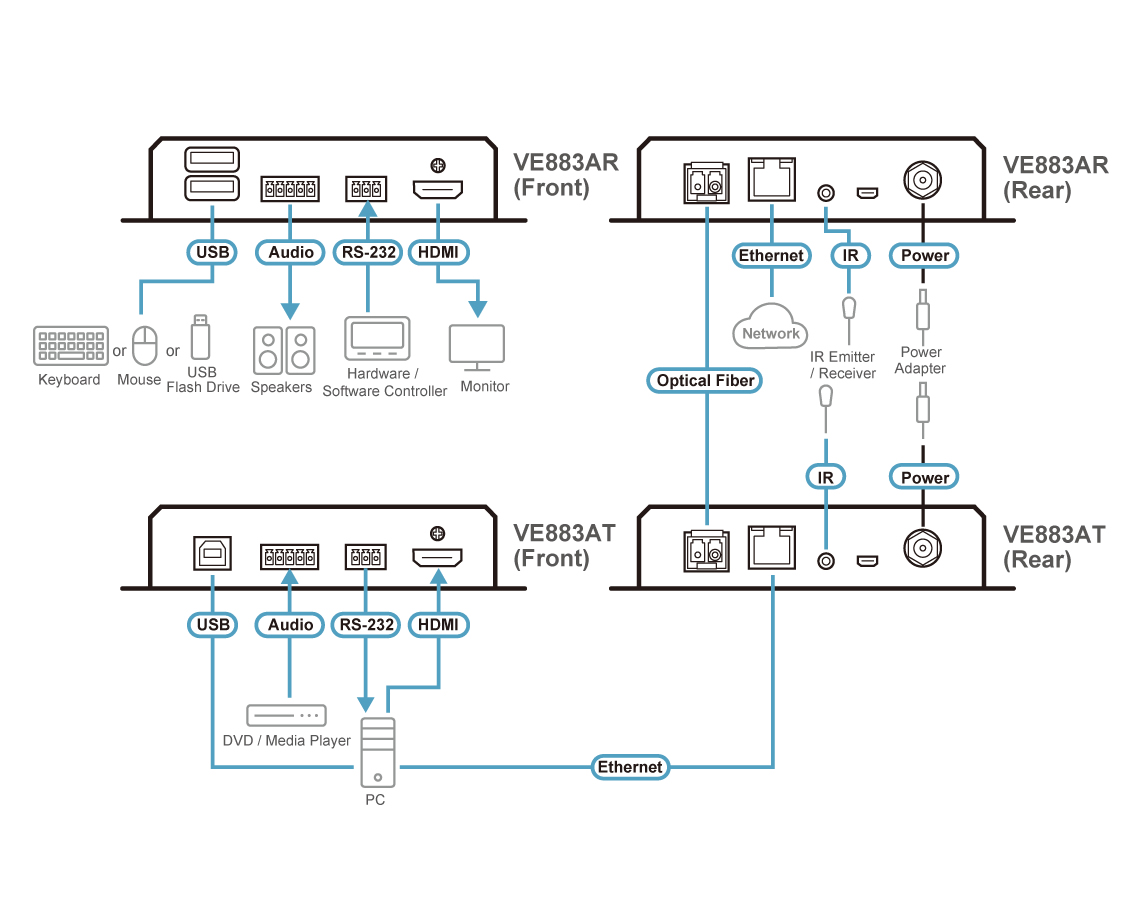

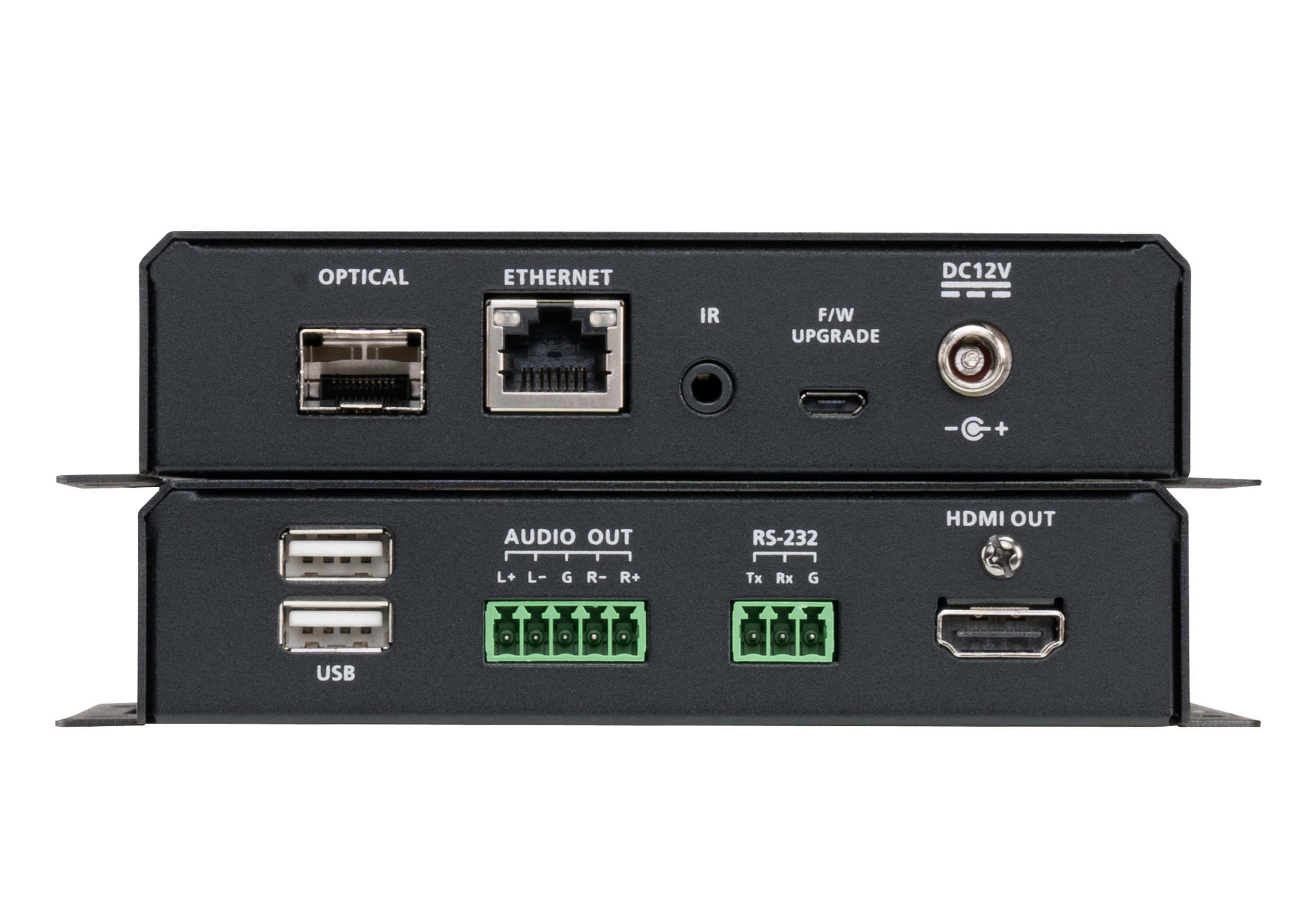

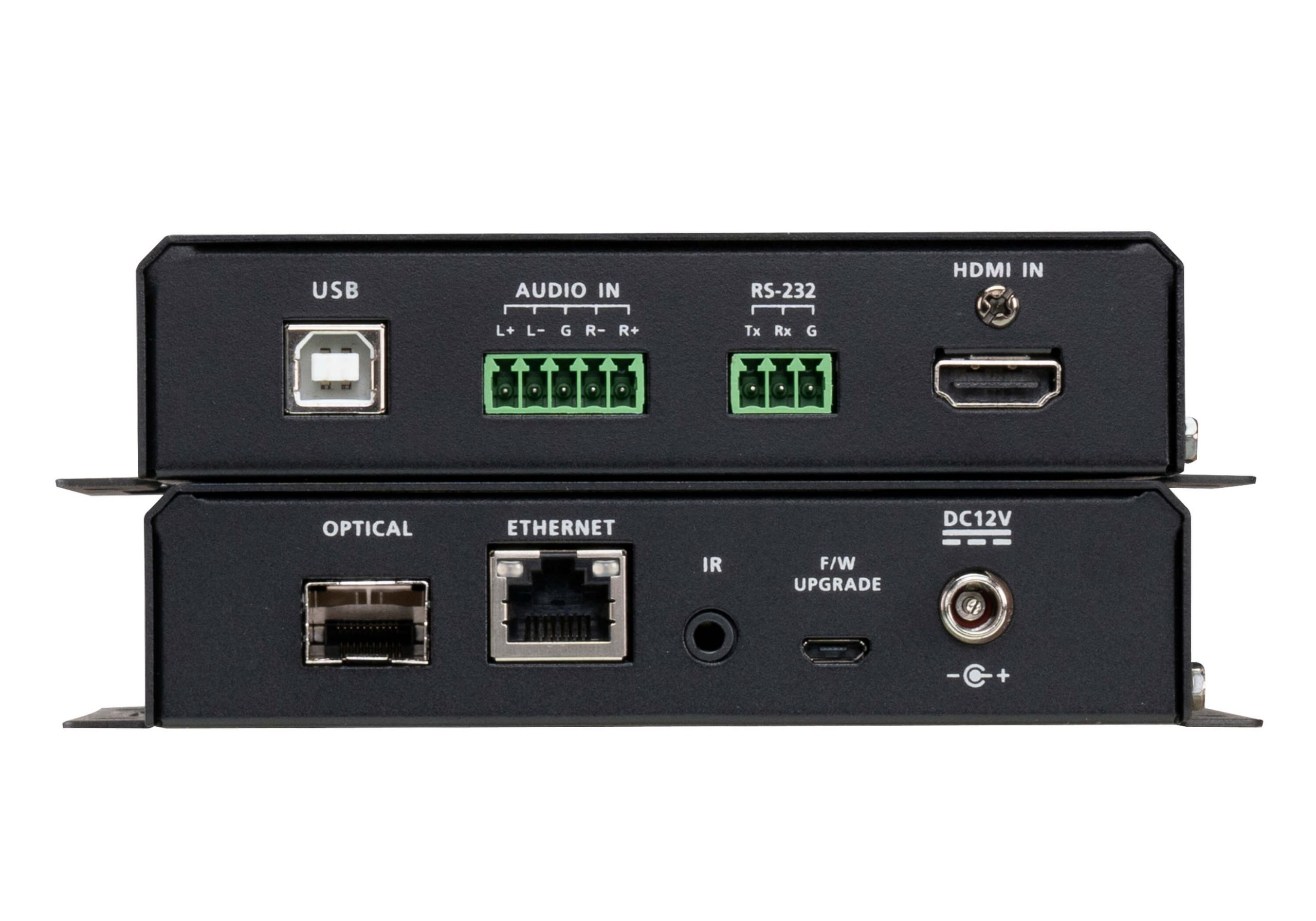

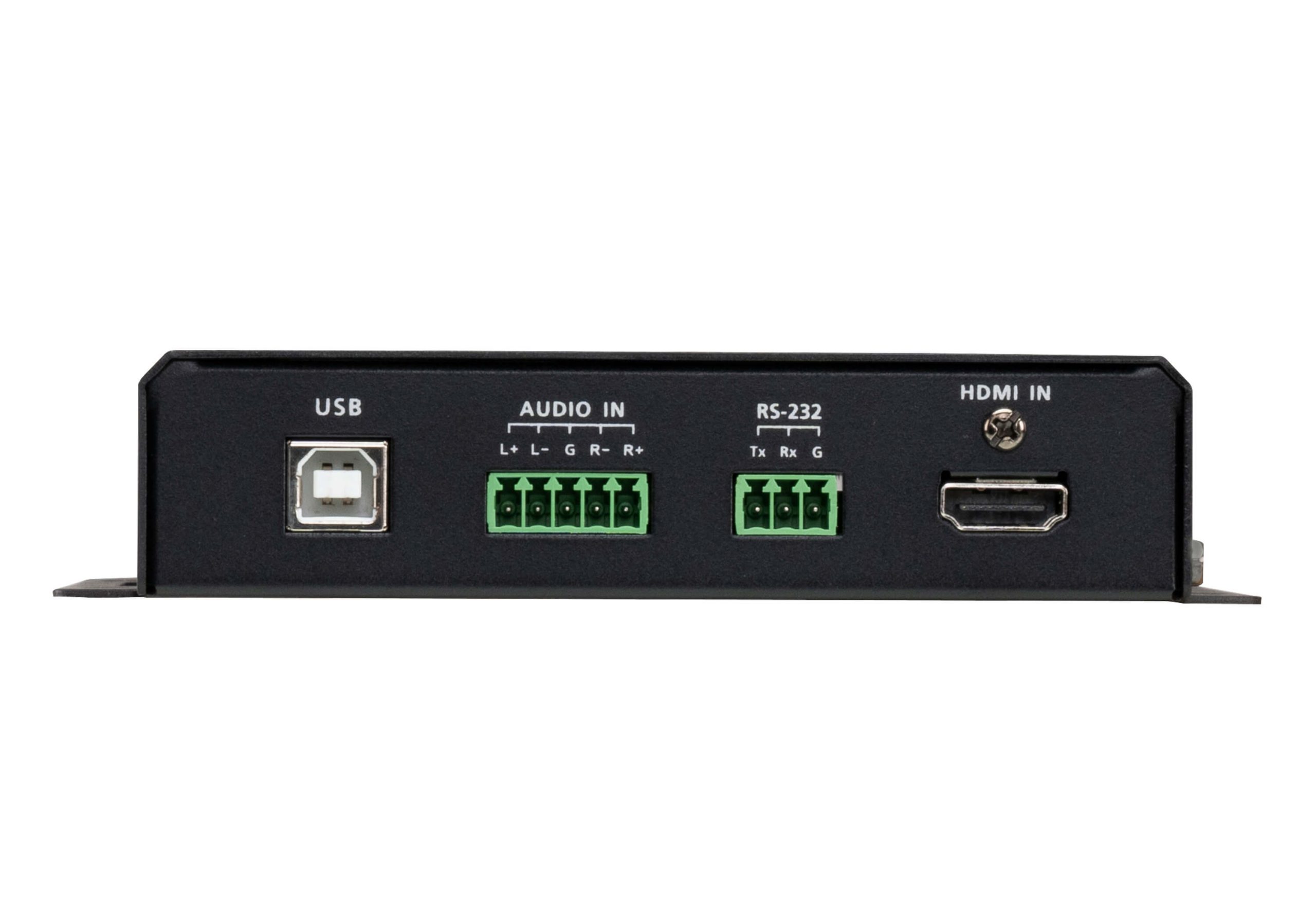

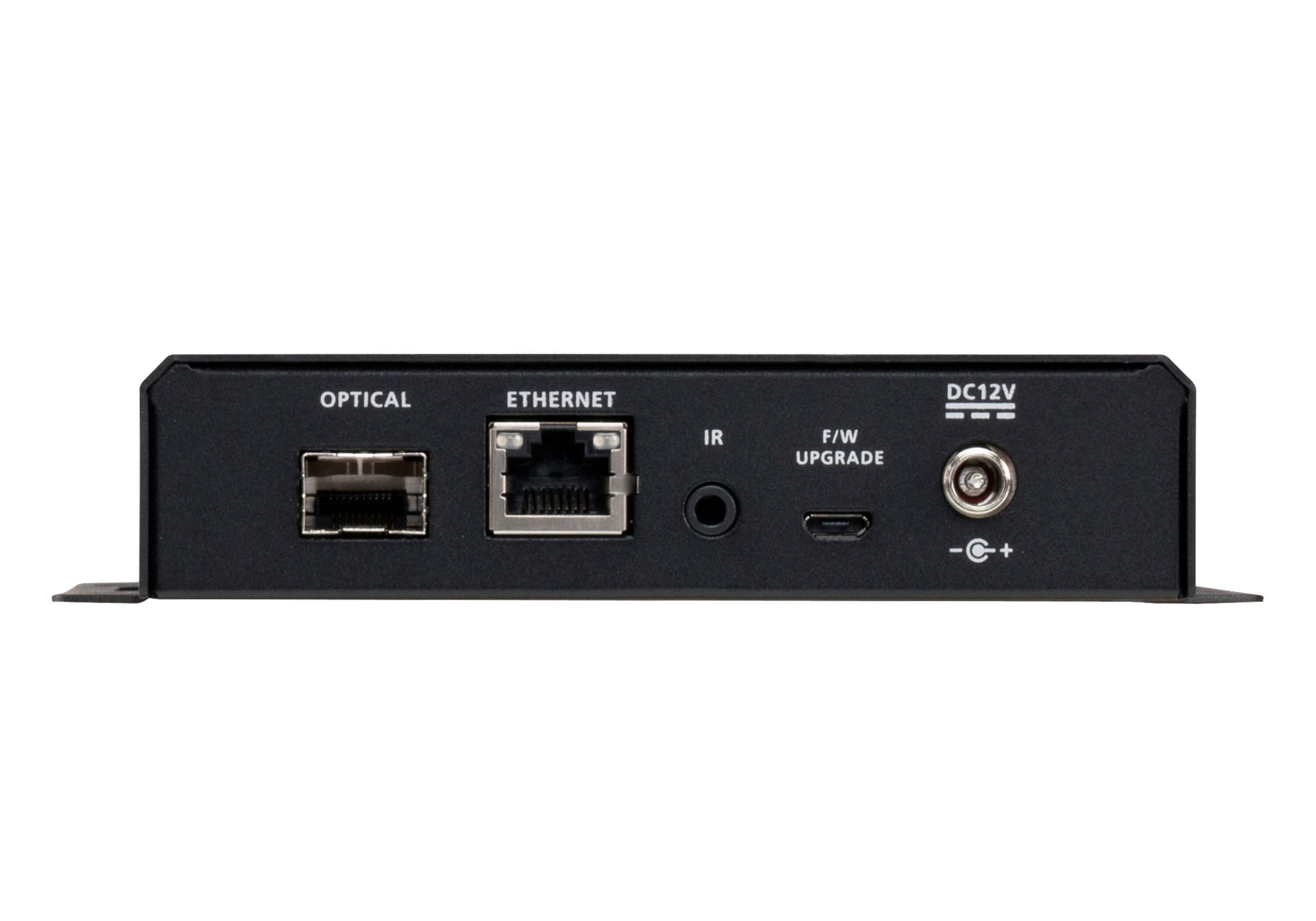

The VE883A comes with interfaces of HDMI input / output, analog audio input / output, USB 2.0, IR, RS-232, and Gigabit Ethernet. Connectivity with USB peripherals is expanded thanks to the VE883A’s dual USB Type-A ports. For point-to-point extension, pluggable SFP+ modules are included to serve the purpose of optical connection. Plus, the VE883A is compatible with ATEN’s VM7584 / VM8584 Optical Input / Output Board installed in ATEN’s modular matrix switches to broaden applications. It is suitable for installations where True 4K video transmission across a long distance and electrical isolation are essential, such as control rooms, factories, and hospitals.

Features

• Extends HDMI video, audio, IR, RS-232 control, and Ethernet signals over a duplex fiber optic cable up to 10 km*
• Supports lossless transmission of up to 4096 × 2160 / 3840 × 2160 @ 60 Hz (4:4:4)
• HDMI (3D, Deep Color, True 4K) and HDCP 2.2 compliant
• ATEN FarSmooth™ technology prevents lag and freezing by matching output rates to input rates,
  ensuring stable, smooth, and source-identical 4K @ 60 Hz video over 10 Gbps bandwidth
• Supports transparent USB 2.0 signals for expanded USB peripheral connectivity at up to 25 MB/s
• Bi-directional IR signal transmission (30 kHz – 56 kHz), processed one direction at a time
• RS-232 serial port support for connecting peripherals such as touch screens and barcode scanners
• Supports batch firmware upgrades using the Firmware Upgrade Utility
• Built-in 8 kV / 15 kV ESD protection
• Plug-and-play operation
• Hot-pluggable
• Rack-mountable design

Note:

• The maximum transmission distance may vary depending on fiber type, bandwidth, connector splicing, losses, chromatic dispersion, environmental factors, and cable bends
• For long-distance transmission, ATEN recommends using SFP+ modules. Depending on the package selected:
  • VE883AK1: 10 Gbps / 300 m SFP+ Duplex Multi-Mode Transceiver
  • VE883AK2: 10 Gbps / 10 km SFP+ Duplex Single-Mode Transceiver
• ATEN recommends using fiber cables that conform to IEC 11801 standards:
  • Single Mode: OS1, OS1a, OS2
  • Multi Mode: OM3, OM4
• The device is a Class 1 laser product and complies with IEC/EN 60825-1 and FDA 21 CFR 1040.10 / 1040.11
  regulations (except for deviations pursuant to Laser Notice No. 50)
