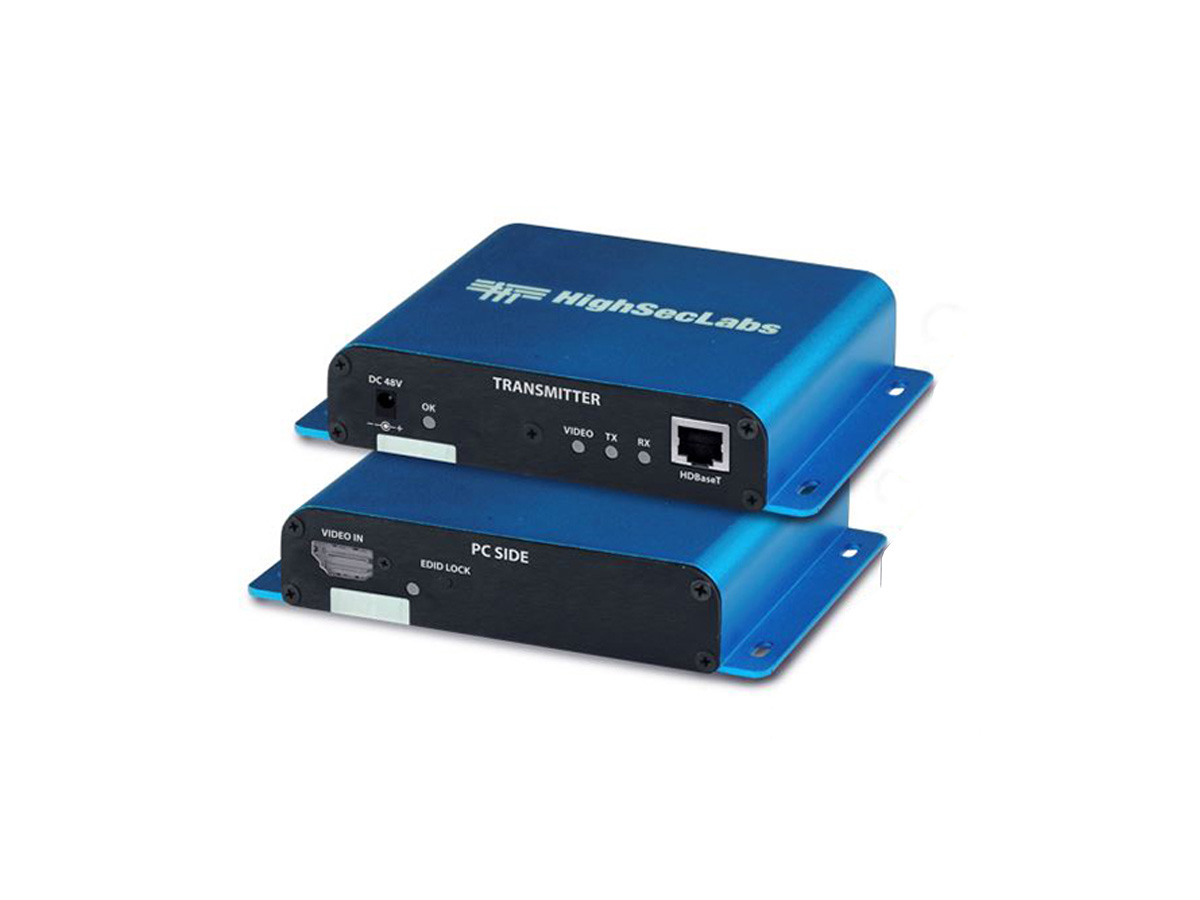

High Sec Labs FVCE11PHT-M HDBaseT DP/HDMI Secure Copper Video Isolator 100m 4K30 1-Source Transmitter

Description

The FVCE11PHT-M is a secure copper video isolator and unidirectional transmitter designed to extend DisplayPort and HDMI video and KVM signals over long distances. It enforces one-way data flow and filtering to prevent peripheral-based threats and to maintain network separation. This unit is NIAP Common Criteria PP4.0 PSD compliant and built for secure AV bridging in sensitive environments.

The transmitter uses Valence HDBaseT technology to deliver zero-latency transport of video and HID signals across copper links up to 100m. It supports a combined DP/HDMI connector for flexible source connectivity and maintains high quality video at resolutions up to 3840×2160 at 30 Hz. The design isolates and filters incoming signals to block unintended data channels from peripherals.

Technical performance includes support for UHD 4K at 30 Hz across the copper link and compatibility with fiber or copper link options across the product family. Power options include PoE support on applicable models and external power via standard AC adapters. The transmitter and receiver share a compact footprint of 145 x 105 x 28 mm and a weight of 0.64 kg each.

Connectivity is provided via a DP/HDMI combined connector on both computer and console sides, USB Type B for keyboard/mouse on supported models, and RJ45 link ports for copper HDBaseT connections. The product supports Windows, Linux and Mac operating systems and integrates into existing KVM and AV workflows. Security and product certifications include NIAP Common Criteria PP4.0 PSD, CE, RCM, FCC class B, VCCI, TUV US and TUV Canada.

Typical use cases include secure operator consoles for classified networks, control rooms requiring physical one-way video isolation, and installations where peripheral filtering is required between networks. It is suitable for government, defense, finance and enterprise security zones that require strict data flow control. The combined DP/HDMI connector simplifies deployment across varied workstation hardware.

Installation is straightforward with plug-and-play video and USB HID connectivity on supported models and simple RJ45 cabling for copper links. The units are compact and rack or desktop deployable and operate in standard AV environmental ranges from 0 to 40 degrees C. A two-year warranty and a documented 10-year product life-cycle support longer-term deployments and maintenance planning.
