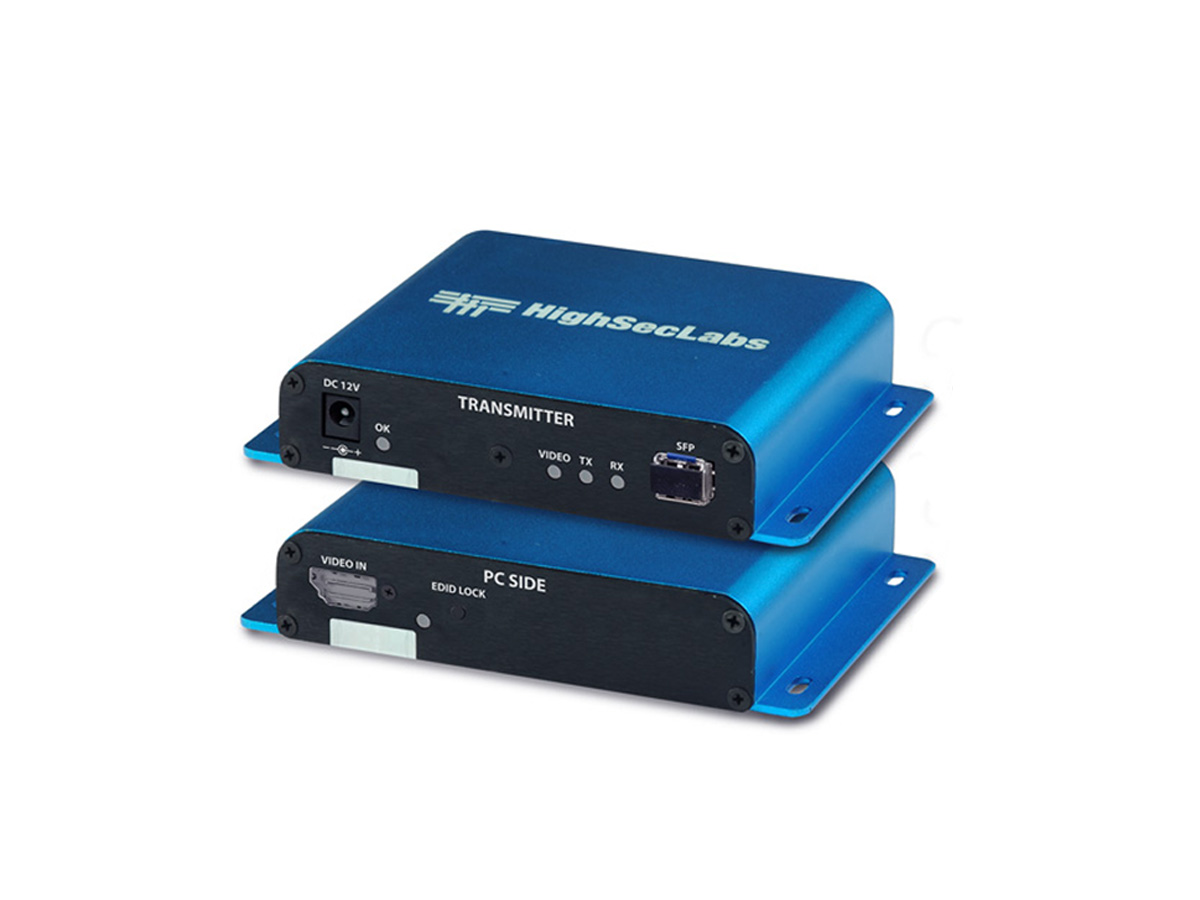

High Sec Labs FVFE11PHT-M HDBaseT / DP HDMI Secure Fiber Video Isolator 10km 3840×2160@30Hz Unidirectional

Description

The FVFE11PHT-M is a secure video isolator and KVM transmitter designed to extend DisplayPort or HDMI signals over fiber or copper links. It provides unidirectional, filtered video extension to preserve network security while maintaining high-resolution output. The unit is NIAP Common Criteria PP4.0 PSD compliant and built for environments requiring strong peripheral isolation and signal separation.

The product supports DP/HDMI combined connectors to accept either DisplayPort or HDMI sources and provides high-quality video up to 3840×2160 at 30 Hz. It uses Valence HDBaseT technology to ensure zero-latency transmission between transmitter and receiver units. The design supports SFP fiber links or copper connections to provide flexible installation options.

Performance specifications include 4K30 video support and compatible link distances up to 10 km using singlemode fiber modules. The transmitter is powered via external 12V DC and complies with standard AC input ranges of 100 to 240 VAC where applicable. Operating temperature and storage ranges follow industry norms to ensure reliable operation in common AV environments.

Connectivity options include DP/HDMI combined display ports, SFP link ports for fiber modules, and optional copper link compatibility. Keyboard and mouse USB channels are not present on this transmitter variant, focusing the product on secure video-only isolation. Supported operating systems for connected hosts include Windows, Linux, and Mac where host-side peripherals are required.

Typical applications include secure operator consoles, classified environment video isolation, remote monitoring where physical separation is required, and broadcast or command centers needing long-distance unidirectional video links. The product is also suitable for secure digitizing of video sources where peripheral filtering is mandated. It is especially useful when NIAP PP4.0 compliance is required.

Installation is straightforward with compact transmitter dimensions and standard external power. The compact metal enclosure and industry-standard connectors enable rack or desk placement as needed. The unit is backed by a two-year warranty and a 10-year product life-cycle to support long-term AV deployments.
