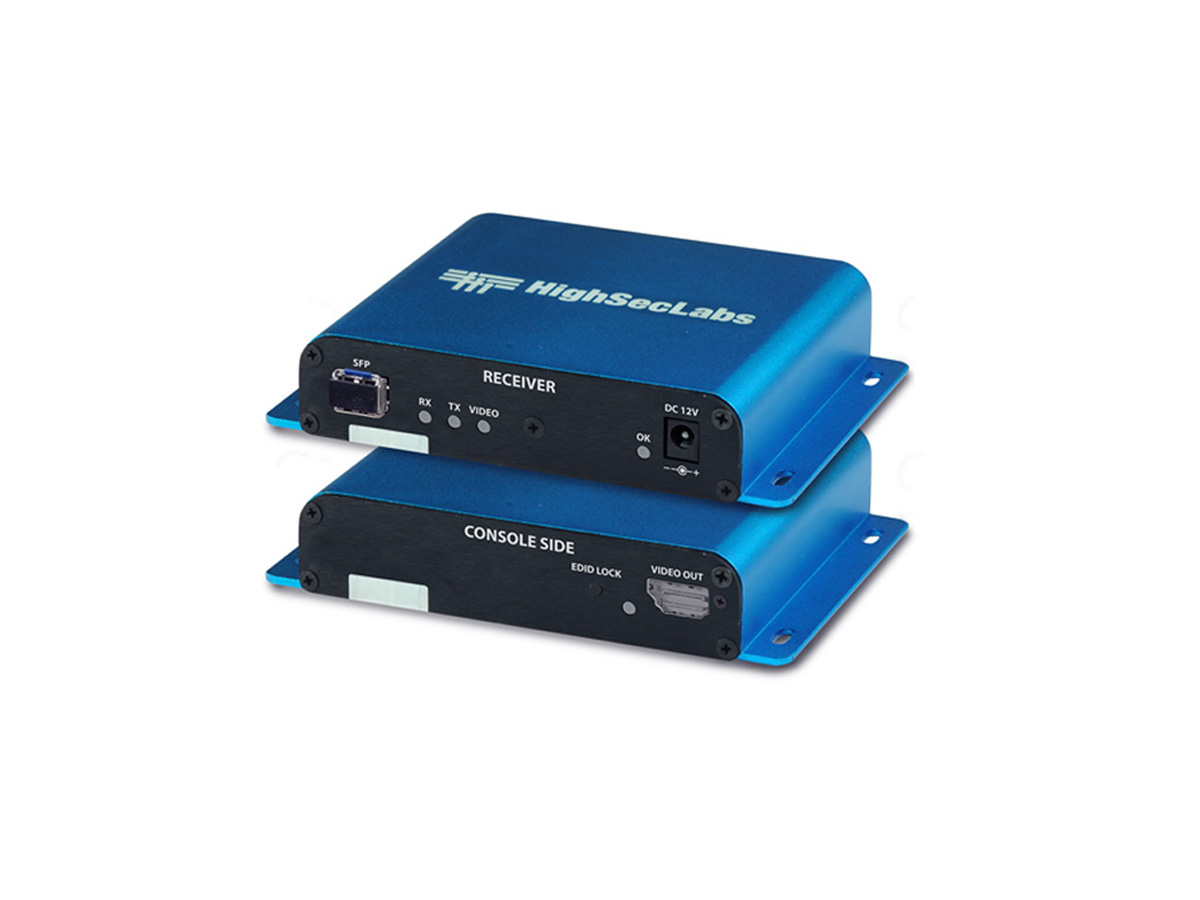

High Sec Labs FVFE11PHR-M HDBaseT Fiber Secure Video Isolator / DP / HDMI 4K30 10km Receiver

Description

The FVFE11PHR-M receiver is a secure, NIAP PP4.0 PSD compliant fiber video isolator designed to extend DisplayPort or HDMI video signals across long distances while enforcing one-way data flow. It provides hardware-enforced security filtering to prevent peripheral or data exfiltration risks between networks. The unit supports UHD video and is engineered for use where classified or sensitive video endpoints require physical isolation.

Key features include support for DP and HDMI combined connectors, SFP fiber link capability, and compatibility with HDBaseT-based transport technology to maintain zero-latency delivery. The receiver supports UHD 4K resolutions at 3840×2160 up to 30 Hz and can operate over fiber links to 10 km. The product is NIAP Common Criteria PP4.0 PSD certified and meets common AV interoperability standards.

Performance specifications include support for 4K30 video, low-latency video forwarding, and consistent signal integrity across fiber links. The receiver accepts DisplayPort or HDMI on the console side and provides the corresponding output to the local display. Power is supplied via an external 12V DC adapter, and AC input range is 100 to 240 VAC to support global use.

Connectivity options on the FVFE11PHR-M include DP/HDMI combined console ports and an SFP link port for singlemode fiber modules. The carrier supports standard OS platforms and typical USB peripheral mappings where specified in the system configuration. The device is compatible with common enterprise AV infrastructures and can integrate with KVM extension ecosystems that require secure unidirectional isolation.

Typical applications include secure control rooms, classified facility workstations, and command centers where prevention of data leakage is mandatory. The receiver is suited to scenarios that require remote display of protected sources at distances up to 10 km over fiber. It is also applicable to government and defense installations requiring NIAP certification and BAA/TAA compliance.

Installation is straightforward – the compact receiver mounts near the console and connects via an SFP fiber link to the transmitter. Setup requires minimal configuration beyond module insertion and cable termination, and the device includes standard AC power compatibility and an optional 12V DC input. The chassis is designed for reliable continuous operation and backed by a two year warranty and a defined 10 year product life-cycle.
