High Sec Labs FVFE11PH-M HDBaseT DP/HDMI Secure Fiber Video Isolator Pair Tx/Rx 10km 4K30Hz

Description

The FVFE11PH-M is a secure video isolator pair providing one-way unidirectional video extension and peripheral protection – it isolates host networks while delivering UHD video up to 4K at 30 Hz. The system uses fiber connectivity to extend signals up to 10 km and supports DP/HDMI combined connectors for flexible display interfacing. It is NIAP Common Criteria PP4.0 PSD compliant to meet strict peripheral security requirements.

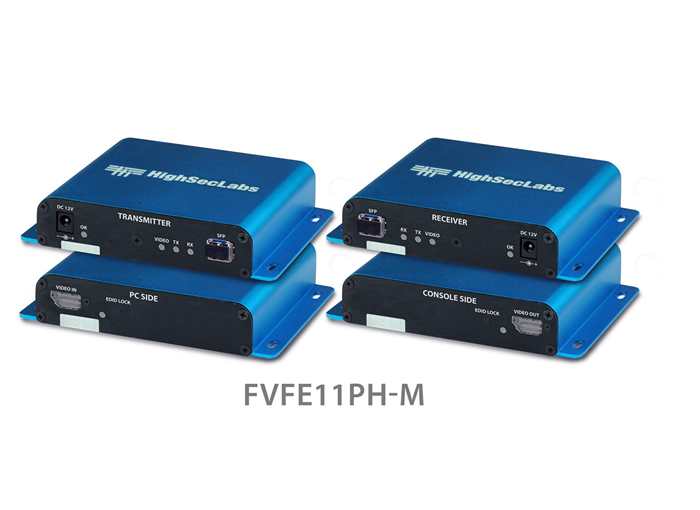

This pair includes a transmitter and receiver that use Valence HDBaseT technology to maintain zero latency video transmission and robust signal integrity. The units support combined DP/HDMI connectors allowing DisplayPort or HDMI cables and include SFP link ports for fiber modules. POE support permits powering the receiver via 48V injected at the transmitter when deployed on compatible networks.

Resolution support is UHD 3840×2160 at 30 Hz and the extender preserves video quality across distances up to 10 km over singlemode fiber. Keyboard and mouse connectivity varies by model; this variant does not provide USB peripheral ports at the console. Power options include external 12V DC supplies and AC input rated 100 to 240 VAC when required.

Connectivity includes DP/HDMI at both transmitter and receiver ends and an SFP link port for singlemode fiber modules. The product supports Windows, Linux and Mac hosts and conforms to major product certifications including CE, FCC class B, RCM, VCCI and TUV listings. Environmental tolerances include 0 to 40 degrees C operating range and storage down to -20 degrees C.

Typical applications include classified console separation, secure control rooms and broadcast environments where one-way isolation is required to prevent data leakage. The product is suitable for extending displays and isolated operator consoles at distances beyond copper limits while maintaining NIAP security posture. It is also applicable where HDMI/DisplayPort format conversion is necessary at the physical link.

Installation is straightforward with compact 145 x 105 x 28 mm TX and RX enclosures and simple external power options. The units ship with standard external power supplies where applicable and mount easily in equipment racks or on shallow shelves. The design emphasizes serviceability and long product life-cycle backed by a two year warranty.
