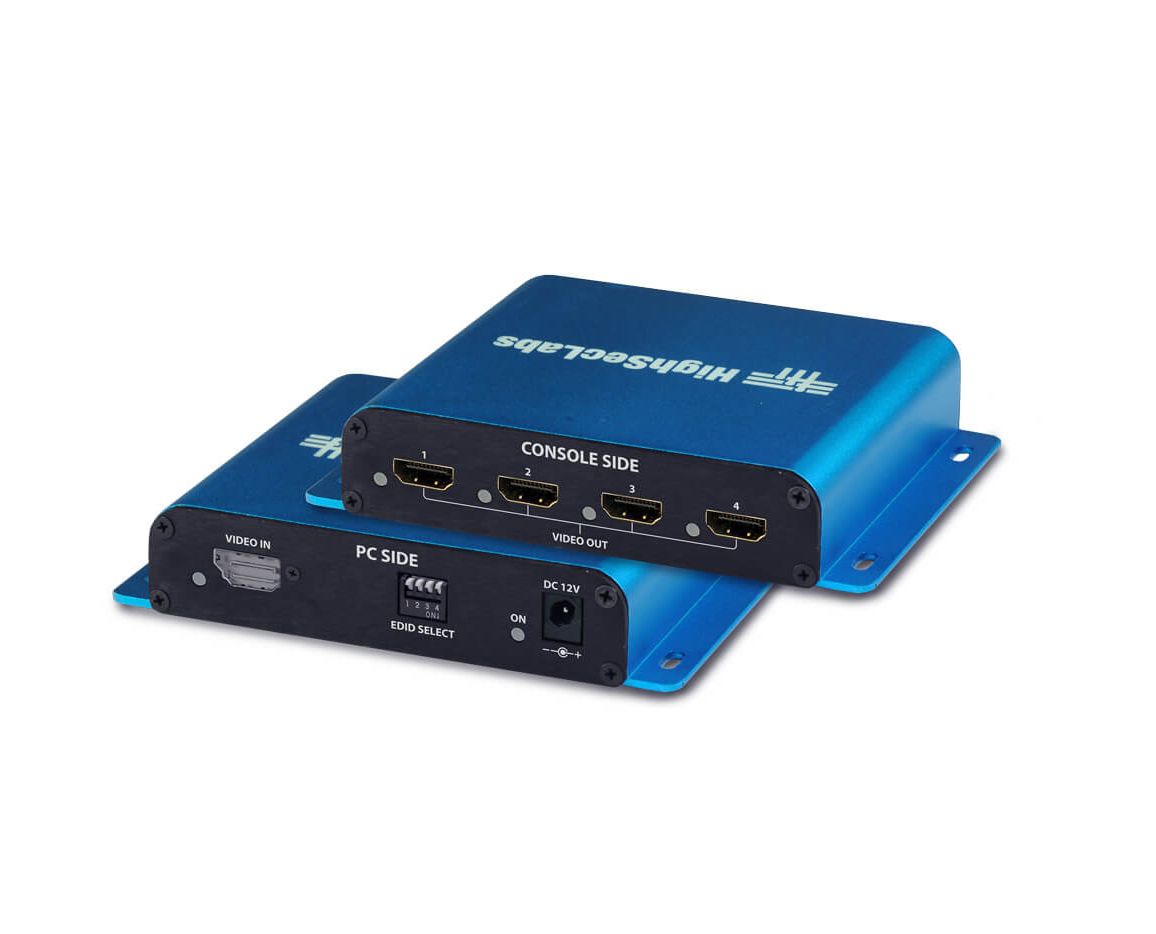

High Sec Labs PV14PH-N 4-Port Single-Head DP/HDMI to HDMI Splitter 4K60 4:4:4 HDR HDCP 1.4/2.2

Description

The PV14PH-N is a 4-port single-head DP/HDMI to HDMI distribution amplifier designed to copy one DisplayPort or HDMI source to four HDMI outputs. It accepts a DisplayPort or HDMI input and provides simultaneous HDMI outputs at UHD resolutions. The unit requires no programming or drivers and is built for continuous operation.

The PV14PH-N supports UHD 4K60 at full 4:4:4 chroma and HDR video signaling for accurate color and detail. It supports HDCP 1.4 and 2.2 copy protection to maintain compatibility with protected content. Multiple pre-defined EDID profiles are available and the unit can use the connected displays’ EDID for optimal handshake.

Performance includes support for resolutions up to 3840×2160 at 60 Hz and full color sampling 4:4:4 where source and sinks allow. The splitter preserves HDR metadata and negotiates HDCP automatically for each output. The device is engineered for 24/7 operation and long lifecycle reliability.

Connectivity is provided through a single DP/HDMI input and four HDMI outputs compatible with standard HDMI cabling and sink devices. The unique combined DP/HDMI input connector allows either source type to be used without additional converters. Power is supplied via the included external 12V wall-mounted power adapter and the unit accepts 90 to 240V AC input.

Typical applications include digital signage networks where one source must feed multiple displays, conference room systems distributing a presenter feed, and small AV systems requiring duplication of a 4K60 signal. The PV14PH-N is also suitable for feeding multiple scalers, switchers, or recording devices simultaneously. It supports professional installations where consistent EDID handling and HDCP compliance are required.

Installation is straightforward – rack or shelf mount the compact unit and connect the DP or HDMI source and up to four HDMI displays. No drivers, software, or control system is necessary which simplifies deployment and reduces points of failure. The unit’s compact metal enclosure and tested certifications support commercial deployments and long-term use.
