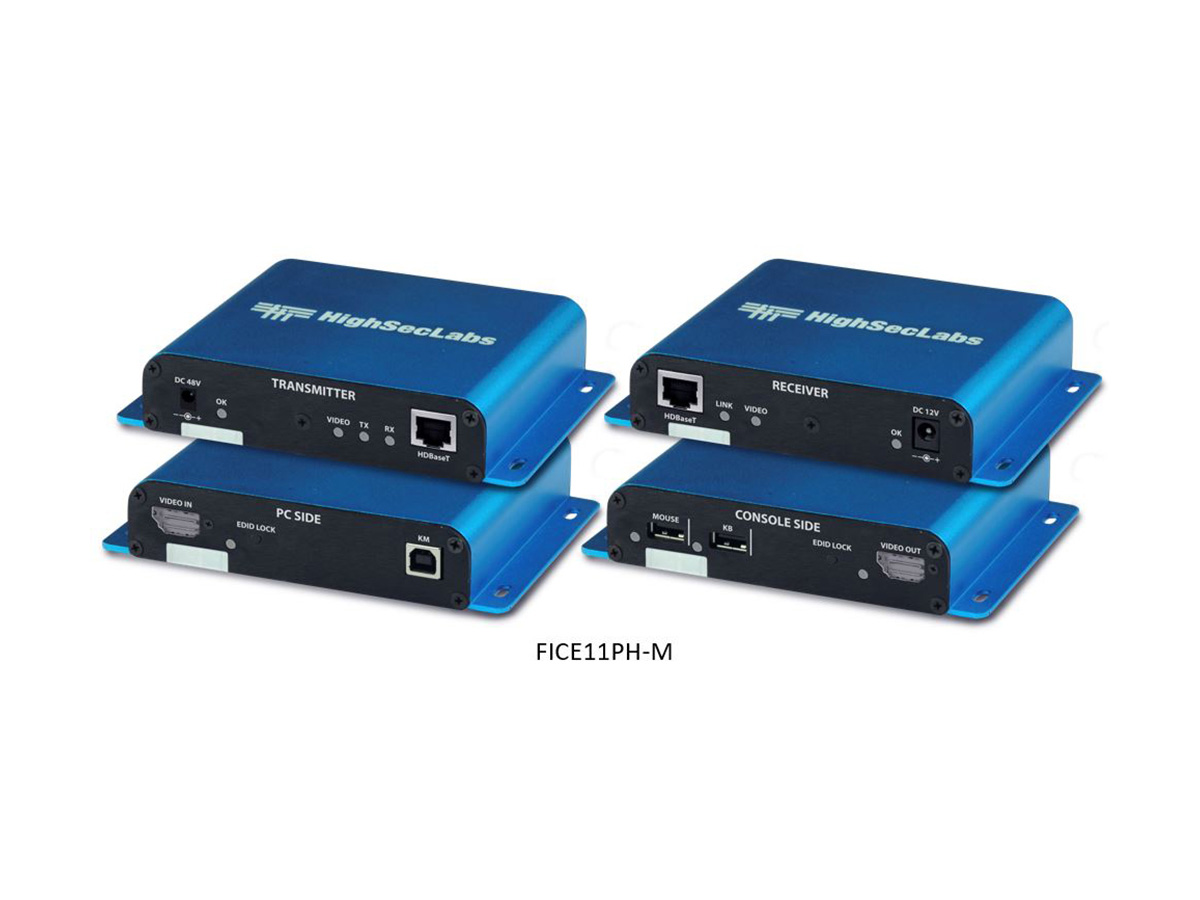

High Sec Labs FICE11PH-M HDBaseT DP/HDMI Secure Copper KVM Isolator Pair Tx/Rx 100m 4K30Hz

Description

The HDBaseT DP/HDMI Secure Copper KVM Isolator Pair provides unidirectional, NIAP-compliant isolation between a computer and a remote console. It is designed to extend DisplayPort or HDMI video and USB keyboard/mouse signals over copper cabling up to 100 meters while preventing data leakage. This product is delivered as a transmitter and receiver pair that enforces secure, filtered communication.

Primary features include combined DP/HDMI connectors for flexible source and display connections and Valence HDBaseT technology that maintains zero-latency video transmission. The isolator supports UHD 4K up to 3840×2160 at 30 Hz and provides USB Type-A/B ports for keyboard and mouse connectivity. Power options include PoE support and an external power supply for operational flexibility.

Performance is industry-oriented with support for secure KVM isolation and compliance with NIAP Common Criteria PP4.0 PSD Protection Profile. The extender pair handles video at 4K30Hz over copper at distances up to 100 m and can be configured for extended fiber or copper reach up to 10 km when using compatible fiber options. Latency is effectively zero thanks to HDBaseT transport, and signal integrity is preserved for professional AV workflows.

Connectivity covers DP/HDMI display ports at both console and computer ends, USB Type-A ports for console peripherals, and a USB Type-B port on the transmitter side. Network-style RJ45 link ports carry the HDBaseT signal over shielded twisted pair cabling. The units are compatible with Windows, Linux, and Mac operating systems and support standard USB HID devices without additional drivers.

This secure KVM isolator pair is suited to classified or sensitive environments where one-way data flow and peripheral filtering are required. Typical applications include secure control rooms, defense installations, and government facilities where console isolation is mandated. The product also fits corporate and industrial AV setups that require robust separation between user stations and protected networks.

Installation is straightforward with compact desktop units and standard external power input ranging 100-240 AC and optional DC configurations. The compact metal enclosures are engineered for reliable rack or desk placement and operate across a 0 to 40 C ambient range. Included system certifications and a two-year warranty provide assurance for integrators and administrators deploying secure extension solutions.
