Datavideo TLM-102K Dual 10.1in 4K Rack Monitors / 12G-SDI / HDMI2.0 / Vectorscope / Waveform

Description

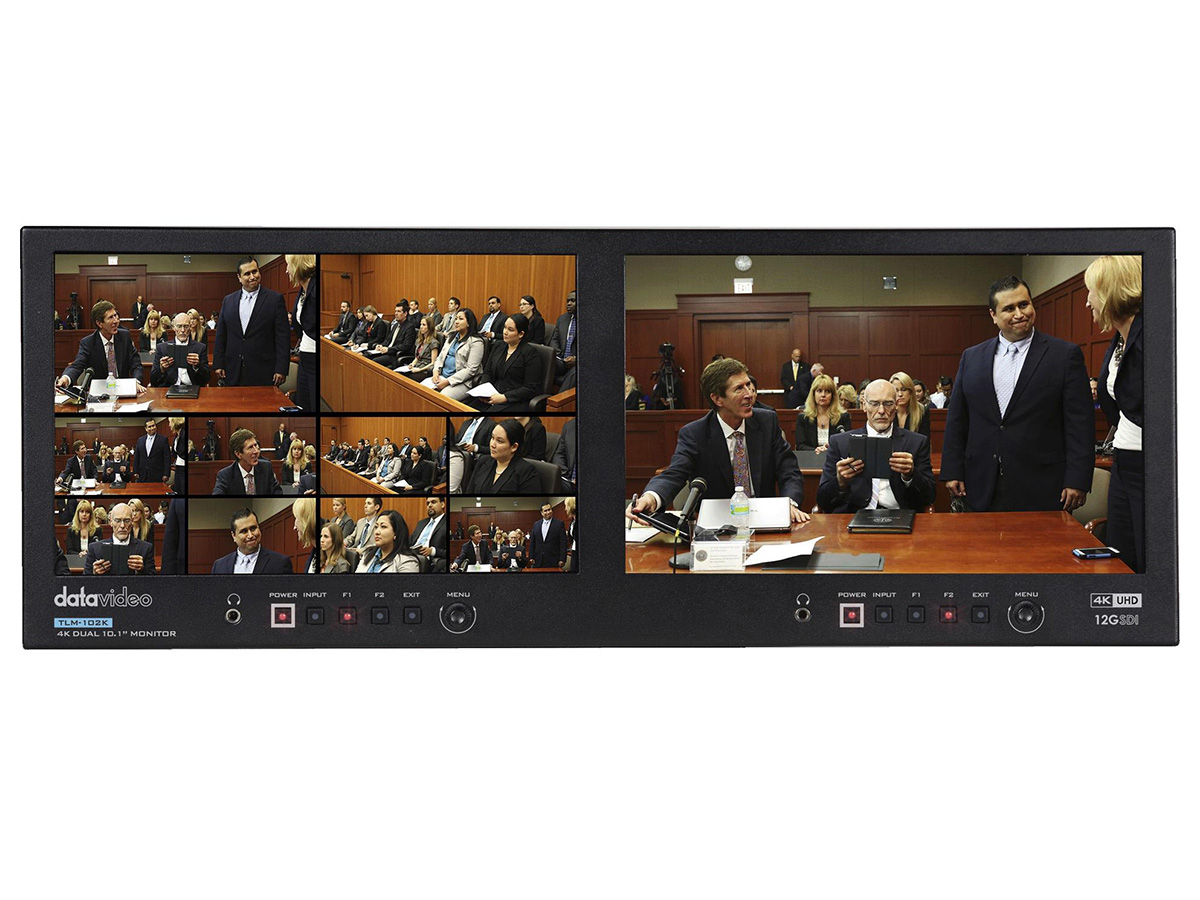

The TLM-102K is a dual 10.1 inch rack mount monitoring solution designed for broadcast and live production monitoring. It provides two independent 1920 x 1200 LCD panels in a 4RU chassis for centralized rack installation. Operators gain high-resolution monitoring and professional metering tools in a single compact unit.

The monitors include advanced monitoring tools such as vectorscope, waveform, time code display, audio level meters, peaking, false color, histogram, zoom and pixel-to-pixel. Each screen offers customizable brightness, contrast, color saturation and LED backlight settings. User-definable F1 and F2 buttons allow quick access to frequently used functions and shortcuts.

Both panels deliver 1920 x 1200 resolution and support HDR workflows to preserve image detail in high dynamic range content. The displays rate at 1000 cd/m2 and 1000:1 contrast to maintain visible detail in mixed lighting environments. Viewing angles are optimized for control room use and multi-operator viewing.

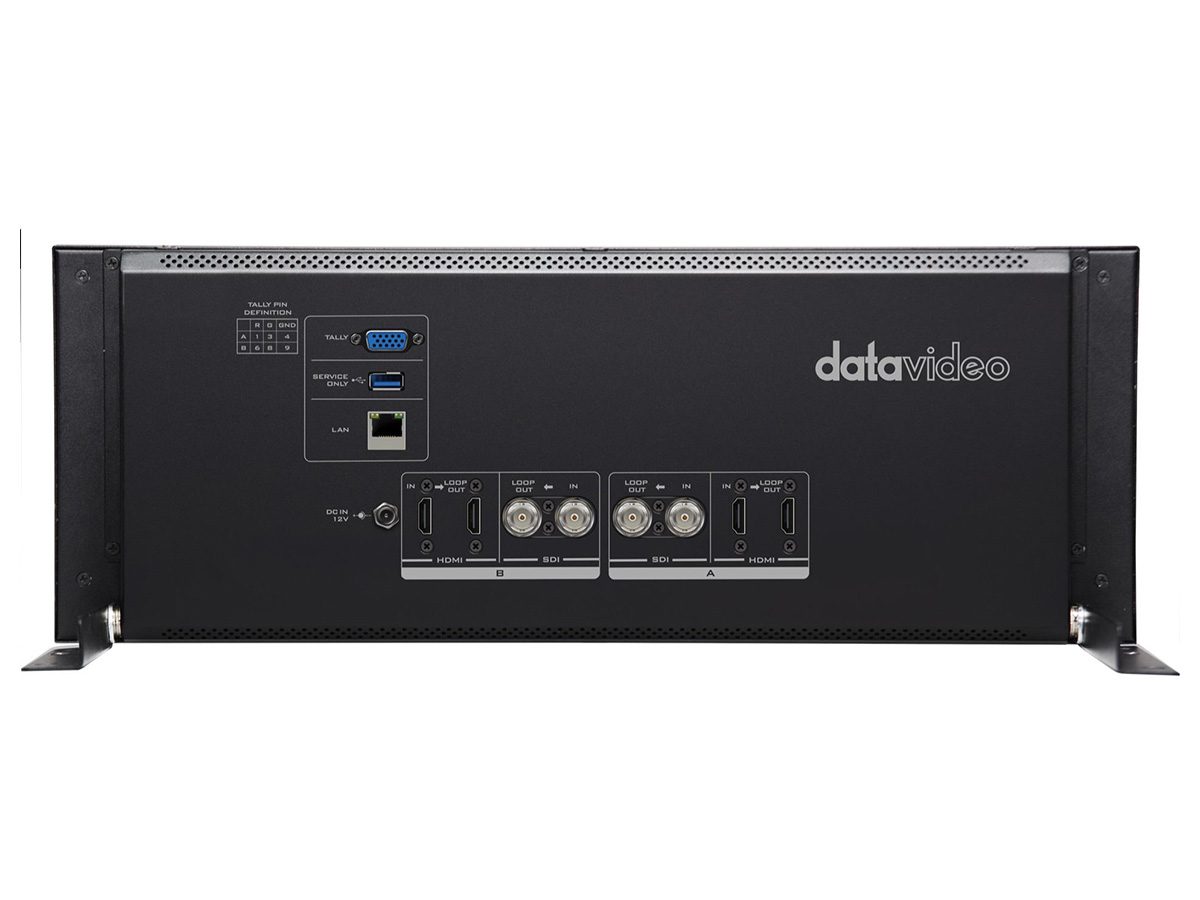

Connectivity includes 12G-SDI inputs and loop-throughs alongside HDMI 2.0 inputs and loop-throughs, enabling integration with modern 4K sources. Embedded audio monitoring at 48 kHz and an analog headphone output permit quick verification of audio levels. A 15-pin tally input supports live on-air indicators for tally status integration.

The TLM-102K is suitable for OB vans, broadcast control rooms, live event racks and video wall preview panels. It supports a wide range of input formats including 4K60 and common HD frame rates for multi-camera productions. Rack-focused design and monitoring functions make it appropriate for technical operators and engineers managing live feeds.

Installation is simplified by the 4RU rack chassis, front panel controls and front headphone jack for operator convenience. Color temperature modes include 6500K, 7500K, 9300K and a custom preset for accurate color matching. The unit runs on DC 12V power and is built for continuous professional use in production environments.
