Description
The HT-AIM-70-RX is an HDBaseT receiver designed to accept HDMI signals over long-distance CAT6A/7 cabling while preserving original video and audio quality. It supports 4K UHD at 60Hz in 4:2:0 8-bit color depth and maintains zero-latency signal transmission for real-time applications. The receiver pairs with the HT-AIM-70 transmitter to extend HDMI sources reliably across AV systems.
Key features include support for 4K@60Hz 4:2:0 video, bi-directional Power over Cable (PoC), and pass-through control for IR and RS-232. The unit receives 4K@60Hz up to 40 meters and 1080p@60Hz up to 70 meters when using CAT6A/7 cable. Built-in control pass-through enables control of the source or display from either endpoint.
Performance is optimized for professional AV installations with zero latency and preservation of original signal timing and audio channels. Color depth is 4:2:0 8-bit for 4K60 operation as specified. The receiver is tailored to handle HDMI signals passed from the matching transmitter while avoiding compression or frame buffering.

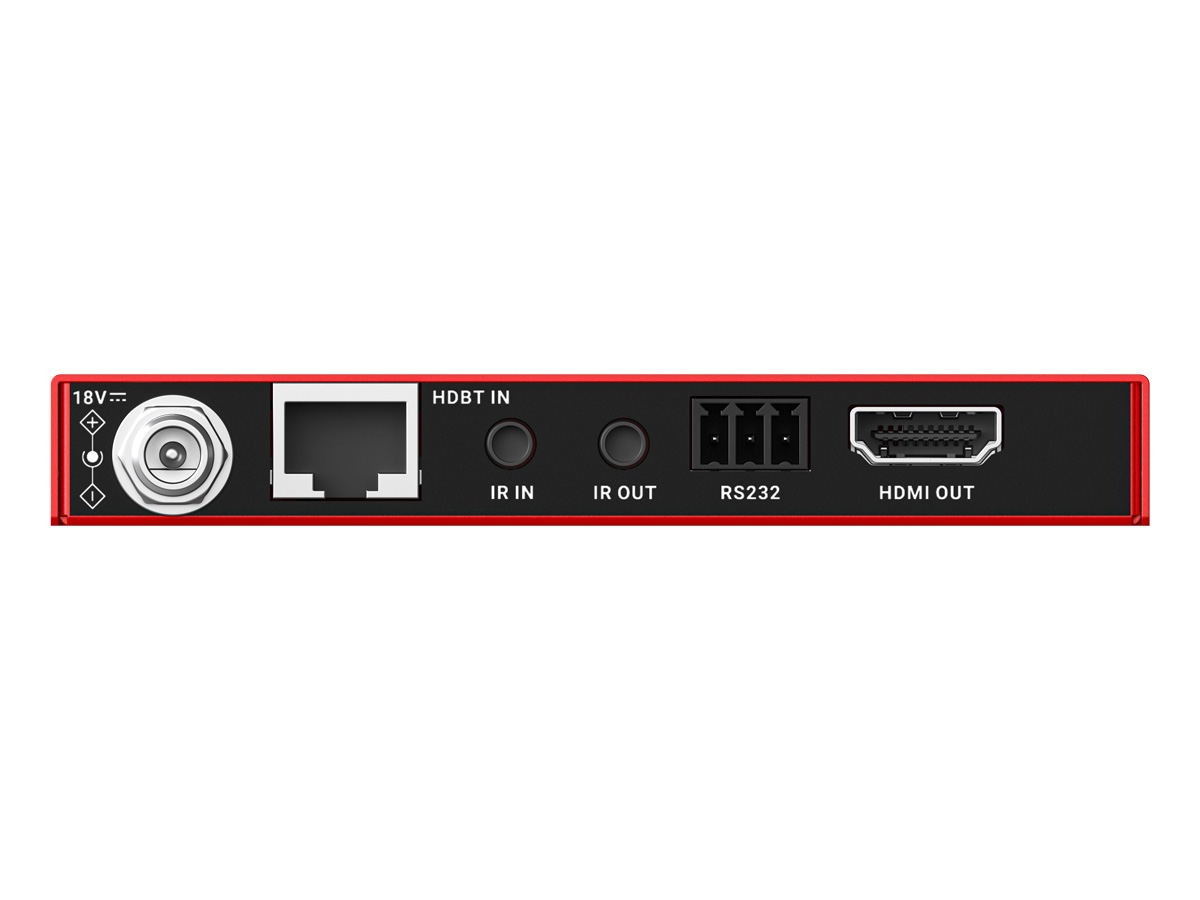

Connectivity options include HDBaseT over CAT6A/7 for the link and HDMI for the local display interface, along with bi-directional IR and RS-232 for control. The device supports bi-directional PoC so power can be supplied over the same cable between transmitter and receiver. This reduces the need for local power bricks when paired appropriately.
Typical applications include digital signage installations, boardroom AV extension, classroom AV systems, and rental or staging where source equipment must be located away from displays. It is suitable for professional environments that require stable 4K signal extension with remote device control. The slimline form factor simplifies mounting behind displays or in constrained racks and enclosures.

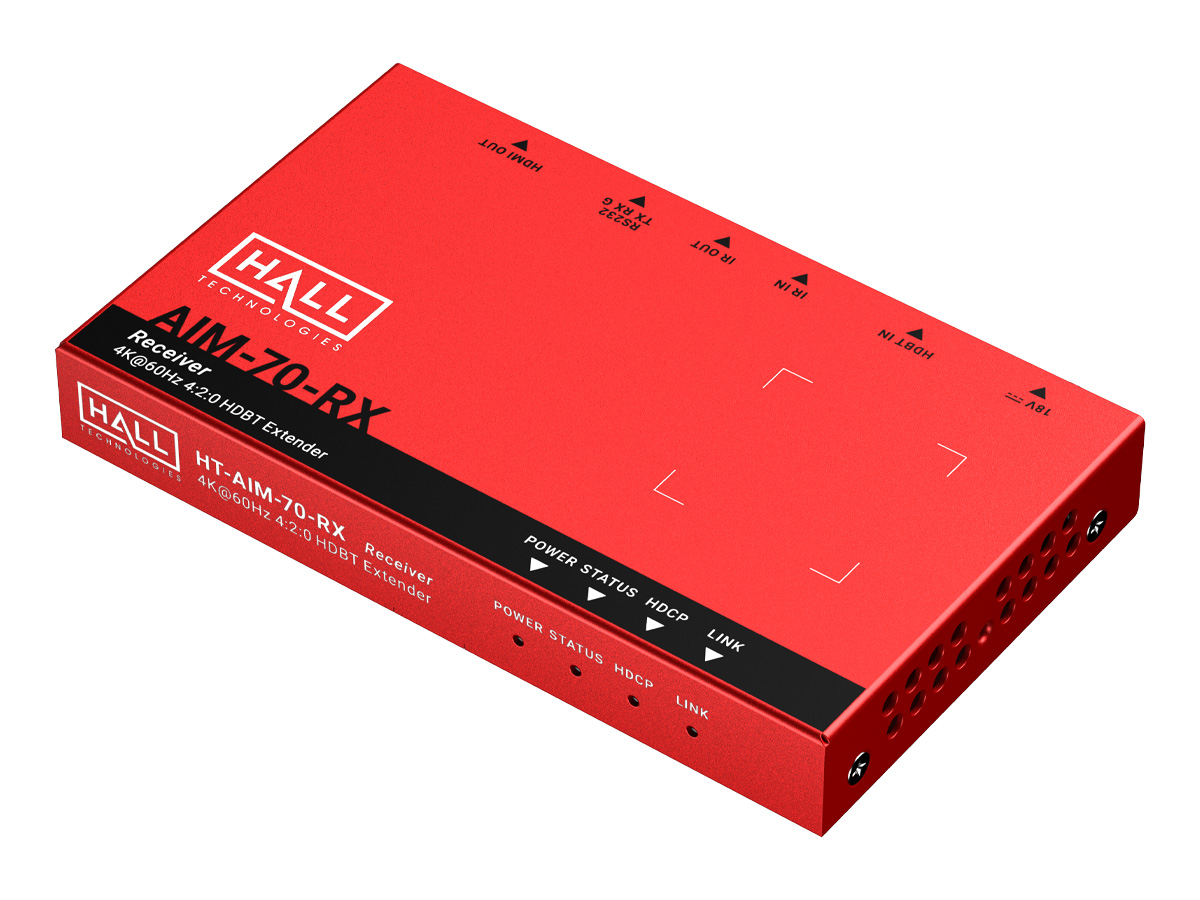

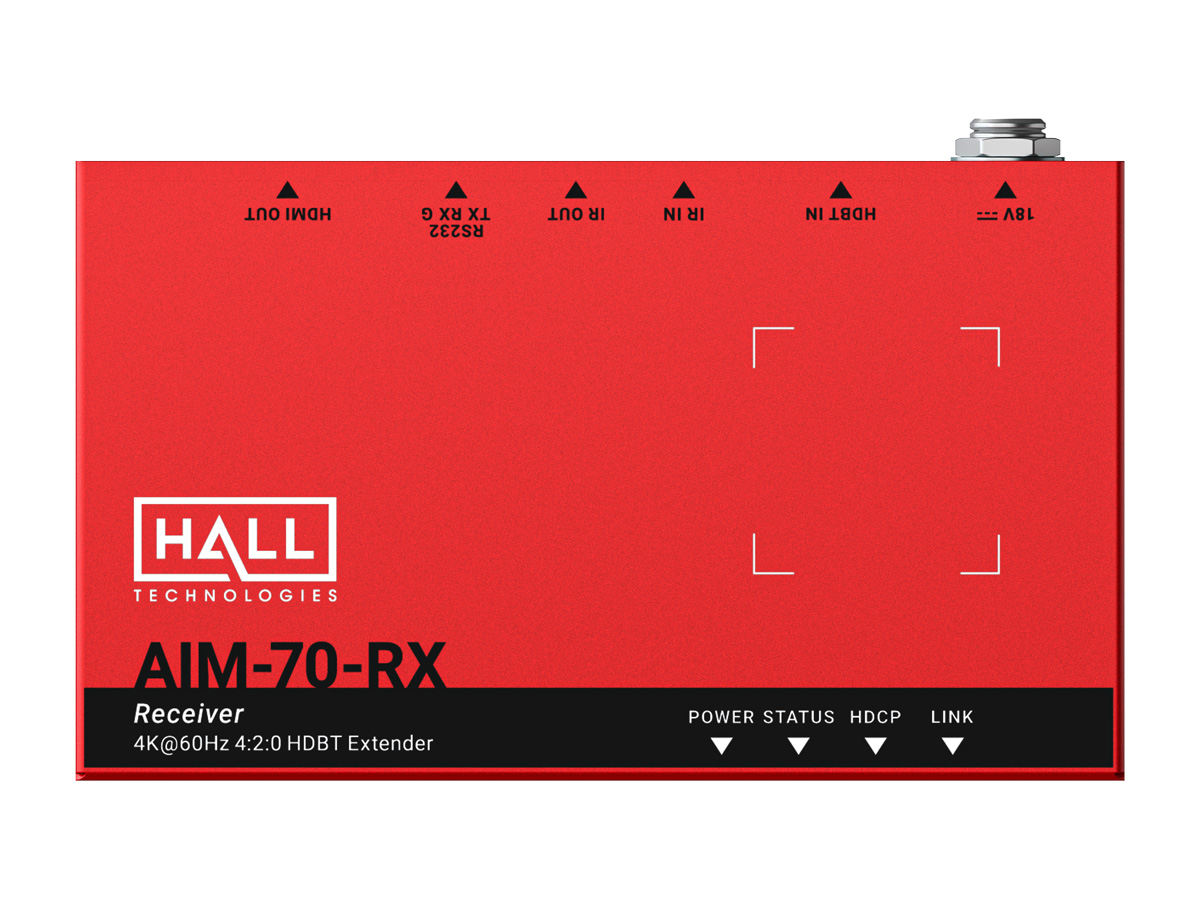

The HT-AIM-70-RX features a compact, slimline design for straightforward installation and reliable long-term operation. Hall Technologies provides a limited warranty that covers defective workmanship and materials as specified by the manufacturer. The product contains no user-serviceable parts – opening the unit without written permission from Hall Technologies will void the warranty.
