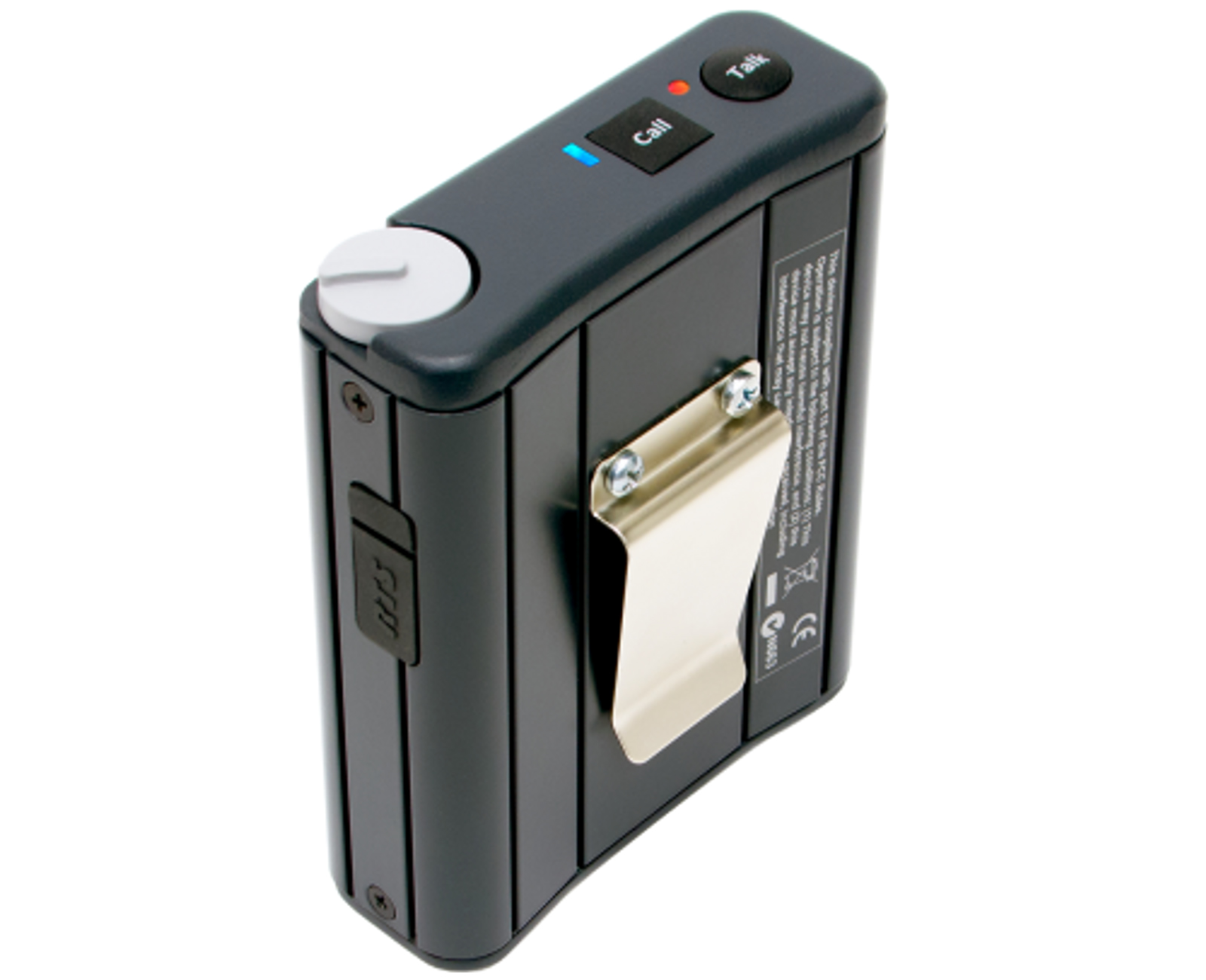

RTS BP5000A4F Dual Channel Universal Beltpack / A4F Headset Jack / Auto-Wiring / Mic Kill

Description

The RTS BP5000A4F Dual Channel Universal Beltpack is a compact partyline intercom device designed to provide reliable two-channel voice communication. It automatically adapts to common intercom wiring schemes to ensure immediate compatibility. The unit includes an A4F headset jack to support a wide range of professional headsets and microphone types.

The beltpack features auto-wiring scheme detection that recognizes RTS, Audiocom and Clear-Com formats on connection. It offers intelligent power management that reduces overall consumption and enables multiple beltpacks to be daisy-chained on a single power supply. Enhanced talk button control provides selectable modes and visual incoming-call indication to simplify operator workflows.

Technical highlights include support for dynamic and electret headset microphones and availability of 4-pin or 5-pin XLR headset connectors. The device supports up to 40 beltpacks on a single PS-20 power supply when used with its current pump monitoring circuit. A remote microphone kill function mutes all beltpack microphones via an inaudible signal and can be overridden if needed.

Connectivity options include automatic detection of RTS, Audiocom and Clear-Com wiring schemes and compatibility with standard XLR headset connectors. The beltpack accepts industry headset pinouts and provides compatibility across popular intercom systems. Cable monitoring and regulated power delivery help maintain consistent audio performance across long runs.

Typical applications include broadcast and live production partyline communication, ENG crews requiring multi-user intercom, and theater stage management where multiple beltpacks are linked. The BP5000A4F is suited to both fixed and temporary installations where rapid configuration and headset flexibility are required. Its remote mic-kill and visual call indicators help maintain clear communications in dynamic environments.

Installation is straightforward via standard intercom cabling and the unit requires minimal configuration due to voice-guided menu prompts. Factory default reset is accessible through voice guidance, removing the need for internal jumper changes. Rugged construction and professional connector options support frequent field use and integration into existing systems.

In summary the BP5000A4F provides automated wiring compatibility, efficient power management, selectable talk modes and remote mic control in a compact beltpack. It combines headset flexibility with partyline scalability and simple voice-guided setup to reduce deployment time. The design prioritizes reliable audio connectivity and practical controls for production crews and AV technicians.
