Description

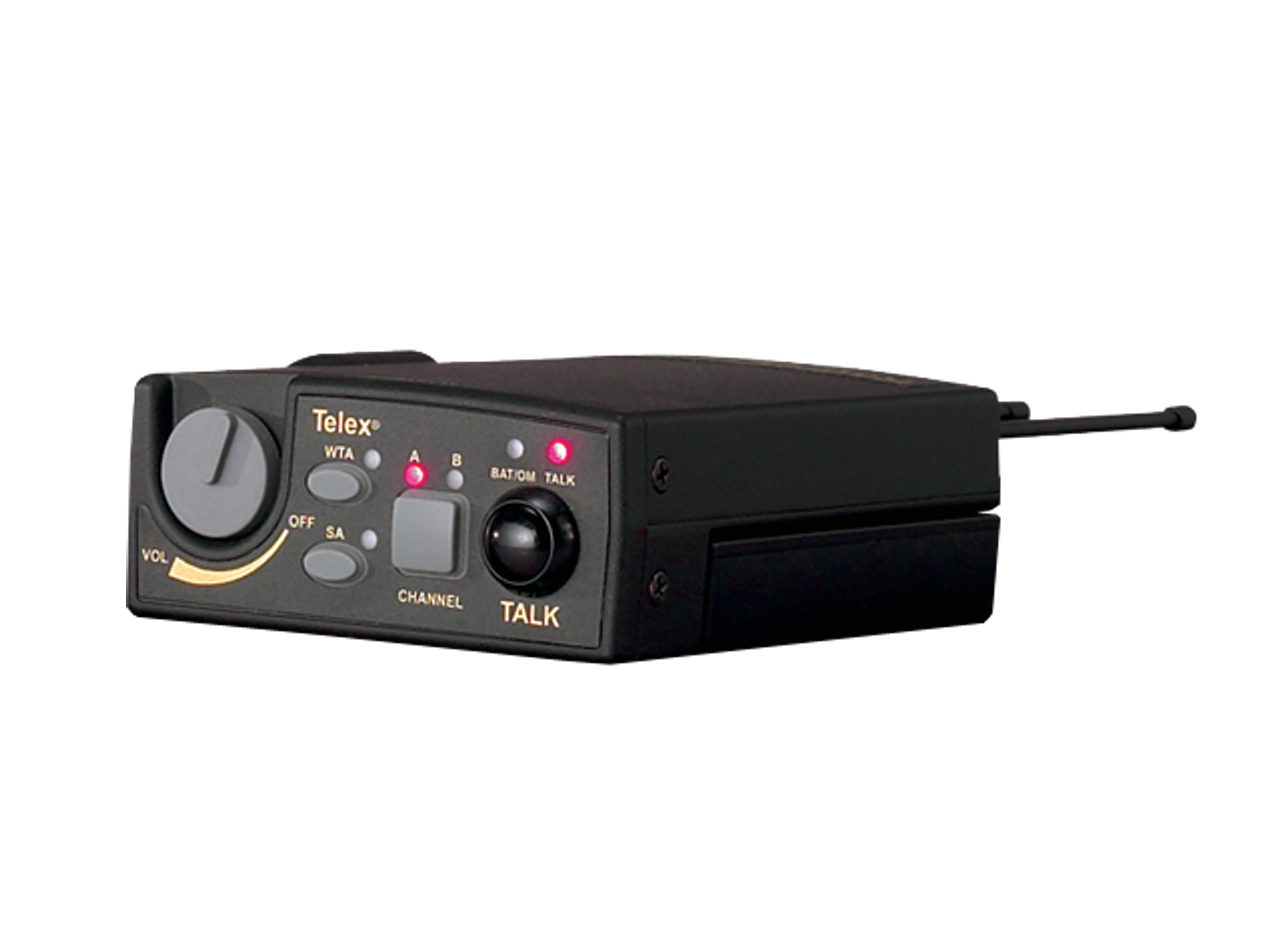

The RTS TR-800 is a two-channel UHF wireless beltpack designed to deliver reliable intercom audio and flexible channel control. It provides direct operator access to two separate audio channels and local headset monitoring. The unit is engineered for professional stage and broadcast environments where clear, mobile communication is required.
Key features include individual volume controls, an LCD graphical user interface, detachable antennas, and an auto-sensing headset connector that switches between electret and dynamic microphone types. The beltpack supports stage announce and wireless talk around functions to simplify local coordination. Enhanced ClearScan and synthesized tuning help maintain clean RF operation across assigned UHF bands.
Technical performance covers an RF frequency range of 470 – 608 MHz and 614 – 740 MHz across 18 MHz TX/RX bands with synthesized dual conversion superheterodyne architecture and 712 channels. The frequency response is 300 Hz to 8 kHz and RF sensitivity is specified at less than 0.7 for 12 dB SINAD. Distortion is listed as less than 1 at full deviation and RF frequency stability is 0.005.
Connectivity includes screw-type replaceable 1/4 wave antennas for TX and RX and an auto-sensing headset connector for electret or dynamic microphones. Local headset output is specified as 40 mW output into 600W with 1% distortion and microphone input sensitivity is listed as 7. The beltpack uses six AA alkaline cells with NiMH as an optional battery type.
Typical applications include live event communications, broadcast production intercom circuits, and theater stage operations requiring mobile user stations. The TR-800 suits users who need two-channel access in a compact belt-mounted form factor. Its talk light, talk button, and audio channel select controls support straightforward operator workflows in noisy environments.
The TR-800 is built with an all-metal cast magnesium case and an LCD based graphical user interface for durability and easy status monitoring. Detachable antennas and a screw-type replaceable antenna design simplify maintenance in field deployments. The unit also features BAT/OM indicators, talk light, and a robust push-to-talk current profile for reliable operation.
Overall, the TR-800 offers a professional-grade mobile intercom beltpack that balances RF performance, operator controls, and mechanical durability. ClearScan tuning and synthesized frequency agility reduce setup time and interference risk. This beltpack is a practical choice for crews requiring dependable two-channel wireless intercom functionality.
