Description

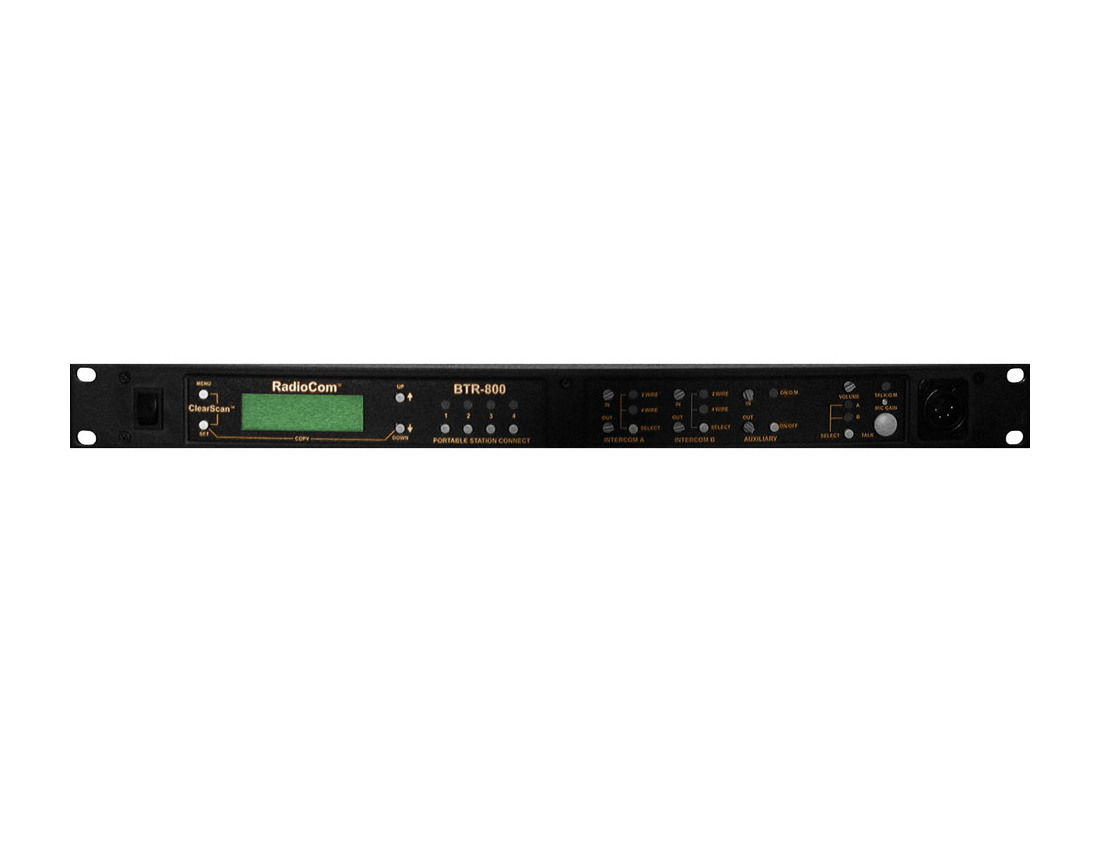

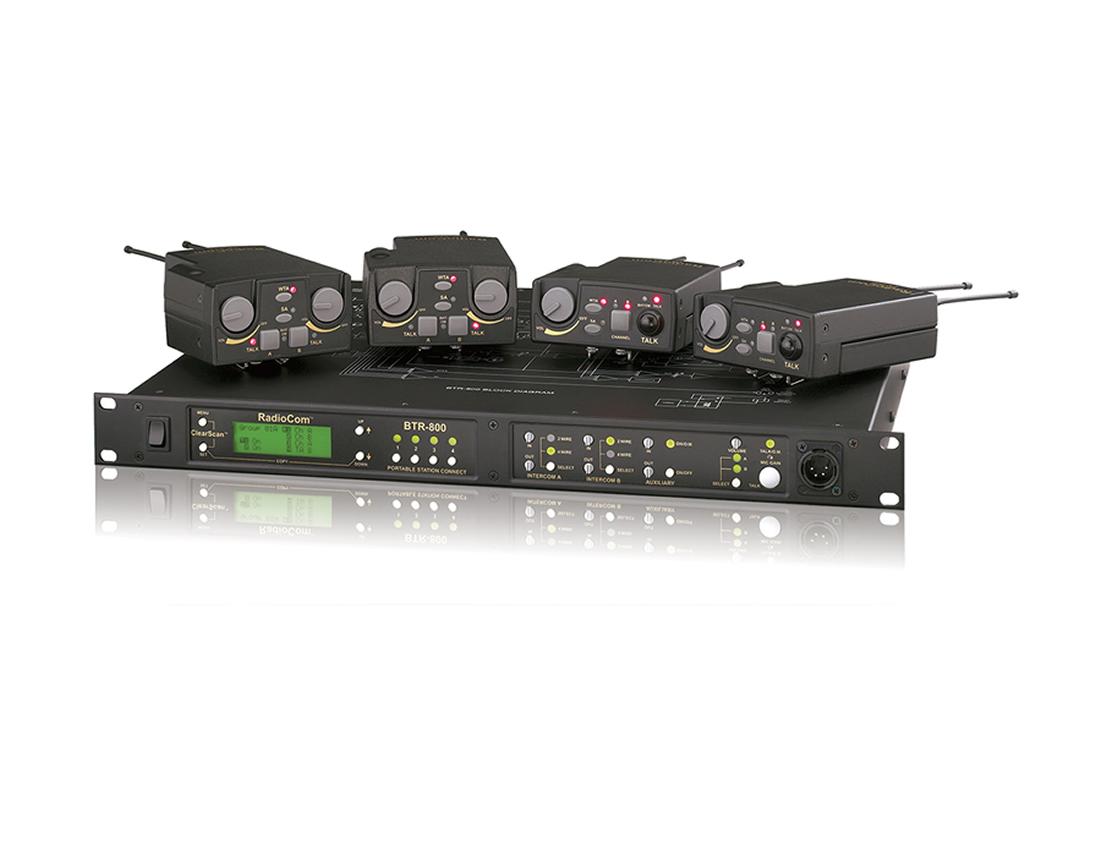

The BTR-800 is a UHF synthesized wireless intercom base station designed to provide reliable full-duplex communications in professional AV and broadcast environments. It operates as a frequency-agile base that supports up to four beltpacks and delivers two separate intercom audio channels. The unit is rackmountable or usable on a tabletop and includes a backlit LCD for monitoring beltpack status.
Key features include frequency-agile operation across C3 band ranges, two independent audio channels, full-duplex simultaneous talk and listen capability, and compatibility with standard wired intercom systems. The system supports wireless talk-around (WTA) and stage announce (SA) functions and includes ClearScan for automatic channel selection. Beltpack features such as SA and WTA controls and binaural two-channel operation expand operational flexibility.
Technically the base station operates in 470-608 MHz and 614-740 MHz in 18 MHz TX and RX bands, uses FM modulation with 40 kHz deviation (35 kHz Europe), and provides selectable transmit power up to 100 mW. RF frequency stability is 0.005 and the system supports reliable line-of-sight range around 1,000 feet with supplied antennas. Battery life for beltpacks is approximately 12 hrs using standard alkaline batteries.
Connectivity includes level-adjustable 4-wire input and output, adjustable auxiliary input and output, a microphone input, and local headset output. The base uses an IEC AC power inlet for 100-240 VAC operation and standard TNC antenna connectors for supplied 1/2-wave antennas. The system interfaces with Audiocom, RTS Two-Wire, Clear-Com and other four-wire intercom systems for direct integration into existing infrastructure.
Typical uses include live events, broadcast productions, theater stage management, and venue communications where robust wireless intercom and two-channel separation are required. The two audio channels enable combined party line and private communications within a single beltpack. The SA relay and talk-around functions allow on-site announce and backup communication paths when wired systems are unavailable.
Installation is straightforward for AV technicians – the base station mounts in a rack or sits on a table and uses standard IEC power and TNC antenna connections. The durable construction of the beltpacks and the clear LCD status display simplify field operation and monitoring. Overall the BTR-800 offers professional-grade wireless intercom features and system compatibility in a compact rackable chassis.
