Description

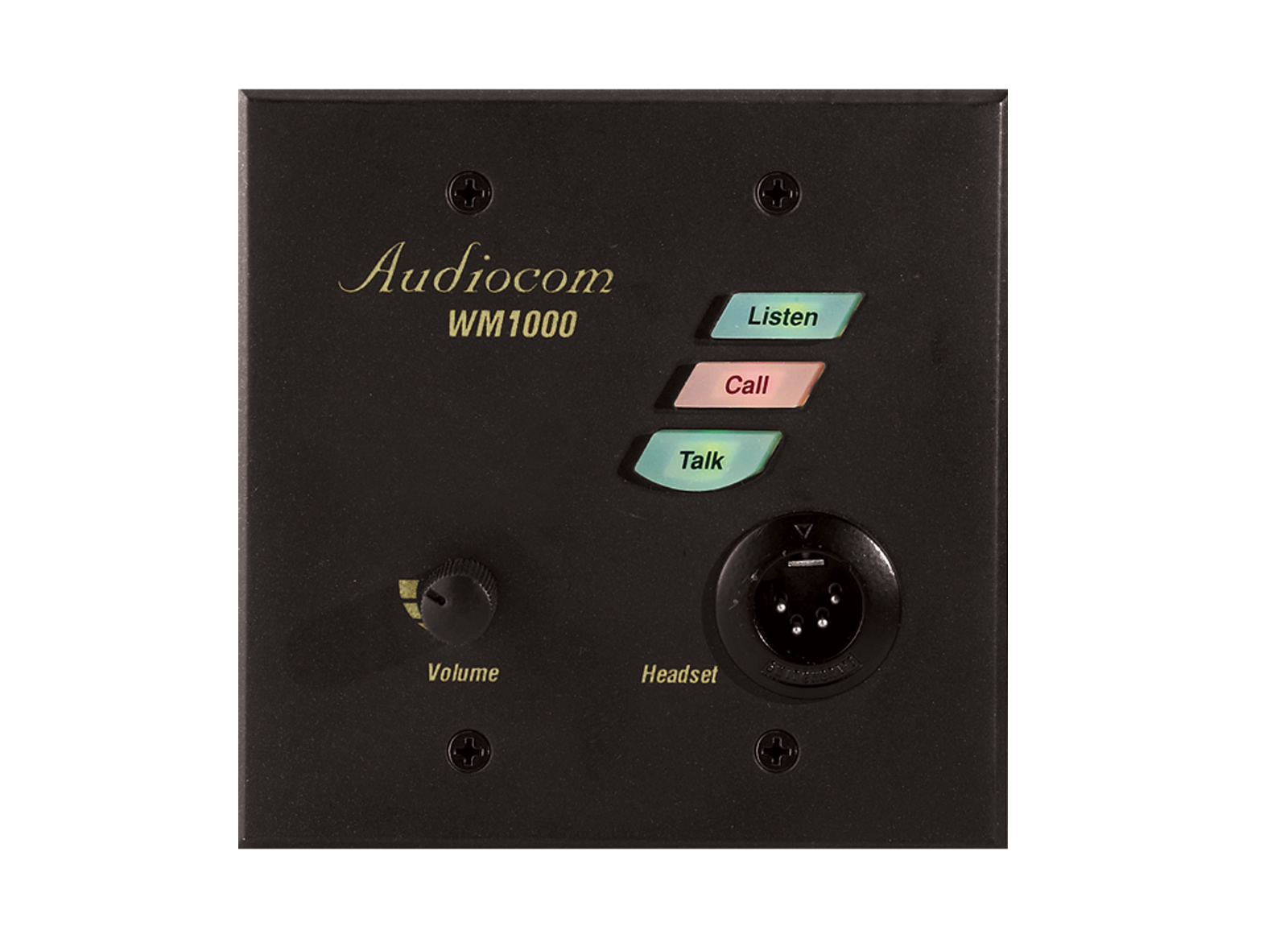

The WM-1000 is a single-channel wall plate headset station designed for professional intercom systems. It provides listen, call, and talk controls in a compact wall-mount form factor. The station supports both balanced and unbalanced dynamic microphones for flexible headset compatibility.
The unit features selectable momentary or latching modes for both listen and talk keys, plus a dedicated call key for channel signaling. A mic kill receive function allows remote master stations to disable the talk key when required. Configuration DIP switches let you enable call beep, select microphone type, and enable DC call signaling.
Physically the WM-1000 mounts to any standard two-gang electrical box and is supplied as a black wall plate. Headset connection is via a 4-pin male XLR that accepts monaural headphones and balanced or unbalanced dynamic microphones. Sidetone trimmers are provided to adjust the operator’s own voice level in the headphones.
Connectivity is handled through a terminal block that carries the intercom channel and an optional local power supply connection. An Audiocom/Clear-Com selector switch ensures compatibility with either channel pin-outs, power requirements, and call signaling schemes. External system compatibility is preserved while allowing local power if needed.
Typical use cases include broadcast control rooms, studio booths, and portable field racks where a rugged wall-mounted headset interface is required. The compact footprint and standard mounting pattern make it suitable for retrofit and new installations. Clear-Com compatibility is indicated, and the unit is not CE certified.
Installation requires only standard wiring to the channel terminal block and mounting to a two-gang electrical box. DIP switches and sidetone trimmers are accessible on the front or rear as specified in installation guides, allowing on-site configuration without firmware updates. The build quality and XLR connector provide reliable mechanical and electrical connections in production environments.
In summary, the WM-1000 delivers a focused set of intercom controls in a wall-plate form factor – single channel operation, selectable listen/talk modes, XLR headset connector, and compatibility selection for Audiocom or Clear-Com systems. It is aimed at installations needing a compact, configurable headset station that integrates with existing intercom infrastructures. The unit’s configurable signaling and mic options simplify integration into mixed headset environments.
