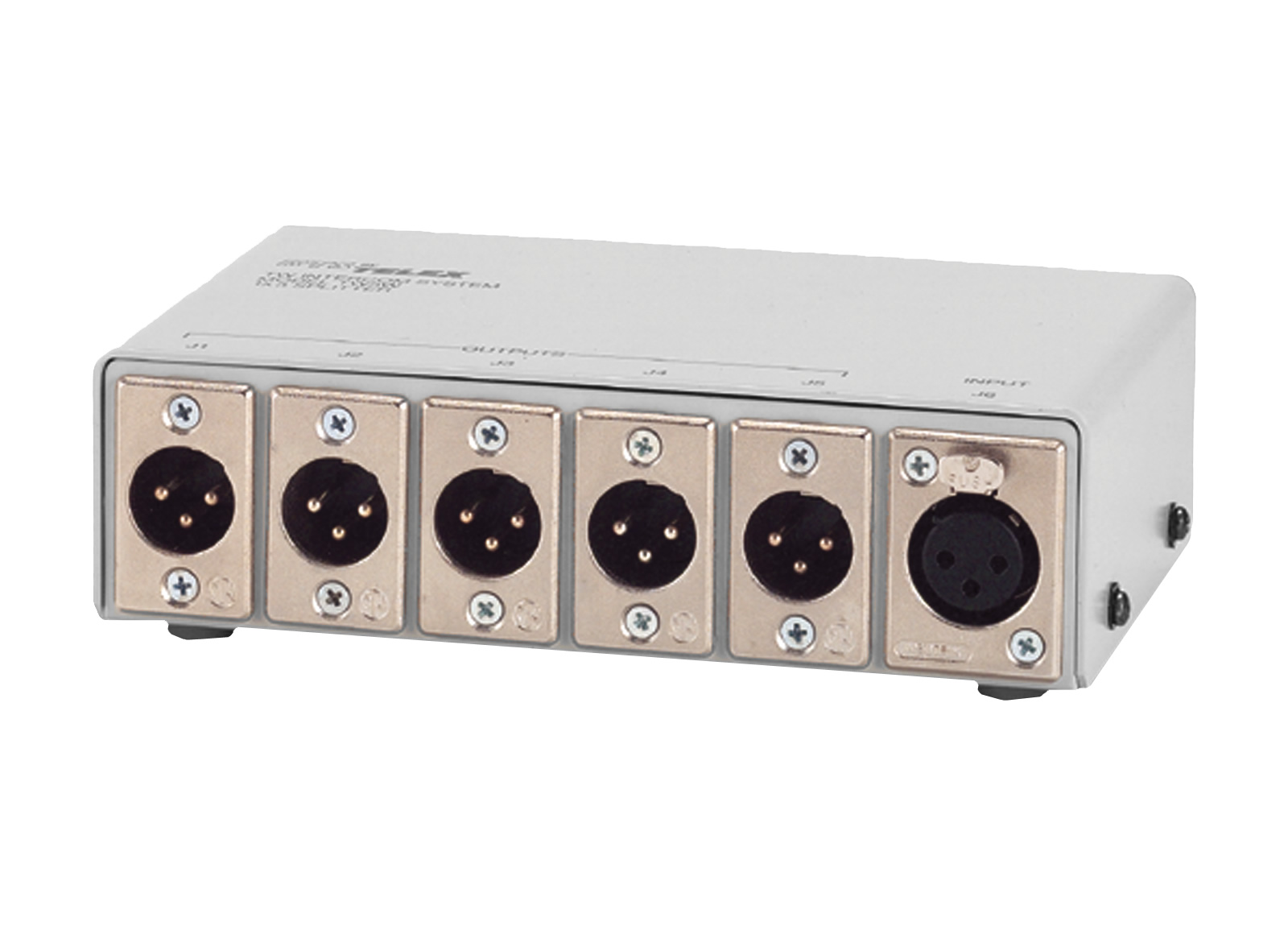

RTS TW-5W 1×5 2-Channel Passive 3-Pin XLR Splitter / Rugged Metal Box

Description

The TW-5W is a compact passive audio splitter designed to distribute two-channel intercom audio across multiple outputs. It provides a simple 1 in to 5 out configuration using standard 3-pin XLR connectors. The unit is built to function as a portable floor interconnect while preserving signal integrity.

Key features include a 1 female 3-pin XLR input and five male 3-pin XLR outputs arranged for two-channel audio distribution. The passive design requires no external power and minimizes points of failure in mission-critical intercom chains. A rugged metal housing protects internal wiring and connectors during transport and stage use.

Technically, the TW-5W is rated for 50 VDC and offers dielectric strength exceeding 1.5 kVDC to help resist transient events. The splitter is specified for a maximum rated current of 5 Amps to accommodate typical intercom feed levels. Operating temperature is specified from 0°C to 50°C to support common live-event and production environments.

Connectivity is straightforward and industry-standard: one female 3-pin XLR input feeds five male 3-pin XLR outputs for easy integration with intercom belts and base stations. The connector layout follows established audio conventions to simplify setup and minimize cable re-patching. Compatibility is broad across analog intercom and low-voltage audio systems that use 3-pin XLR wiring.

Typical applications include stage floor boxes, broadcast intercom distribution, and small production hubs where a single feed must be split to multiple users. The unit is useful at venues, studios, and OB trucks where rugged portable distribution is required. Its passive nature makes it suitable for short-run distributions where no amplification or remote powering is needed.

Installation is simple – place on the floor or rack area and connect XLR cabling as needed. The metal housing and basic mechanical design require no special mounting hardware, though it can be secured as part of a floor interconnect assembly. The TW-5W delivers a straightforward, durable solution for repetitive setup and teardown workflows.
