Electro-Voice EVID 6.2W Two-Way Twin 6 in Woofer / 1 in Horn-Loaded Tweeter / 300W RMS / 100V Taps

Description

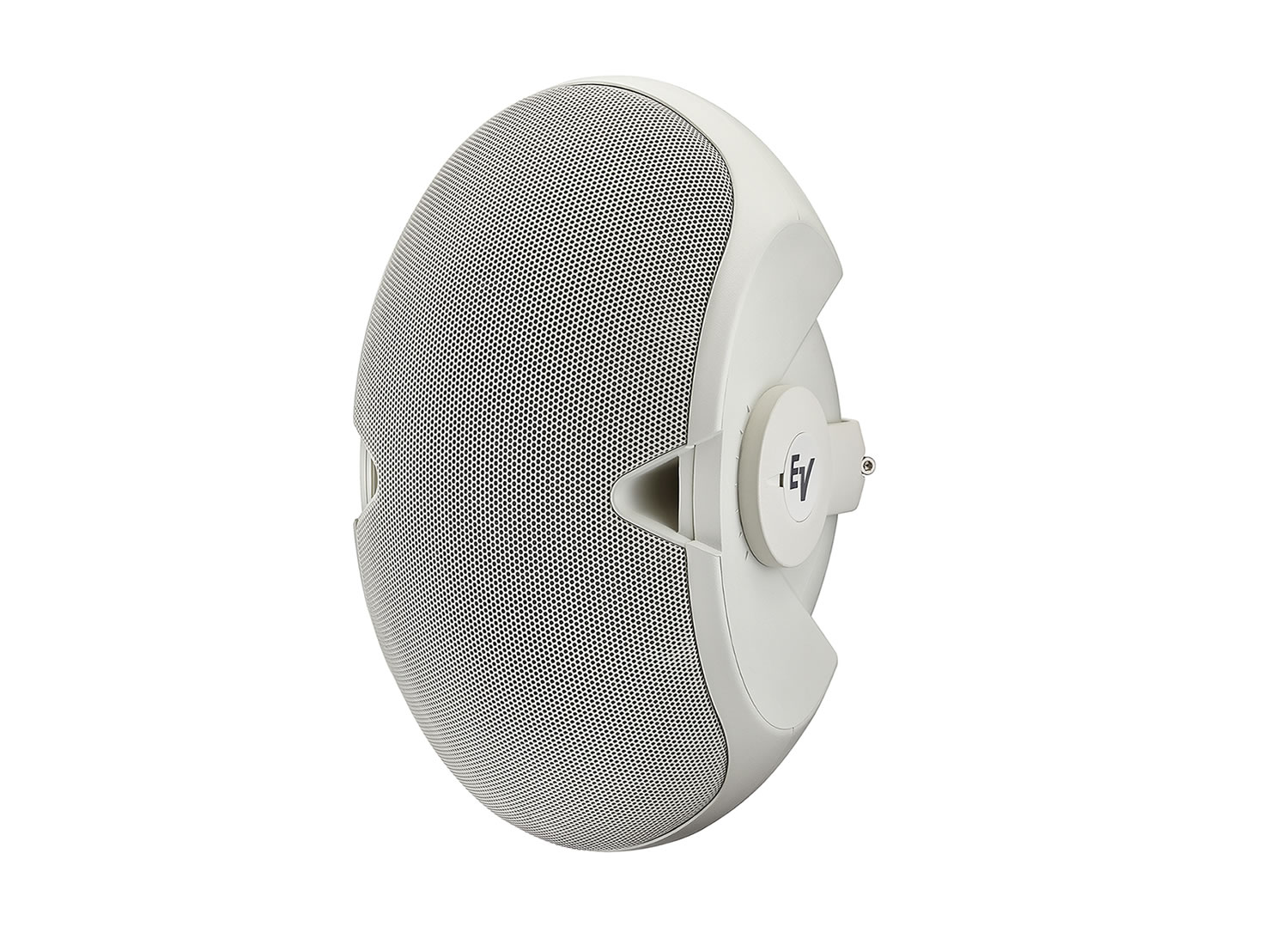

The EVID 6.2W is a passive two-way on-wall loudspeaker designed for professional distributed audio and foreground/background music systems. It combines twin 6 in woofers and a horn-loaded high-frequency device to deliver clear speech and musical reproduction. The enclosure is weather resistant and has a compact elliptical profile for discreet on-wall installations.

Key features include 300W RMS continuous power capability and a built-in multi-tap 100V transformer for distributed line systems. The speaker provides high sensitivity and a maximum SPL suitable for large spaces while offering selectable 100V tappings of 15 / 30 / 60 W. The horn-loaded HF section gives controlled dispersion for predictable coverage in corridors and open areas.

Performance specifications include a frequency response of 62Hz – 20KHz and a sensitivity of 94 dB, supporting transparent speech and full-range program material. The nominal impedance is 8 ohm and peak power handling reaches 600W, allowing headroom for dynamic content. Maximum SPL is rated at 118 dB which supports venues requiring higher output levels.

Connectivity is via standard speaker terminations and an internal 100V transformer, allowing selection between constant-voltage taps or low-impedance operation. The transformer options enable simple integration into existing 100V distributed systems while the 8 ohm path supports direct amplifier drives. This flexibility makes the speaker compatible with common professional amplifiers and line-arrangement topologies.

Typical applications include retail spaces, hospitality areas, corridors, and houses of worship where predictable coverage and speech intelligibility are priorities. The controlled HF dispersion and dual 6 in woofers make it suitable for small-to-medium sized rooms requiring even background music coverage. The weather-resistant enclosure also supports semi-exposed locations such as covered outdoor walkways.

Installation is simplified by the included adjustable mounting bracket which enables easy aiming and secure on-wall attachment. The ABS enclosure offers impact resistance and long-term durability in commercial environments. Overall build quality and transformer options provide a reliable solution for professional audio installations that demand longevity and consistent performance.
