Electro-Voice EVC-1152-95PIB 15 Inch Speaker/90° x 55° Weatherized/Passive/Coverage/Built-in Transformer

Description

The Electro-Voice EVC-1152-95PIB is a robust 15-inch two-way loudspeaker designed for diverse applications where fidelity and clarity are paramount. This speaker features a weatherized construction suited for both indoor and outdoor setups, ensuring it can withstand varying environmental conditions. With its compact design, the speaker offers excellent sound dispersion and directivity control for enhanced listening experiences.

One of the key features of this loudspeaker is its high-frequency section, which includes a 1¼-inch pure titanium dome compression driver. This driver is coupled with a rotatable constant directivity waveguide, delivering uniform pattern control and a smooth response across the frequency spectrum. The low-frequency section boasts a high-output woofer that utilizes advanced computer-aided optimization techniques to minimize distortion while maximizing intelligibility, especially at high sound pressure levels.

The passive crossover design of the EVC-1152-95PIB employs a modified fourth-order topology, featuring slopes of 24 dB per octave. This design enhances off-axis response and improves definition in the critical vocal range, making it ideal for live sound and fixed installations. The speaker’s efficiency and high output capabilities ensure that it can handle demanding audio environments without compromising sound quality.

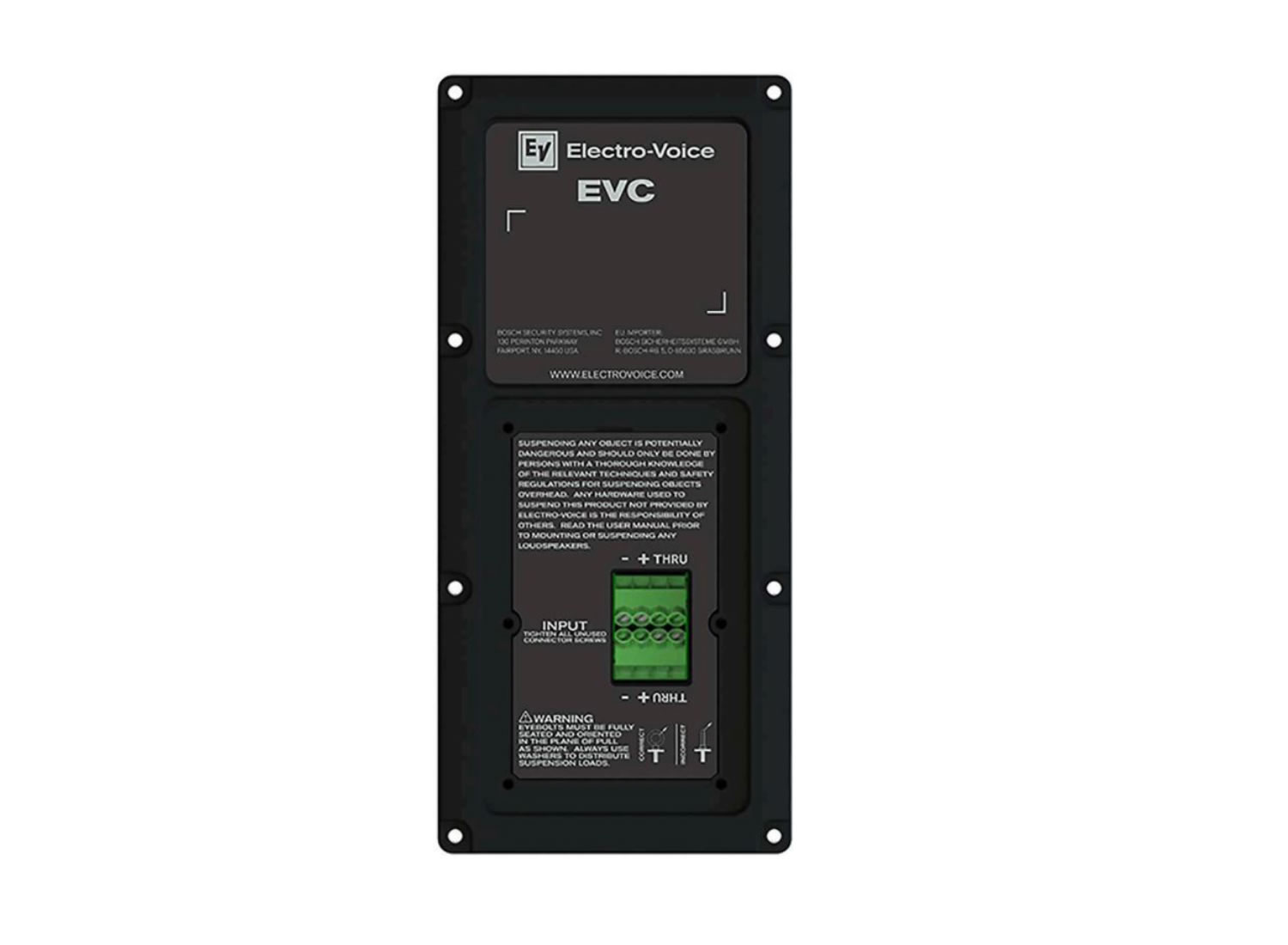

Connectivity options are versatile, with the EVC-1152-95PIB accommodating up to 10 AWG wire gauges. The input panel is designed to accept optional NL4-type connectors or weatherized gland-nuts, enhancing its adaptability for various installation scenarios. Additionally, it features an internal landing pad for mounting EV’s TK-150 audio transformer, which allows for 70V/100V operation while maintaining low-frequency performance.

This loudspeaker finds applications across a wide range of environments, from concert venues and event spaces to permanent installations in commercial settings. Its ability to deliver clear, powerful sound makes it suitable for both music playback and speech reinforcement. The EVC-1152-95PIB is perfect for professionals looking for reliable audio solutions in challenging conditions.

Installation is straightforward, thanks to the robust construction of the enclosure made from 15-mm plywood and finished with EVCoat for enhanced durability. Multiple M10 suspension points allow for flexible mounting options, whether suspended or wall-mounted. The design ensures ease of integration into existing sound systems while maintaining a clean aesthetic.

In summary, the Electro-Voice EVC-1152-95PIB loudspeaker represents an excellent investment for audio professionals. With its combination of high output, efficient design, and weather-resistant features, it provides reliable performance in any application. This speaker is designed to meet the needs of demanding environments, making it a top choice for those who prioritize sound quality and durability.
