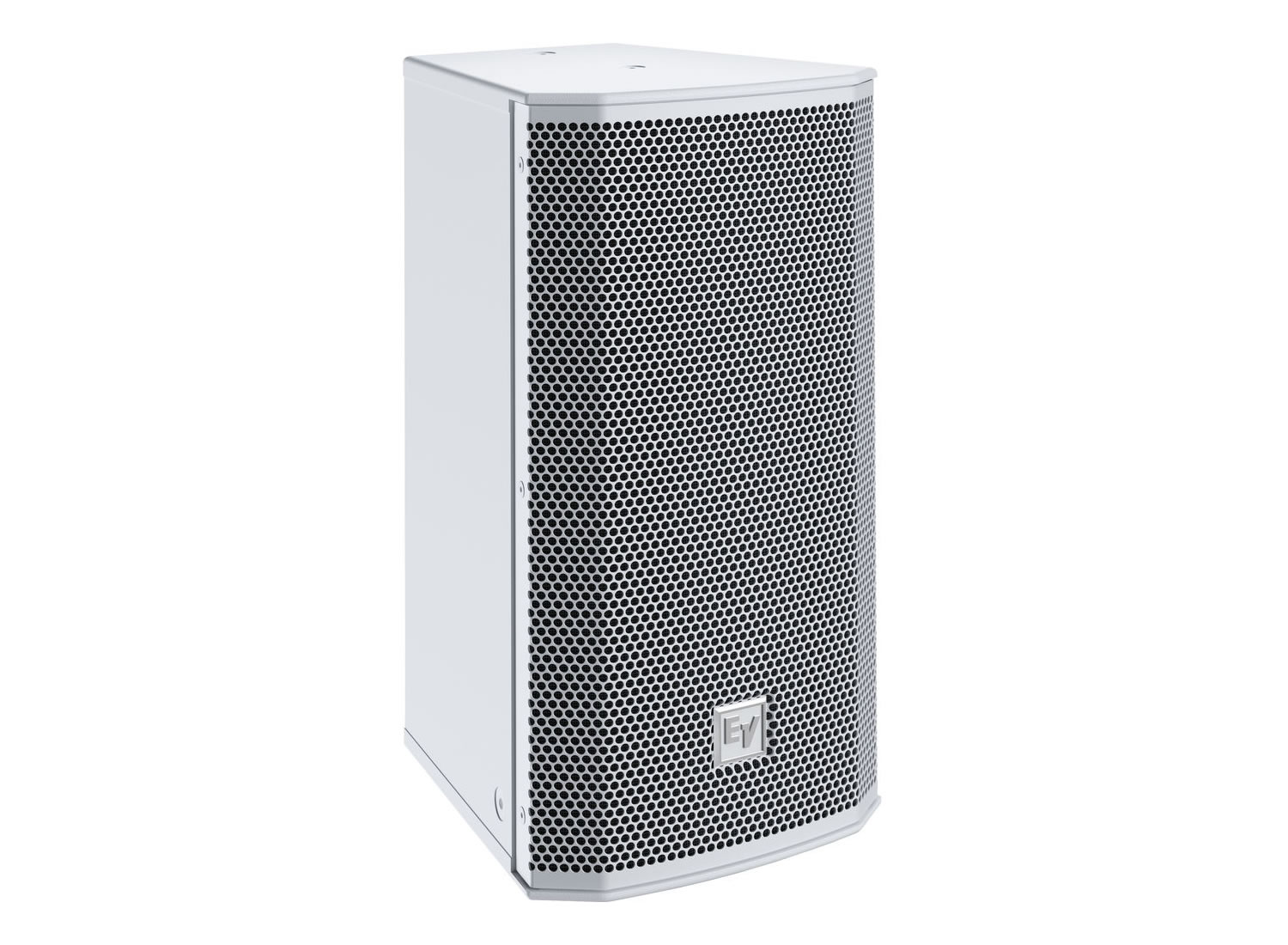

Electro-Voice EVC-1152-64W 15 Inch Speaker/60° x 45° Coverage/350 W Continuous/White

Description

The Electro-Voice EVC-1152-64W is a powerful two-way loudspeaker designed for various applications. With a robust 15-inch woofer and a 1¼-inch titanium dome compression driver, it delivers exceptional sound quality and clarity. This speaker is ideal for users seeking high efficiency and directivity control in a compact form factor.

Featuring a rotatable waveguide with a constant directivity of 60° x 45°, the EVC-1152-64W provides consistent sound coverage across a wide area. Its passive design allows for a maximum output of 129 dB, ensuring that it can fill large spaces with powerful audio. The speaker is well-voiced to work seamlessly with other Electro-Voice models, enhancing acoustic performance in complex systems.

This loudspeaker boasts a frequency response range from 70 Hz to 20 kHz, making it suitable for various audio applications. Its high-output woofer is engineered for low distortion, while the passive crossover design optimizes sound reproduction, particularly in the vocal range. The result is a clear, natural sound that excels even at high sound pressure levels.

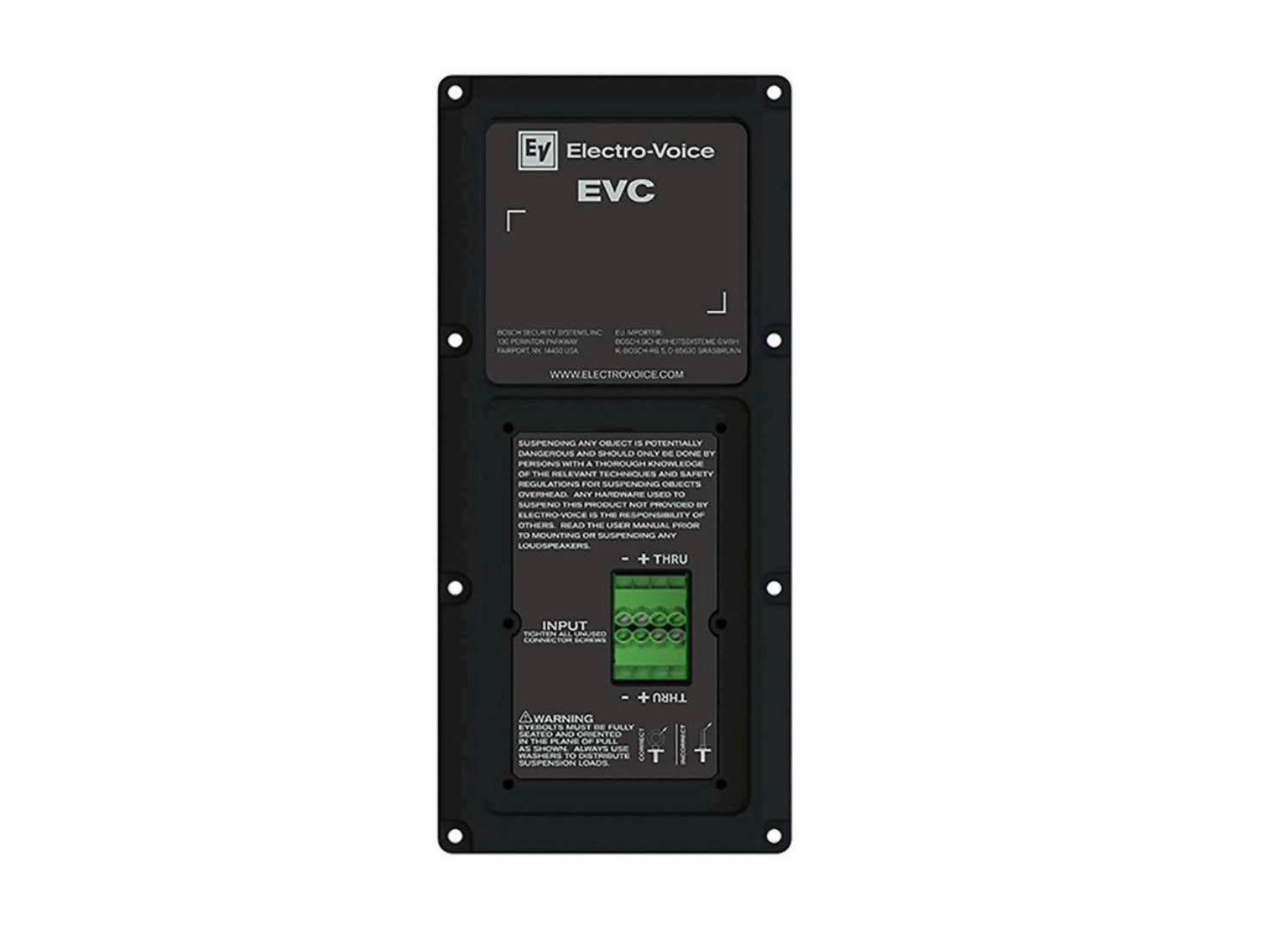

The EVC-1152-64W offers versatile connectivity options, including dual four-pin Phoenix screw-terminal connectors. It can accommodate wire gauges up to 10 AWG and features an input panel that is compatible with optional NL4-type connectors. For 70V/100V operation, the speaker can integrate with EV’s TK-150 transformer, enhancing its performance while maintaining a consistent load to the amplifier.

This speaker is well-suited for both permanent installations and portable applications. Its durable 15-mm plywood enclosure is finished with EVCoat, providing enhanced resistance to wear and environmental factors. The design includes multiple M10 suspension points and optional mounting brackets, facilitating straightforward installation on walls or ceilings.

In summary, the Electro-Voice EVC-1152-64W loudspeaker combines advanced technology with robust construction to deliver high-quality sound. Its wide frequency response, excellent directivity, and flexible connectivity options make it an excellent choice for AV professionals and audio engineers alike. Whether for installations in theaters, auditoriums, or outdoor venues, this speaker meets the demanding needs of modern audio environments.
