Electro-Voice EVC-1122-95W 12 Inch Speaker / 90° x 55° Directivity / 300 W Continuous / White

Description

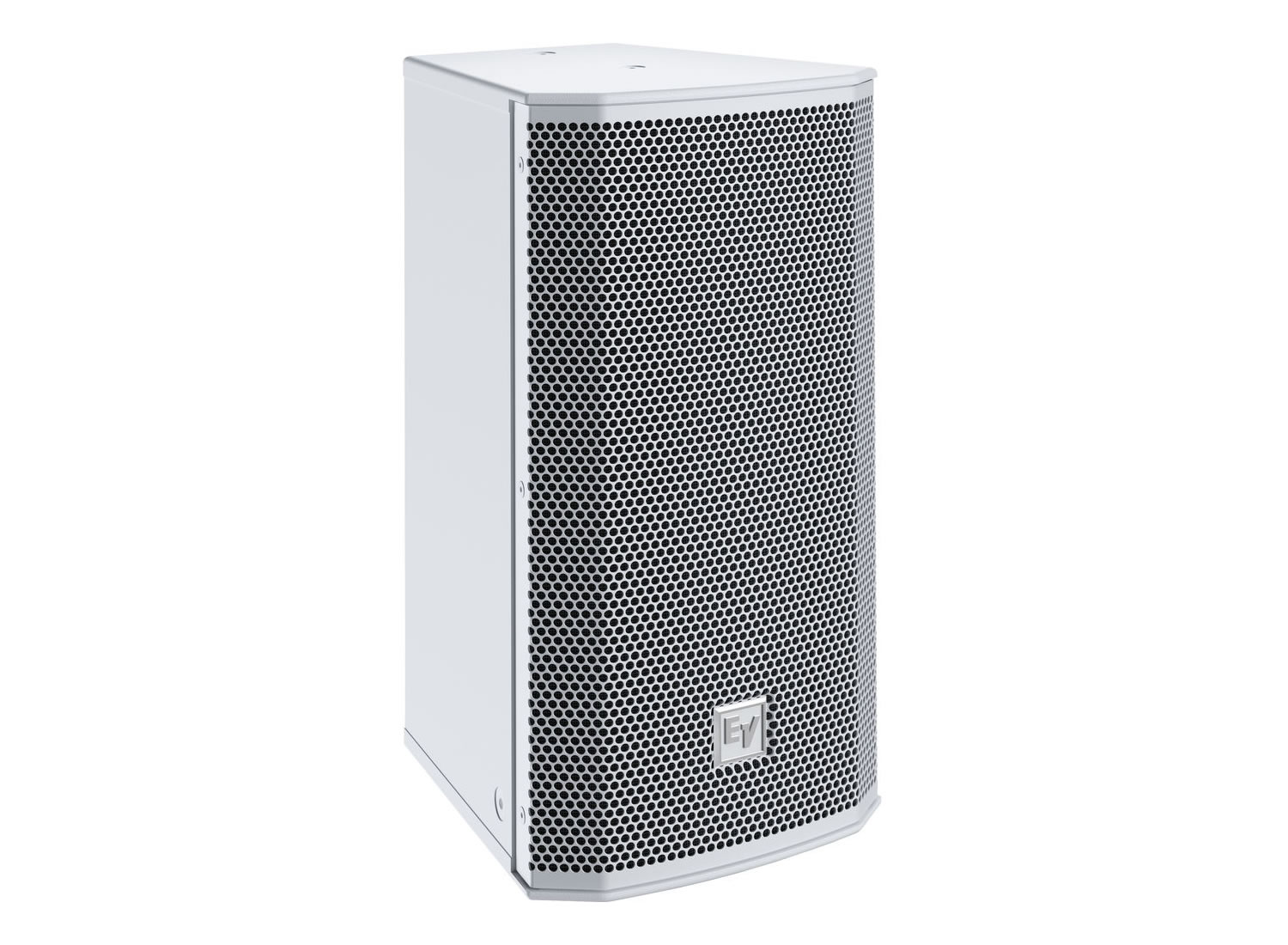

The Electro-Voice EVC-1122-95W is a robust 12-inch two-way loudspeaker designed to deliver exceptional sound quality in various settings. Engineered for high efficiency and wide bandwidth, this speaker excels in providing clear audio with controlled directivity, making it suitable for both fixed installations and live sound applications.

Equipped with a 1¼-inch pure titanium dome compression driver, the EVC-1122-95W ensures smooth and linear sound reproduction across frequencies. The rotatable constant directivity waveguide offers a coverage pattern of 90° x 55°, allowing for flexible deployment in diverse environments. The speaker’s high-output woofer is optimized for low distortion and maximum intelligibility, even at high sound pressure levels.

With a frequency response of 70 Hz to 22 kHz and a passive crossover design featuring slopes of 24 dB per octave, this loudspeaker provides an exceptional off-axis response and maintains clarity in the critical vocal range. This attention to detail in design ensures that the EVC-1122-95W can meet the demands of professional audio applications.

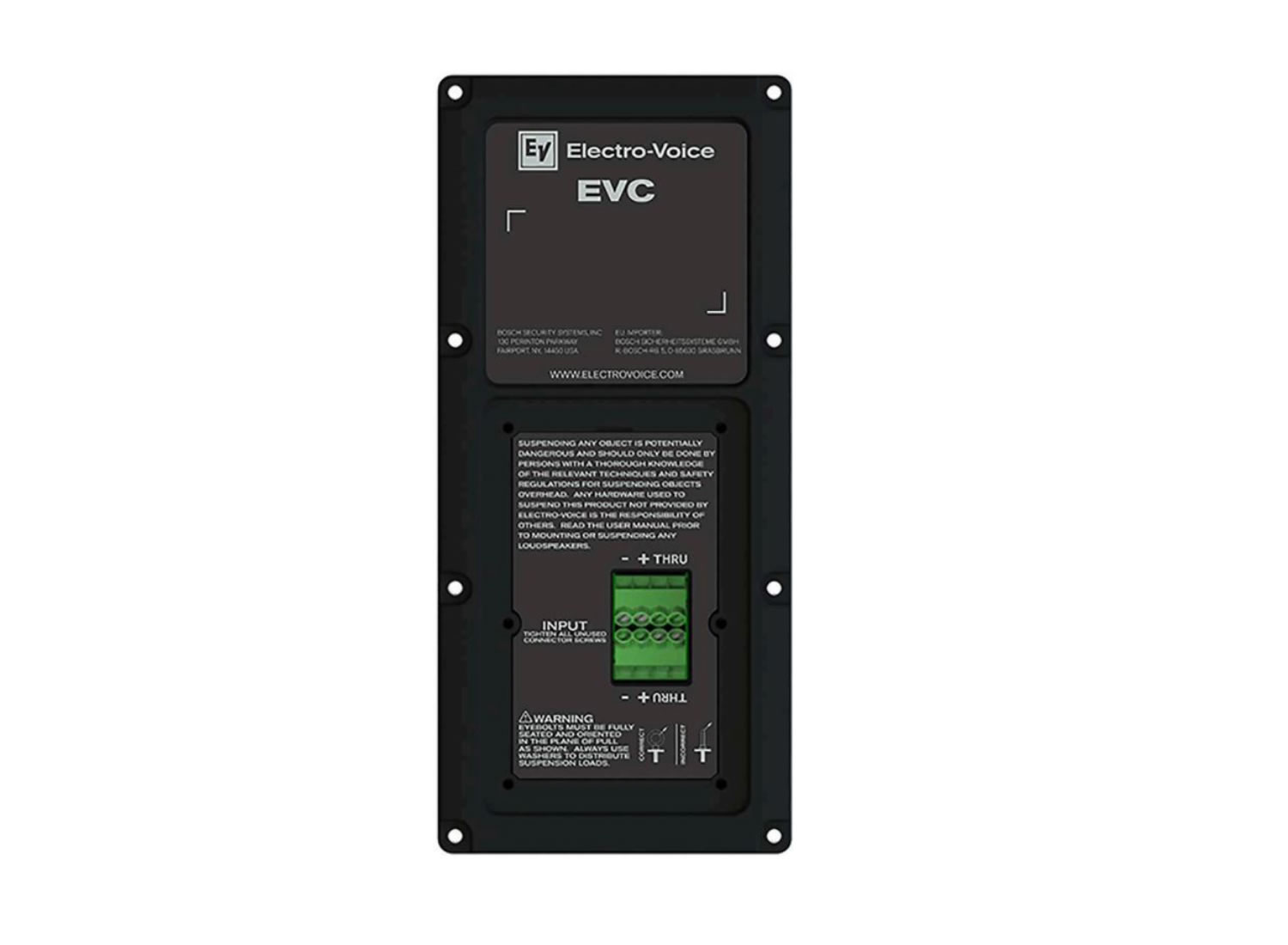

Connectivity options are versatile, featuring dual four-pin Phoenix/Euro block connectors that accommodate 10 AWG wire for easy integration into existing systems. The input panel also supports an optional TK-150 transformer for 70V/100V operation, allowing seamless integration into distributed audio systems while preserving low-frequency performance.

Common applications for the EVC-1122-95W include sound reinforcement in auditoriums, houses of worship, and corporate environments where clear audio is paramount. Its durable 15-mm plywood enclosure, finished with EVCoat, enhances longevity, making it a reliable choice for various installations.

Installation is straightforward, thanks to multiple M10 suspension points and compatibility with optional mounting accessories. This speaker is built to withstand the rigors of professional use, ensuring that it remains a trusted component in any audio setup.

In summary, the Electro-Voice EVC-1122-95W combines advanced engineering with practical features, offering a high-quality solution for audio professionals. Its blend of performance, connectivity, and build quality makes it an ideal choice for a wide range of applications.
