Description

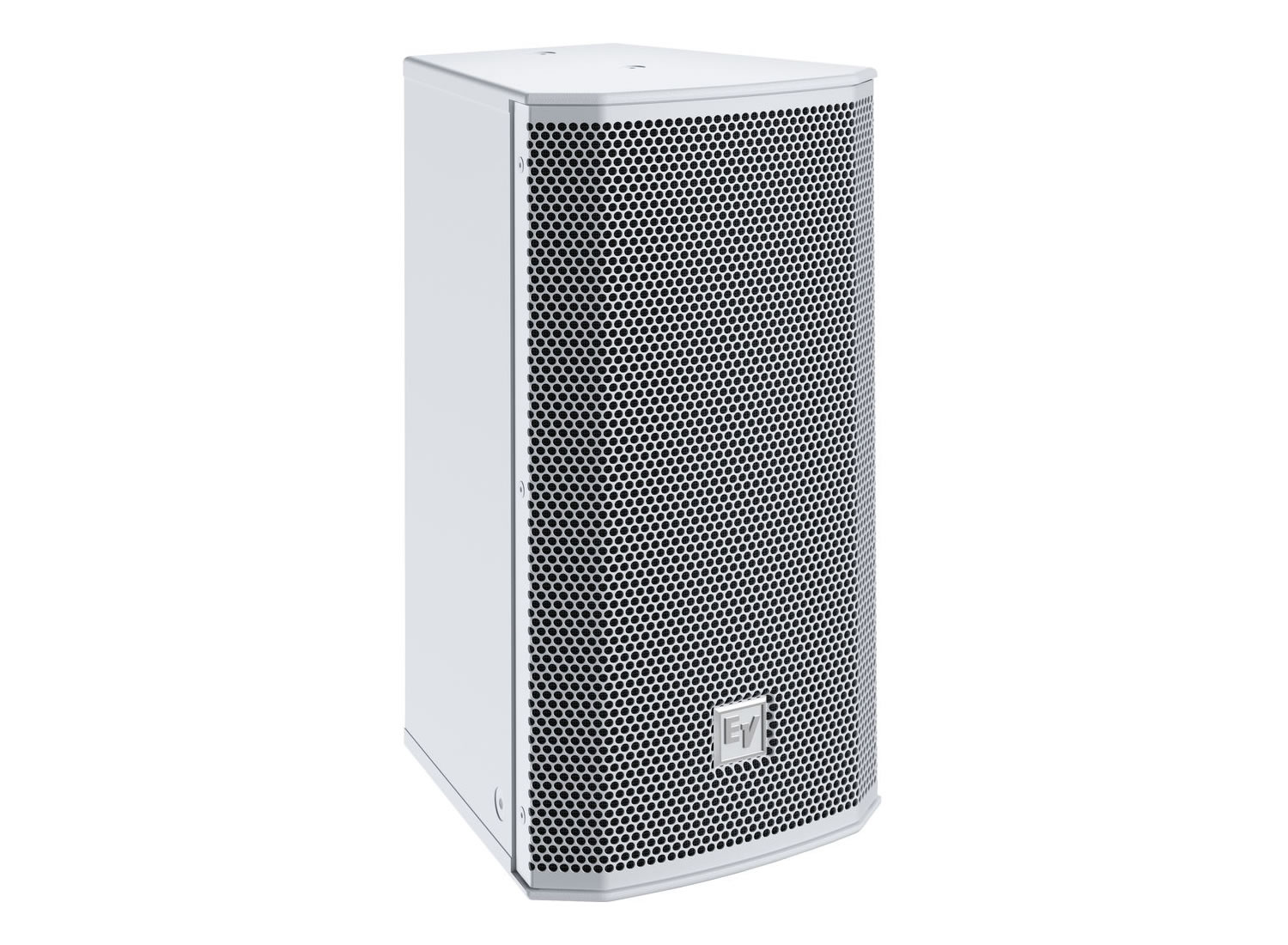

The Electro-Voice EVC-1122-64PIW is a robust 12-inch two-way loudspeaker designed for various audio applications. Engineered to deliver wide bandwidth and enhanced directivity control, this speaker excels in both indoor and outdoor settings. Its weatherized finish ensures durability, making it suitable for challenging environments.
At the heart of the EVC-1122-64PIW is a 1¼-inch pure titanium dome compression driver, coupled with a rotatable constant directivity waveguide. This combination provides exceptional pattern control and a smooth, linear frequency response. The integration of a high-output woofer, developed with advanced computer-aided optimization, results in low distortion and high efficiency, ensuring maximum intelligibility even at high sound pressure levels.
Performance-wise, this loudspeaker features a passive crossover with a modified fourth-order design, allowing for a slope of 24 dB per octave. This design enhances the off-axis response and gives improved definition throughout the critical vocal range. Its frequency response ranges from 70 Hz to 20 kHz, making it versatile enough for a range of audio applications.
Connectivity is straightforward, with dual four-pin 10 AWG Phoenix/Euro Block screw-terminals that accept wire gauges up to 10 AWG. The input panel is designed to accommodate optional covers with NL4-type connectors or weatherized gland-nuts, ensuring compatibility with various audio setups. For 70V/100V operation, an internal landing pad is available for the high-quality TK-150 audio transformer.
The EVC-1122-64PIW is versatile in its applications, making it suitable for fixed installations in venues such as auditoriums, theaters, and outdoor events. It can be mounted using multiple M10 suspension points or an optional U-bracket. This flexibility in installation options allows for tailored placement to achieve optimal sound coverage.
Constructed from 15-mm plywood and finished with EVCoat, the enclosure offers enhanced durability. Its IP44 rating makes it resistant to dust and water, while the PI version offers an IP55 rating for even more protection. This build quality ensures a long lifespan, making it a reliable choice for audio professionals.
In summary, the Electro-Voice EVC-1122-64PIW combines advanced technology with durable construction, providing excellent sound quality and reliable performance. It is an ideal solution for professionals seeking a high-quality loudspeaker for various audio environments.
