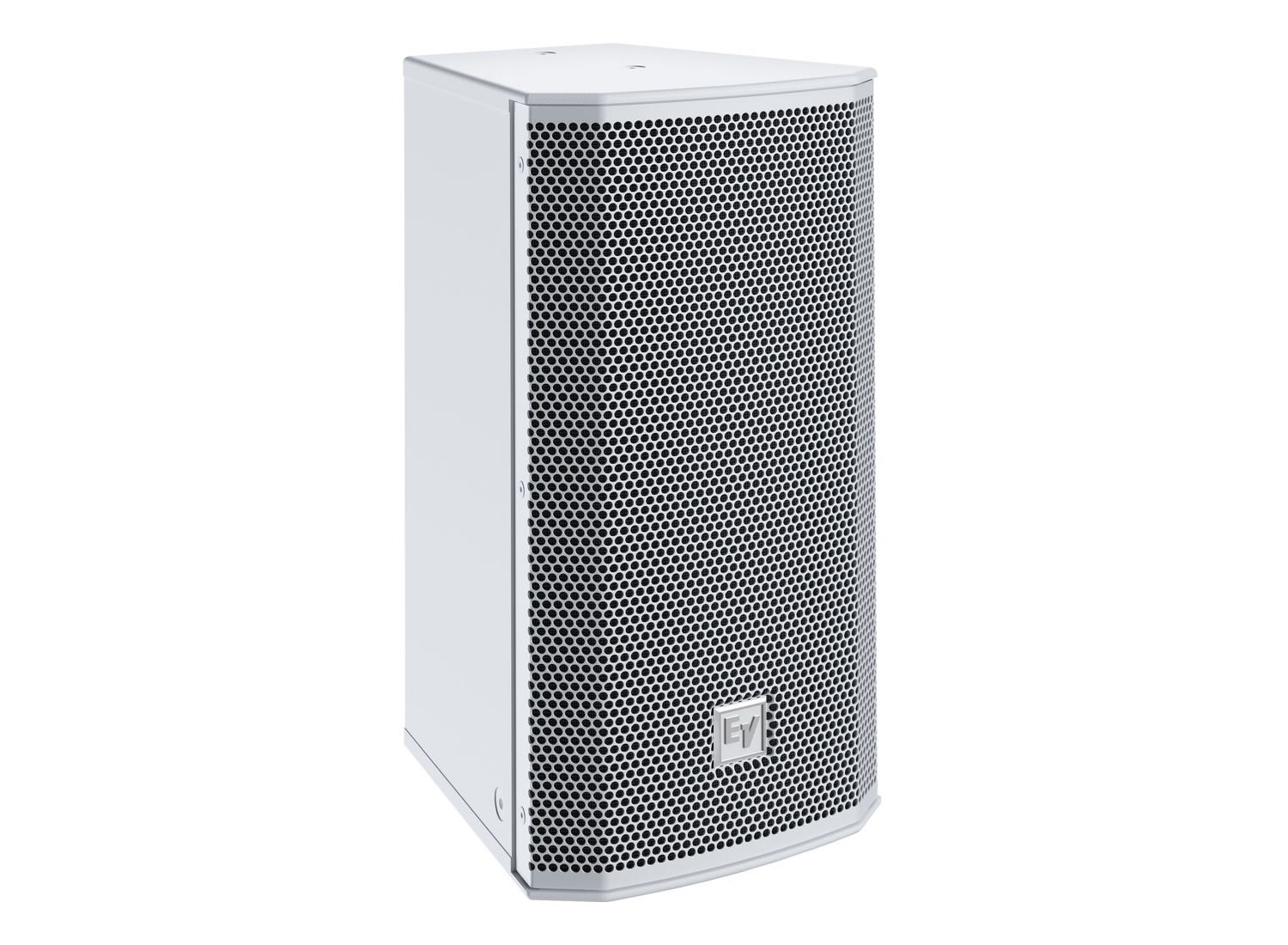

Electro-Voice EVC-1082-00W 8″ Two-Way Passive PA Speaker / 200W Continuous / 120dB Max SPL

Description

The Electro-Voice EVC-1082-00 is a robust 8-inch two-way passive PA speaker designed for diverse sound reinforcement applications. Engineered for high efficiency and reliable performance, this speaker provides clear audio reproduction across a wide frequency range. With its impressive maximum SPL of 120 dB, it is well-suited for installation in various environments, from small venues to large events.

At the heart of the EVC-1082-00 is a 1.25-inch pure titanium dome compression driver paired with a constant directivity waveguide. This design ensures uniform sound dispersion and a smooth, linear frequency response. The 8-inch high-output woofer is optimized for low distortion, enabling maximum intelligibility even at high sound pressure levels.

This speaker features a passive system with a total power handling capacity of 200 watts RMS and a peak of 800 watts, making it a powerful choice for both music and speech applications. The nominal impedance of 8 ohms, with a minimum of 6 ohms, allows for compatibility with a wide range of amplifiers. The frequency response extends from 55 Hz to 25 kHz, ensuring that both low-end and high-frequency sounds are reproduced accurately.

Connectivity options include two block 4-pin inputs/outputs, facilitating easy integration into existing audio systems. The speaker is designed to complement other Electro-Voice models, providing flexibility in system design and expansion. Optional transformers with Automatic Saturation Control are available separately for installations requiring 70V or 100V line compatibility.

The physical construction of the EVC-1082-00 includes a durable metal grille and plywood enclosure, ensuring longevity and resistance to wear in various installation settings. Mounting options include eight M10 fly points, allowing for secure and versatile installation configurations. The speaker’s dimensions and weight make it manageable for installers while maintaining a sleek appearance.

In summary, the Electro-Voice EVC-1082-00 is a high-performance passive PA speaker that delivers exceptional sound quality and reliability. It is ideal for a variety of applications, including live events, installations in auditoriums, and other public spaces. With its advanced design and robust features, it represents a valuable investment for audio professionals seeking to enhance their sound reinforcement capabilities.
