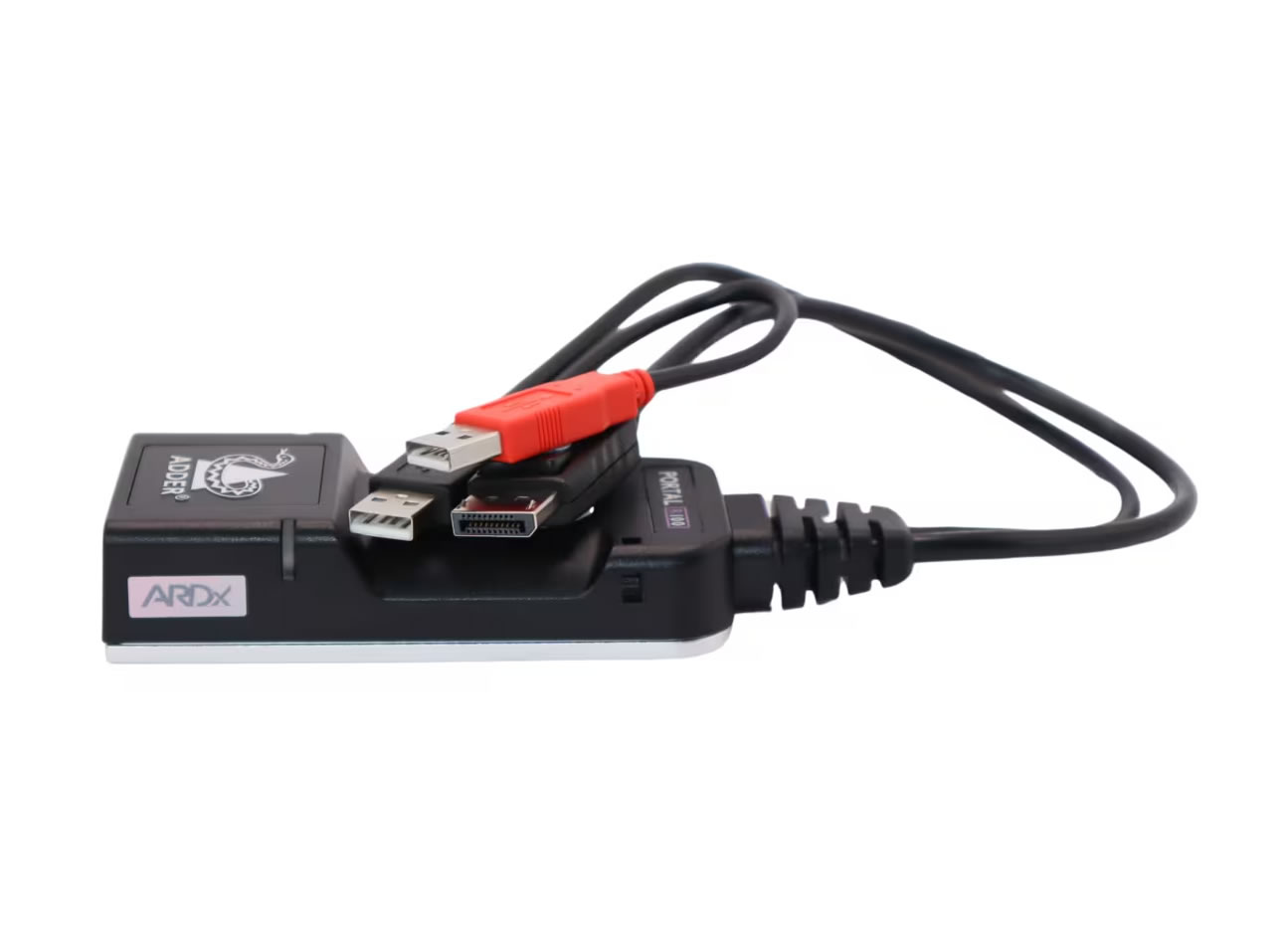

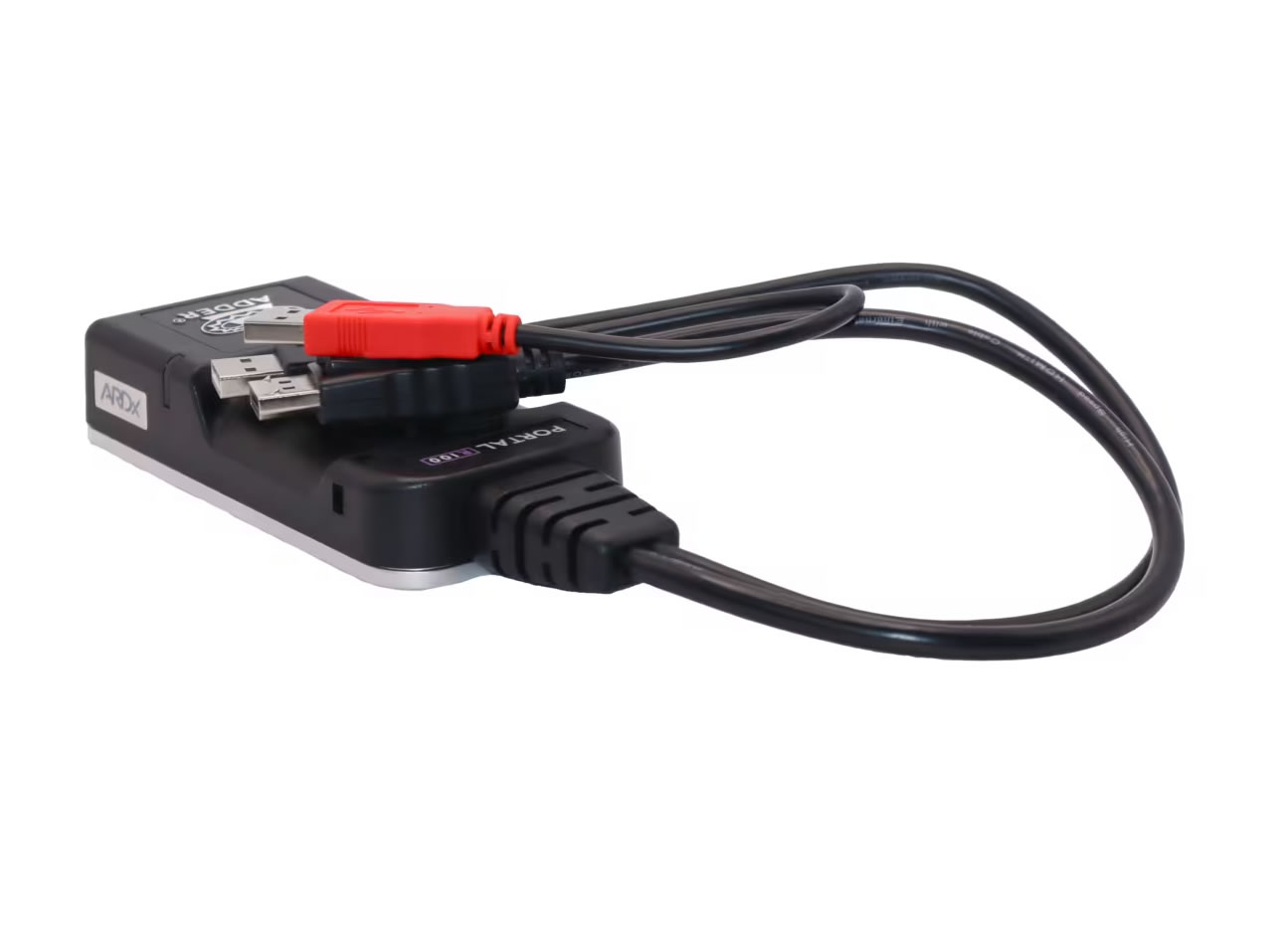

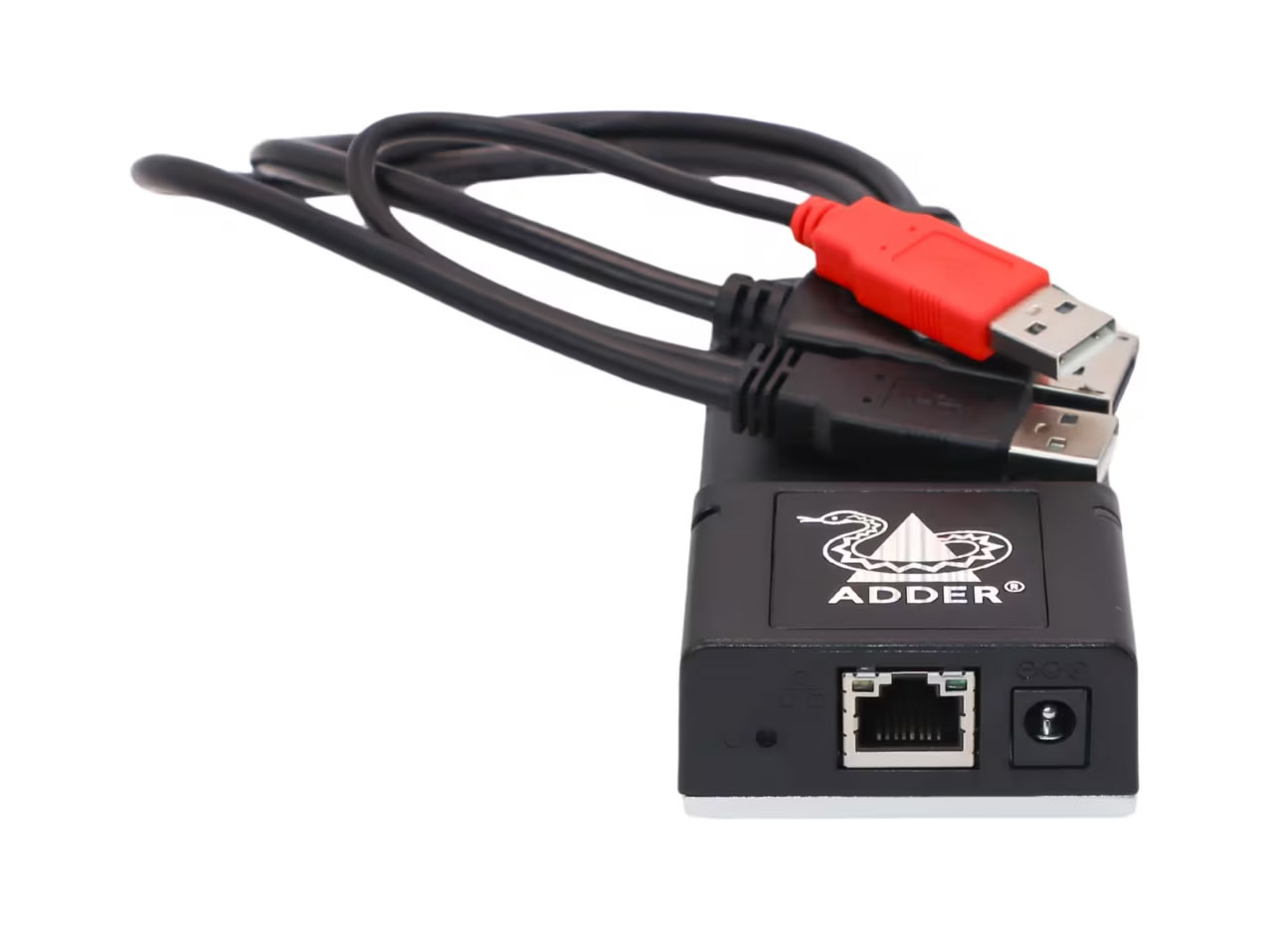

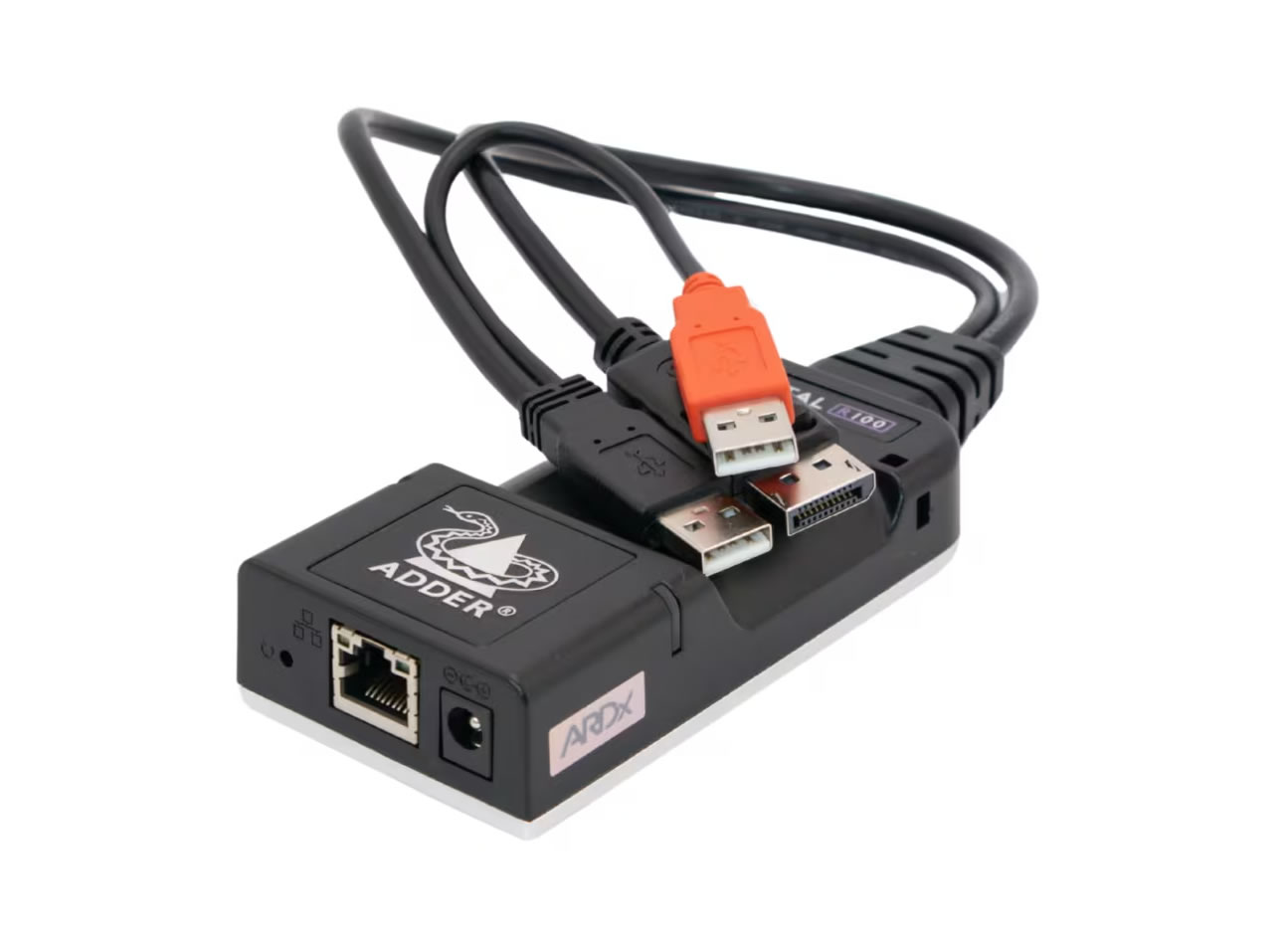

Adder ALPR110T-DP DisplayPort KVM Transmitter / 1920×1080@60Hz 4:4:4 / USB2.0 HID / Stereo Audio / AES-256

Description

The ADDERLink Portal R110 transmitter is a hardware KVM-over-IP dongle that provides secure, low-latency remote access to a host PC. It delivers DisplayPort video, USB2.0 HID inputs and digital stereo audio for image-critical workflows. The unit operates out-of-band so remote users can access BIOS and boot-level control independent of host OS software.

The transmitter supports HD 1920×1080 at 60Hz with 4:4:4 chroma and 8 bpc colour depth to preserve accurate colour and crisp text. Audio is delivered as 16-bit PCM stereo at 44.1kHz for clear monitoring and multi-user collaboration. AES-256 encryption and RSA-2048 authentication secure connections end-to-end.

Performance is optimised for LAN use over a 1GbE link and the device supports dynamic frame-rate back-off under limited bandwidth conditions. The ARDx enabled workflow requires the ARDx Viewer which manages sessions and user access. Latency is inherently low to enable precise keyboard and mouse control for image-critical tasks.

Connectivity includes a full-size DisplayPort 1.2 video connector, a single USB2.0 True Emulation HID port, a USB audio input, and a single RJ45 1GbE network port. The unit is USB powered from the host using two USB A ports or can use an external 5Vdc 1A supply. It supports all known operating systems since it presents as a standard KVM endpoint.

Typical applications include control rooms, live broadcast, medical imaging, and secure remote workstation access where color fidelity and BIOS-level control matter. Multiple concurrent remote users can connect (up to eight on suitable networks) without noticeable degradation. WAN access is supported via firewall port configuration or VPN for remote operators.

Installation is simple – the ZeroU dongle form factor requires no rack space and draws power directly from the host USB ports, reducing cable clutter. The ABS and aluminum construction provides durable, lightweight protection suitable for desktop or integrated deployments. CE, ICES and UKCA approvals ensure regulatory compliance in professional environments.

In summary, the ADDERLink Portal R110 transmitter combines high-quality DisplayPort video, USB HID emulation and digital audio with enterprise-grade security and low-latency performance. It is designed to maintain image integrity and remote control at boot level while integrating into LAN or WAN infrastructures. The compact, power-efficient design makes it suitable for professional AV and broadcast installations requiring secure remote KVM access.
