Description

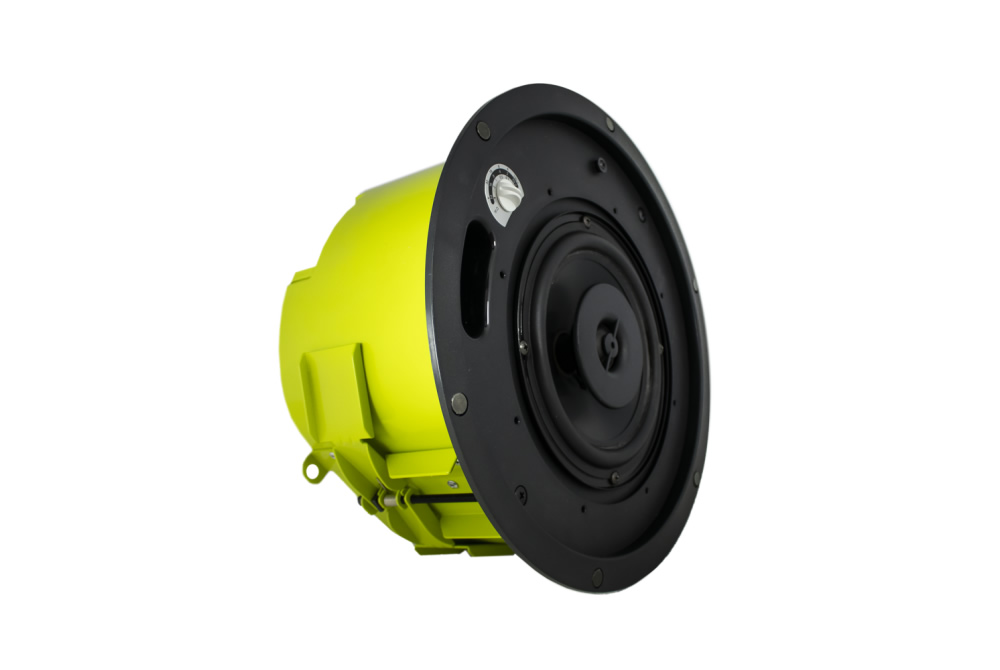

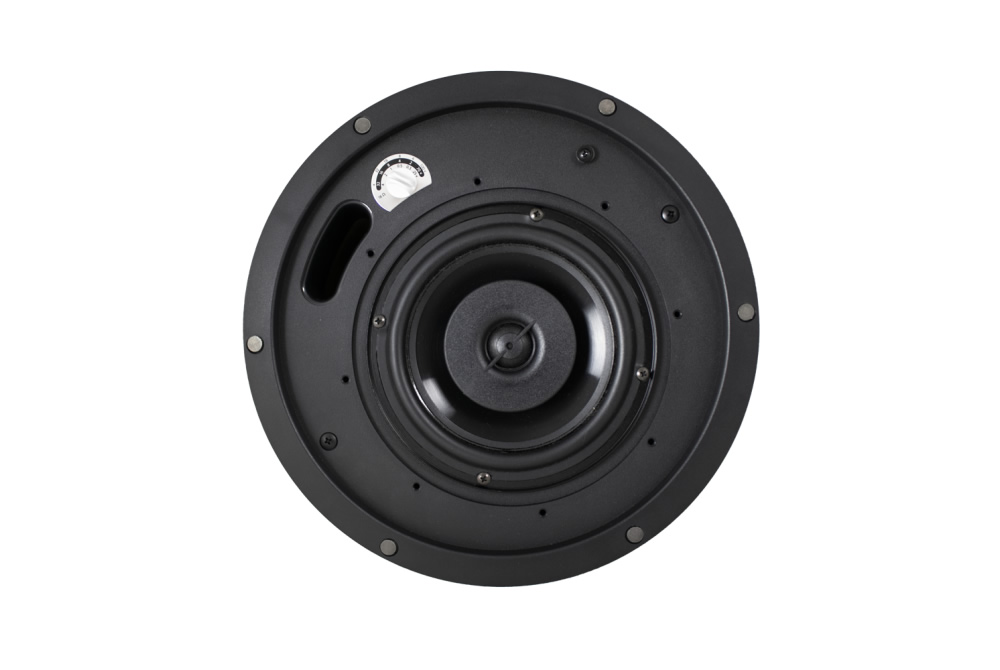

The CM62-BGM is a 6.5 in coaxial two-way in-ceiling speaker designed to deliver efficient full-range audio in commercial environments. It combines a polypropylene 6.5 in woofer and a 1 in silk dome tweeter in a ported steel backcan enclosure to extend bass and preserve clarity. The speaker is available with a white grille by default and an optional black grille for seamless décor matching.
Key features include a six-position rotary tap switch for 25/70.7/100 V and transformer bypass, BroadBeam Ring ™ mid-range dispersion, and a tuned baffle port to extend low frequency response. The mounting system uses constant-tension fixed-wing clamps and a full-metal steel tile bridge for secure installation in drywall or drop-tile ceilings. The unit is UL1480 and UL2043 approved and rated IPX3 for added installation confidence.
Performance metrics include frequency response from 50 Hz to 22 kHz (±10 dB) and sensitivity in the mid 80 dB range, producing clear output with modest amplifier requirements. The coaxial design centers the 1 in silk dome tweeter on the 6.5 in woofer to improve off-axis consistency and speech intelligibility. The speaker provides a measured program power handling of 100 W and RMS power rating of 50 W for steady-state operation.
Connectivity is handled via a four-position ceramic terminal connector and the six-position tap selector for multi-tap low-impedance or constant-voltage systems. The included tile bridge and UL-listed flex conduit clamp simplify compliance and conduit integration. Optional pre-construction brackets are available to streamline new installations and infrastructure planning.
The CM62-BGM suits background music, paging, and distributed audio in hospitality, retail, corporate, and educational facilities. Its BroadBeam mid-range dispersion yields even coverage across listening areas while the ported enclosure provides musical bass extension for program material. The 16 ohm nominal impedance and transformer options enable flexible system design in both low-impedance and 70 V/100 V networks.

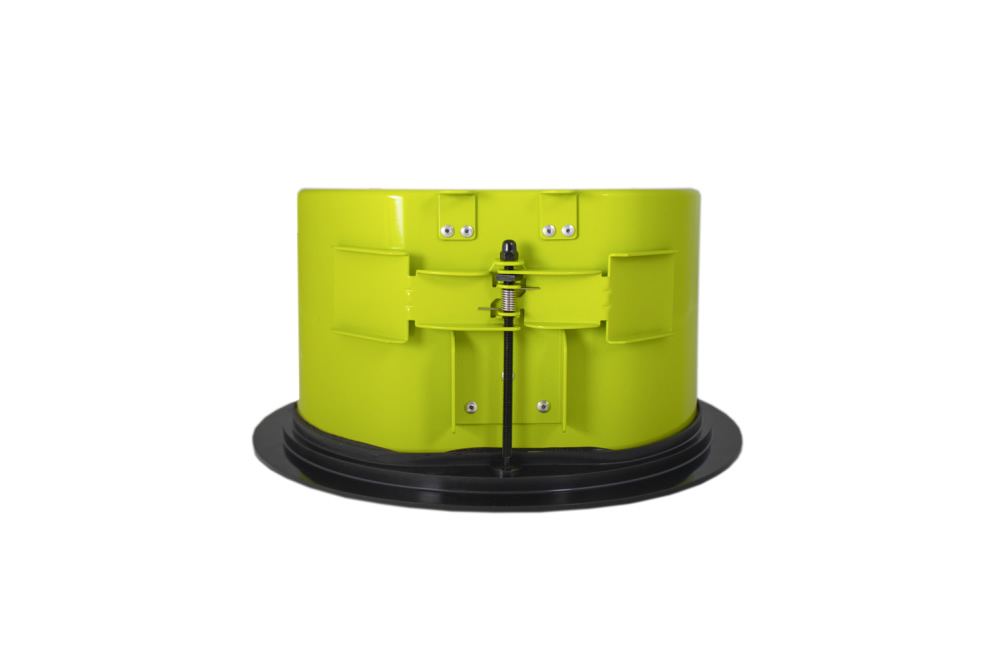

Installation emphasizes speed and durability – the full metal tile bridge and constant-tension clamps secure the speaker to ceiling panels quickly while accommodating 0.9 mm to 40.6 mm material thickness. The magnetic flangeless grille installs cleanly for a low-profile aesthetic and can be powder-coated for long-term durability. Overall the CM62-BGM delivers reliable ceiling audio performance with straightforward installation and system integration.
