Sierra Video 3232VS-xl Lassen XL 32×32 Composite and Stereo Audio Routing Switch

Description

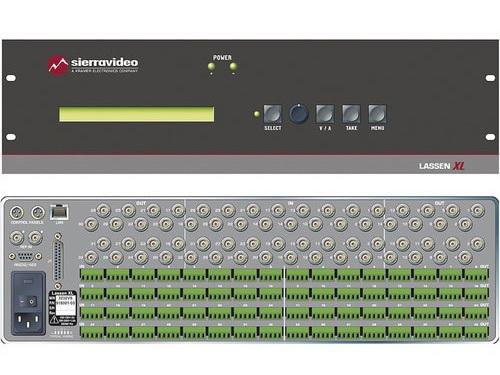

The Sierra Video 3232VS-XL Lassen XL 32 x 32 Composite Video and Stereo Audio Routing Switcher is designed for routing composite video and stereo audio signals. It features 32 inputs and 32 outputs, an LCD display, and a Qwik Adjust knob rotary control interface. The Lassen 3232VS-XL measures 3RU, and features BNC video connectors and 5-pin terminal block audio connectors. The Lassen XL also offers IP Ethernet control via a standard TCP/IP socket connection and a RS232/422 serial interface.

The Lassen XL routing switcher is designed to connect with other Sierra Video routing switcher families. The Lassen switcher can perform as either the master or the slave unit in your control system. The routing switcher can be inserted into an existing Sierra Video routing system providing additional format levels. Additional Lassen models can be linked to any Sierra Video SCP Series control panel for control of larger broadcast systems. IP (Ethernet) Control via standard TCP/IP socket connection – Mac or PC Enhanced Video Boards 300MHz (-3dB) RS232/422 Control Qwik Adjust Knob Rotary Control Interface – intuitive user interface with front panel LCD display Genlock Input- looping internal sync input for vertical interval switching Use with other Sierra Video Routing Switchers – functions as either the master or the slave unit when used with other Sierra Video routing switchers
