Wall-Smart 007-1SA35 Inwall Flush Adapter / C4 LUX 3-Gang Faceplate / Depth Calibration Spacer

Description

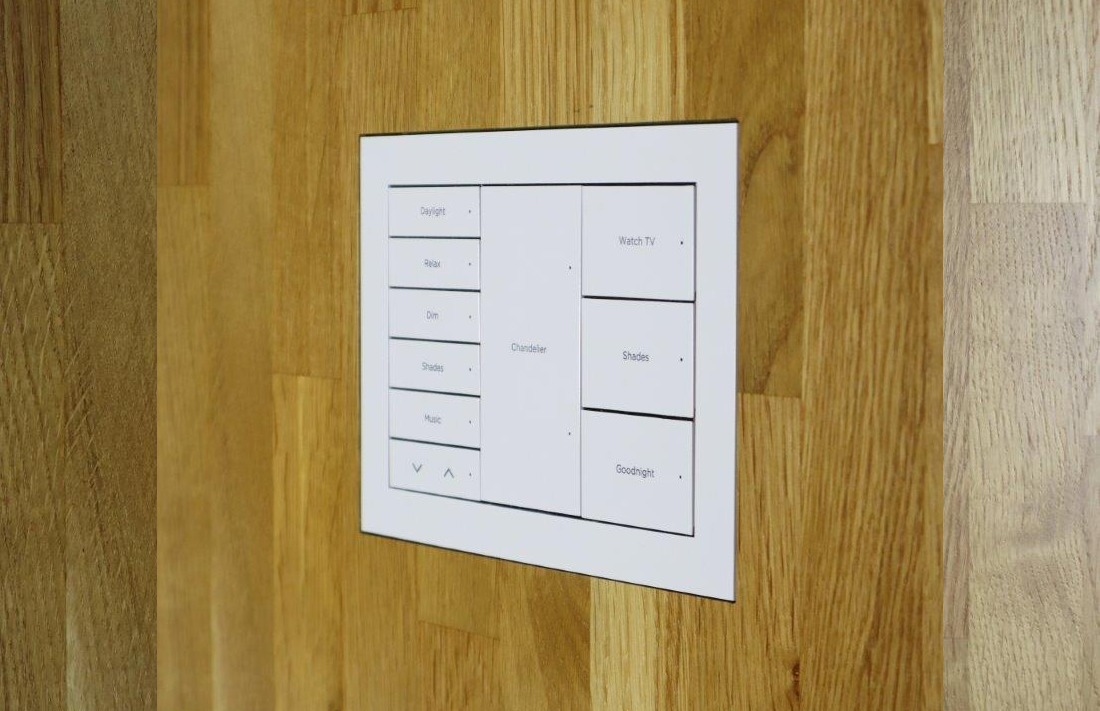

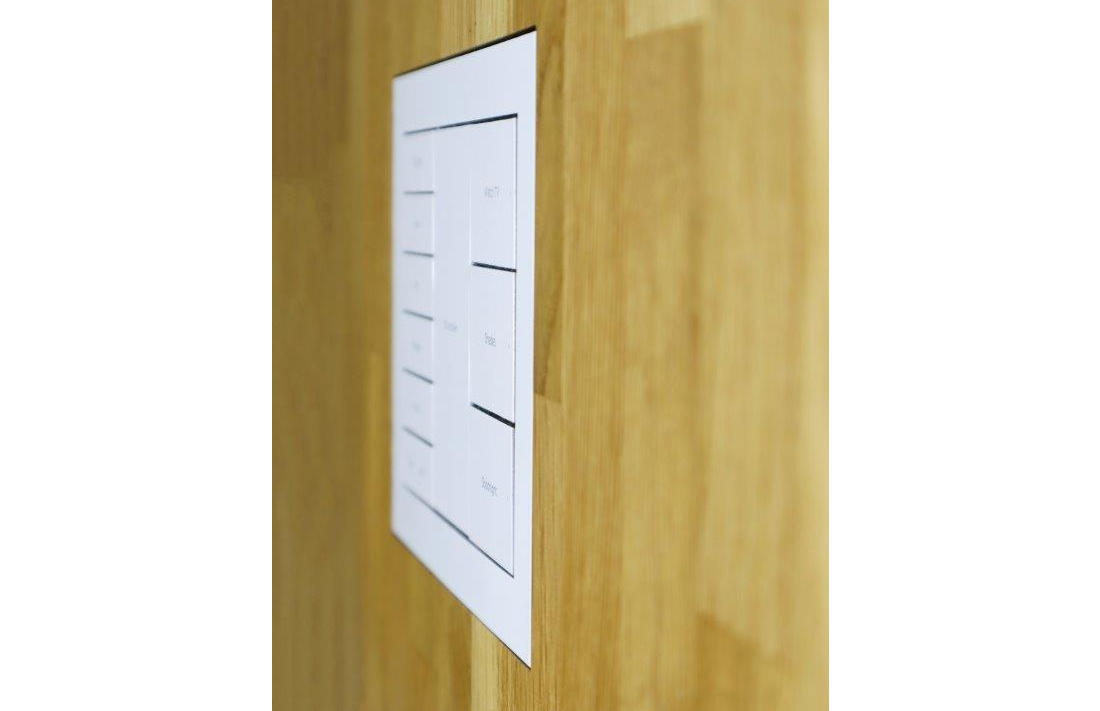

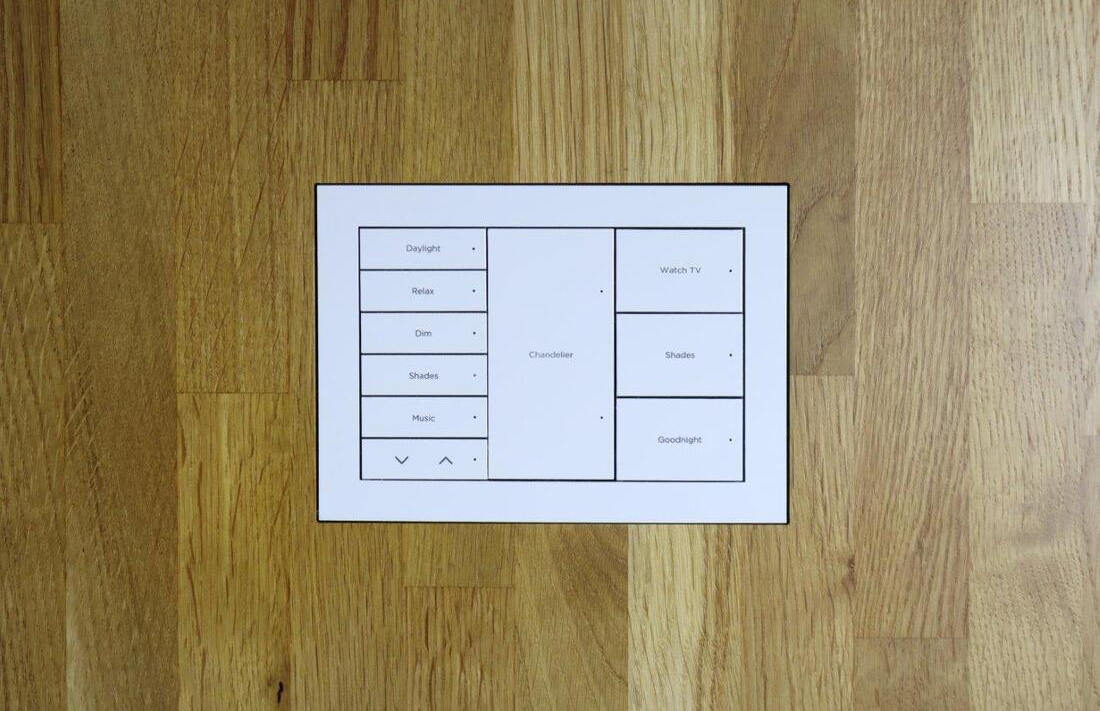

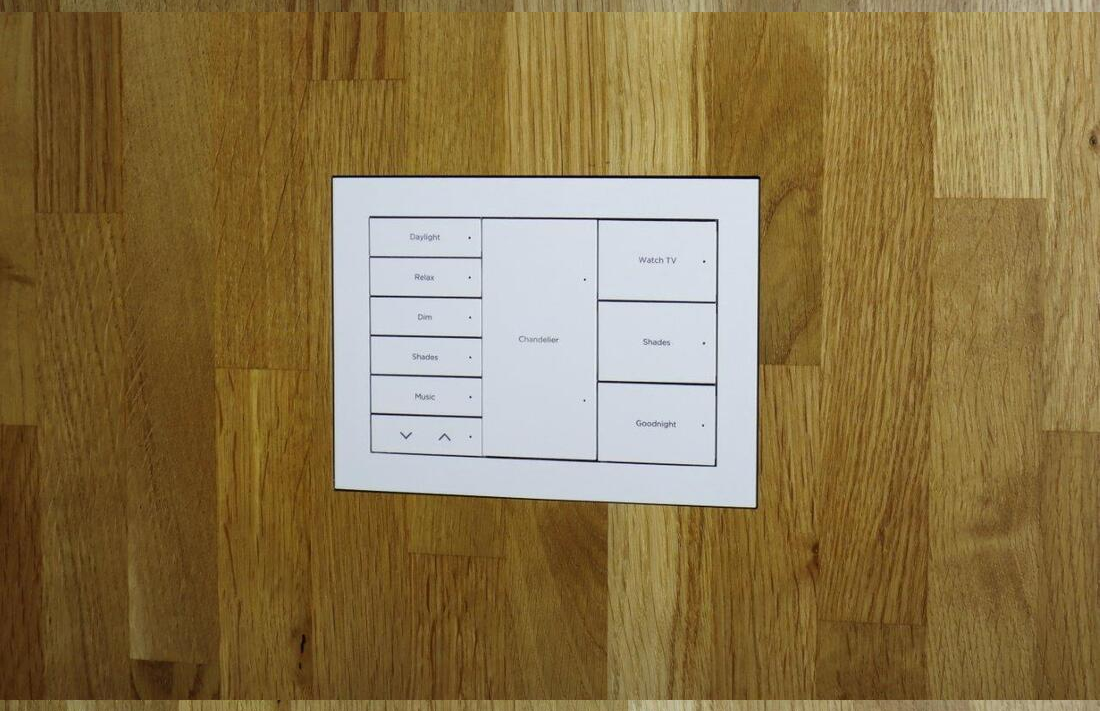

The inwall flush adapter is designed to integrate C4 LUX 3-gang faceplates and C4-L-XX devices into solid surface walls while maintaining a flush appearance. This adapter provides a secure mount that preserves the aesthetic of finished surfaces and supports repeatable device insertion and removal. It is intended for installations where a clean, low-profile wall finish is required.

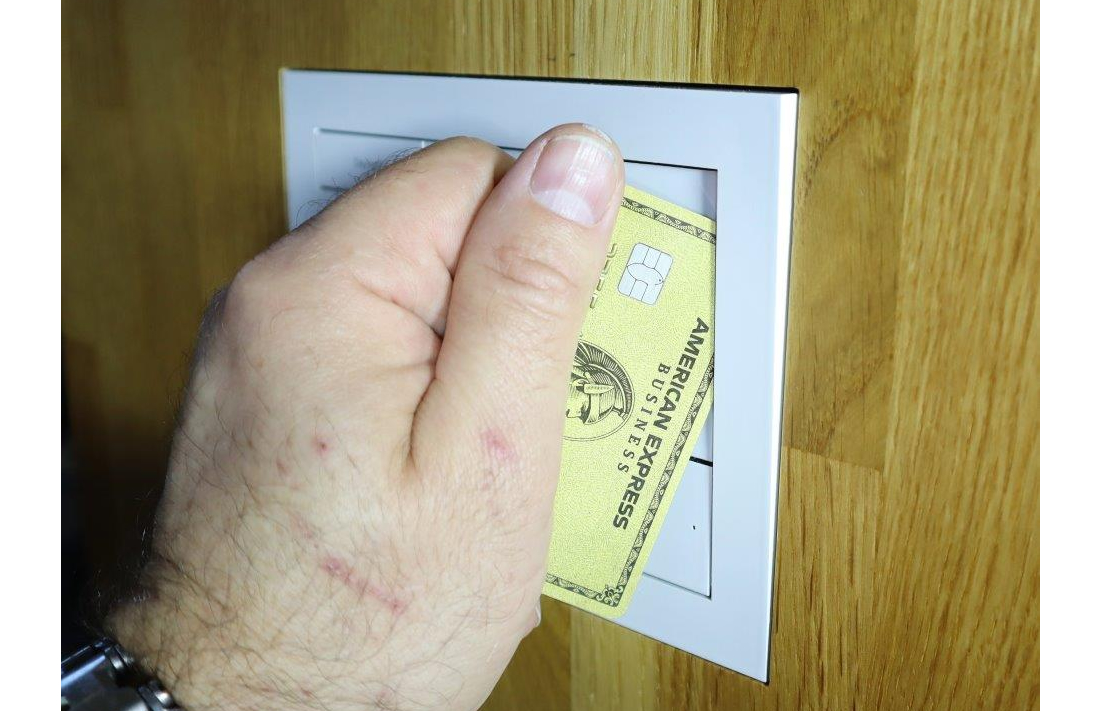

Key features include a flush installation profile and the ability to mount in any orientation to suit site requirements. The adapter includes a depth calibration mechanism and spacer that accommodate a wide range of solid board thicknesses. The design supports easy insertion and removal of compatible faceplates and modules without compromising the mount stability.

Technical details include an overall footprint of 201.9mm by 155.2mm and a depth of 43.6mm, with a nominal weight of 0.4Kg. The adapter is constructed from moisture resistant MDF compliant with TSCA Title VI to ensure dimensional stability in interior environments. No power supply is required as the adapter is a passive mechanical solution.

Compatibility is focused on C4 LUX 3-gang faceplates and C4-L-XX devices, enabling straightforward integration into Control4 LUX installations. There are no electronic inputs or outputs provided by the adapter since it functions solely as a mechanical mounting accessory. This keeps system complexity low while retaining full operational access to installed modules.

Typical applications include residential automation panels, high-end AV wall installations, and commercial control stations where flush aesthetics and robust mounting are required. The adapter is suitable for retrofit and new construction where solid surface wall materials are used. It supports installers who need predictable depth adjustment and repeatable module access.

Installation is simplified by the depth calibration mechanism which accommodates board thickness from 4.68 [0.18″] up to 33.66 [1.33″]. The adapter mounts securely and allows the faceplate and modules to be removed and reinstalled without modifying the wall structure. Overall the product balances finish-level aesthetics and installer-friendly mechanical design for professional AV deployments.
