Wall-Smart 026-1SA26 Flush Mount Adapter / Solid Surface Walls / Depth Calibration 10.02mm-33.46mm

Description

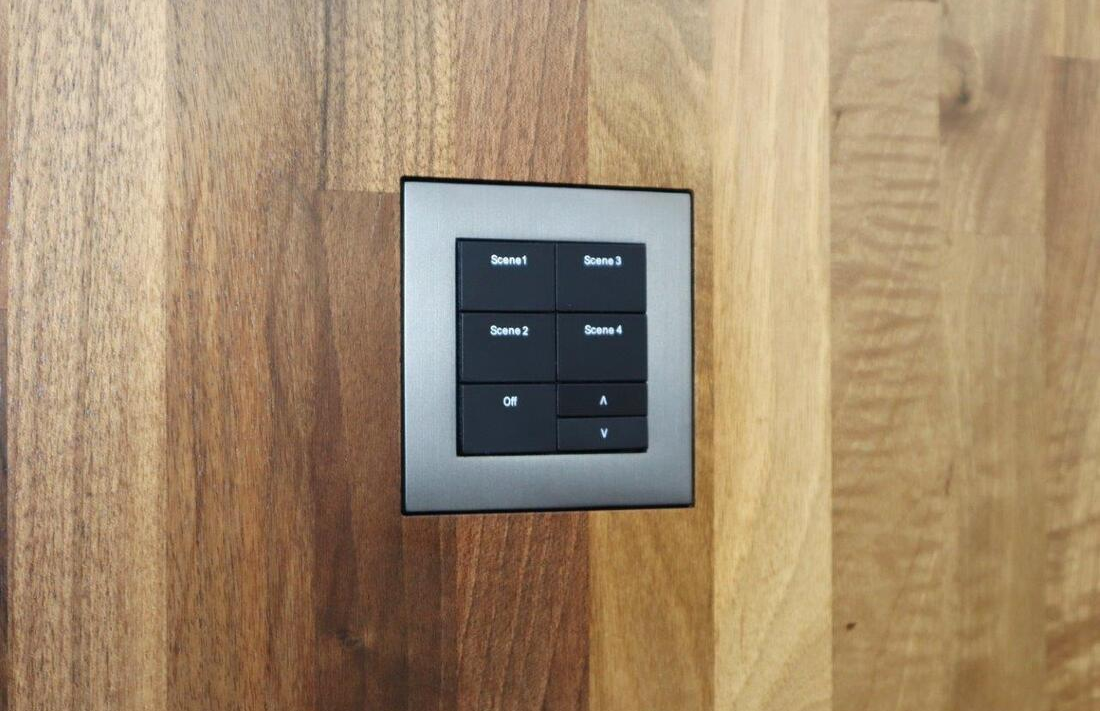

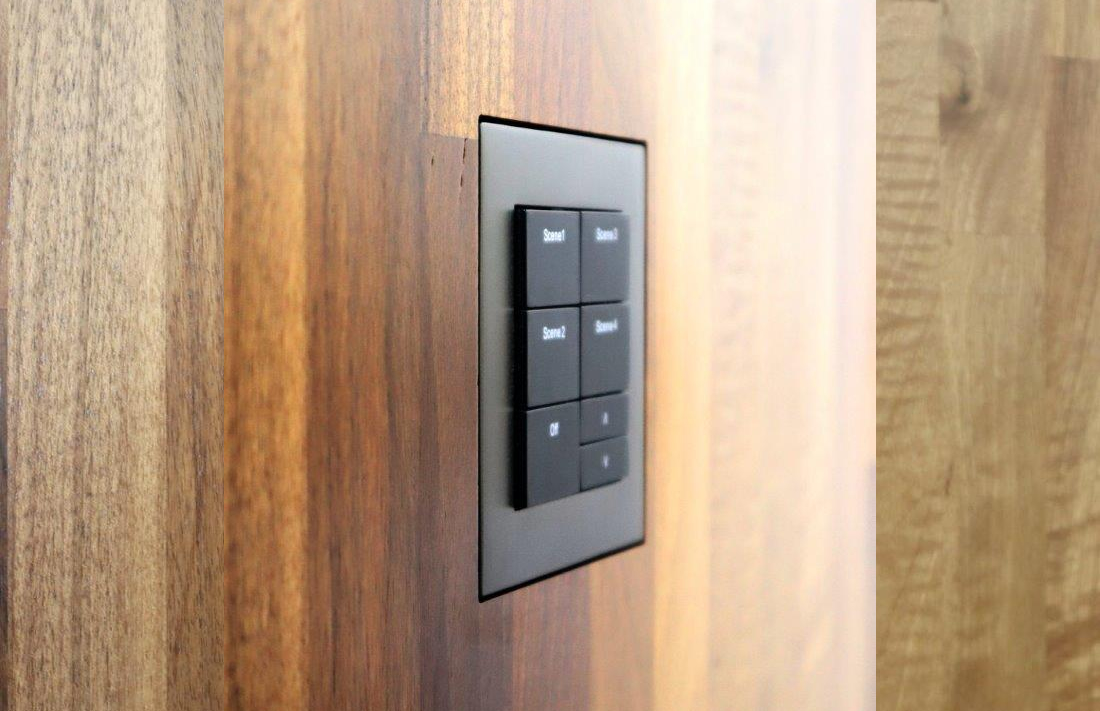

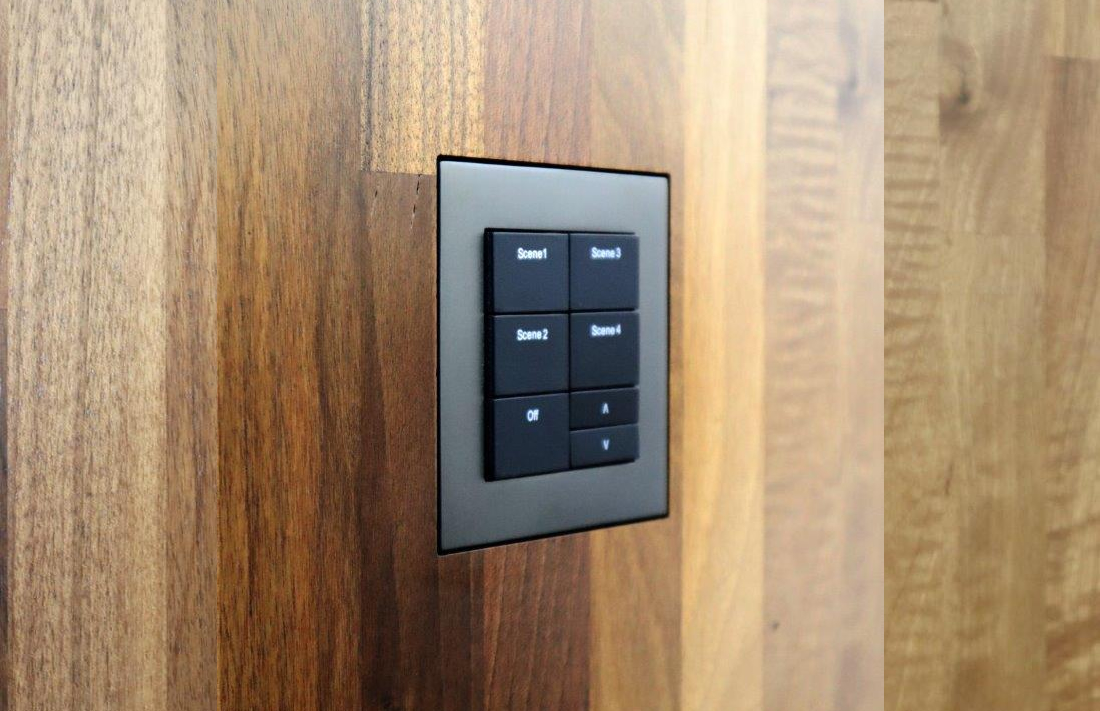

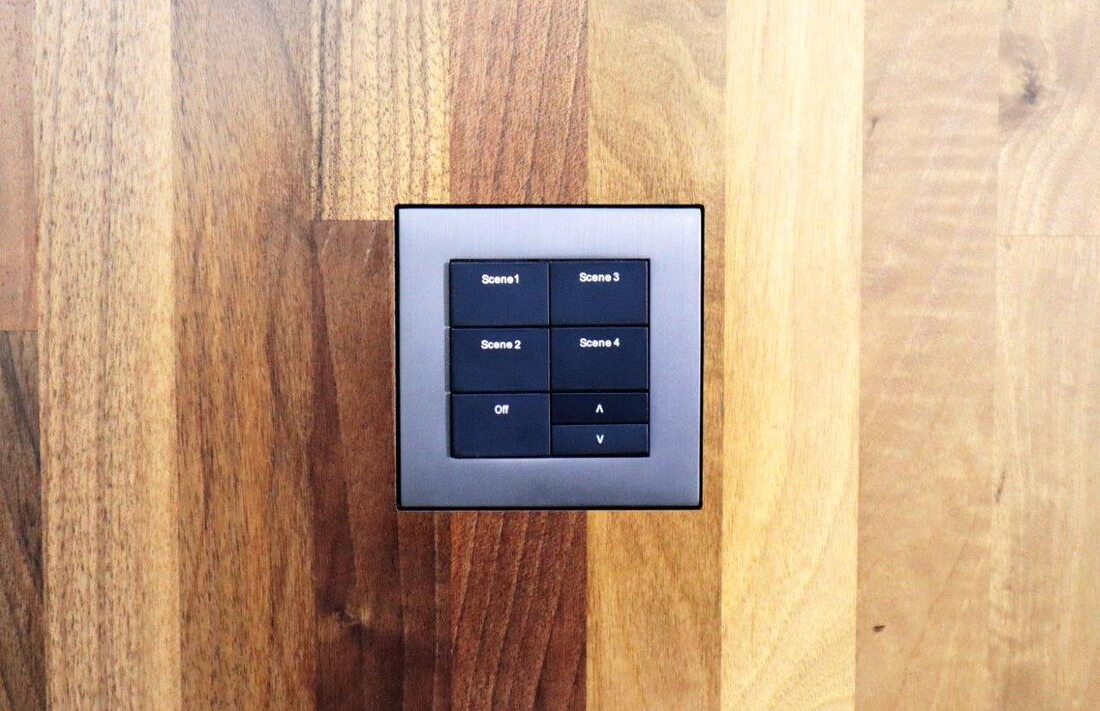

The WS SB FOR RAKO WK-MOD is a flush mount adapter engineered for in-wall installation of the Rako WK-MOD in solid surface walls. This adapter secures the module flush to the wall while preserving access for insertion and removal. It is designed to integrate cleanly into solid surface installations where a professional, low-profile finish is required.

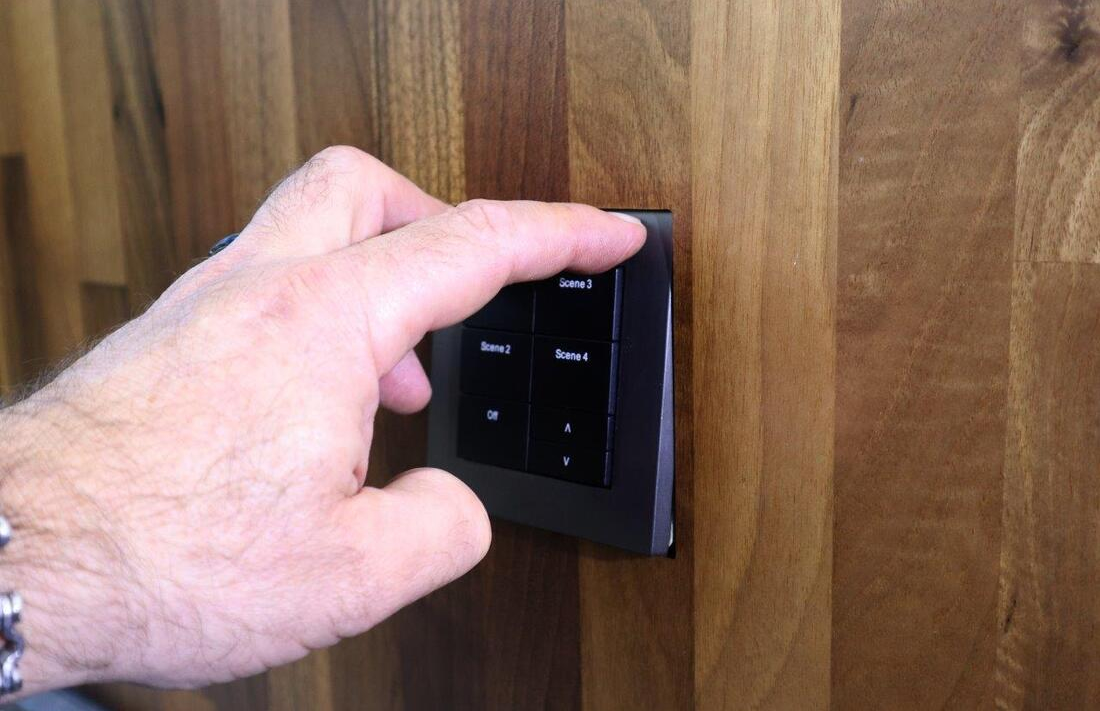

Key features include a depth calibration mechanism and a spacer that accommodate solid surface board thicknesses from 10.02mm to 33.46mm. The mount can be oriented in any direction to suit installation constraints and maintains full keypad operation once installed. The design ensures easy insertion and removal of the Rako WK-MOD without compromising fit or finish.

Technical details include precise external dimensions of 121.5mm x 121.5mm x 46.1mm and a lightweight construction at 0.35Kg. The adapter requires no power supply since it is a manual mechanical mounting accessory. Materials are moisture resistant MDF compliant with TSCA Title VI to support long-term stability in interior environments.

Compatibility is focused on the Rako WK-MOD module; the adapter is designed specifically for that product and does not include the module itself. The mount includes a depth calibration mechanism and spacer to match a wide range of solid surface thicknesses for reliable alignment. Installers should reference routing dimensions for cutout guidance to ensure correct fit and finish.

Typical applications include residential and light-commercial control panel installations where the Rako WK-MOD is required to sit flush with solid surface countertops or wall panels. The adapter is suitable for retrofit and new-build projects where aesthetic integration and module serviceability are important. It also supports installations where the mount orientation must be adapted to site conditions.

Installation is simplified by the supplied hardware and the depth calibration spacer that reduces on-site trimming. The product is built from moisture resistant MDF and secured using standard screws and fasteners included in the kit for a stable long-term installation. Overall, the adapter delivers a practical flush-mount solution that preserves module serviceability and professional appearance.
