Wall-Smart 091-1SA23 Solid Surface Flush Mount Adapter / Remote Control / Depth Adjustable 0.65-1.7in

Description

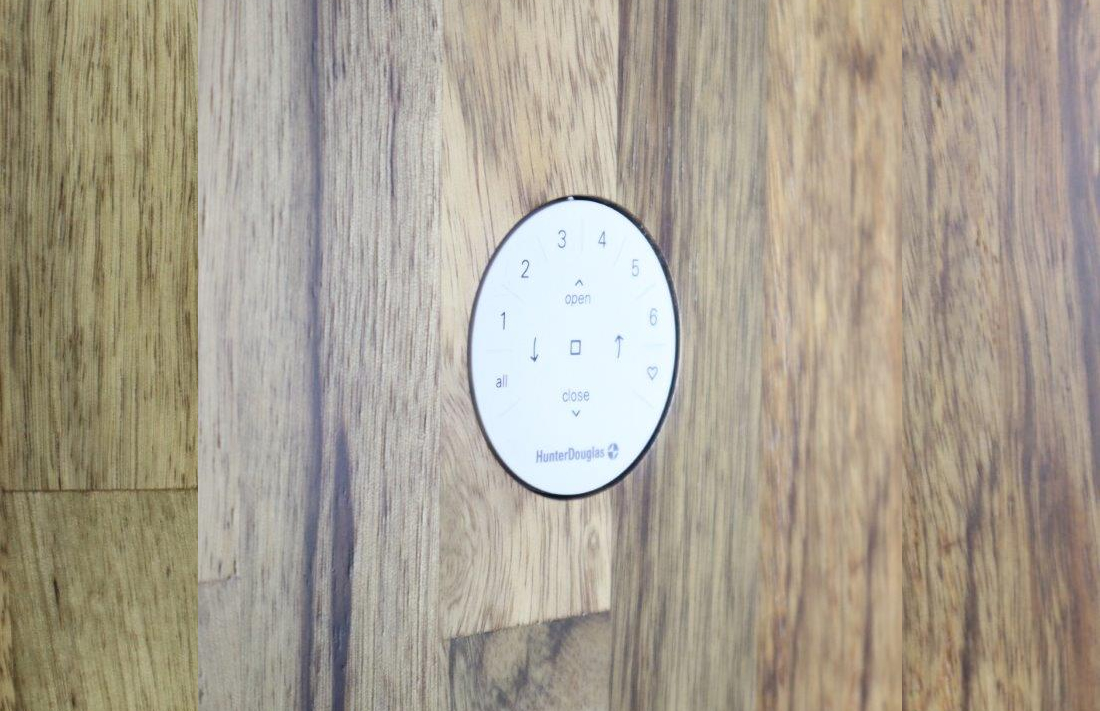

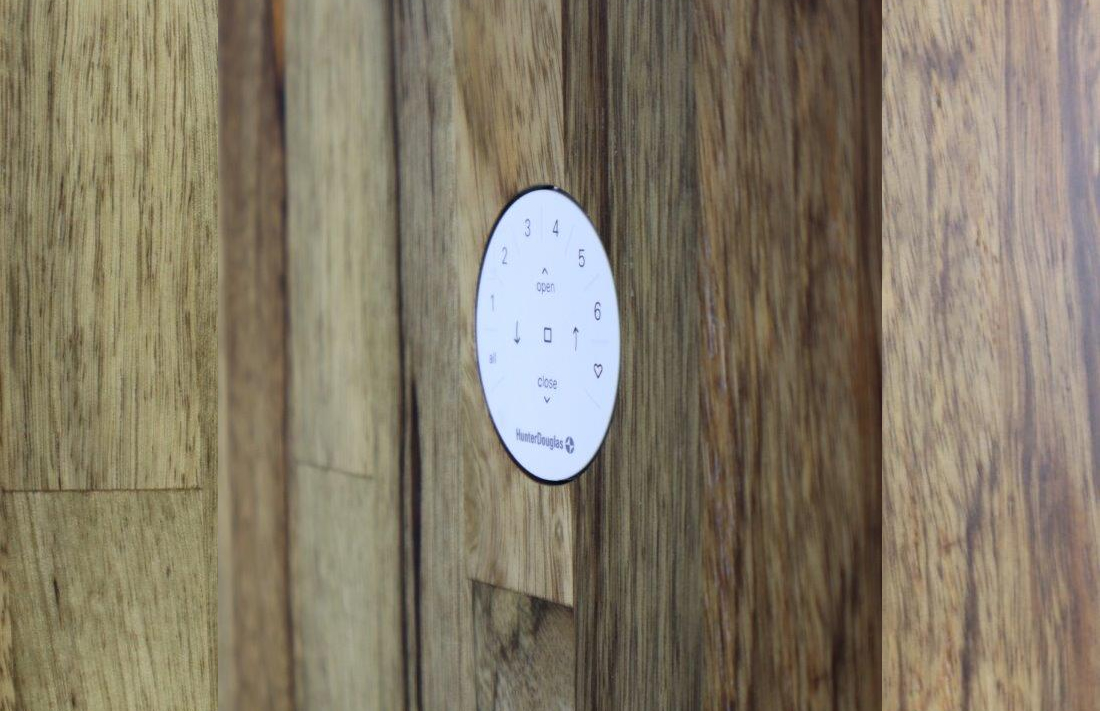

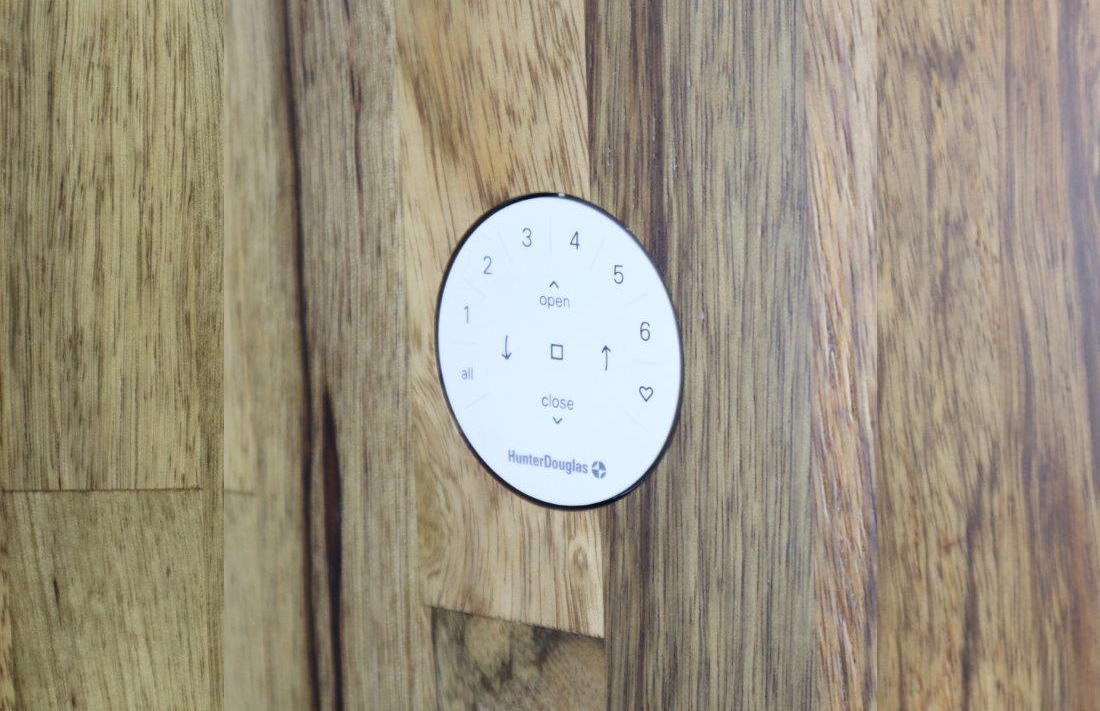

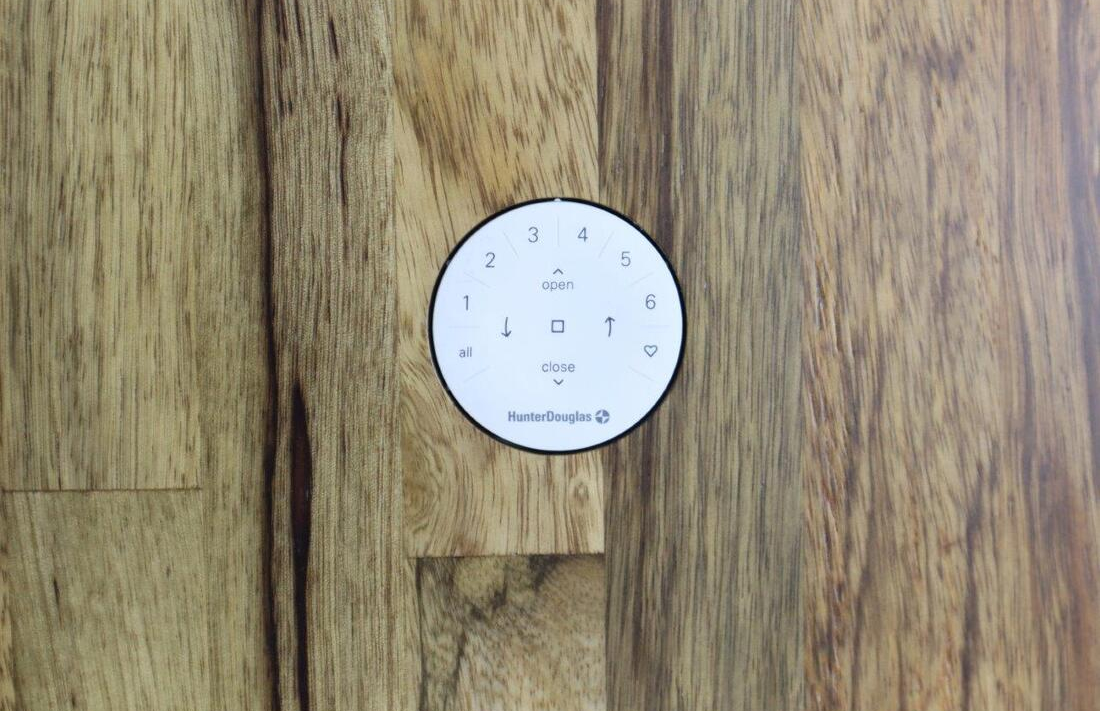

The Solid Surface Flush Mount Adapter provides a recessed mounting solution for a Gen3 remote control in solid surface walls. This adapter is designed to sit flush with the finished surface while keeping the remote accessible and operable. It secures the remote while enabling simple insertion and removal for daily use.

Key features include a depth calibration mechanism and an included spacer that support solid surface thicknesses from 16.54mm (0.65in) to 43.02mm (1.7in). The mount supports installation in any orientation and maintains a flush appearance with the surrounding material. The design ensures stable retention without obstructing remote operation.

Technical details cover the external footprint and internal depth capacity needed for inwall installation. Overall dimensions are 85.8mm x 85.8mm x 41.1mm and the adapter is manufactured from moisture resistant MDF compliant with TSCA Title VI. The product is a passive mechanical adapter and requires no power supply.

Connectivity and compatibility are straightforward – the adapter is sized and shaped for a PowerView Gen3 style remote and is intended to be used where that remote form factor is required. The product does not include the remote and does not add electrical features or connectors. Installers should confirm remote dimensions before final installation.

Typical use cases include residential and light commercial window covering installations where a clean flush finish is required. The adapter is suitable for retrofit or new construction applications where solid surface materials are used, and where the remote needs to remain accessible without protruding hardware. It works well in cabinetry or wall panels where a discreet remote location is preferred.

Installation is designed to be simple for experienced installers – the kit includes a spacer and fasteners to set depth and secure the adapter. Routing and cutout dimensions are referenced in the manufacturer routing diagram and the unit offers a depth calibration mechanism to accommodate small variations in board thickness. Build quality uses moisture resistant MDF to provide stable mounting in indoor environments.
