Wall-Smart 092-1NA38 Ceiling Adapter / Flush In-Ceiling Mount / Moisture Resistant / Paintable / 1/2in Drywall

Description

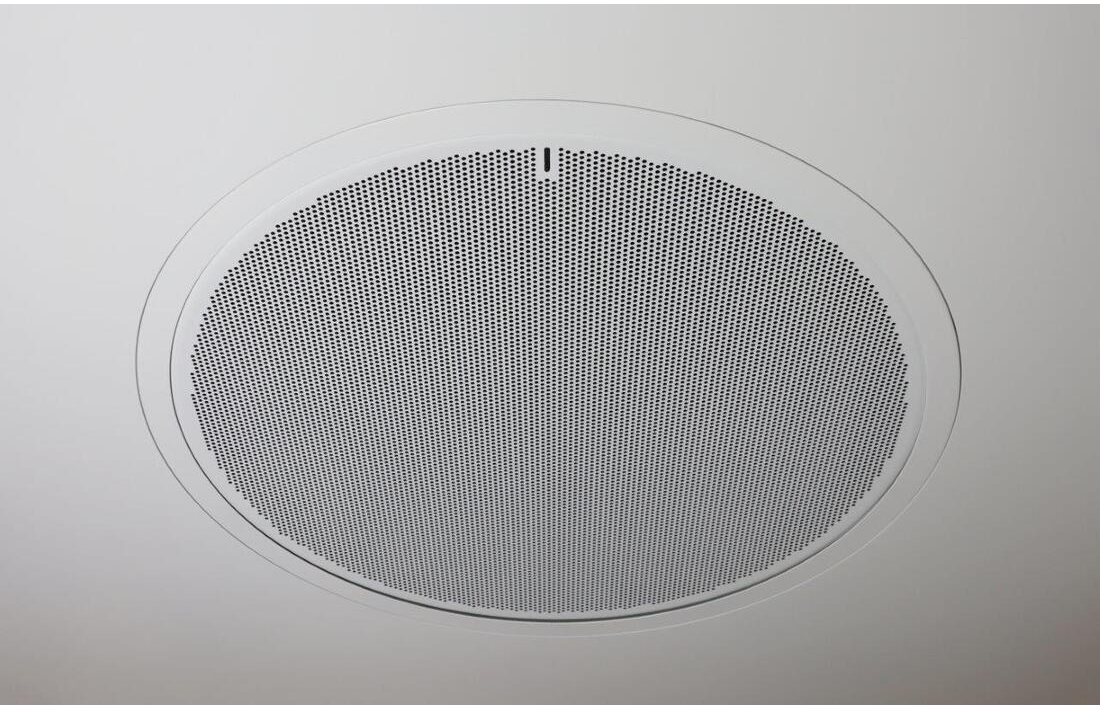

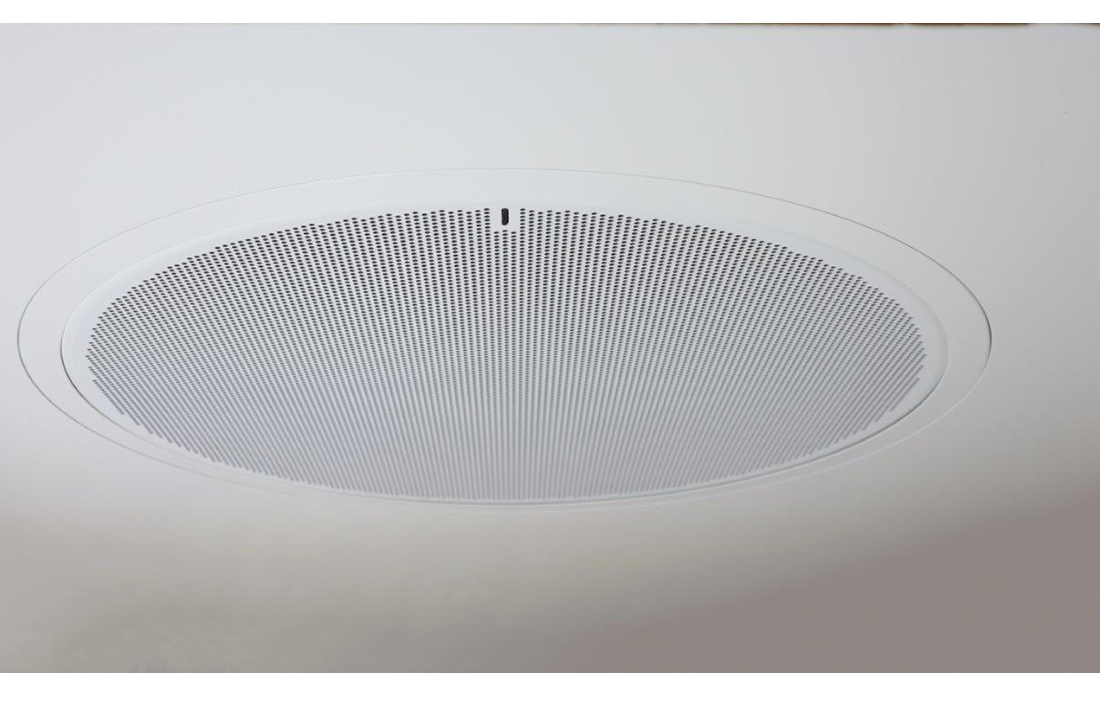

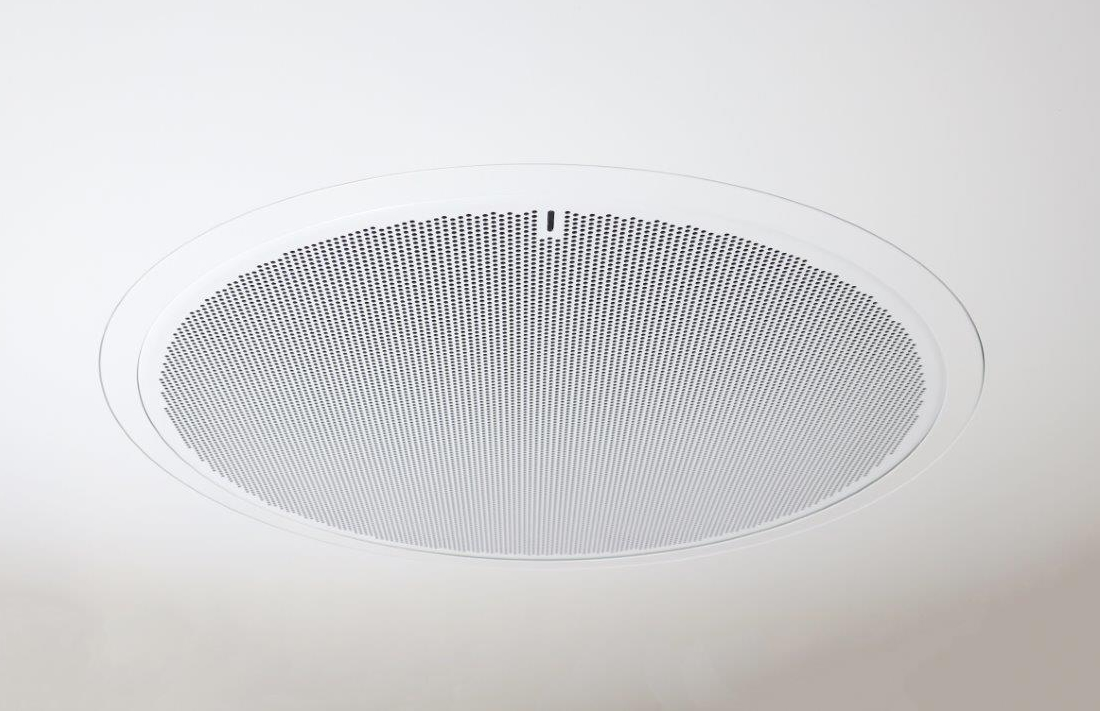

The WS NC FOR SHURE MXA920-R is an in-ceiling flush adapter designed to hold a ceiling array microphone securely while remaining unobtrusive. The adapter creates a flush installation that integrates with standard 1/2in drywall and accepts finish paint to match ceiling color and texture. It supports easy insertion and removal of the microphone to simplify maintenance and service.

Key features include a moisture resistant medium density fiberboard construction and a paintable face that becomes part of the ceiling surface after finishing. The adapter is supplied unpainted so installers can complete finish work on site, and it is engineered to sit flush with the ceiling plane for a clean aesthetic. The design emphasizes reliable mechanical support while minimizing visible hardware.

Technical characteristics include a W/H/D footprint of 760.32mm / 760.32mm / 92.78mm and a nominal weight of 11.1Kg (22.2lbs). The adapter requires no power supply since it is a passive mounting accessory and is sized for installation in 1/2in drywall. For installations in 5/8in drywall a 1/8in shim pack is available as an accessory to ensure correct fit.

Compatibility is focused on the SHURE MXA920-R ceiling array microphone, which is not included. The adapter accepts the microphone and secures it with provided fasteners to maintain proper alignment and service access. All finish and trim work is intended to be completed on site after installation so the adapter becomes integrated with the finished ceiling.

Typical applications include conference rooms, boardrooms, lecture halls and other installed audio spaces where ceiling array microphones are used for capture and conferencing. The flush profile minimizes visual distraction and supports consistent acoustic placement for distributed ceiling microphone arrays. Installers benefit from a product that reduces finish coordination work and delivers a clean final appearance.

Installation follows standard drywall procedures and is straightforward for contractors familiar with in-ceiling device mounting – refer to Wall-Smart installation instruction 10-04-00101-INS for details. The adapter is supplied unpainted to allow finish painting as part of the ceiling and is constructed from moisture resistant MDF for durability in typical interior environments. Overall the product offers a simple, robust method to mount and service the MXA920-R while maintaining ceiling aesthetics.
