Wall-Smart 007-1NA34 In-Wall Flush Adapter / Depth Calibration / Paintable / 3-Gang LUX

Description

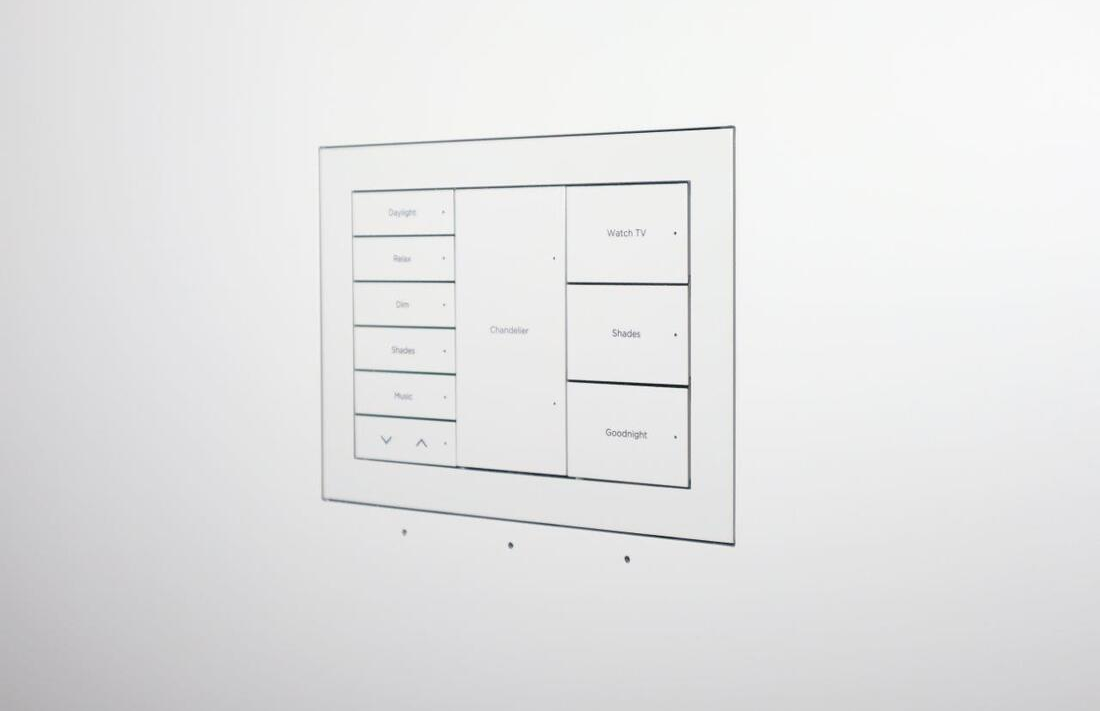

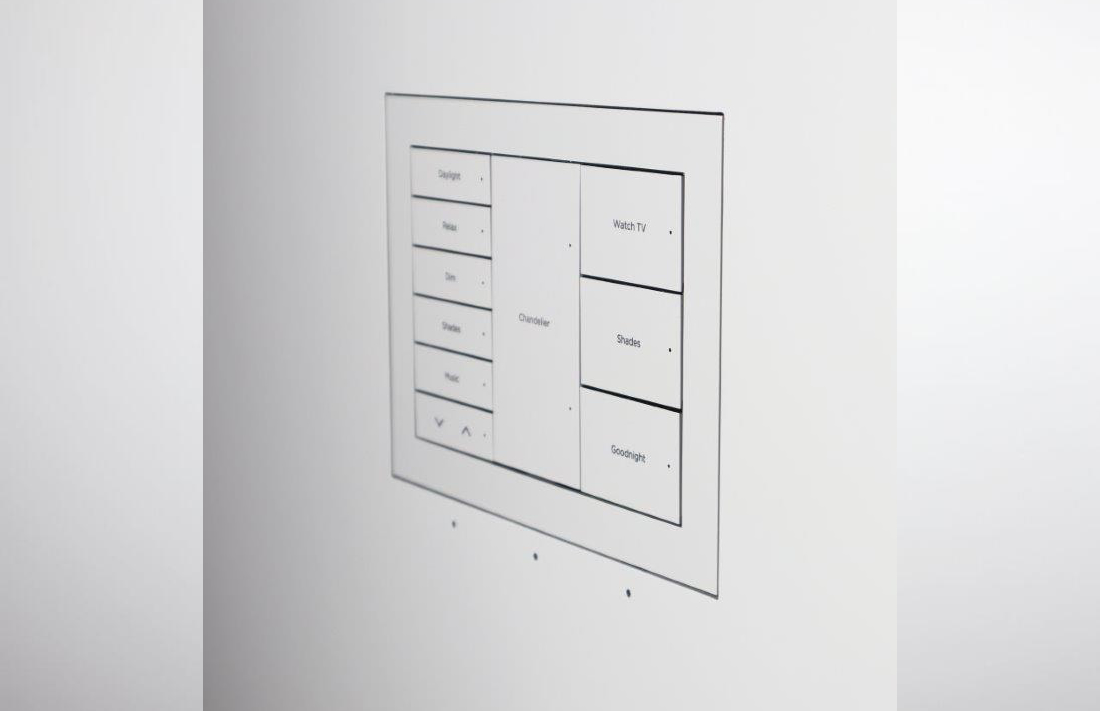

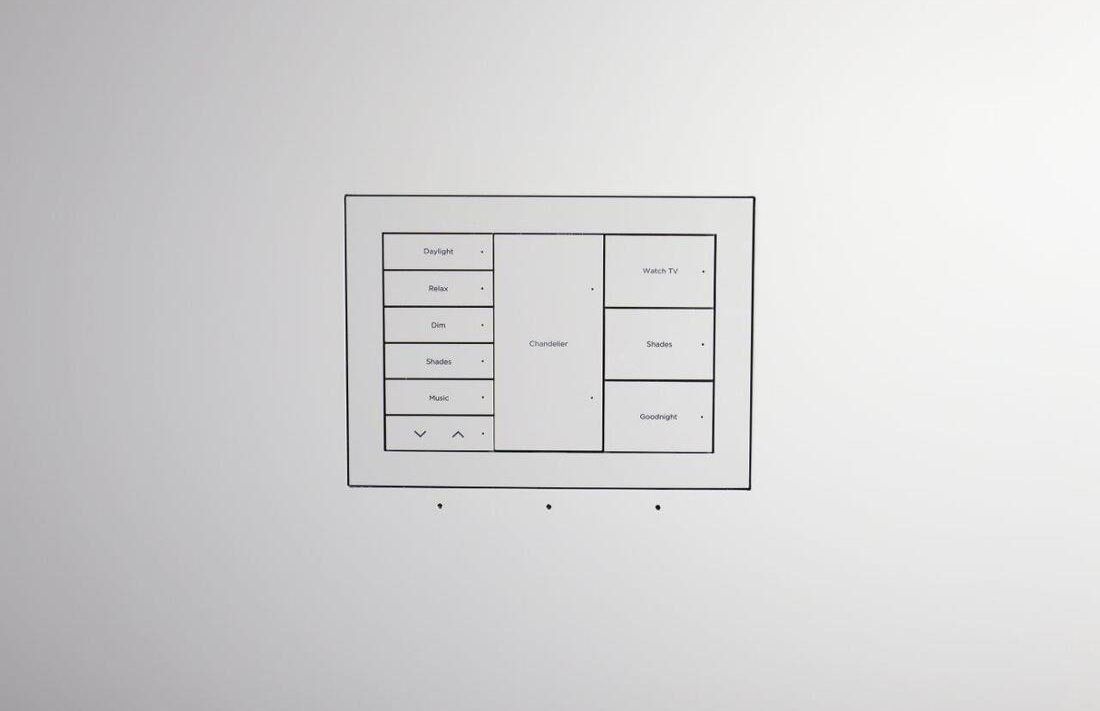

The WS NC FOR C4 LUX 3 GANG DEVICES C4-L- is an in-wall adapter that provides a flush mounting solution for Control4 LUX 3 gang faceplates and compatible C4-L-XX devices. It secures faceplates and devices inside the wall cavity while preserving full front access for operation and service. The adapter is supplied unpainted so it can be finished to match the surrounding wall.

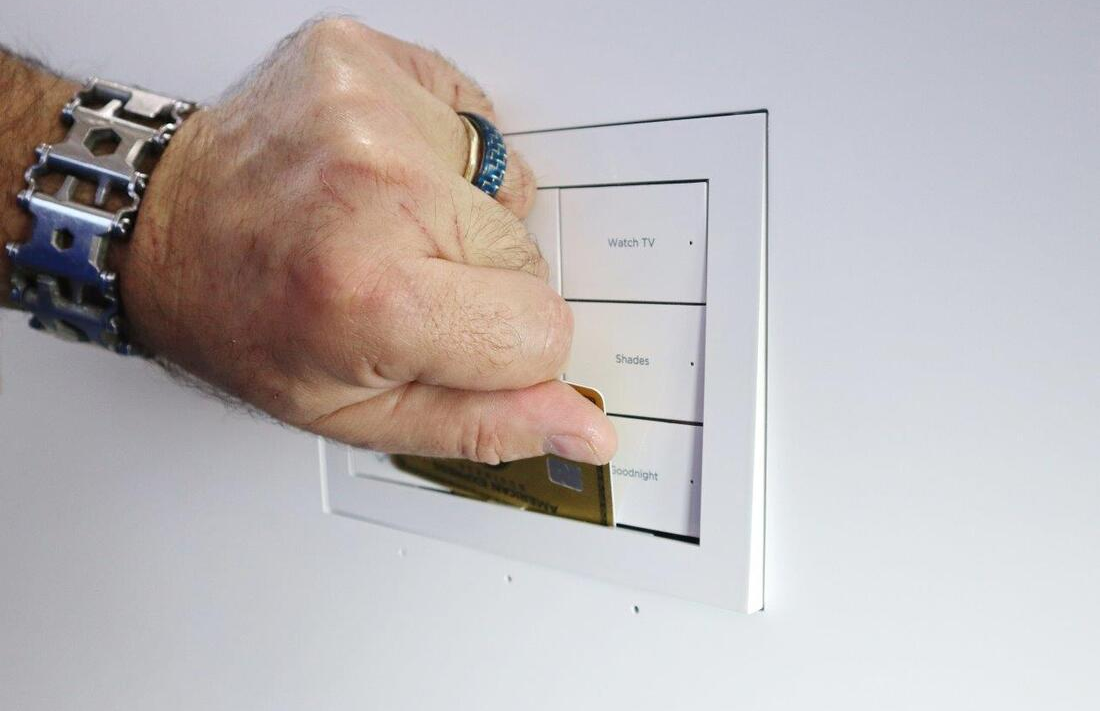

Key features include a depth calibration mechanism that ensures accurate alignment of the faceplate, a paintable surface to match any wall color or texture, and a flush profile that keeps the installation unobtrusive. The design allows easy insertion and removal of the LUX 3 gang faceplate and C4-L-XX modules without damaging the wall finish. The adapter is manual and contains no electronics or power supply.

Technical specifications cover a compact footprint and contractor-friendly materials. The adapter dimensions are 260.56mm by 203.2mm by 44mm and it weighs approximately 0.4Kg (0.88lbs). The body is made from moisture resistant MDF that meets TSCA Title VI requirements and is intended for 1/2 inch drywall installations.

Compatibility is focused on Control4 LUX 3 gang faceplates and C4-L-XX devices, enabling seamless integration into Control4 lighting and automation installations. Because the adapter is a passive wall accessory, there are no connectivity ports or power requirements. Installers should confirm faceplate and device models prior to installation to ensure fit and alignment.

Typical use cases include new construction and renovation projects where a recessed, flush-mounted appearance is required for home or commercial automation panels. The adapter is suitable for residential and light commercial walls where a finished painted surface is preferred. Its paintable finish allows the adapter to blend into any interior design scheme.

Installation follows standard drywall procedures and is intended for 1/2 inch drywall applications. The product includes a depth calibration mechanism to fine-tune the faceplate plane relative to the finished wall surface. The robust MDF construction and paintable surface deliver a durable finished look and long-term reliability.
