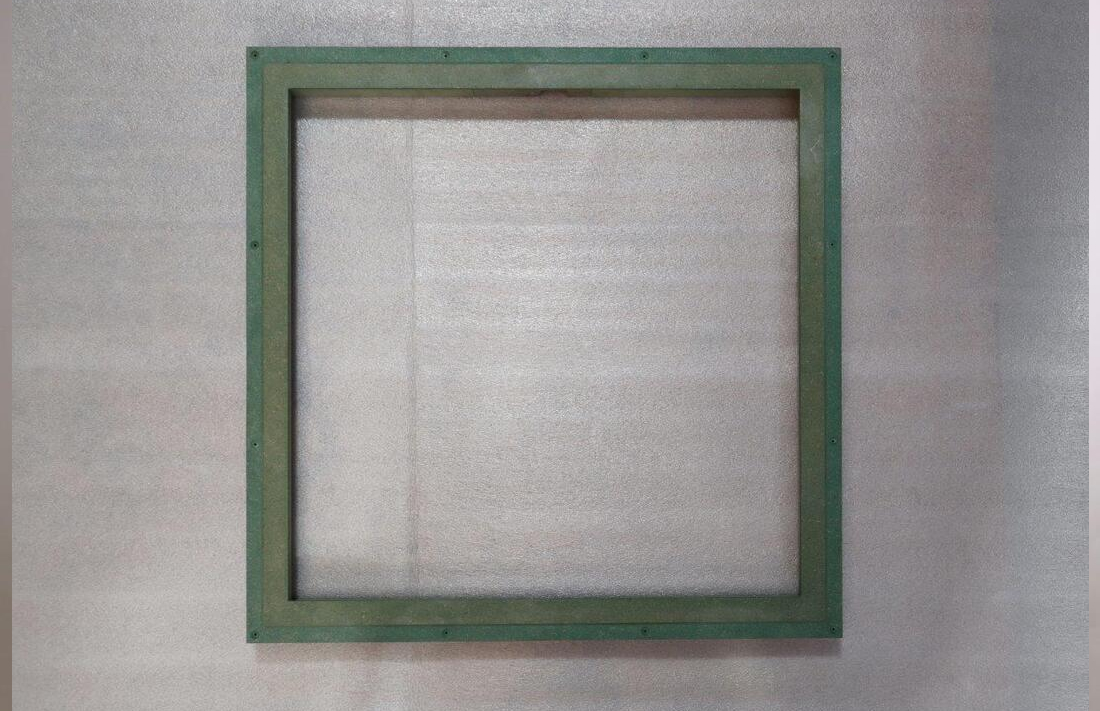

Wall-Smart 090-1NA09 Ceiling Flush Mount Adapter / Paintable / Depth Calibration / Microphone Access

Description

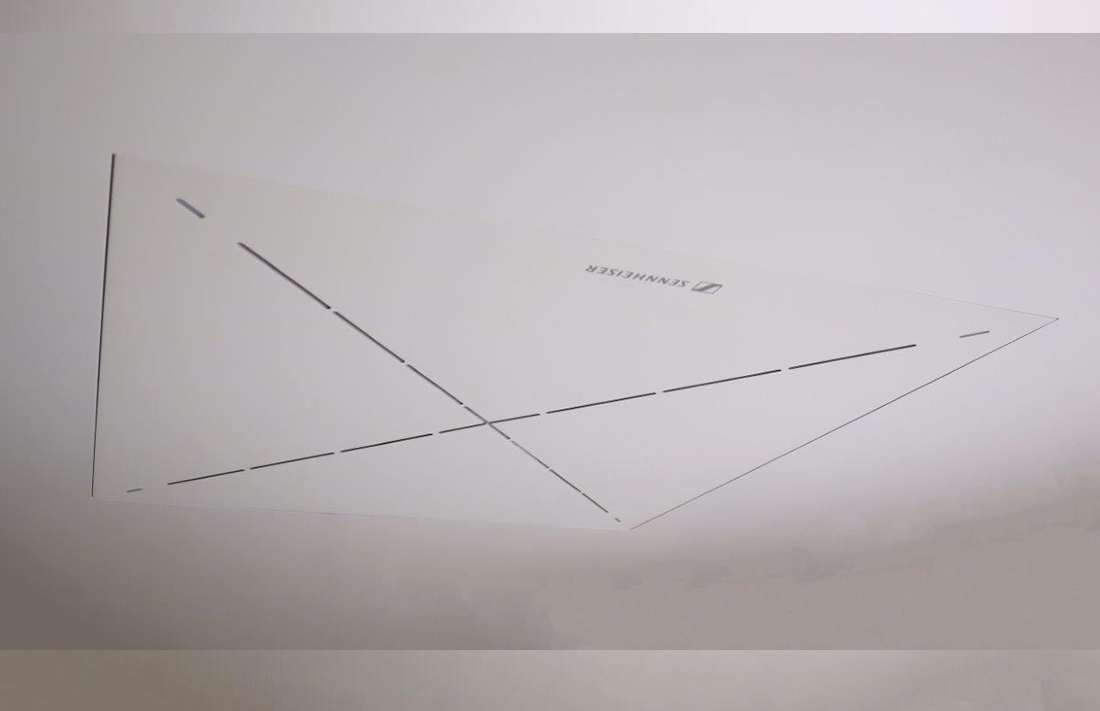

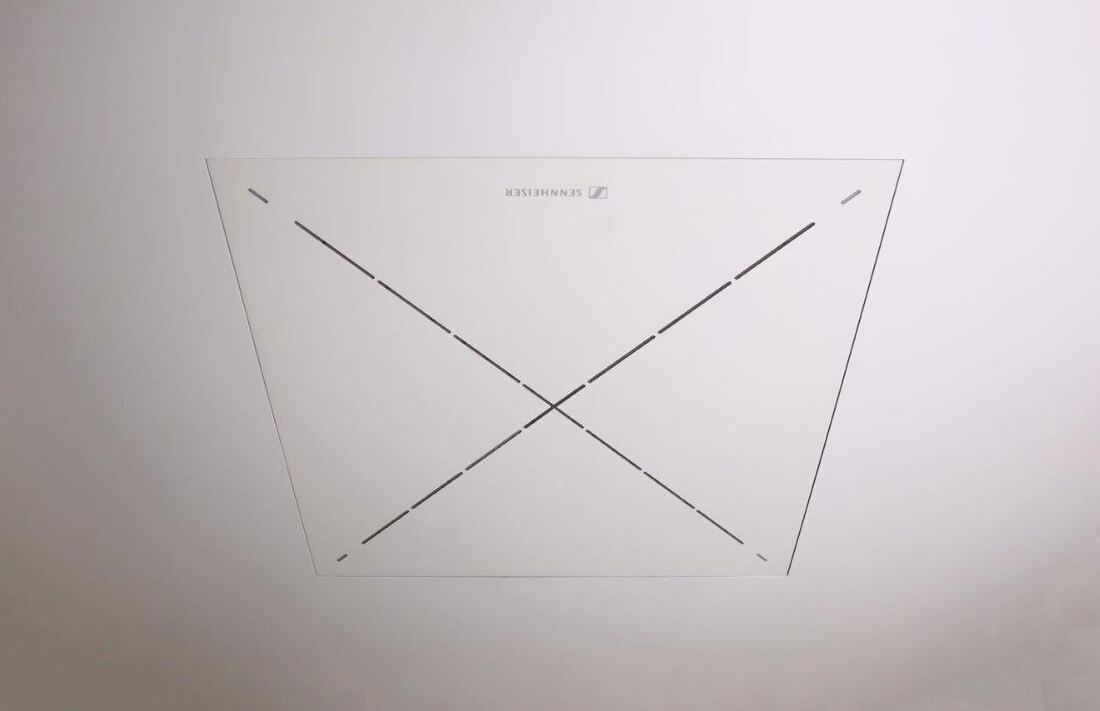

The ceiling flush mount adapter provides a discreet mounting solution to integrate a ceiling microphone into standard drywall ceilings. It installs flush with the ceiling plane to maintain a clean visual aesthetic. The adapter is paintable so it can be finished to match ceiling color and texture.

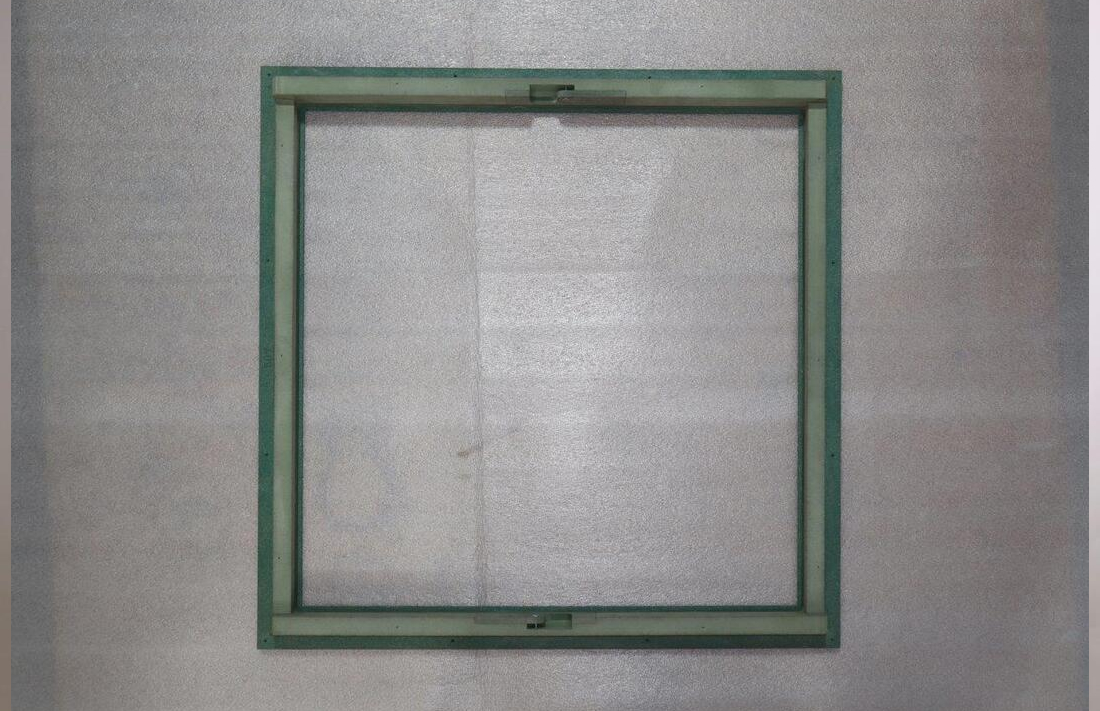

Key features include an adjustable depth calibration mechanism and a removable mounting tray that allows secure insertion and easy removal of a ceiling microphone. The adapter ships unpainted to be finished on-site after installation. Its construction is optimized for a low profile and reliable fit in finished ceilings.

Technical details include dimensions of 689.3mm by 689.3mm by 84.2mm and a nominal weight of 3.65 kg 8.03 lbs. The adapter is fabricated from moisture resistant MDF compliant with TSCA Title VI. No power supply is required because the adapter is a passive mechanical mounting solution.

Connectivity is determined by the installed microphone system rather than the adapter itself – the adapter provides mechanical support and access for cabling and service. It is designed to accommodate a ceiling microphone that fits the specified cutout and mounting footprint. The adapter is compatible with standard 1/2″ drywall installation practices.

Typical applications include conference rooms, boardrooms, classrooms, and AV-integrated meeting spaces where a low-profile ceiling microphone installation is required. The adapter helps maintain room aesthetics while providing a reliable mechanical interface. It supports environments where the microphone needs periodic service or removal without ceiling damage.

Installation follows common drywall construction procedures and is intended for use in 1/2″ drywall. The adapter is supplied unpainted and should be painted after installation to match surrounding ceiling finishes. The depth calibration mechanism simplifies final alignment of the microphone grille relative to the finished ceiling surface.

The adapter delivers a professional, serviceable mounting solution that preserves ceiling aesthetics and simplifies microphone maintenance. Its moisture resistant MDF construction and adherence to TSCA Title VI provide long term dimensional stability. For integrators and installers the adapter reduces trim work and simplifies final finishing tasks while providing a robust mount for ceiling microphones.
