Wall-Smart 085-1NA17-UWH2 Flush Wall Mount Soundbar US / UK Paintable Magnetic Grille Leaves Pattern White

Description

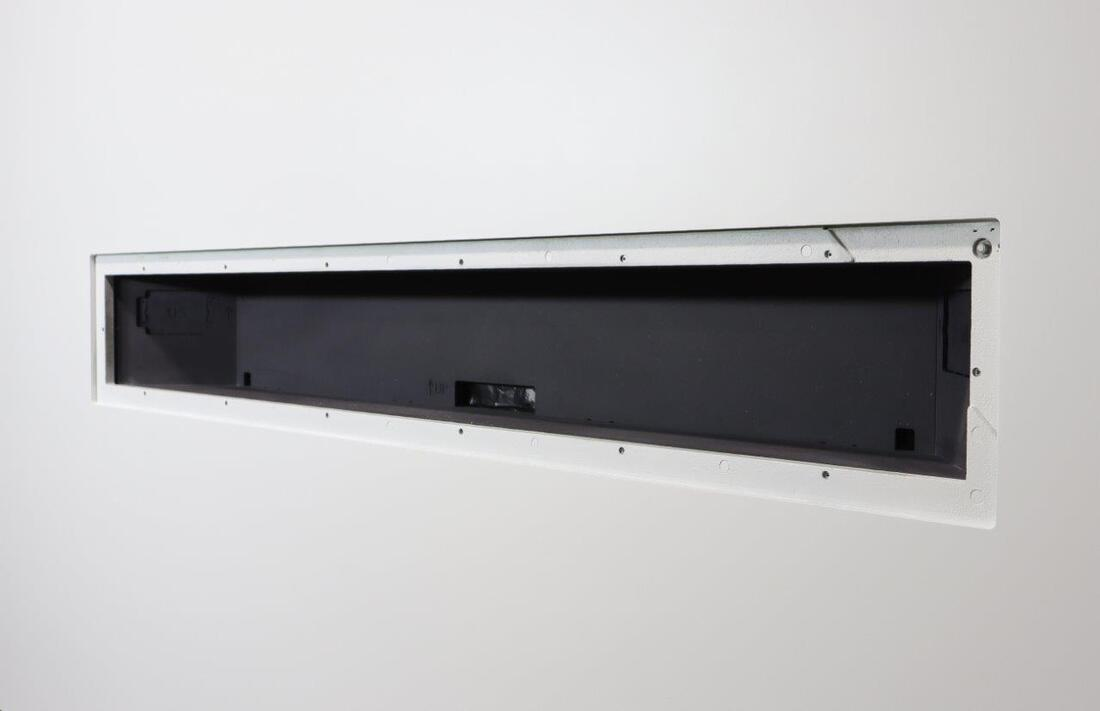

The Wall-Smart flush wall adapter provides an in-wall mounting solution that conceals a soundbar while maintaining full functionality and accessibility. It is designed to sit flush with 1/2 inch drywall and to integrate visually with surrounding finishes. The adapter is supplied unpainted so it can be finished as part of the wall surface.

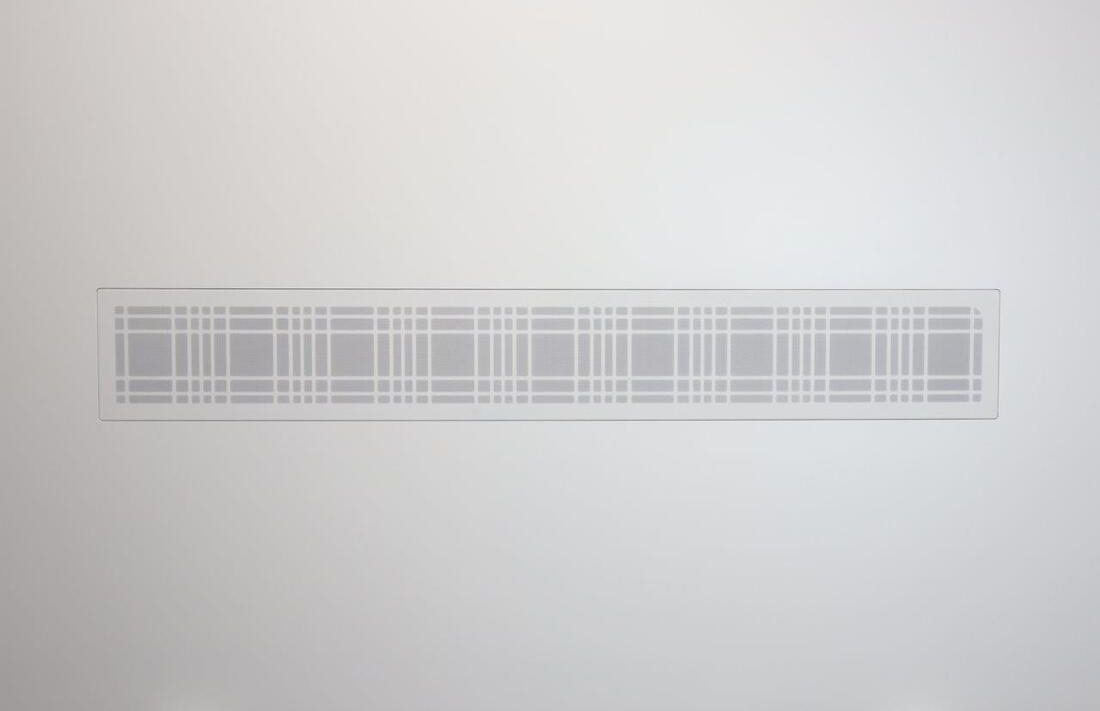

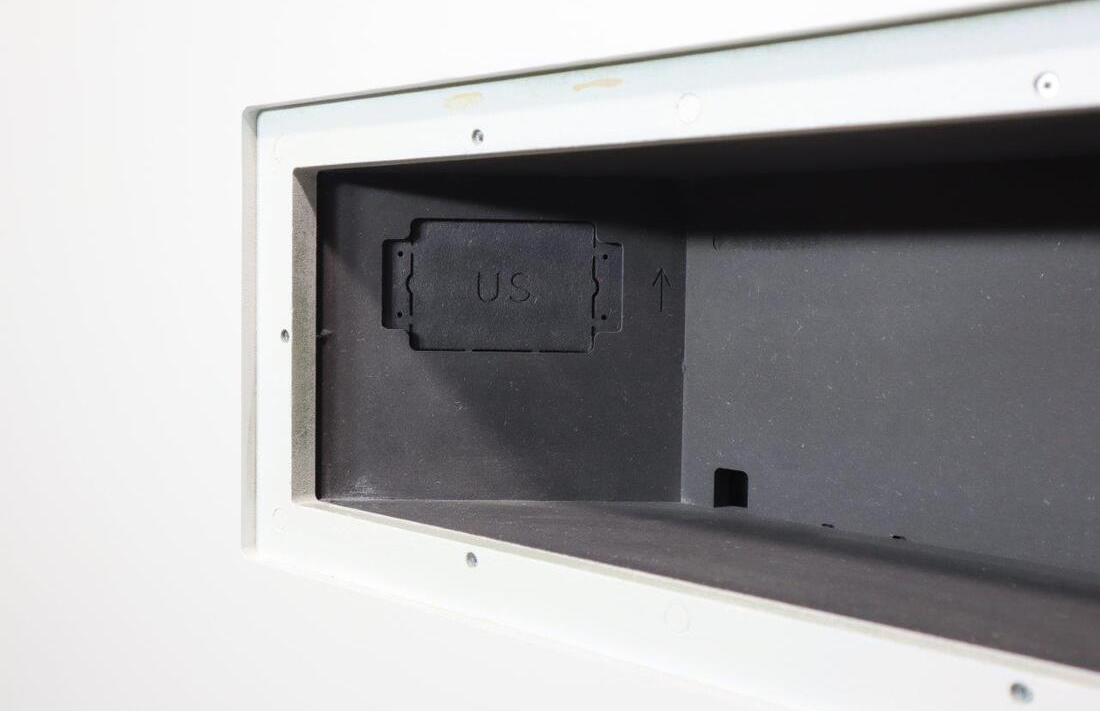

The adapter features a magnetically attached acoustic grille available in white or black cloth and in selectable patterns including Leaves and Rectangles. The grille fabric is acoustic and IR transparent to preserve audio fidelity and remote control operation. Knockouts are provided for US and UK backboxes to simplify service access and outlet installation.

Construction uses moisture resistant MDF that is compliant with TSCA Title VI to provide stable mounting and long-term dimensional stability. The adapter is optimized for high fidelity audio output and designed specifically to accommodate the Arc soundbar profile. Dimensions are 1516.4mm / 297.2mm / 158.6mm and the adapter ships unassembled to be completed during installation.

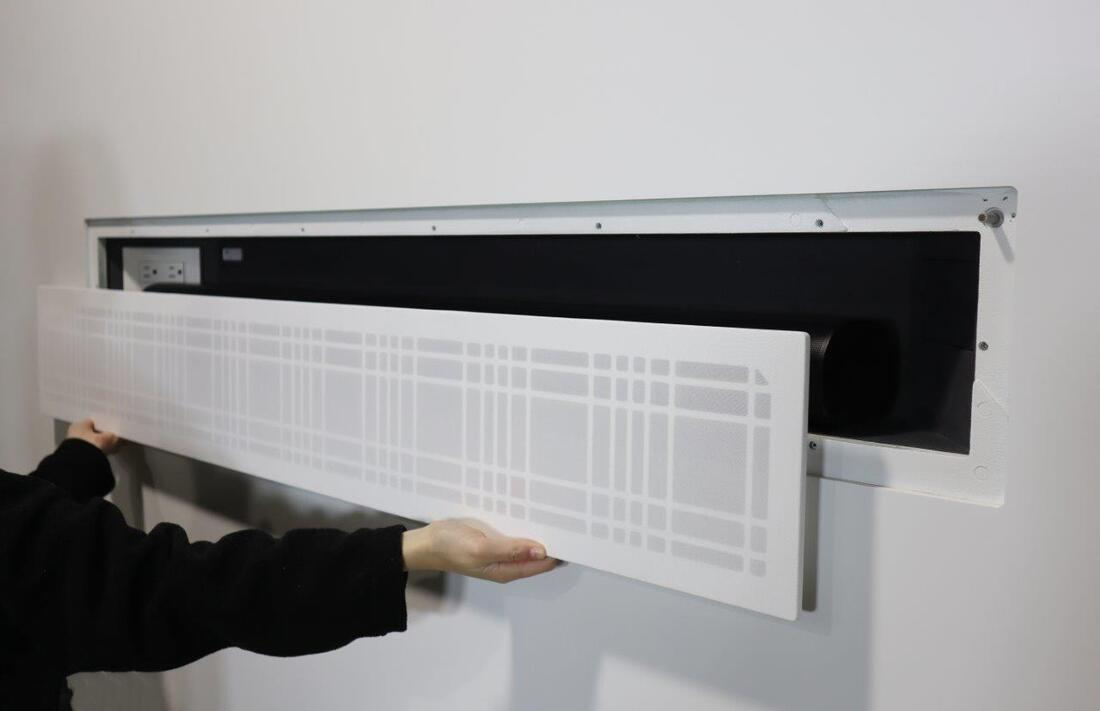

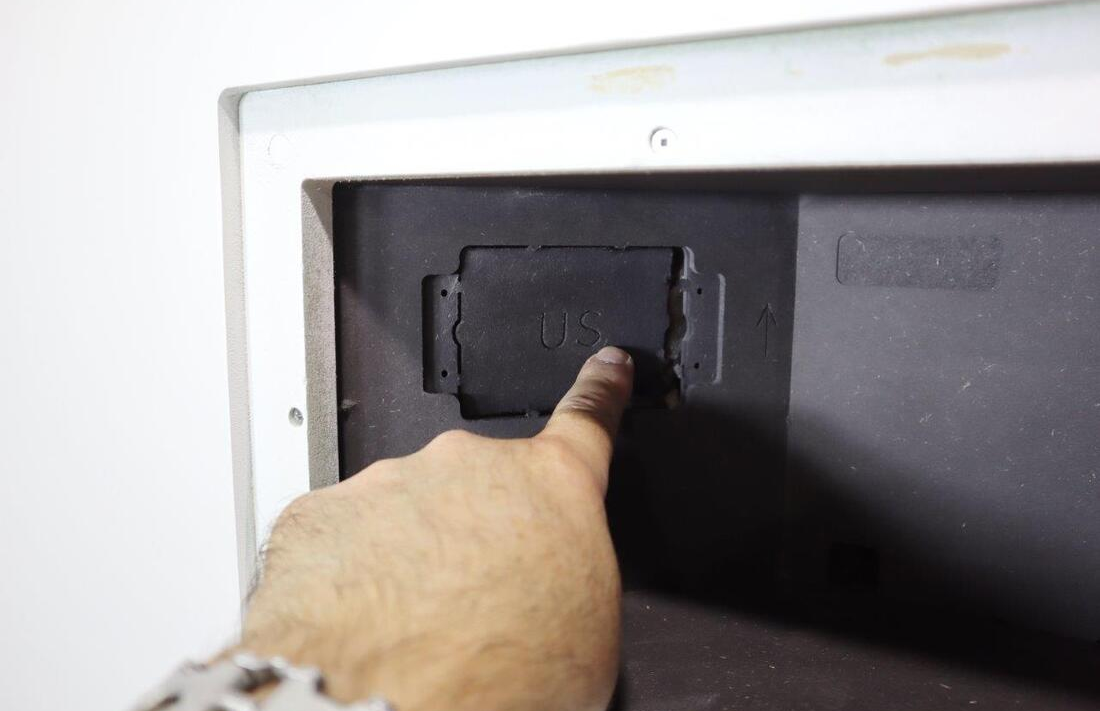

Connectivity and service access are preserved by allowing easy insertion and removal of the soundbar and by including provisions for installing UK BS4662 2 Gang or HUBBELL Racobox 420 backboxes. The grille attachment is magnetic for tool-free removal and reinstallation during maintenance. The white grille option is offered in two aesthetic patterns to match interior design choices.

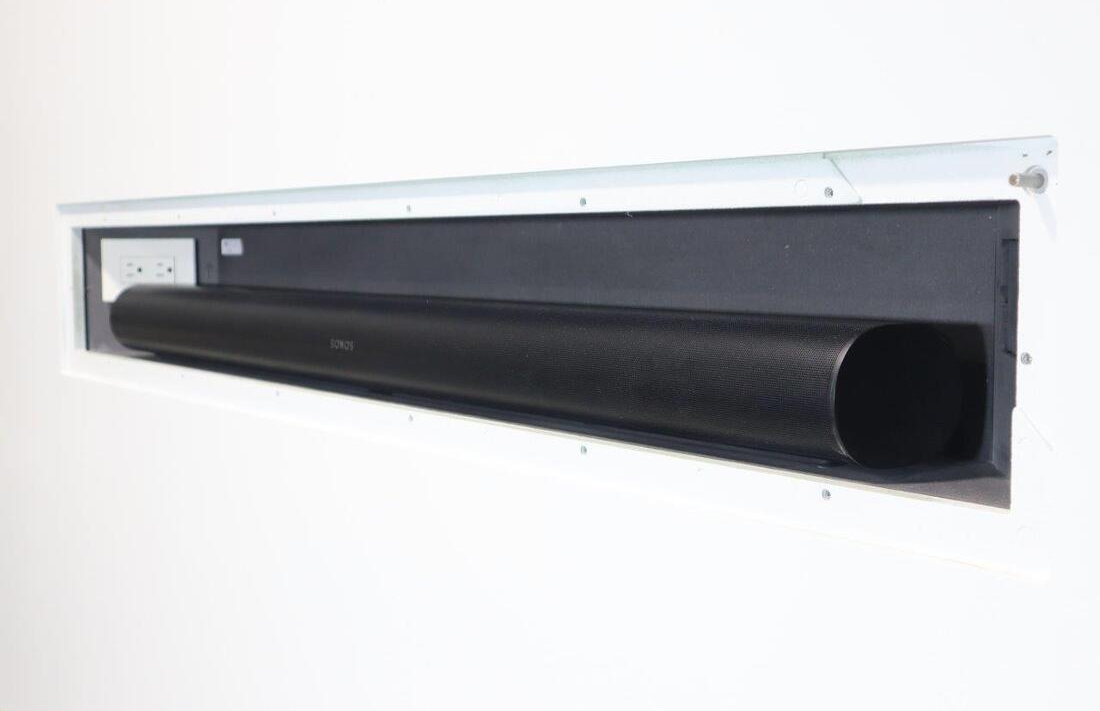

This flush mount adapter is suitable for residential and commercial AV installations where a seamless wall integration of a soundbar is required. Typical applications include living rooms, media rooms, conference rooms, and hospitality spaces that require concealed audio hardware while retaining serviceability. The adapter does not include the soundbar and is compatible with the Arc soundbar form factor.

Installation follows standard drywall construction procedures and requires reference to the Wall-Smart installation instruction document 10-04-00101-INS. The product is intended to be painted after installation to match the wall finish and texture. Careful adherence to backbox and knockout guidance ensures correct ventilation, cabling, and service access during installation.
