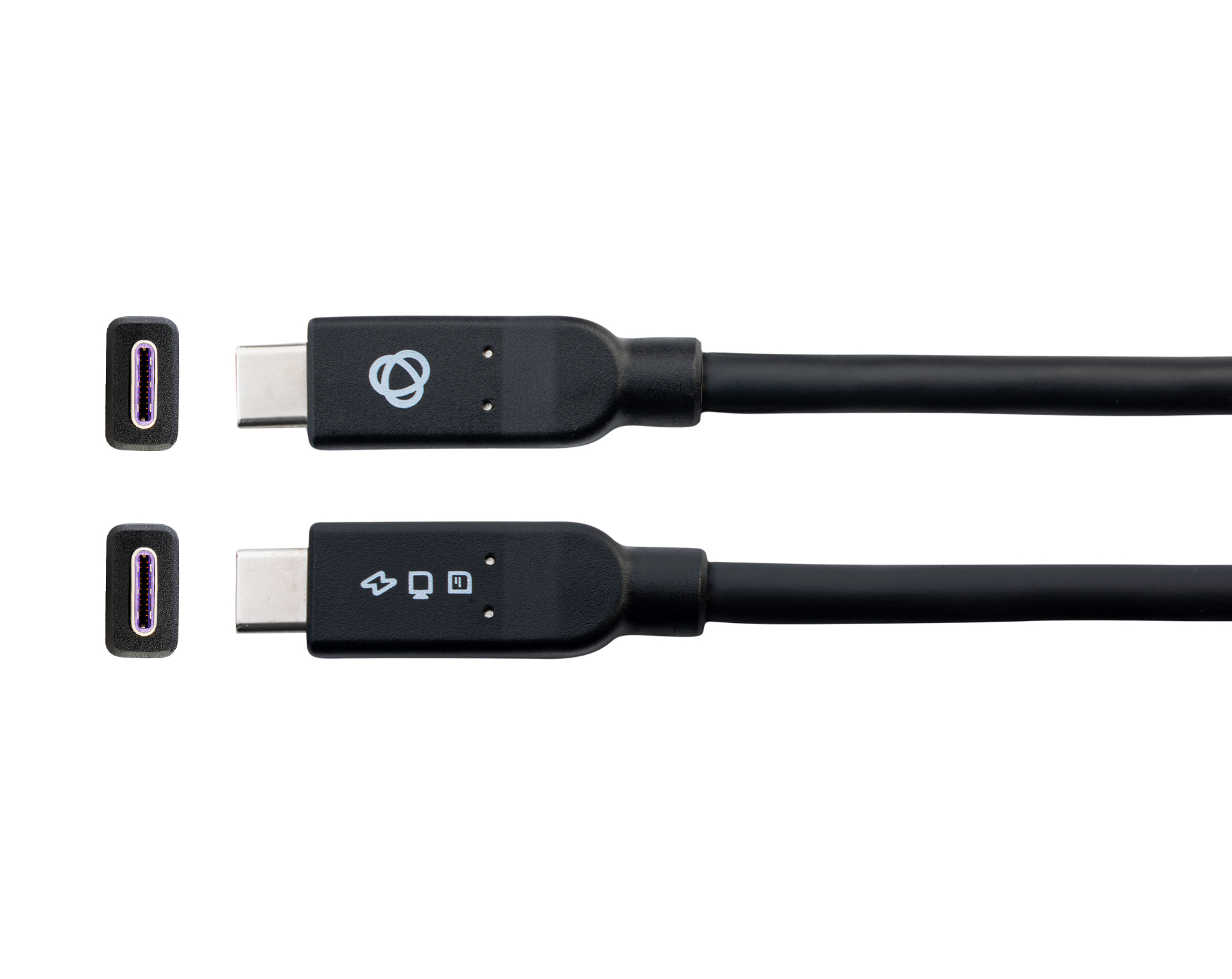

Kramer C-U32/MFF-15 USB-C Male to Male Cable / USB 3.2 Gen 2 / 10Gbps / 4K@60 4:4:4 / 100W / 15ft

Description

The C-U32/MFF-15 is a USB-C male to male cable engineered to deliver video, data and power over a single passive link. It supports USB 3.2 Gen 2 SuperSpeed+ data rates and DisplayPort Alternate Mode video transmission. This cable is designed for reliable everyday use in professional and consumer AV setups.

Key features include support for 4K@60 4:4:4 video, 10Gbps data throughput and up to 100W power delivery – all over a single USB-C link. The cable uses micro coax conductors and triple shielding to minimize electromagnetic interference and preserve signal integrity. An integrated K-Lock mechanism secures the reversible USB Type-C connector in place to prevent accidental disconnects.

Technical performance covers USB 3.2 Gen 2 data rates up to 10Gbps and USB 2.0 compatibility at 480Mbps. Video is supported in DP Alt Mode at 4K@60 with 4:4:4 color sampling for high fidelity imagery. Power delivery is specified at 100W (5A, 20V), allowing fast charging of laptops and high-power USB-C devices.

Connectivity is straightforward with USB Type-C male connectors on both ends, nickel plating and gold pins for reliable contact. The cable is compatible with PC, Mac and mobile devices that support USB-C and DP Alt Mode. It retains backward compatibility with older USB versions including 1.0, 1.1, 2.0 and 3.0.

Typical applications include connecting laptops to 4K displays, high-speed data links between hosts and peripherals, and charging compatible devices while transmitting video. The integrated lock and robust shielding make it suitable for conference rooms, broadcast setups and workstation environments where secure connections matter. The cable supports gigabit Ethernet passthrough where supported by host and device implementations.

Installation is plug and play with no drivers required for standard video and data functions. The cable jacket is PVC with a durable 5.7mm nominal diameter and a 34.2mm bending radius to withstand typical cable routing. Temperature and voltage ratings are 80 degrees C and 30V respectively, and the product meets CE safety and VW-1 flammability requirements.
