Phase Technology VLS100-LCR Variable Length Soundbar LCR / Adjustable to 100in / 3 Drivers / 90dB Sensitivity

Description

The PhaseTech VLS100-LCR is a variable length LCR soundbar engineered to match the width of large flat panel displays up to 100in. It combines a slim industrial profile with integrated drive units to deliver clear dialog and balanced full-range audio. The design is intended to integrate cleanly with modern living spaces while providing LCR channel performance.

This soundbar features a 0.75 inch synthetic soft dome tweeter, two 3 inch ultra-long throw polypropylene woofers and two 3 inch passive radiators to extend low frequency output. An Absolute Phase crossover network aligns driver output so that the tweeter and woofers operate acoustically and electronically in phase. The architecture supports a nominal impedance of 8 ohms and a sensitivity of 90 dB at 2.83V/1m for efficient drive with modest amplifier power.

Performance is specified at 80 Hz to 20 kHz (-10 dB) and 120 Hz to 20 kHz (-3 dB), with a crossover frequency at 3.5 kHz. Recommended amplifier power is 15 to 100 W and the enclosure combines passive radiator and sealed configurations to control bass response. The combination of high sensitivity and tailored crossover provides intelligible midrange and extended top end for LCR duties.

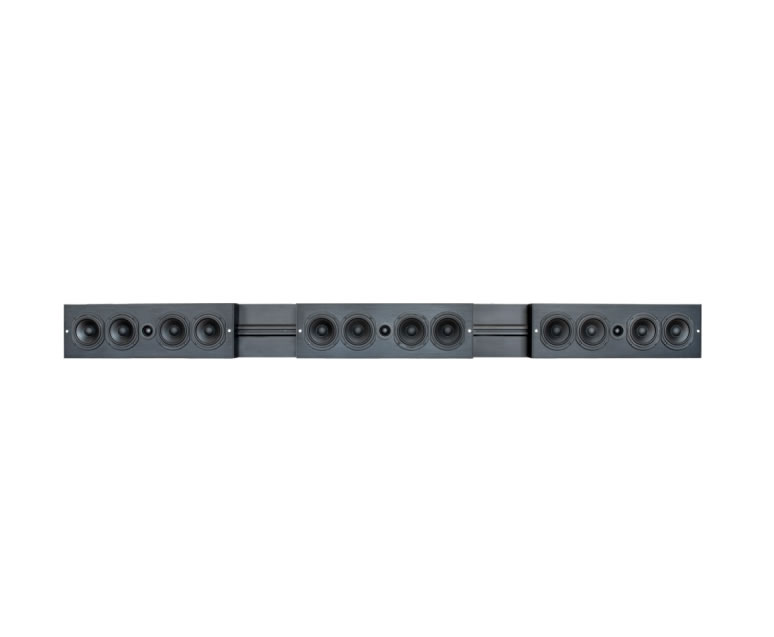

Connectivity is simplified via a 2 pin 5.08 mm Euroblock input for each channel, allowing secure, pro-style wiring to AV processors and amplifiers. The cabinet is only 2.875 in deep to clear most slim TVs while the 94 in cabinet length expands or trims to match screen width up to 100in. Grille construction uses black cloth on a wooden frame to provide durable acoustic transparency and a refined visual finish.

The VLS100-LCR is appropriate for dedicated home theater LCR use, high-end living room installations, and boutique commercial AV where a low-profile yet wide-format center solution is required. It can serve as left-center-right when combined with additional matching modules or operate as a single full-width LCR channel. The product is certified to CCC, CE, and RoHS standards for global installation environments.

Installation is supported by included hanging and mounting hardware and the soundbar is compatible with PhaseTech P3-35 three-channel amplification for optimal control. The enclosure and grille materials are selected for long-term reliability and ease of service. Overall, the VLS100-LCR provides a practical balance of adjustability, acoustic alignment, and installation-friendly features for professional AV and discerning consumers.
