WyreStorm EXP-SP-0102-H2 4K60 1:2 HDMI Scaling Splitter 18Gbps HDR10 / Dolby Vision Downscale 1080p

Description

The EXP-SP-0102-H2 is a 1-in 2-out HDMI scaling splitter designed to duplicate and manage UHD and HD HDMI sources across mixed-resolution displays. It supports HDMI 2.0 bandwidth up to 18Gbps and handles 4K60 video signals including HDR10 and Dolby Vision. This unit provides per-output downscaling so 4K sources can play while some displays receive 1080p signals.

Key features include full HDMI 2.0 18Gbps support, HDR10 and Dolby Vision compatibility, and a built-in scaler capable of downscaling outputs to 1080p. The splitter negotiates EDID and HDCP automatically to simplify setup and ensure compatible handshake with displays and source devices. Each output delivers a clean, duplicated signal with automatic cable equalization for signal regeneration.

Performance specifications include support for 3840×2160@60Hz 10bit 4:2:0 and 4:4:4 profiles as listed by the manufacturer, a maximum pixel clock of 600MHz, and compliance with DCI, RGB, HLG and BT.2020 color spaces. Audio formats supported include 2-channel PCM and multichannel LPCM up to DTS-X and Dolby Atmos when present in the source. The device is fully HDCP 2.2 compliant and supports data rates up to 18Gbps.

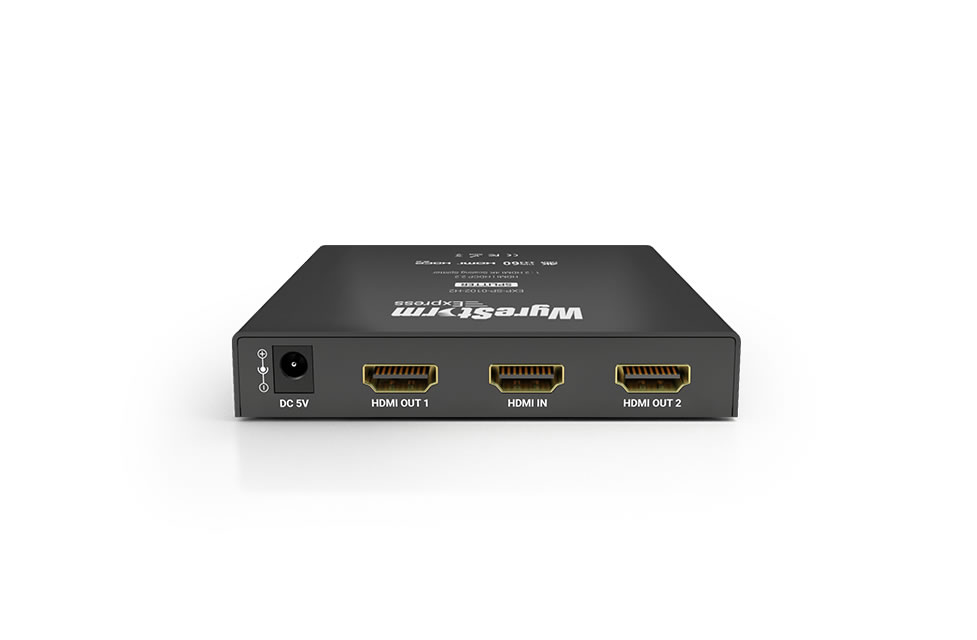

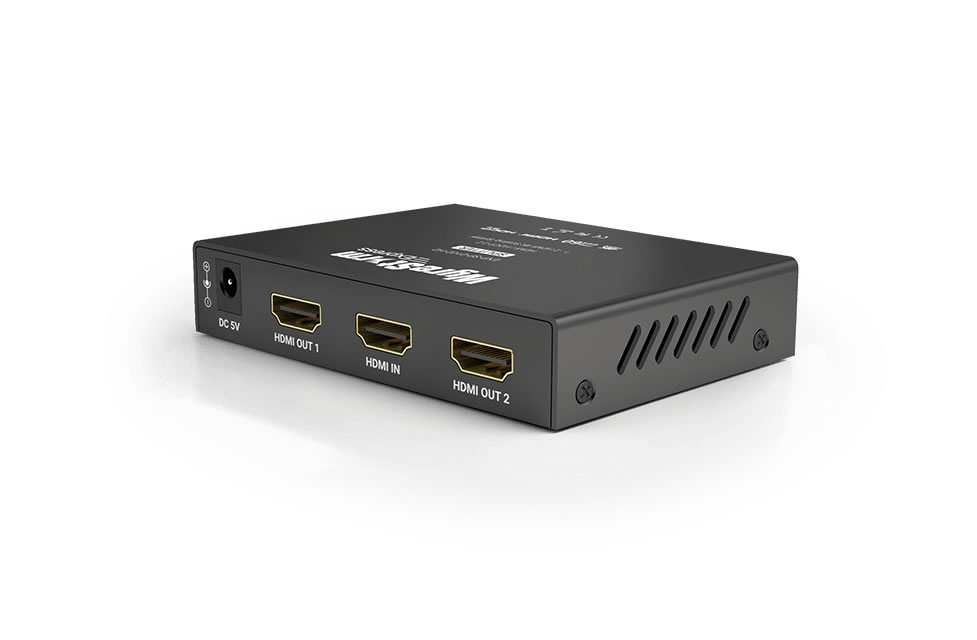

Connectivity includes one 19-pin HDMI type A input and two 19-pin HDMI type A outputs. Control and communication features are HDMI-based EDID and HDCP negotiation and DVI-D compatibility via adapter if required. Power is provided via a 5V DC 1A adapter and the unit has a maximum power consumption of 1.8W.

Typical use cases include duplicating a single HDMI source to two displays in meeting rooms where one display is 4K and another is 1080p, digital signage systems that mix panel resolutions, and AV racks that require reliable HDCP and HDR handling. The downscaling per output keeps legacy displays supported without forcing the source to change its output format. Integrators will appreciate its ability to maintain HDR metadata and handshakes across mixed device environments.

Installation is straightforward thanks to plug-and-play operation, automatic EDID/HDCP handling, and a slim chassis that can be mounted under furniture or in compact rack spaces. No drivers or software are required and mounting brackets are included for fixed installations. The unit is built for unobtrusive, reliable operation in commercial AV deployments.
