Description

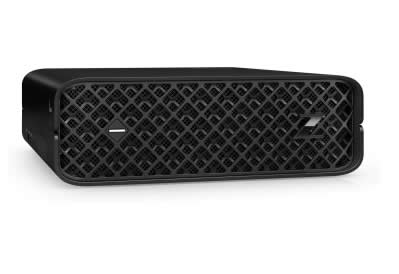

The DCNM-SERVER3 is a preconfigured system server designed to run the DICENTIS Conference System software and associated services. It ships with Windows Server 2022 for Embedded Systems – Telecommunications already installed to reduce on-site setup time. The unit is intended to separate the conference network from an office network using dual Ethernet ports.
Key features include an Intel Core i7-12700 processor, 16 GB of DDR5 memory, and a 256 GB PCIe M.2 SSD for fast boot and reliable operation. The server includes a pre-configured DHCP service and the DICENTIS Conference System software to streamline deployment. A 180 W Smart PFC slim AC adapter is included to supply stable power.
Technical specifications address performance and environmental limits. The CPU operates at 2.1 GHz base frequency with Turbo Boost up to 4.9 GHz and a 25 MB cache on 12 cores. Networking is provided by two 1 Gbps Ethernet adapters and storage is a 256 GB PCIe 4×4 M.2 SSD with 16 GB DDR5-4800 memory installed.
Connectivity covers separate DICENTIS and office networks via the two Ethernet ports and standard power input ranging from 100 VAC to 240 VAC at 50 Hz or 60 Hz. Rated input current is 2.50 A and the system draws from the supplied 180 W adapter. The server supports remote registration and activation through the DICENTIS Activation Tool and integrates into standard AV and IT infrastructures.
Typical installations include conference rooms and on-premises AV racks where a compact workstation-grade server is required. It supports system sizes up to 1500 DICENTIS devices and is suitable for data center or in-room mounting behind displays or under desks. The product is aimed at integrators deploying dedicated conference networks and centralized meeting control.
Installation is simplified by the preinstalled operating system and software, and documentation guides the registration and activation process. The small form factor provides flexible mounting options while solid-state storage improves reliability and reduces boot times. HP 3-year Next Business Day on-site hardware support is included subject to registration terms.
