Description

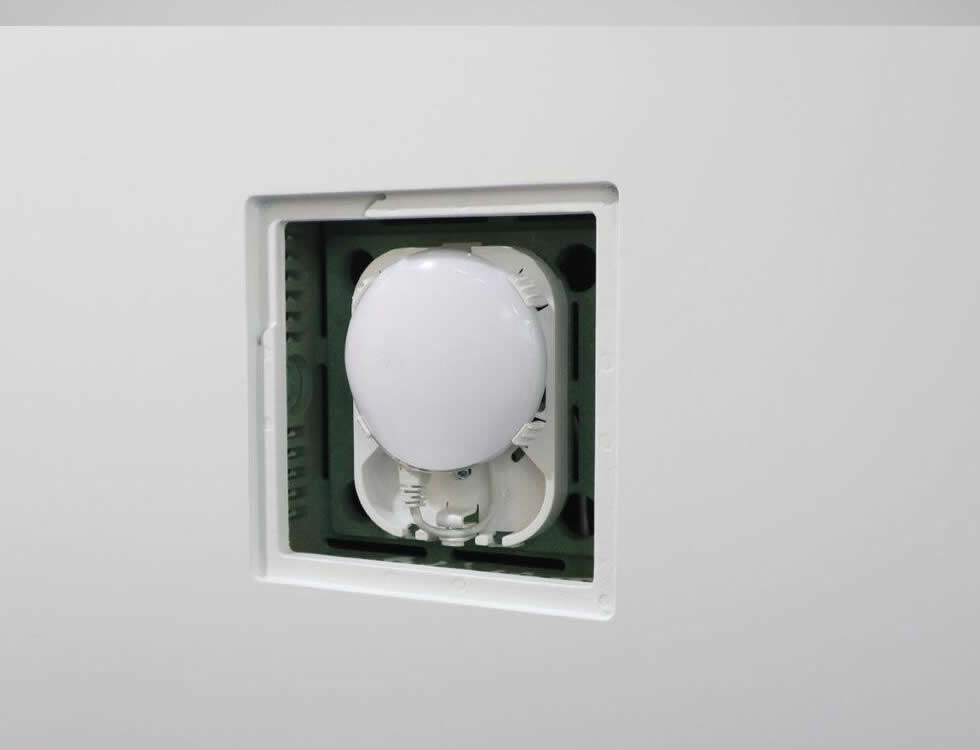

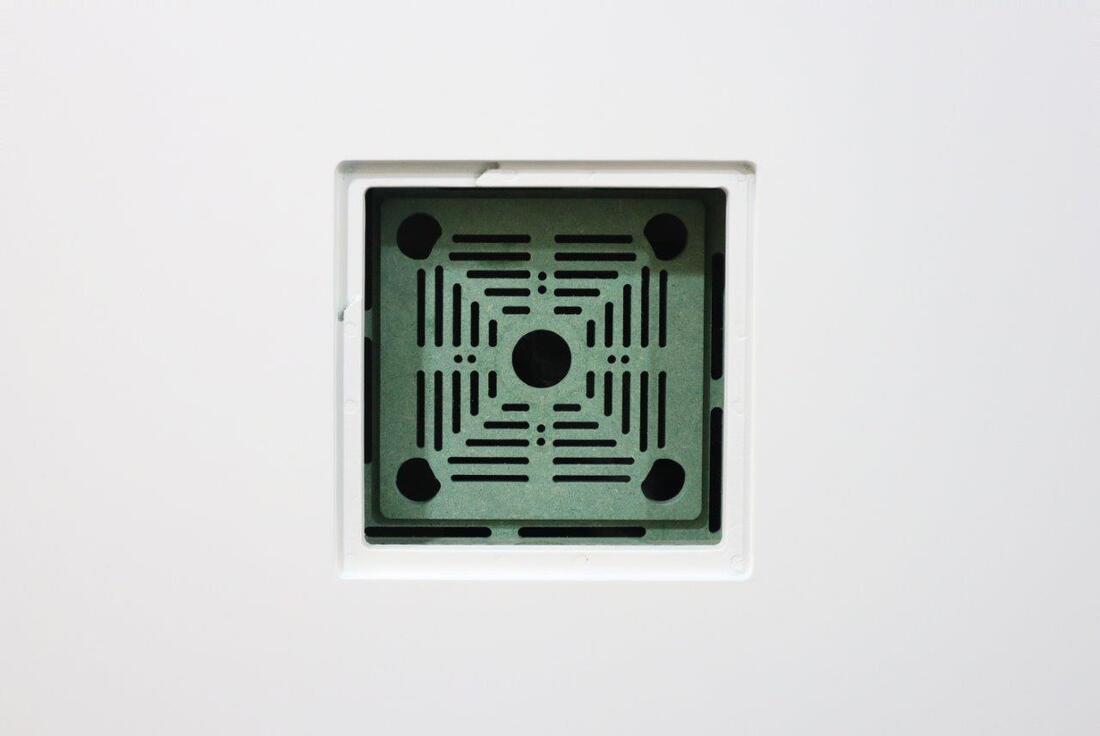

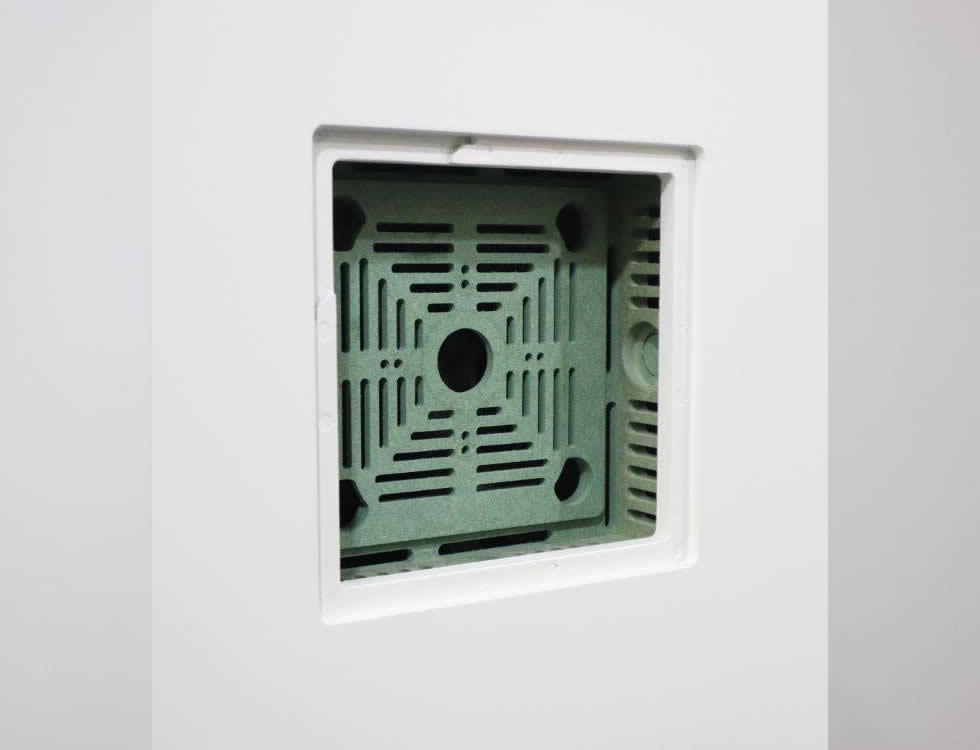

The WS NC Uni-INwall XS is an in-wall flush installation adapter designed to secure and present small AV devices behind finished walls. It accepts devices measuring up to 171x171x44mm and holds them flush to the wall surface. The adapter is supplied unpainted so it can be finished as part of the wall for a discreet installation.

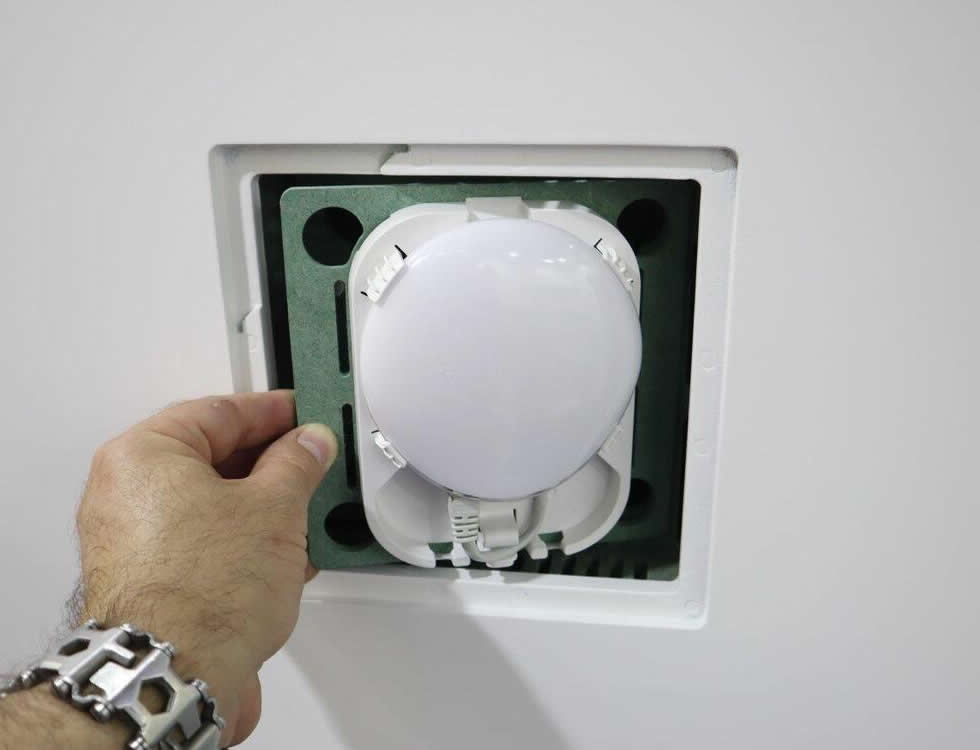

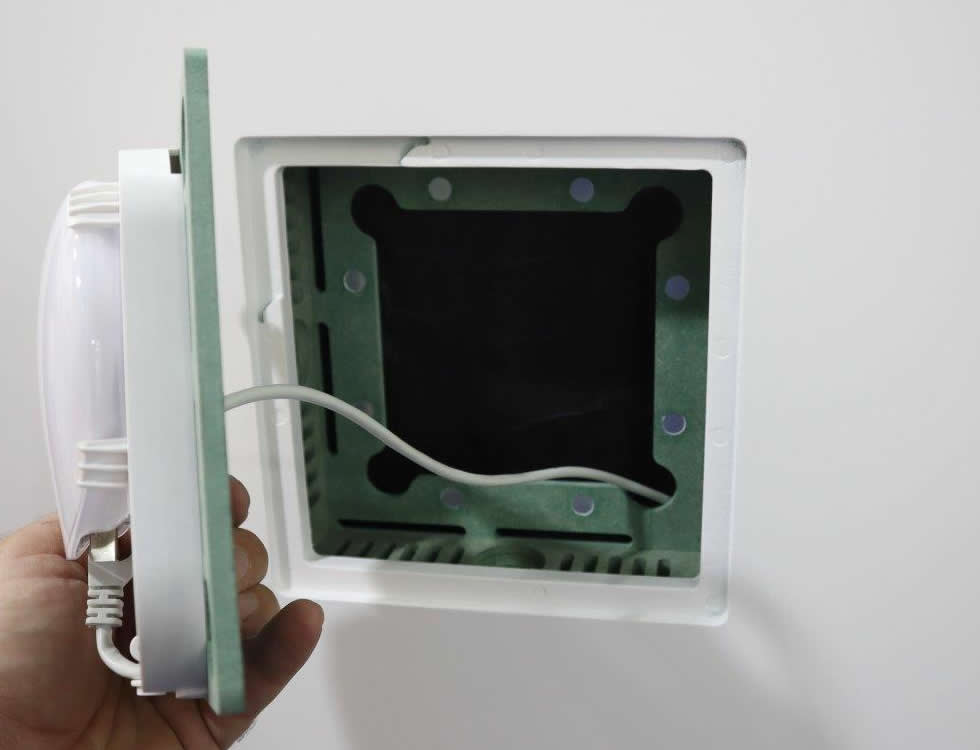

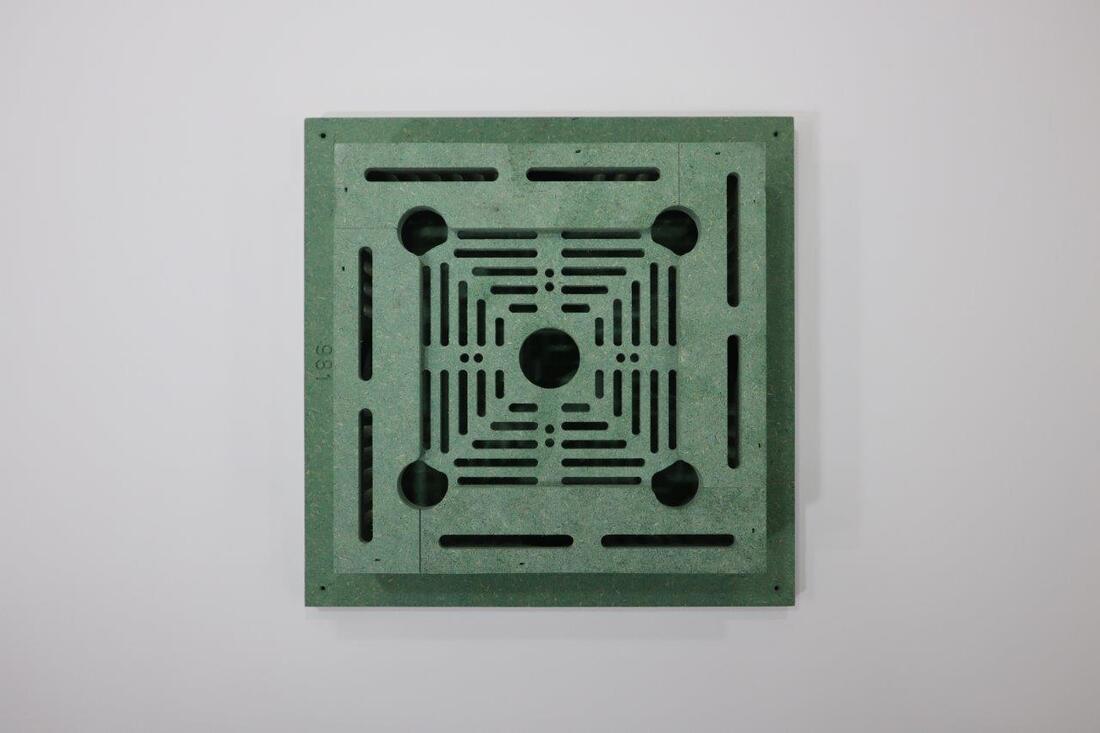

Key features include a paintable moisture-resistant MDF construction, a removable device adapter and cover, and support for conduit connector installation. The unit permits easy insertion and removal of the device for maintenance or upgrades. Its flush design preserves a clean aesthetic and minimizes protrusion from the wall surface.
Technical specifications include a wall adapter outer dimension of 266.7mm x 266.7mm x 61.8mm and a kit weight of 0.884kg. The internal device bay supports devices up to 171x171x44mm. Materials are moisture-resistant MDF compliant with TSCA Title VI.
Compatibility and connectivity are straightforward – the adapter is designed for installation in 1/2in drywall and allows the use of 1/2in conduit connectors. It accommodates common low-voltage device sizes used in AV and control installations. The adapter is intended for devices only and does not include the mounted device or conduit connectors.
Typical applications include in-wall mounting of control panels, small media players, touch controllers, and niche AV devices where a paint-matched finish is desired. Architects and installers use the adapter to achieve a finished look while retaining service access. It is suitable for residential and commercial interiors where concealed mounting is required.
Installation follows standard drywall procedures and is straightforward for qualified trades or AV installers – refer to the Wall-Smart installation guide. The adapter is supplied unpainted to be finished as part of the wall surface after installation. The moisture-resistant MDF construction provides a stable substrate for paint and wall texture finishes.
