Wall-Smart 083-1-982 Nearly Flush In-Wall Adapter / Magnetic Cover / Holds Devices up to 174x174x44mm

Description

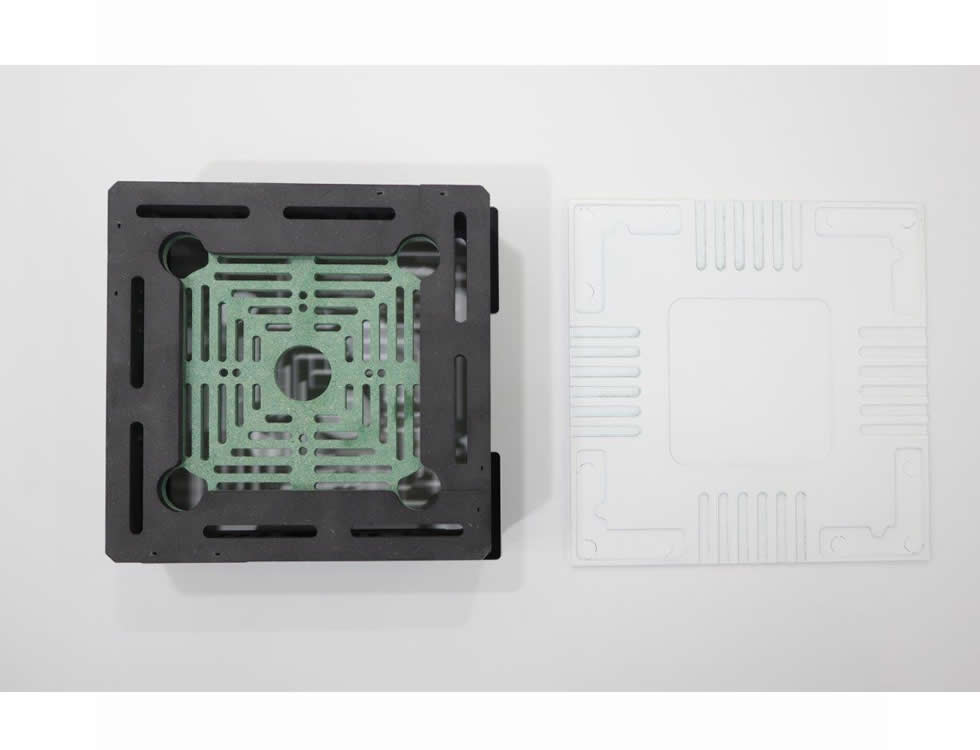

The WS RETROFIT Uni-INwall XS is an in-wall retrofit adapter designed to create a nearly flush installation for compact AV devices. It secures devices while preserving a low-profile aesthetic that minimizes protrusion from the wall. This adapter is intended to integrate small control modules or electronics into finished walls with a discreet appearance.

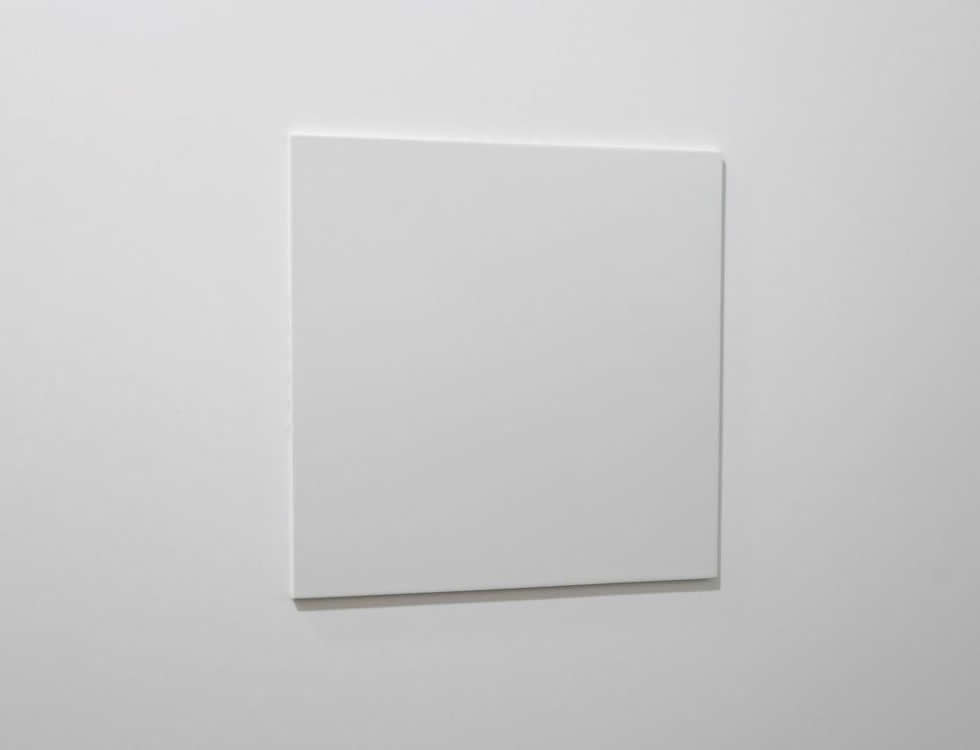

Key features include a 4mm nearly flush on-wall cover and a magnetic cover attachment that enables fast removal and reinstallation. The cover is supplied painted white and incorporates hidden ventilation grilles to support passive airflow. The design allows easy insertion and removal of devices while maintaining a firm mounting solution.

Technically the adapter supports device boards with a thickness range of 10mm to 19mm and is dimensioned for devices up to 174x174x44mm. The retrofit assembly measures 222mm x 222mm x 60.6mm and weighs 0.615Kg. These parameters ensure compatibility with common small-format AV modules and control devices used in professional installations.

Connectivity considerations include inner side walls that permit installation of a 1/2″ conduit connection for cable routing and service access. The unit is suitable for mounting electronics that require rear or side cabling while keeping the user-accessible face nearly flush to the wall. The magnetic cover and hidden ventilation allow discrete wiring and thermal relief without exposing connectors.

This retrofit adapter is appropriate for conference rooms, control cabinets, wall-mounted kiosks, and residential AV installations where a minimal profile is required. It is well suited for installers who need to integrate small controllers, interface panels, or compact power supplies into finished walls. The product supports tidy cable management and accessible device servicing while maintaining a clean visual result.

Installation is straightforward and designed for professional installers and experienced technicians – the magnetic cover removes without tools and the internal adapters enable secure device mounting. The painted finish and concealed ventilation are intended to reduce on-site finishing work and provide a consistent aesthetic. The sturdy construction balances easy service access with a secure hold for mounted electronics.
