Wall-Smart 002-1-371-WG iPad Pro 12.9 5th/6th / iPad Air 13 M2 Flush In-Wall Mount POE to USB

Description

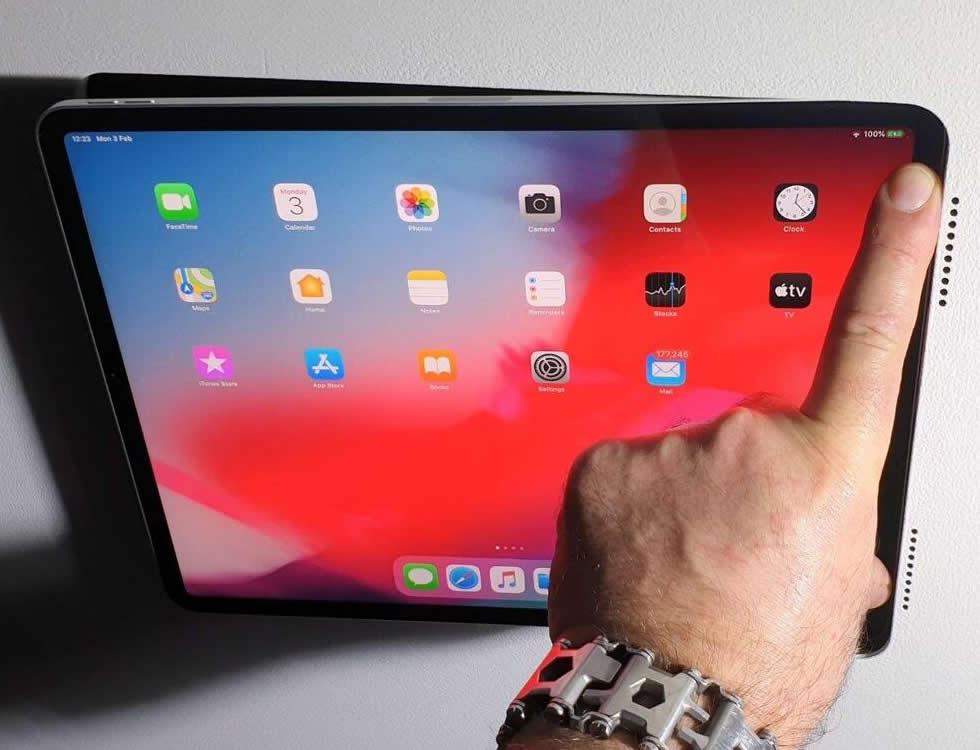

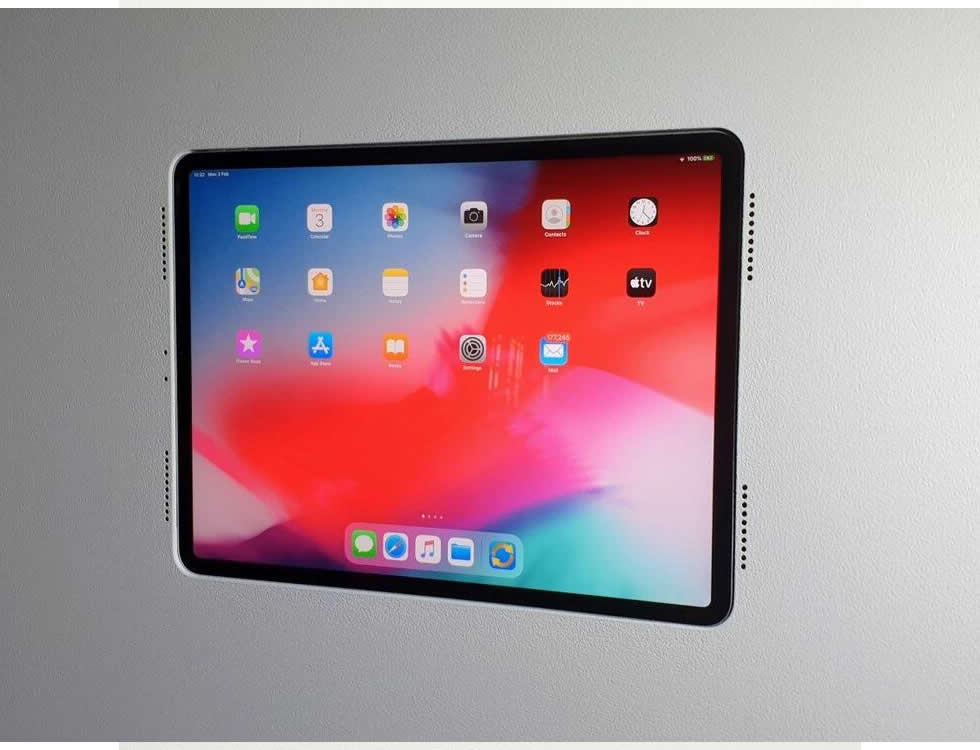

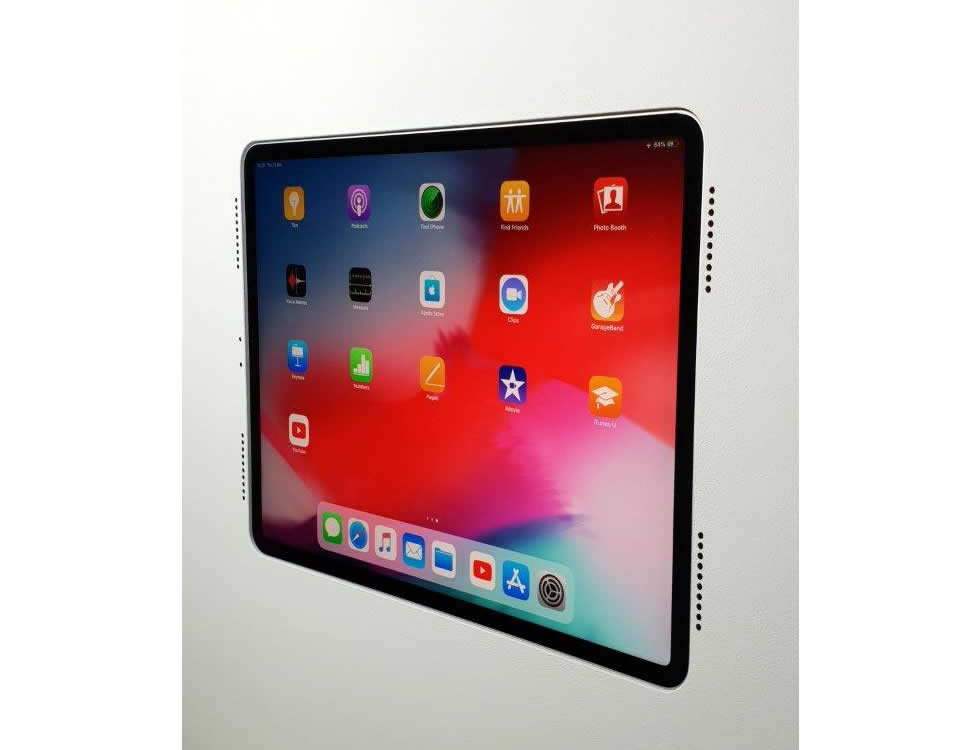

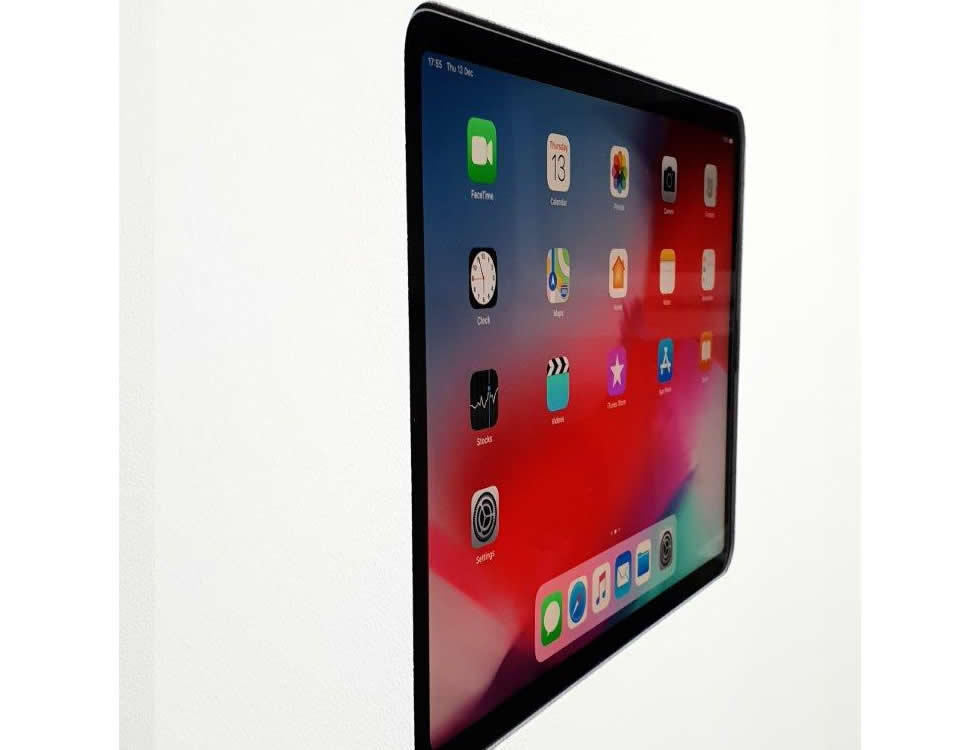

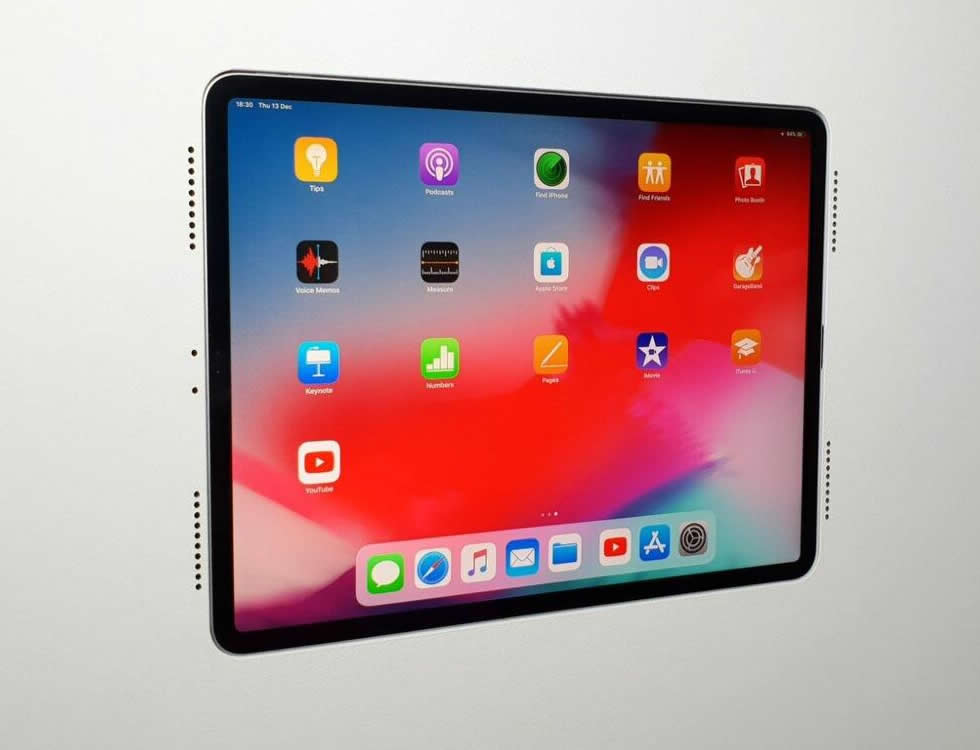

The Wall-Smart in-wall adapter provides a flush, recessed mounting solution for Apple iPad Pro 12.9 (5th and 6th generation) and iPad Air 13 M2. This adapter secures the tablet into the wall while maintaining full access to the touchscreen and ports. It is designed to integrate with standard drywall construction for a low-profile install and clean aesthetic.

Key features include a recessed depth of 1.4mm to achieve a near-flush finish and an adjustable depth calibration mechanism for precise alignment. The mount contains integrated audio grills to preserve speaker output and is supplied unpainted to be finished as part of the wall surface. The unit accepts the tablet easily and allows convenient insertion and removal for maintenance or replacement.

Technical specifications cover physical dimensions of 405mm width by 304.8mm height by 38.8mm depth and a nominal weight of 1.7kg. The adapter is manufactured from moisture resistant MDF compliant with TSCA Title VI and is intended for installation in 1/2″ drywall. A POE to USB power converter is included and the installer must provide IEEE 802.3at POE+ via CAT5/6 RJ45 delivering up to 25.5W.

Connectivity and compatibility are focused on power delivery and charging. The wall mount includes a POE to USB converter for device charging over Ethernet cable infrastructure. Standard mounts supply charging only; if full Ethernet connectivity is required, an alternative SKU 002-1-371E-WG is available. For concrete or block installation use the optional CONCRETE BOX 406X306 P/N 100-1-683 and follow manufacturer installation instructions.

Typical use cases include built-in control panels in conference rooms, education environments, residential smart-home installations, and fixed kiosk deployments where a clean flush appearance is required. The recessed profile and paintable surface allow the adapter to blend into interior finishes while preserving tablet functionality. The audio grills maintain sound performance for interactive applications.

Installation is straightforward for technicians familiar with drywall procedures and requires standard tools and materials. The adapter ships unpainted and should be painted after installation to match the surrounding wall finish. For 5/8″ drywall installs use a 1/8″ shim pack P/N 10-01-067. Overall, the adapter balances aesthetic integration with practical installation features to simplify deployments.
