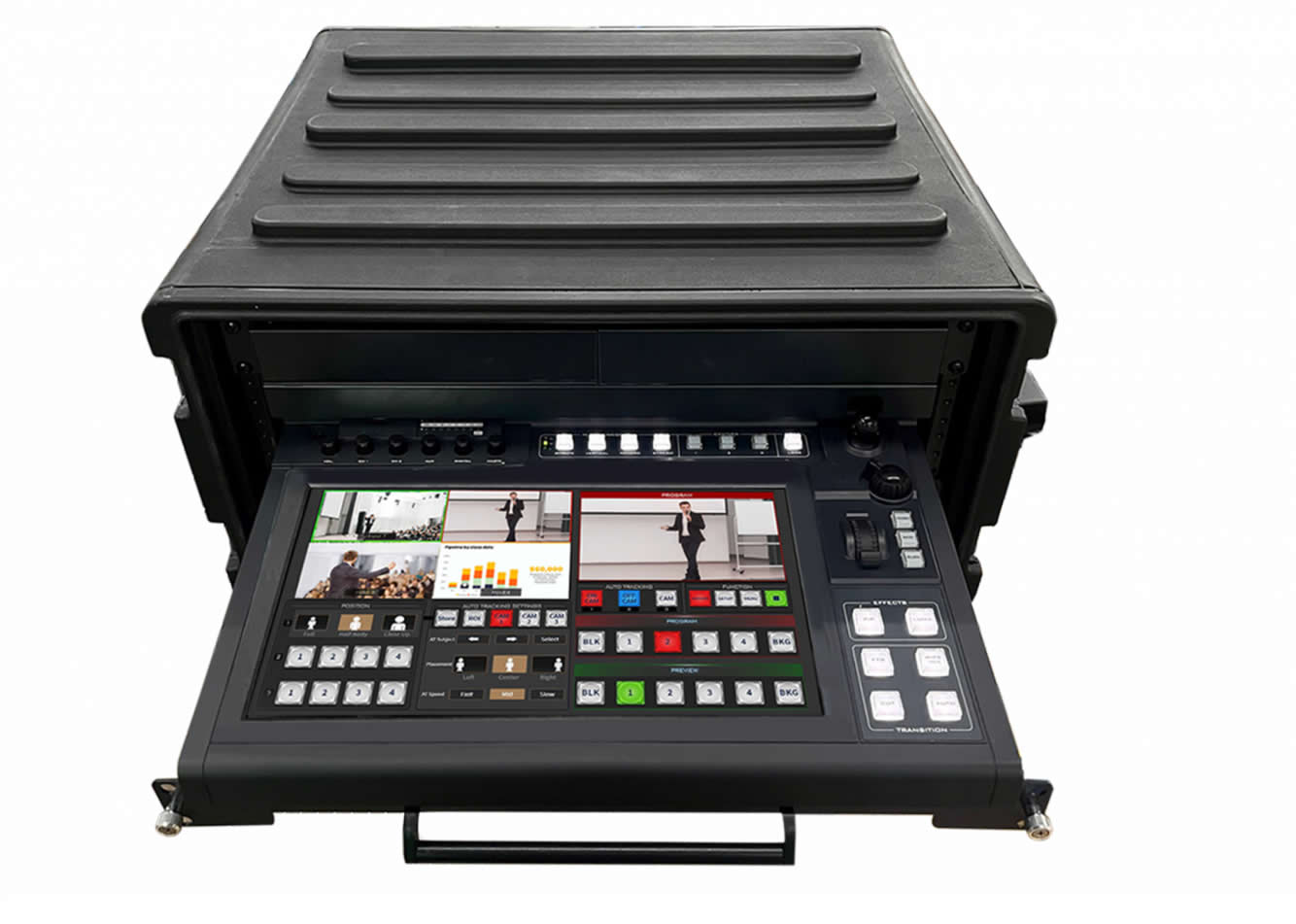

Datavideo GO-SHOWCAST-100-LT HDBaseT 4K 4-Channel Production Studio / Auto-Tracking / 14 inch Touchscreen

Description

The GO-SHOWCAST LT is an all-in-one 4K production studio that integrates HDBaseT connectivity and built-in AI-assisted auto-tracking into a single 14 inch touchscreen console. It is designed to consolidate switching, camera control, streaming and recording functions into one portable unit. The system targets single-operator workflows that require fast setup and reliable live production capabilities.

Key features include multi-input video switching, text and graphics overlay, live streaming, recording and integrated audio mixing. The unit provides on-screen controls for selecting subjects, adjusting zoom and framing, and tuning tracking speed directly from the touchscreen. These capabilities allow operators to produce polished multi-camera programs without external controllers.

Performance supports Ultra HD 4K at 50/60fps and camera control for up to three PTZ cameras. Video connectivity includes three RJ-45 inputs and one HDMI input, with three HDMI outputs and one HDBaseT output. The system can power PTZ cameras via PoE and transmit Ultra HD 4K50/60 signals and control data over a single CAT cable for runs up to 100 meters.

Connectivity is simplified by HDBaseT technology and the included HBT-30 3-channel HDBaseT receiver, which provides power and camera control over Ethernet cabling. Remote camera control is available via RS-422 or DVIP protocols and can be managed from the touchscreen interface. The Studio integrates with standard HDMI workflows while reducing cable clutter and deployment time.

Typical applications include stage productions, lecture capture, corporate events, and houses of worship where a compact single-operator solution is required. The system supports live streaming and recording while providing on-screen graphics and text overlay for program branding and captioning. Outdoor and on-location shoots benefit from the briefcase-style portability and simplified cabling.

Setup and operation emphasize portability and ease of use – the briefcase design makes transport straightforward and the 14 inch touchscreen centralizes control. The unit’s interface is built for rapid configuration of tracking parameters and camera framing during rehearsals and live events. Built-in routing, recording and streaming reduce the need for additional hardware and speed deployment.
