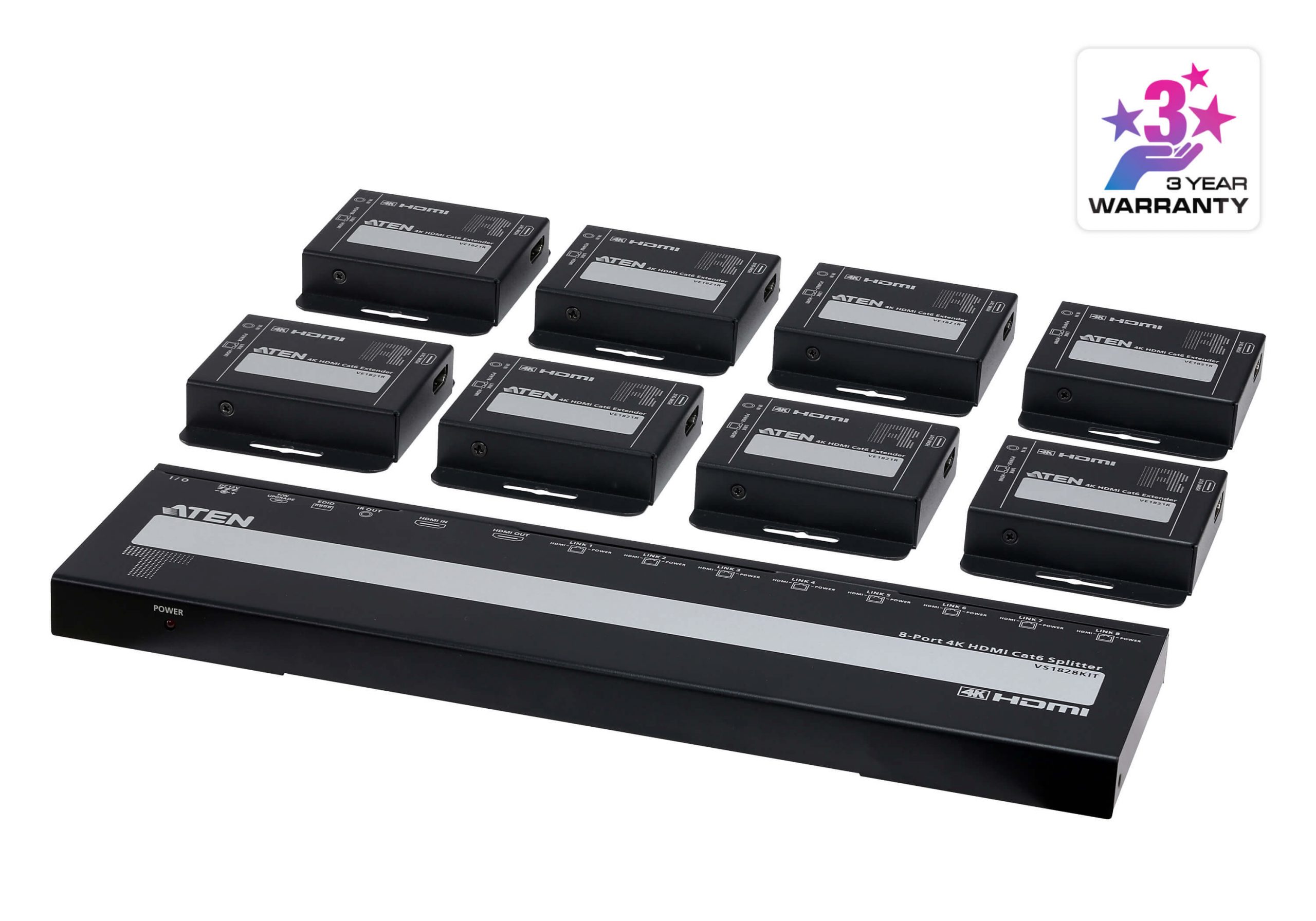

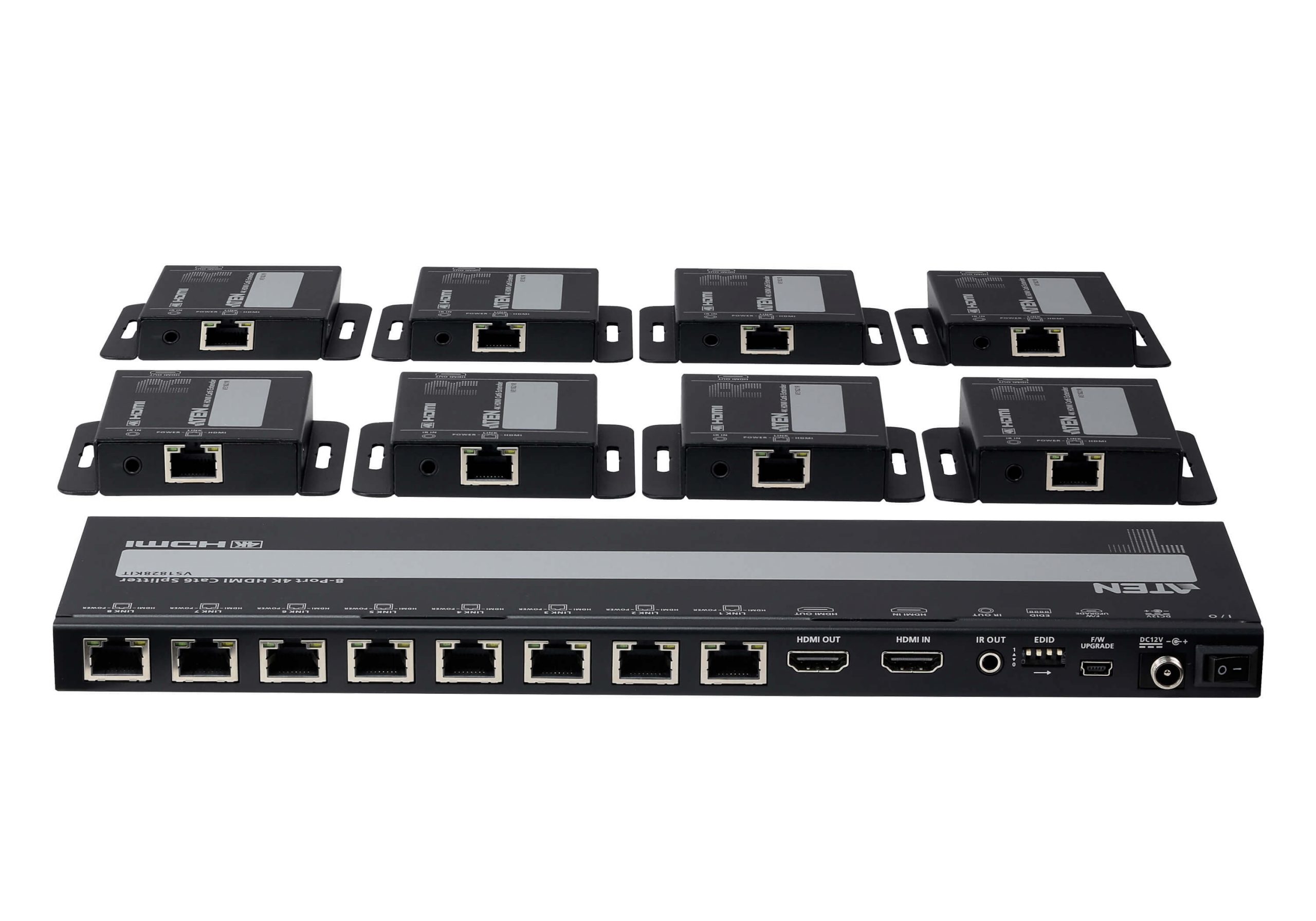

Aten VS1828KIT 8-Port 4K HDMI Cat 6 Splitter with Receivers

Description

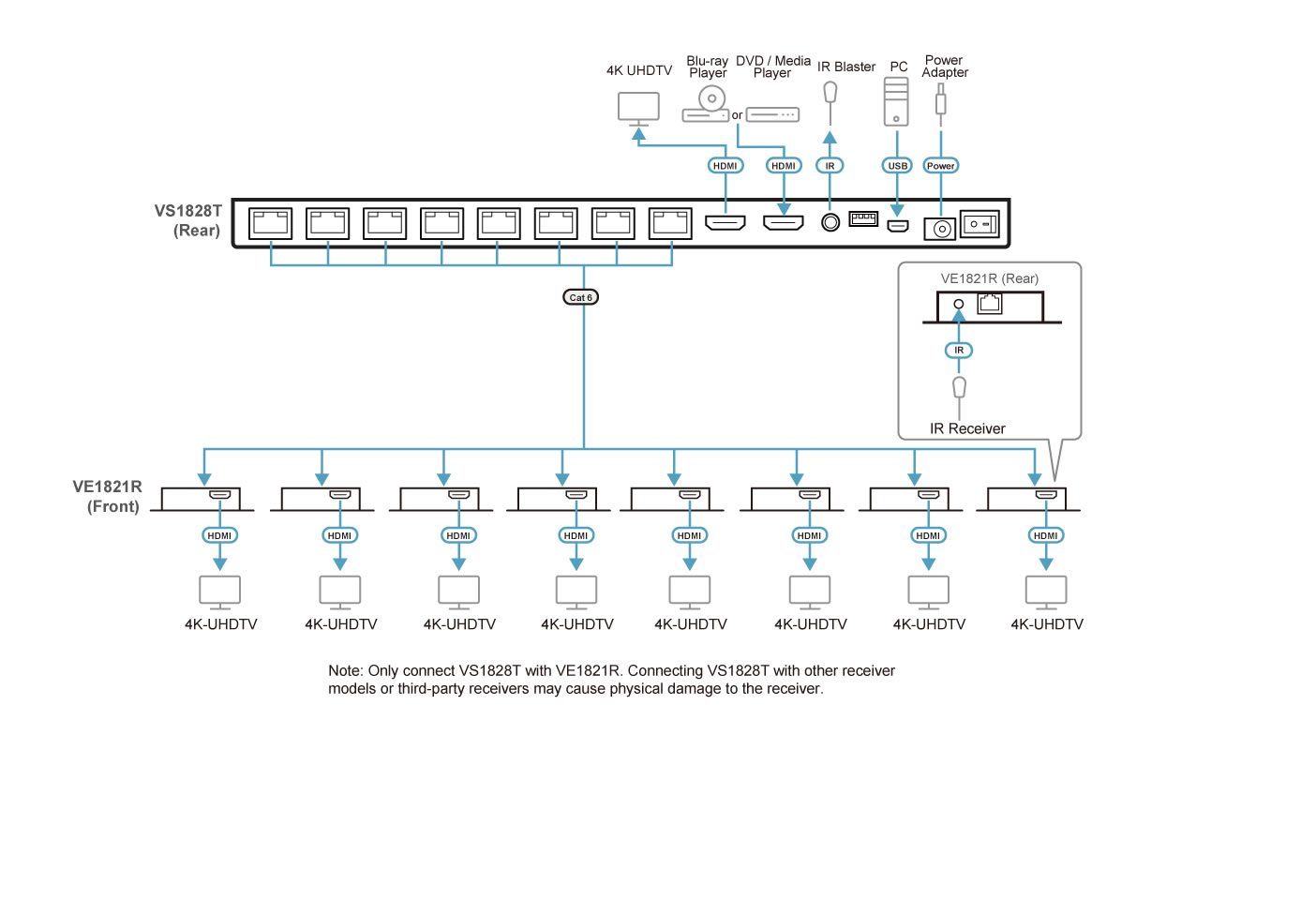

The VS1828KIT is a kit that includes 1 splitter and 8 receivers, distributing an HDMI source at up to 4K @ 30 Hz (4:4:4) to 8 displays up to 40m away via a single Cat 6 cable. The system also supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio. Only one power adapter for the splitter is needed as a result of the receivers being powered by the splitter thanks to the Power over Cable (PoC) functionality, which also helps avoid cluttered cable installation. An HDMI local output port is built on the splitter for content monitoring or cascading purposes. Moreover, the splitter contains a user-adjustable EDID switch, enabling users to configure the output video resolutions and audio capabilities for seamless integration across the system. The receiver’s ultra lightweight, palm-sized enclosure ensures flexible installation including mounting and placement in tight spaces.

The kit comes with 1 IR blaster cable for the splitter and 8 IR receiver cables for receivers, allowing users to remotely control the source device from the receiver side. With plug-and-play operation, no software is required, enabling easy, immediate installation. The VS1828KIT delivers excellent AV transmission quality and installation flexibility within different installation scenarios, from meeting facilities, retail settings, showrooms, entertainment systems, and more.

Features

• A kit that includes 1 splitter and 8 receivers to distribute 1 HDMI source to 8 displays up to 40 m away via a single Cat 6 cable
• Supports up to 4K @ 30 Hz (4:4:4) for crystal-clear video presentation
• Supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
• HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
• Power over Cable (PoC) functionality from splitter to receivers to reduce cable clutter

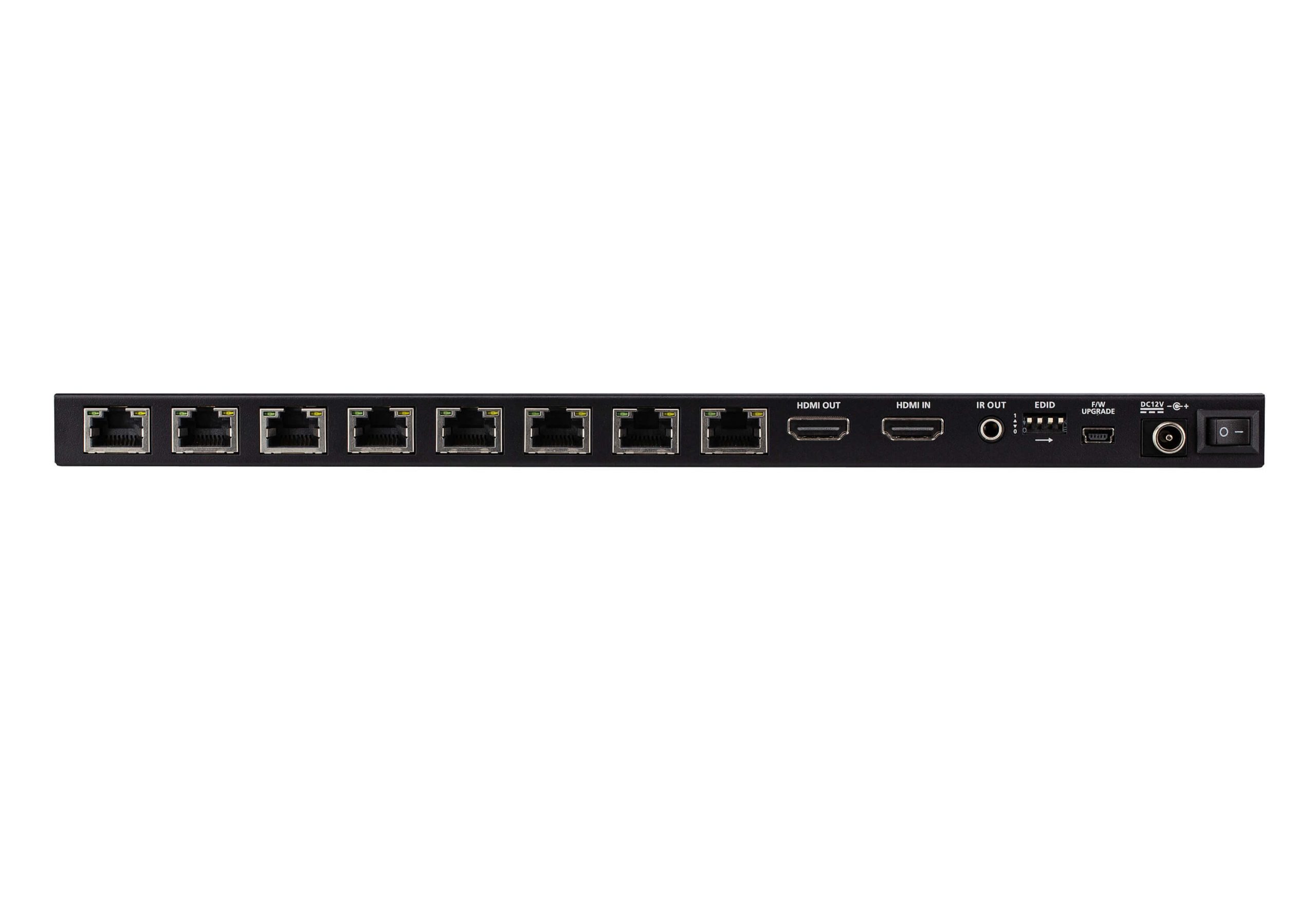

• HDMI local output port on the splitter for content monitoring or cascading purposes
• User-adjustable EDID switch on the splitter for configuring output video resolution and audio capabilities

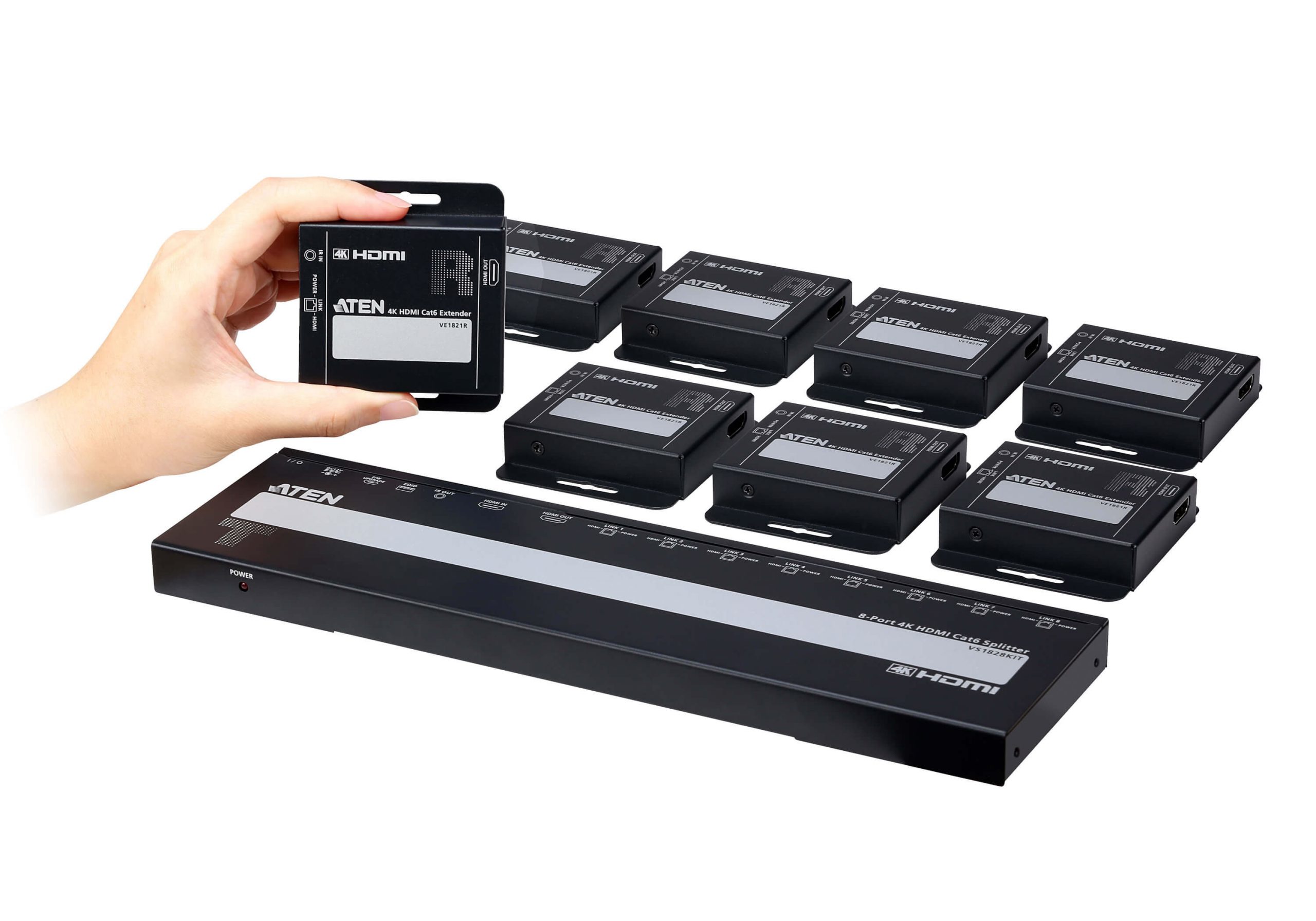

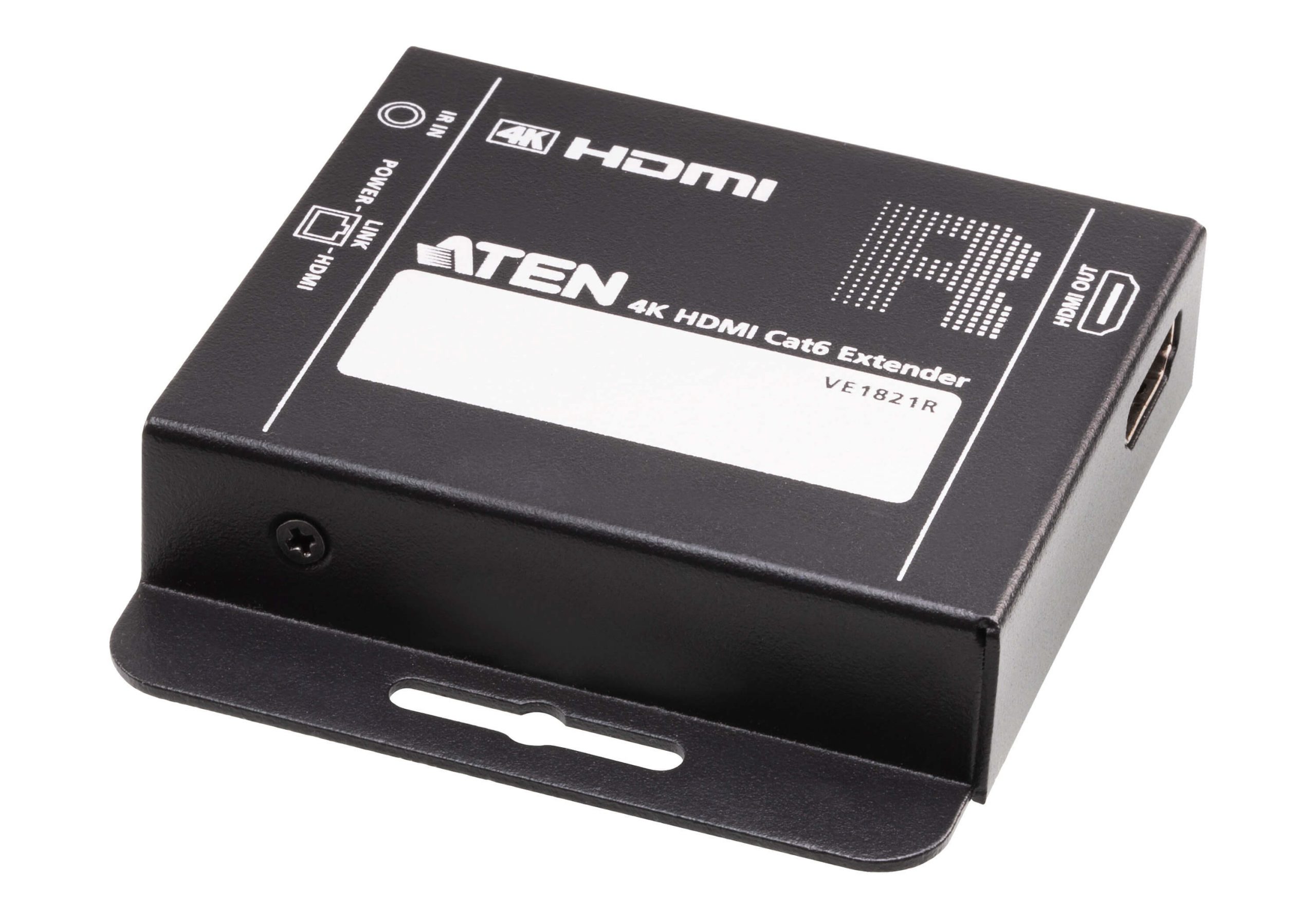

• VE1821R’s ultra-lightweight, palm-sized design enables flexible installation, including mounting and placement in tight spaces
• One-way IR channel allows remote control of the source device from the receiver side
• Built-in 4KV / 8KV ESD protection
• Plug-and-play design — no additional software required
