Aten KN2116VB 1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch

Description

The KN series KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app – PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user’s iPad. Please visit the PadClient webpage for more information.

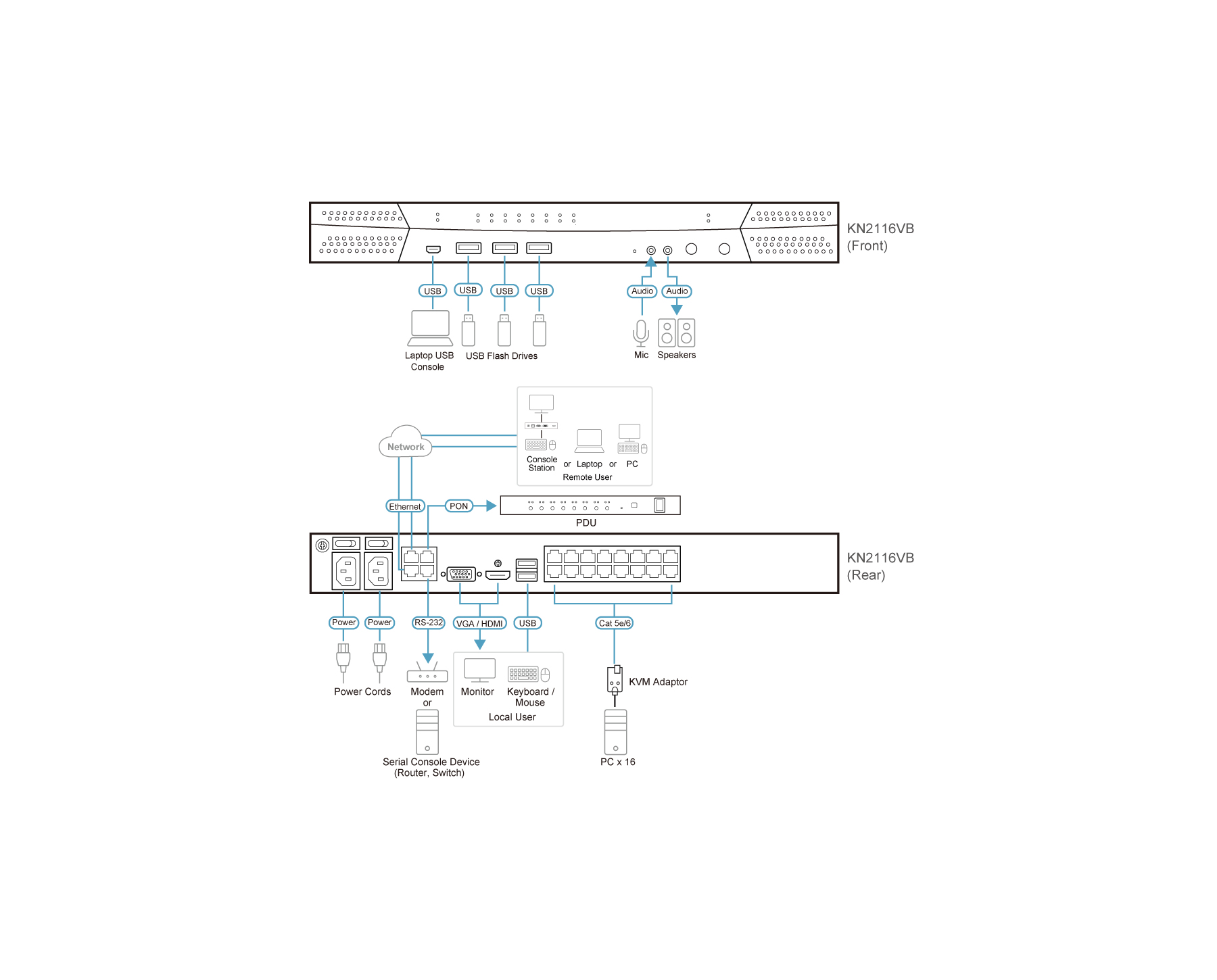

This KVM switch provides out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. It enables IT administrators to manage network devices (e.g. server, storage, router, and switch) in server rooms via management networks that are separate from the main / production networks. If there’s difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.

The KN series can be integrated into ATEN’s CC2000 Centralized Management Software. The CC2000 delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.

The KN series is compatible with ATEN’s KVM over IP Console Station – the KA82 series. The KA82 series is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KN series with impenetrable security against virus threats. It is especially suitable for environments where a PC is not allowed. In addition, the KN series works with ATEN’s PDU remote power management systems from the KVM over IP switches’ user interface.

Additional exclusive features of KN series include Message Board, Panel Array Mode, Mouse DynaSync™, and the adapter ID. ATEN KVM over IP switches save user’s time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services.

Note: We recommend using WinClient app or JavaClient app for more robust management and control. Performance and usage may vary depending on the user’s hardware configuration. A minimum of 8GB RAM, dual core CPU and a graphics card that supports OpenGL is required. Please also make sure that the browser is the latest version.

Features

Hardware

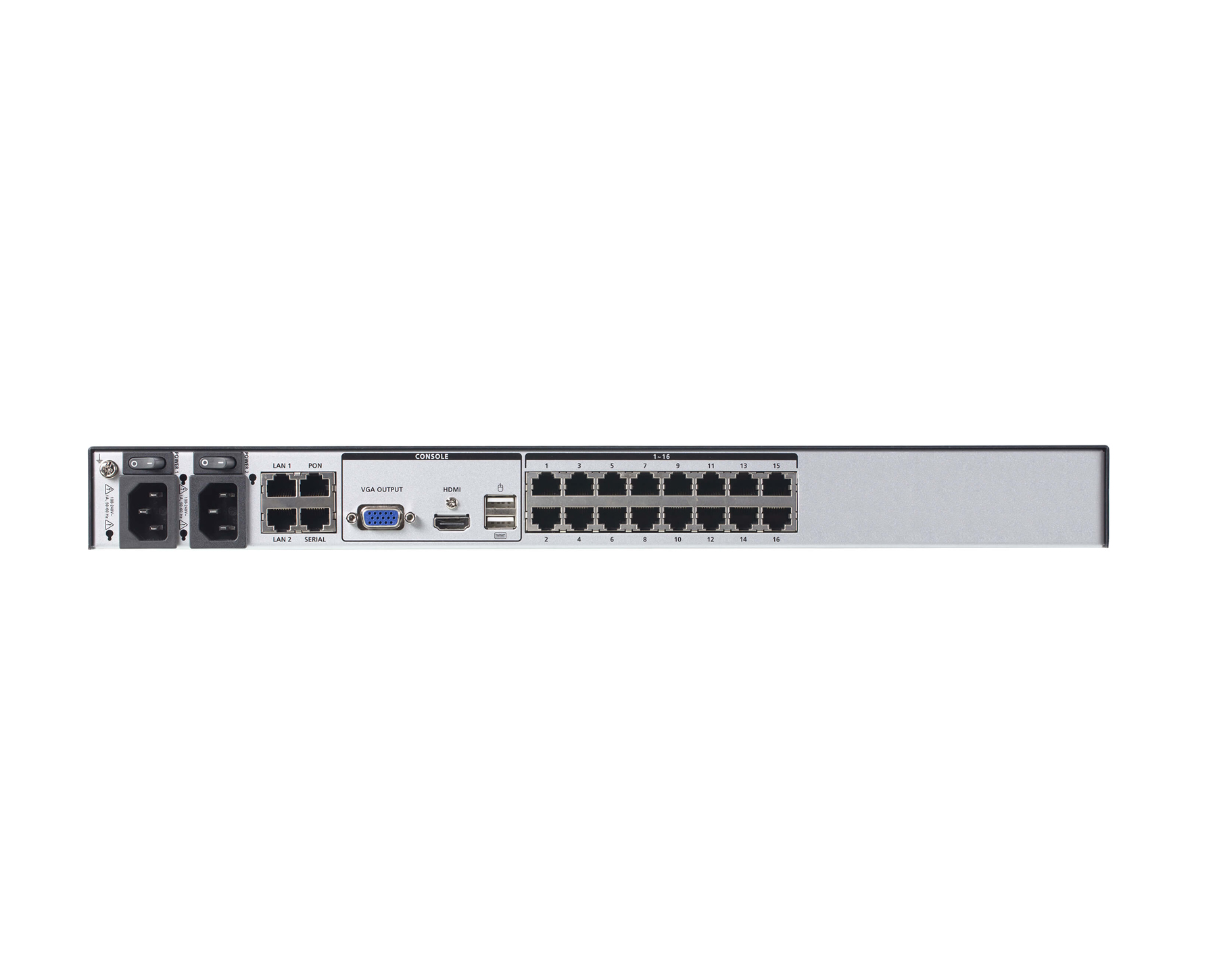

• High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing

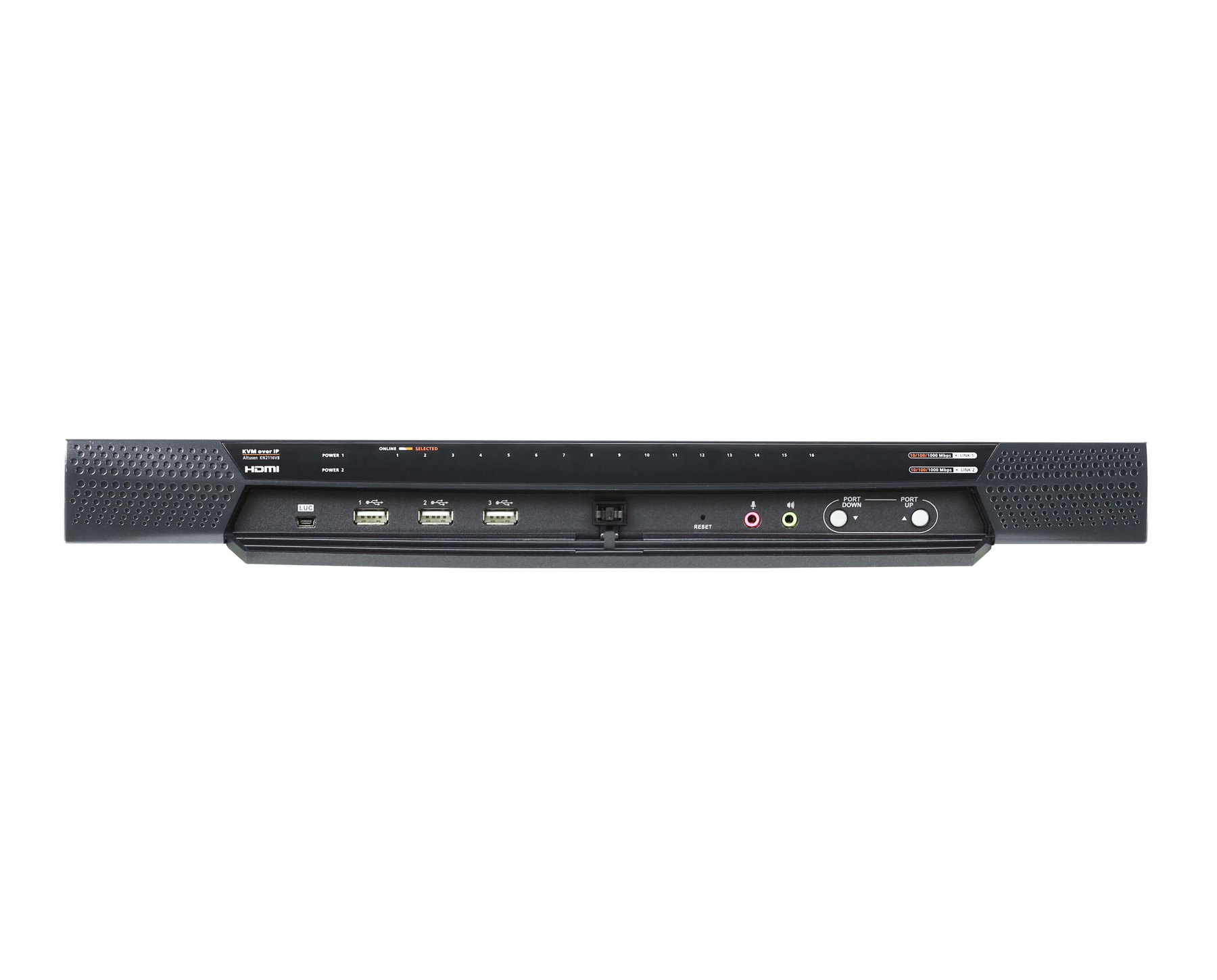

• Laptop USB Console (LUC) – dedicated USB port for direct laptop console access
• 2 separate buses for remote KVM over IP access (varies by model)
• Two 10 / 100 / 1000 Mbps NICs for redundant LAN or dual IP operation
• Blade server support
• Supports PS/2, USB, Sun Legacy, and serial (RS-232) connectivity
• Multiplatform server environments: Windows, Mac, Sun, Linux, and VT100-based serial devices
• Audio enabled
• Dual power supply
• Superior video quality – up to 1920 x 1200 @ 60 Hz, 24-bit color depth, transmission distance up to 50 m
• Cascadable – controls up to 512 computers

Management

• Simultaneously share 1 local console and 2 independent remote connections
• End session feature – administrators can terminate active sessions
• Integrated with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
• Supports 64 user accounts with up to 32 concurrent logins
• Green IT Fan – automatic fan speed adjustment based on temperature
• Event logging with Windows-based log server support
• Event notification via SMTP email, SNMP Trap, and SMS (with additional mobile devices)
• Event destination – Log server, Syslog server, and USB drive
• Firmware upgradeable
• Out-of-band access – modem dial-in / dial-out / dial-back support
• Adapter ID – allows server relocation without reconfiguration
• Port share mode – enables multiple users to access the same server simultaneously
• Supports ATEN KVM over IP Console Station (KA82xx series)
• Power association with ATEN PDUs for remote power management
• Supports IPv4 and IPv6

Easy-to-Use Interface

• Supports PadClient application on iPad for mobile management
• Panel Array Mode™ – monitors all ports in a grid view (local and remote)
• Unified multi-language interface across local console, browser-based, and AP GUIs
• Multiplatform client support: Windows, Mac OS X, Linux, and Sun
• Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, and Netscape
• Browser-based GUI using pure web technology (no pre-installed software required)
• HTML5 WebClient viewer for plug-in-free KVM over IP access
• Multiple virtual remote desktop sessions per login
• Full-screen, resizable, and scalable virtual remote desktop
• Keyboard and mouse broadcast across multiple servers
• Video syncing with local console via stored EDID information

Security

• High-grade security with FIPS 140-2 Level 1 certified OpenSSL cryptographic module (Certificate 1747, 2398, 2473)
• Remote authentication via RADIUS, LDAP, LDAPS, and Microsoft Active Directory
• TLS 1.2 with 128-bit SSL, 256-bit AES encryption, and 2048-bit RSA certification
• IP and MAC address filtering
• Configurable user and group permissions
• Automated CSR creation utility and third-party CA certificate authentication

Virtual Media

• High-performance virtual media for file transfers, OS patching, installations, and diagnostics
• Works with USB-enabled servers at OS and BIOS levels
• Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives, and ISO images

Virtual Remote Desktop

• Message Board for communication among remote users
• Adjustable video quality settings for optimized bandwidth usage
• Mouse DynaSync™ – automatic local and remote mouse synchronization
• On-screen keyboard with multi-language support
• BIOS-level access for troubleshooting
