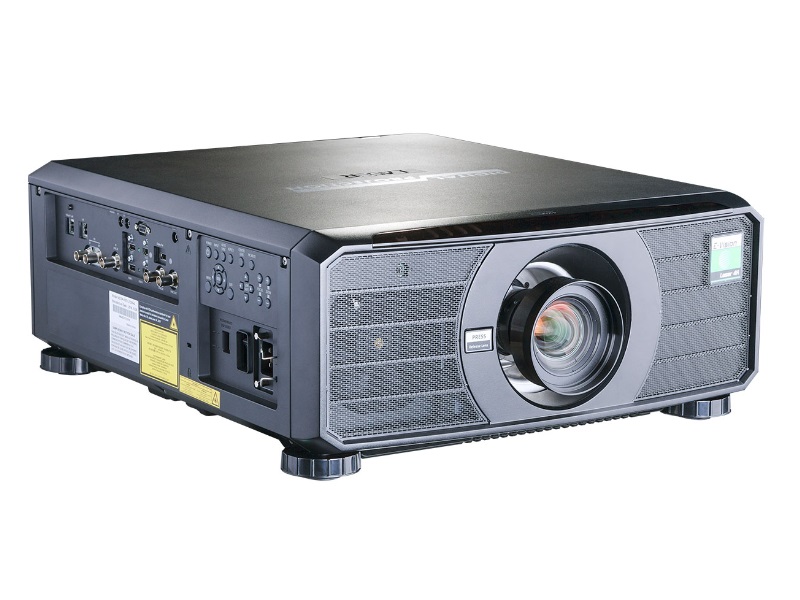

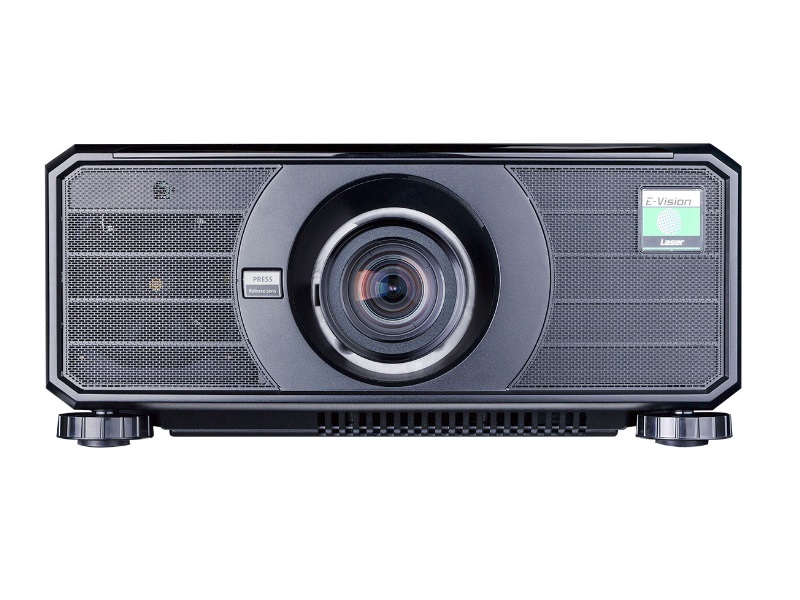

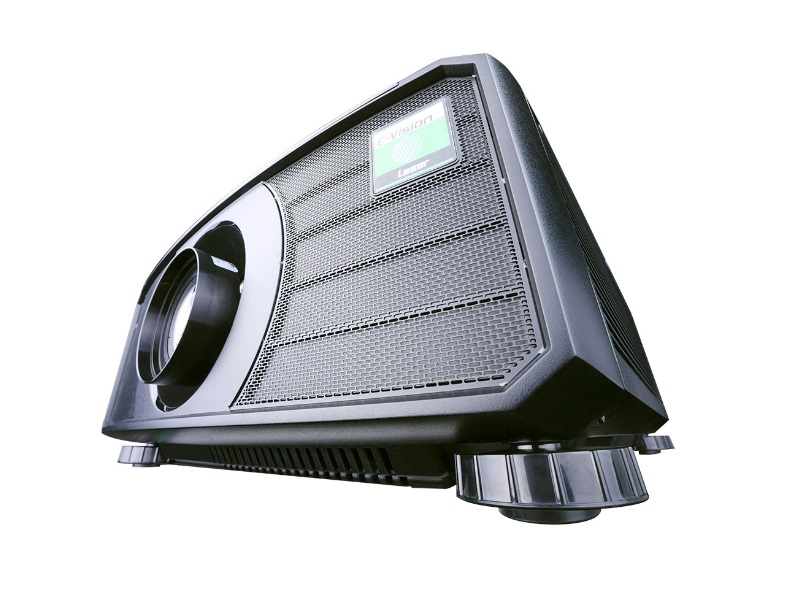

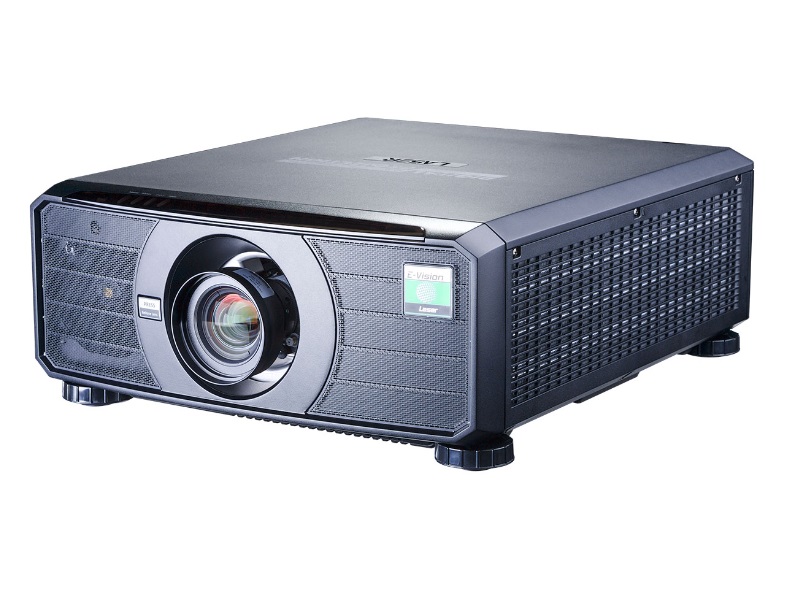

Digital Projection E-Vision LASER 4K HB 4K-UHD E-Vision Projector/WQXGA/7500 ISO Lumens/10000:1 Contrast Ratio

Description

The E-Vision Laser 4K-UHD delivers a stunning 7,500 lumens from a stable solid- state light source, capable of producing over 20,000 hours of illumination. The 4K UHD resolution delivers stunning detail and image subtlety that only 4K-UHD powered by Texas Instruments DLP chip can. This single chip projector was developed with Fit and Forget’ directive, ensuring it needs only minimal maintenance throughout the lifetime of the display.

Equally compelling is the lack of lamp replacements due to the solid state illumination system. By bypassing regular lamp replacement cycles, almost all costs related to the E-Vision Laser are incurred at time of purchase. This key characteristic allows the E-Vision Laser 4K-UHD to have a much lower cost of ownership over the lifespan of the display.

Combine the exceptional bright, long-life illumination source with a host of other precision features, and you have a projector solution that’s perfectly suited to a diverse range of professional venues. HDMI 2.0 comes as standard as well as HDMI 1.4b for when you need Frame Sequential and Dual Pipe 3D.

Note: Lenses, Lamps and Accessories are not included. Please contact us for options.

Features

Video & Graphics Processing

• Two projectors in one – 4K-UHD and WQXGA+.
• DisplayPort 1.2.
• 2 x HDMI 2.0.
• 2 x HDMI 1.4b for Dual Pipe processing and Frame Sequential 3D format.
• Sequential Processing: 3D via single HDMI 1.4b input.
• Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs.
• Synchronisation of active glasses.
• 3G-SDI with loop-through.
• DICOM simulation mode.

Geometry Correction

• Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.
• Non-linear warp.
• Digital zoom, pan and scan.
• Blanking control for custom input window sizing.
• Scaling available for fixed aspect ratio screens.
• Unscaled processing for pixel mapped display.

Edge Blending

• Blending control available for all sides with width control.
• Correction for non-active pixels at the edge of the display.

Picture in Picture

• Two sources can be displayed simultaneously using 2D inputs: either picture in picture (PIP), or side by side (PBP), with original aspect ratios maintained.

HDBaseT® Interface

• Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
• Allows projector to be placed up to 100m from source with low cost cabling.</ li>
• Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4</ li>

Colour Processing

• Four colour modes available.
• Powerful seven point colour correction for accurate colour matching with presets.
• Easy colour temperature selection.
• Manual seven point colour adjustment.
• Traditional lifts and gains.

Projector Controller Software

• Intuitive user interface for network control.
• Simultaneous control of user-defined groups of projectors.
• At-a-glance monitoring of projector status.

Projector Automation

• Real-time clock provides daily on/off automation.
• E-mail alerts for system status.
