Description
The DIDO X4 is the most advanced 4×4 scaler on the market. The input card slot provides 3 choices of cards depending on the application needs. These inputs can be routed to any of the four HDMI outputs with a quad scaler processor and advanced features. These features consist of contrast edge blending for side-by-side projectors, 1 degree image rotation for portrait and jigsaw puzzle mode videowalls, chroma keying for overlaying of sources on top of others, vector scope and pattern generation for signal integrity diagnosing, Seamless switching and windowing opens new possibilities and the bitmap OSD engine can enhance content on input and outputs. Another amazing feature is the built in USB 3.1 capture output for a PC making interfacing to Zoom Rooms, Teams, etc. even easier.
Control can be sent securely to the 1G Ethernet port. The RS-232 & IR ports allow for local device control of displays and other equipment.
Choice is important. That’s why the DIDO X4 is the ultimate Unified Communication product on the market today.
Features:
- Video Wall Capability, Image Rotation, Edge Blending, Chroma Keying
- Waveform Monitoring, Histogram, Vector scope Display & Built-in Pattern Generator
- Bitmap & Character Based OSD for Inputs and Output Channels
- Windowing/Multi-viewer
- Four HDMI Outputs with Independent Scaling
- Seamless Switching
- Audio DSP
- 10/100/1000Mbps LAN PoE+ (PD)

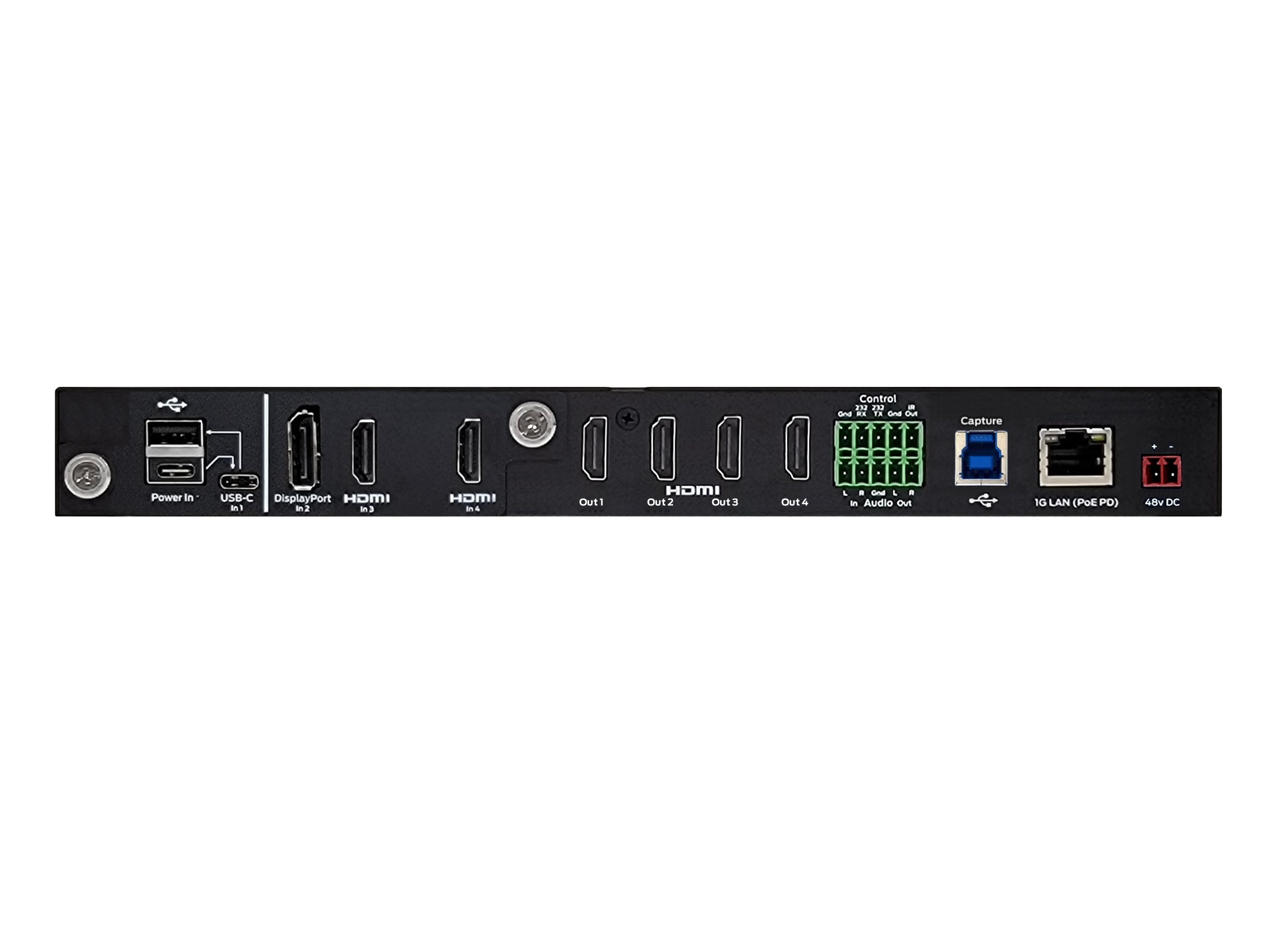

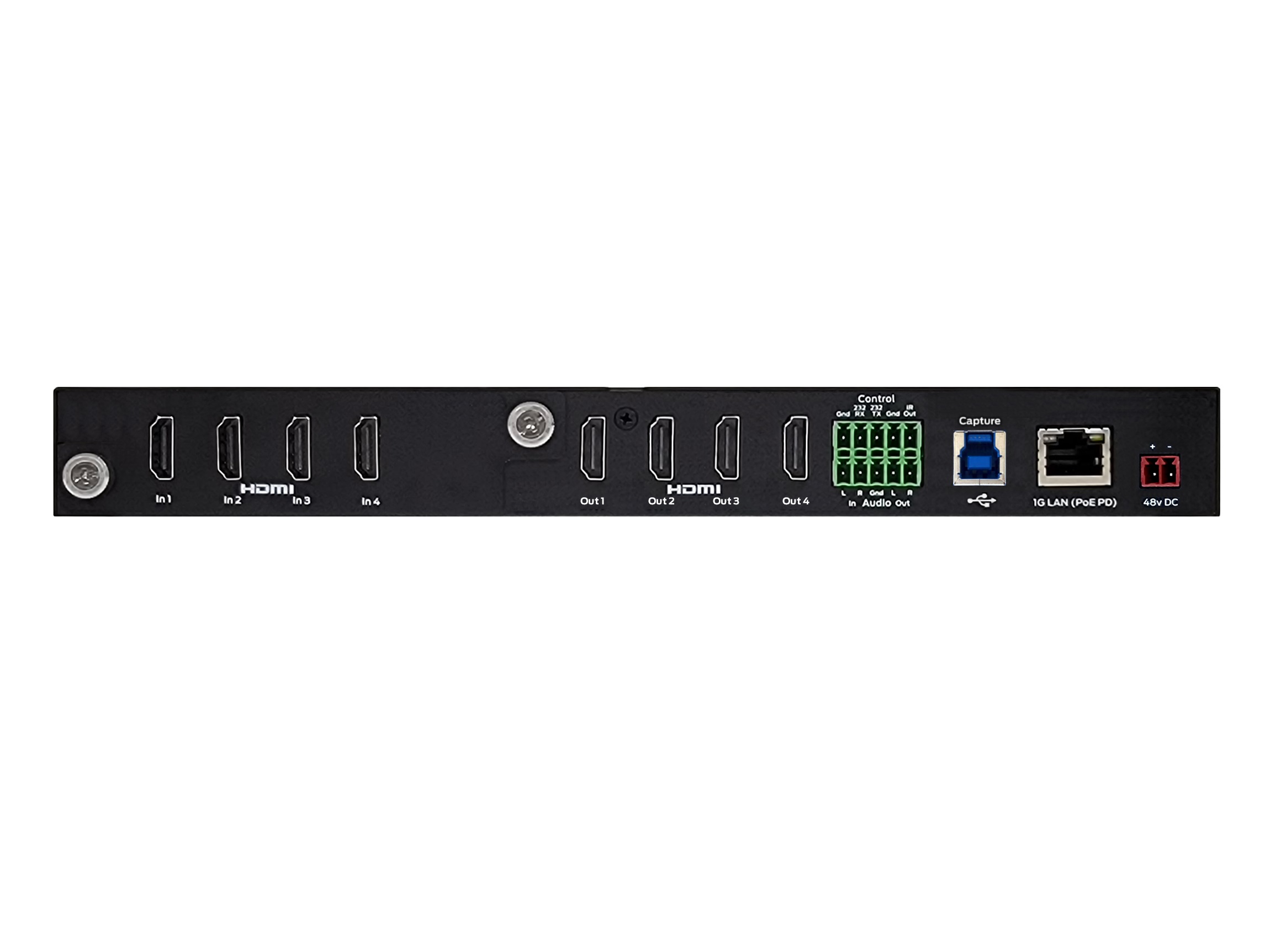

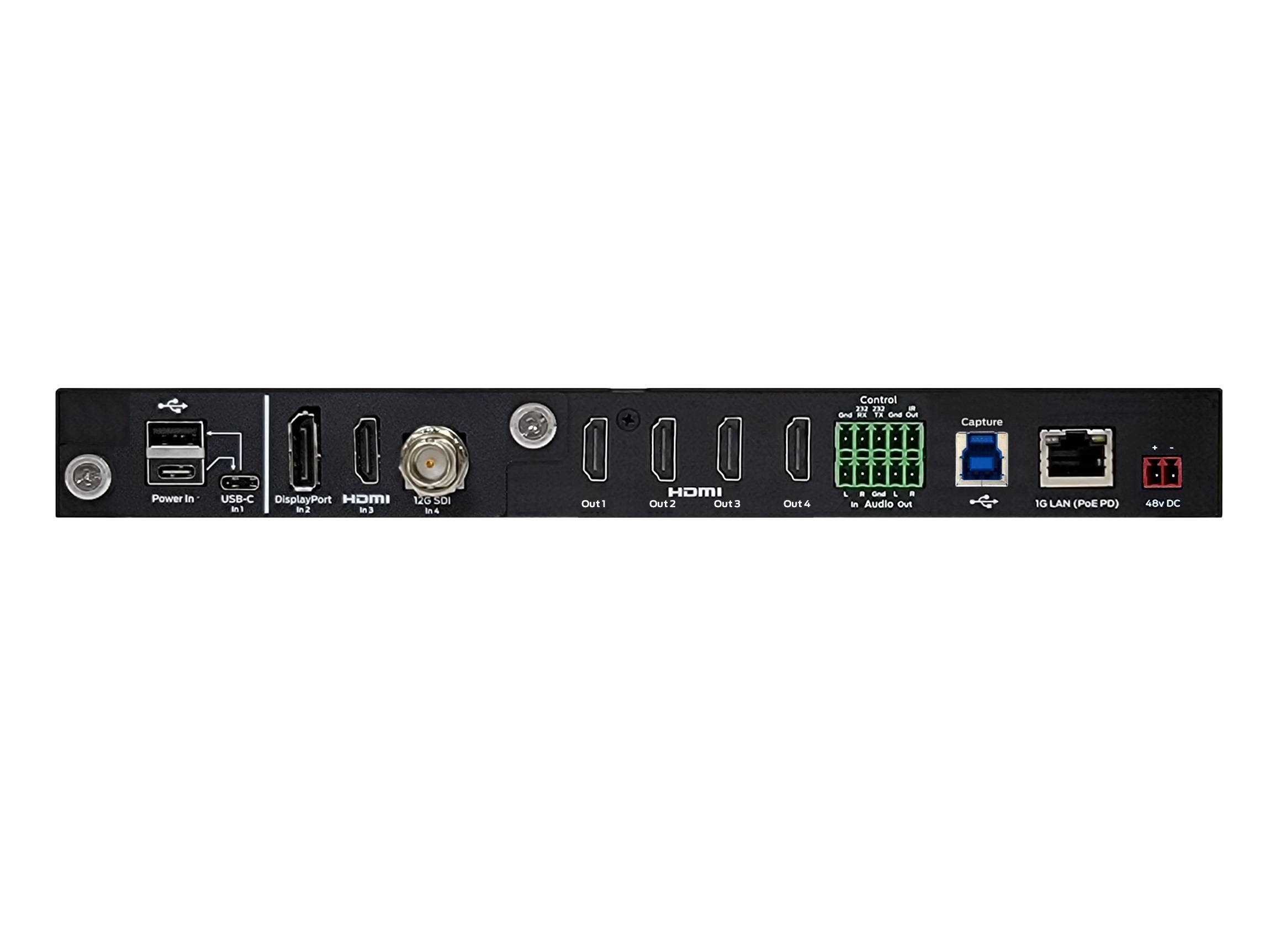

- Input Boards (4 HDMI, Multi-Input 1 USB Type-C, DisplayPort, 2 HDMI or 1 HDMI and 12G SDI)
- Line In/Out Stereo
- RS-232 Serial Port and IR (Bidirectional)
- Integrated Web Server for Custom Control Pages
- Dante®/AES67 IP 2Ch/8Ch Audio (Optional)
- ReAX IP Control Option

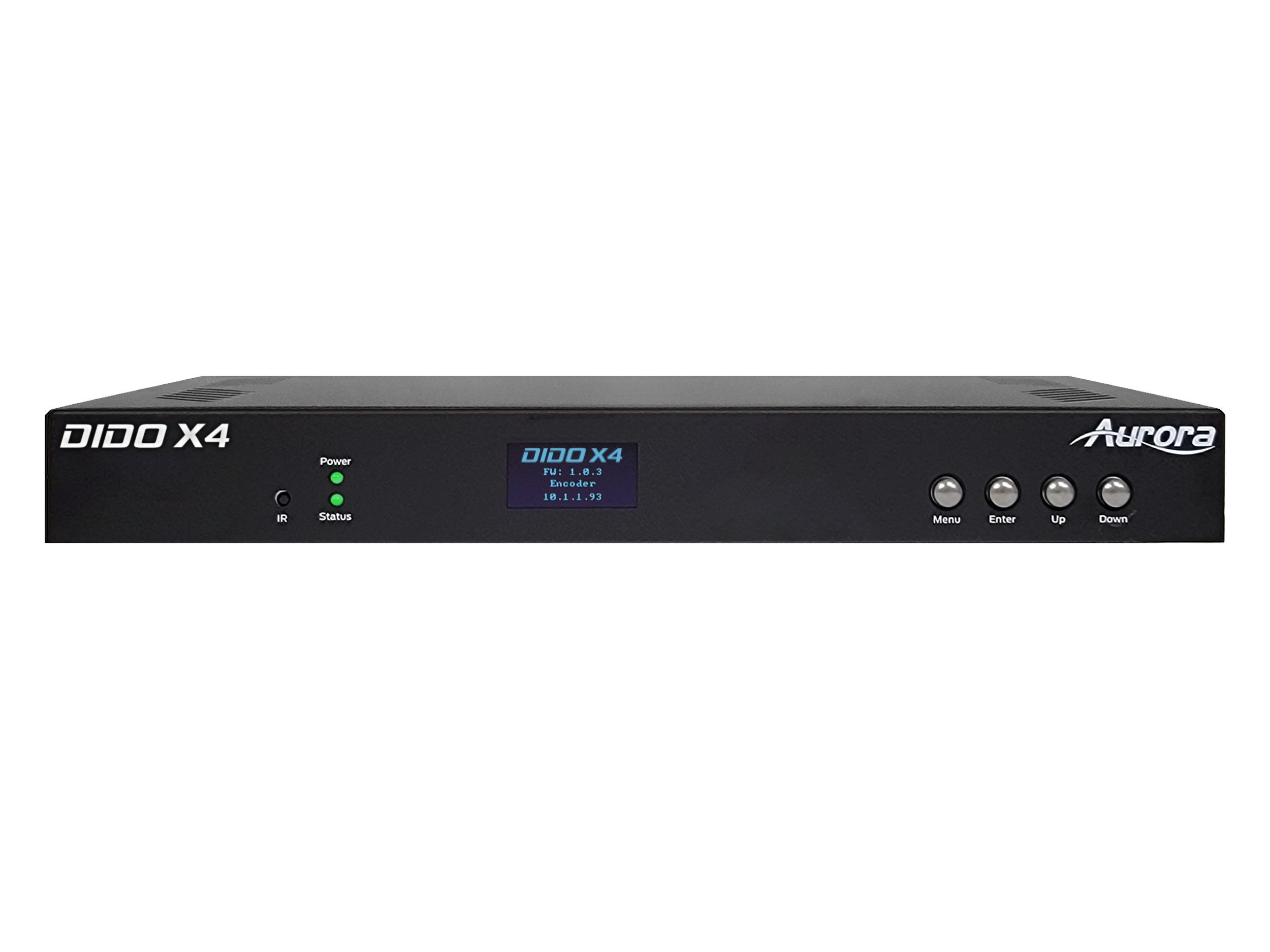

- Front Keypad with OLED Display
- Auto Sense Switching
- Rack and Under Table Mounting
