Aten VE814A-ATA 4K HDMI HDBaseT Extender with Dual Output (330′)

Description

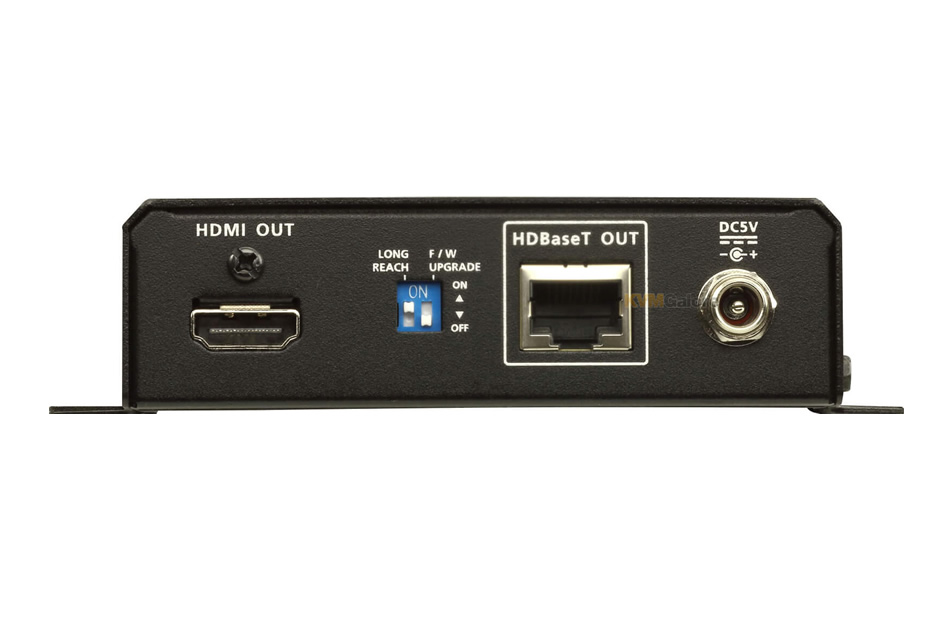

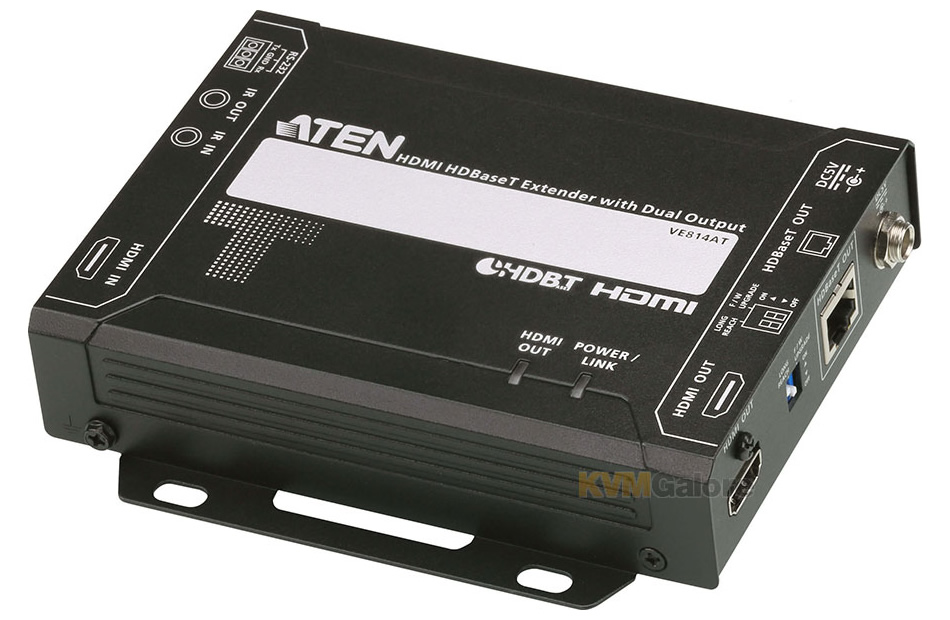

VE814A-ATA delivers high quality videos in dual displays over distance. With VE814A-ATA HDMI extender, your HDMI displays can be located up to 328 feet (100 m) away from the HDMI source device. This is made possible using only one CAT-5e/6 cable, which is cheap and easily available.

In addition, your video can be streamed using up to three HDMI displays – dual displays connected to the receiving unit (VE814AR-ATA) and another one to the transmitter unit (VE814AT-ATA).

ATEN VE814A-ATA is an HDBaseT video extender that is capable of sending HDMI signals up to 328 feet (100 m) over a single CAT-5e/6/6a or ATEN 2L-2910 CAT-6 cable. Featuring dual synchronous outputs, VE814A-ATA can transmit video signal to two remote displays and one at the local side.

This HDCP 2.2-compliant extender meets the HDMI specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 328 feet (100 m).

VE814A-ATA supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR-ATA) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends 1080p HDMI signals up to 492 feet (150 m) via a single CAT-5e/6 cable.

VE814A-ATA is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

Features

• Extends HDMI signals to one local and two remote displays up to 328 feet (100 m) over a single CAT-5e/6/6a or ATEN 2L-2910 CAT-6 cable
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
• Supports 4K transmission up to 328 feet (100 m)
• Supports 1080p transmission up to 492 feet (150 m) in HDBaseT Long Reach Mode
• Supports two IR channels for simultaneous IR signal transmission (30 kHz to 56 kHz)
• EDID support – when both transmitter and receiver are connected, VE814A-ATA adopts the EDID of the display connected to VE814AT-ATA for optimal output quality
• RS-232 channel supports connection to serial devices such as touch screens and barcode scanners
• Supports wide screen format
• Built-in 8 kV / 15 kV ESD protection
• Plug-and-play installation
• Rack-mountable design
